ABG 1570 – General Trading & Equipment Co.

10 hp

OUTPUT

Air cooling

COOLANT

2950 lb

Operating Weight

Request Price View Product Specifications

Product Overview

Compact Precision for Tight Spaces

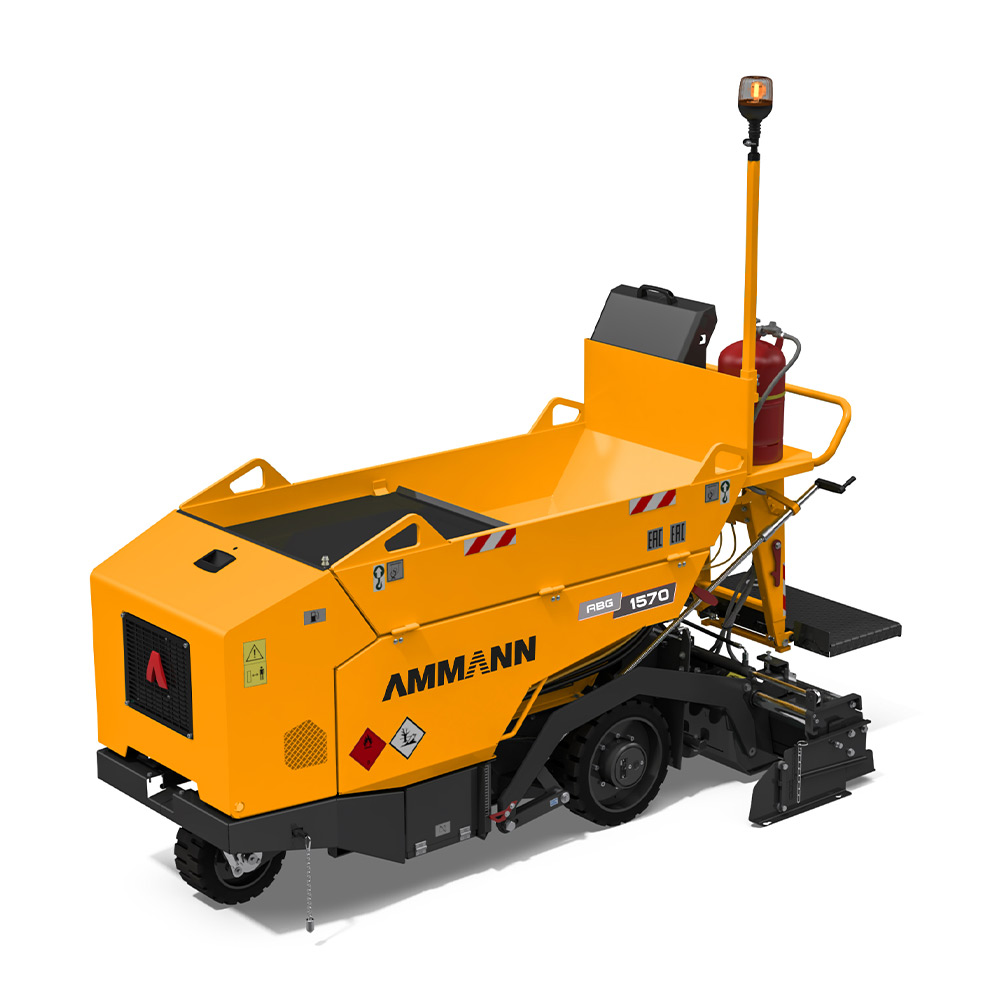

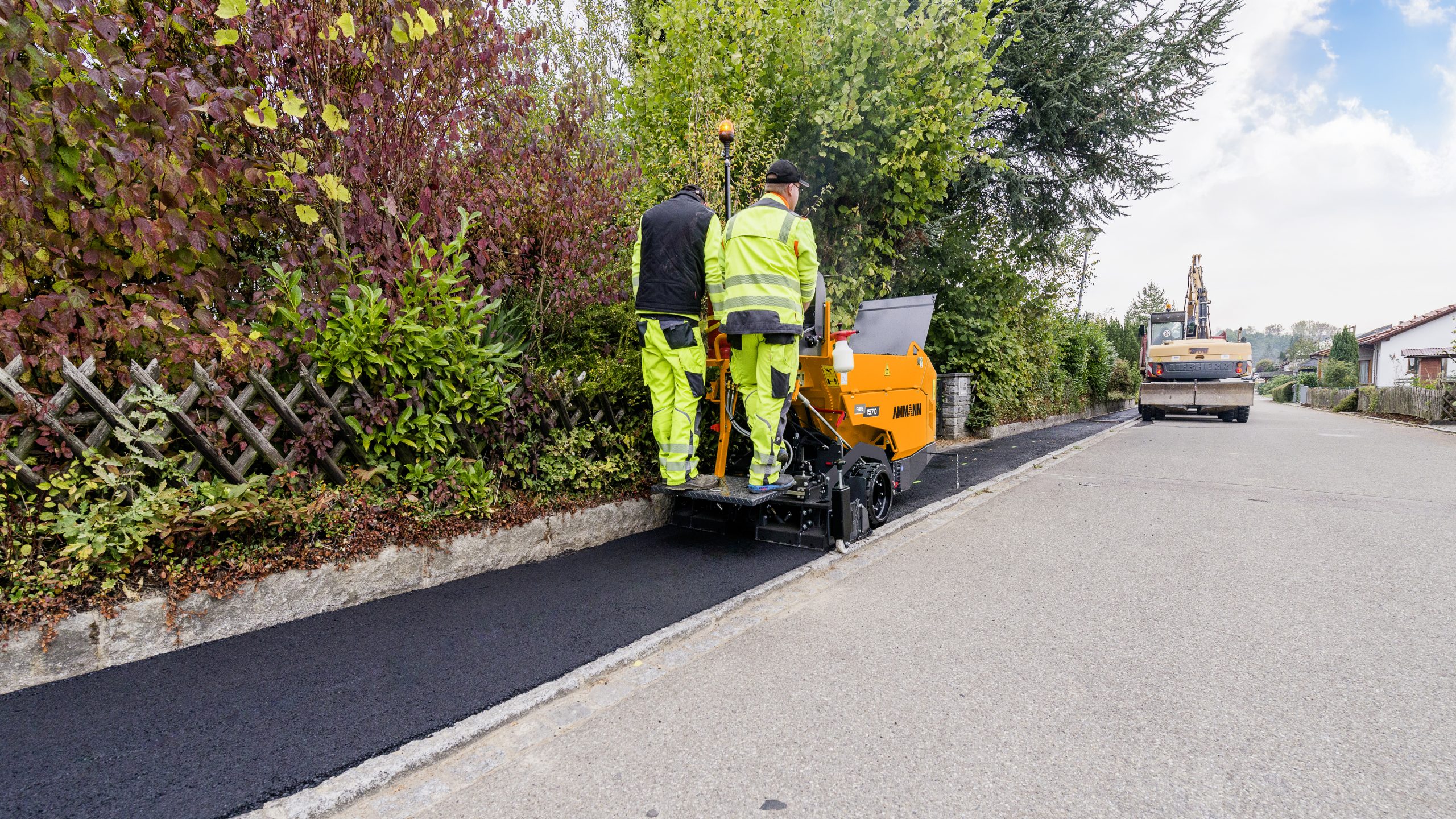

The Ammann ABG 1570 Mini-Paver excels in narrow environments, offering unmatched maneuverability and efficiency. Ideal for footpaths and cable installations, it ensures precise paving in confined areas.

– Narrow clearance width

– Ergonomic operator station

– Optimized material flow

– Enhanced traction

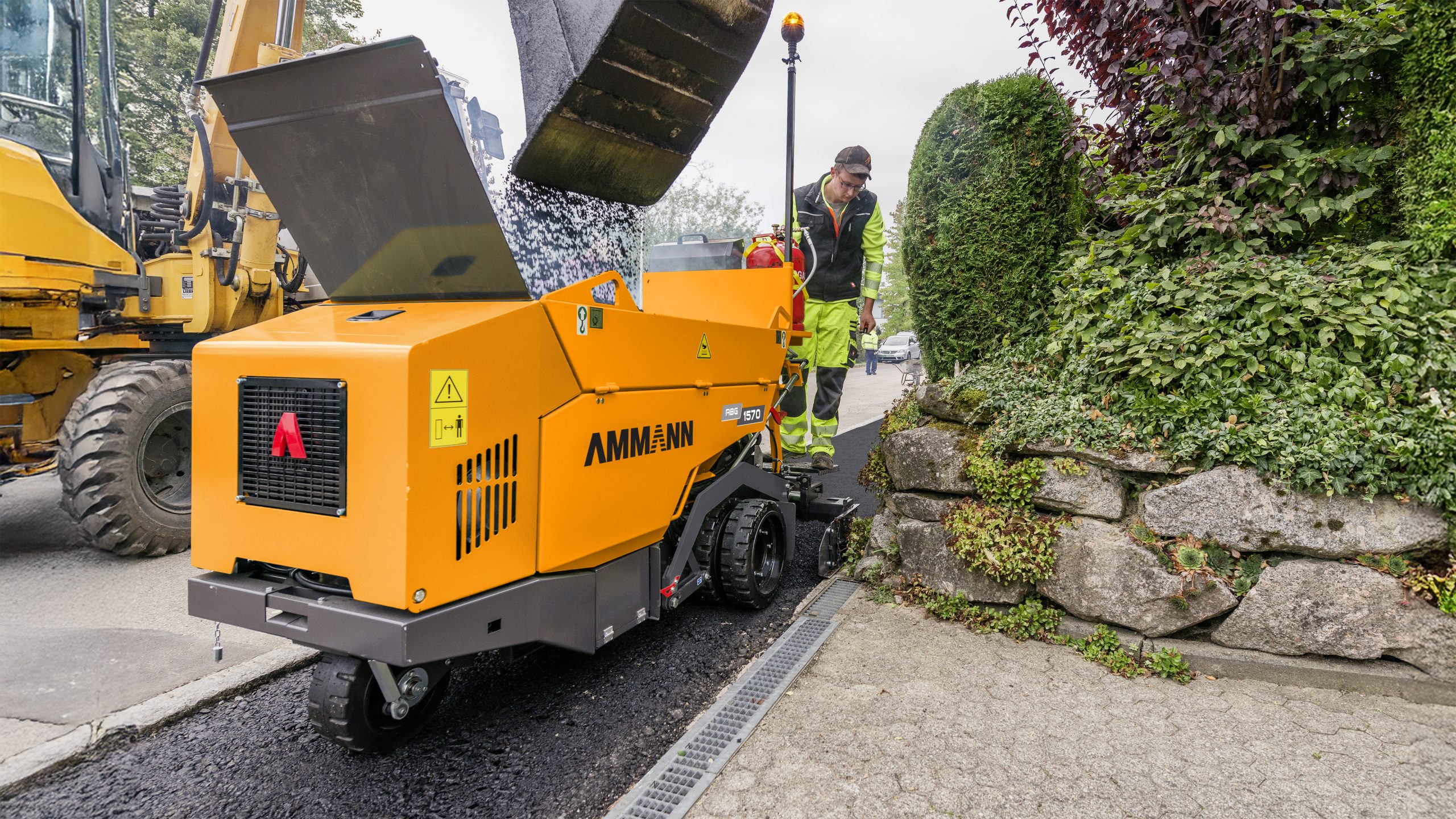

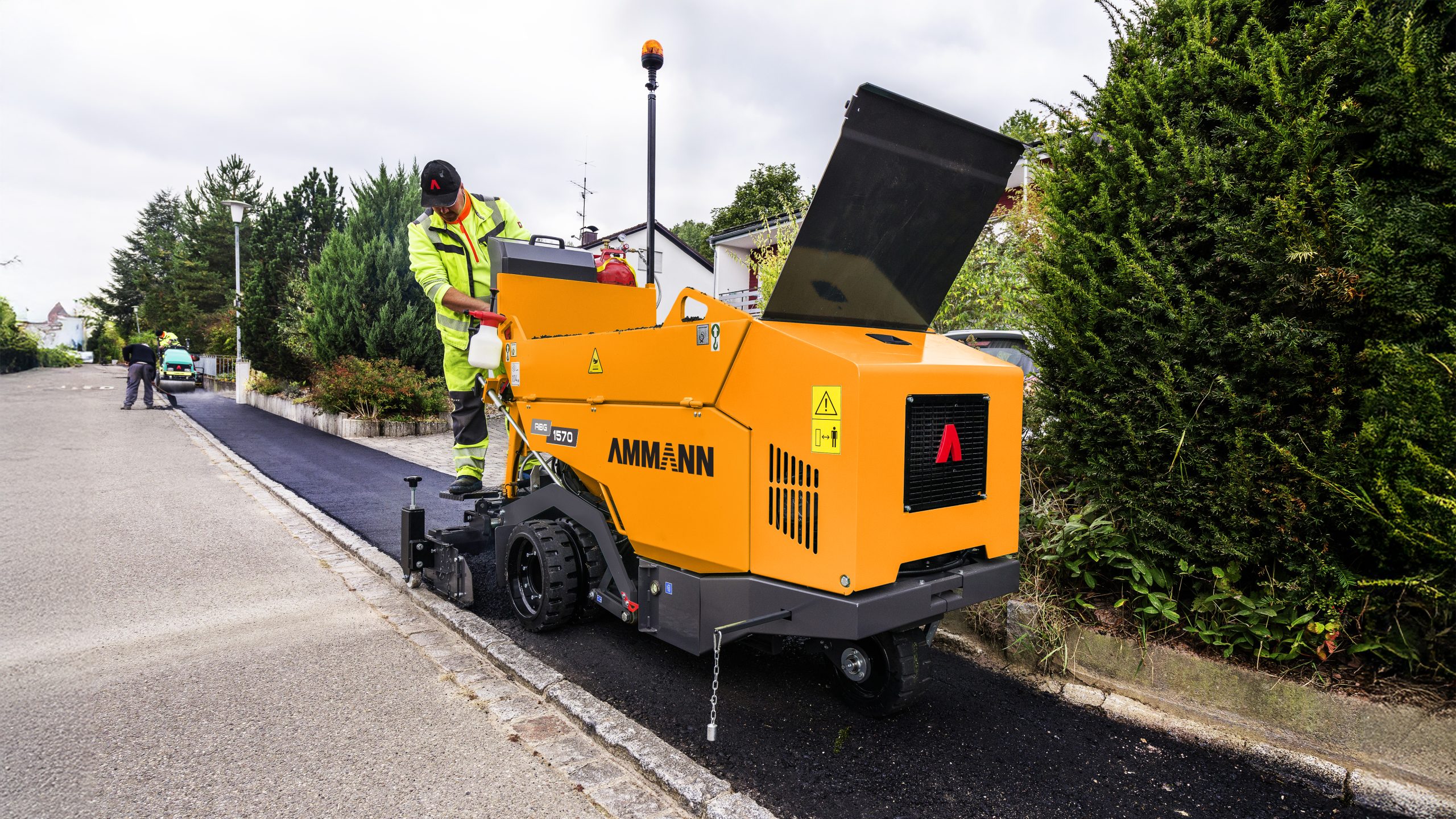

Tight Squeeze

Tight Squeeze

With a clearance width and a tight turning radius of 950mm, the ABG 1570 is perfect for navigating and paving in confined spaces, making it highly effective for small-scale projects and repairs.

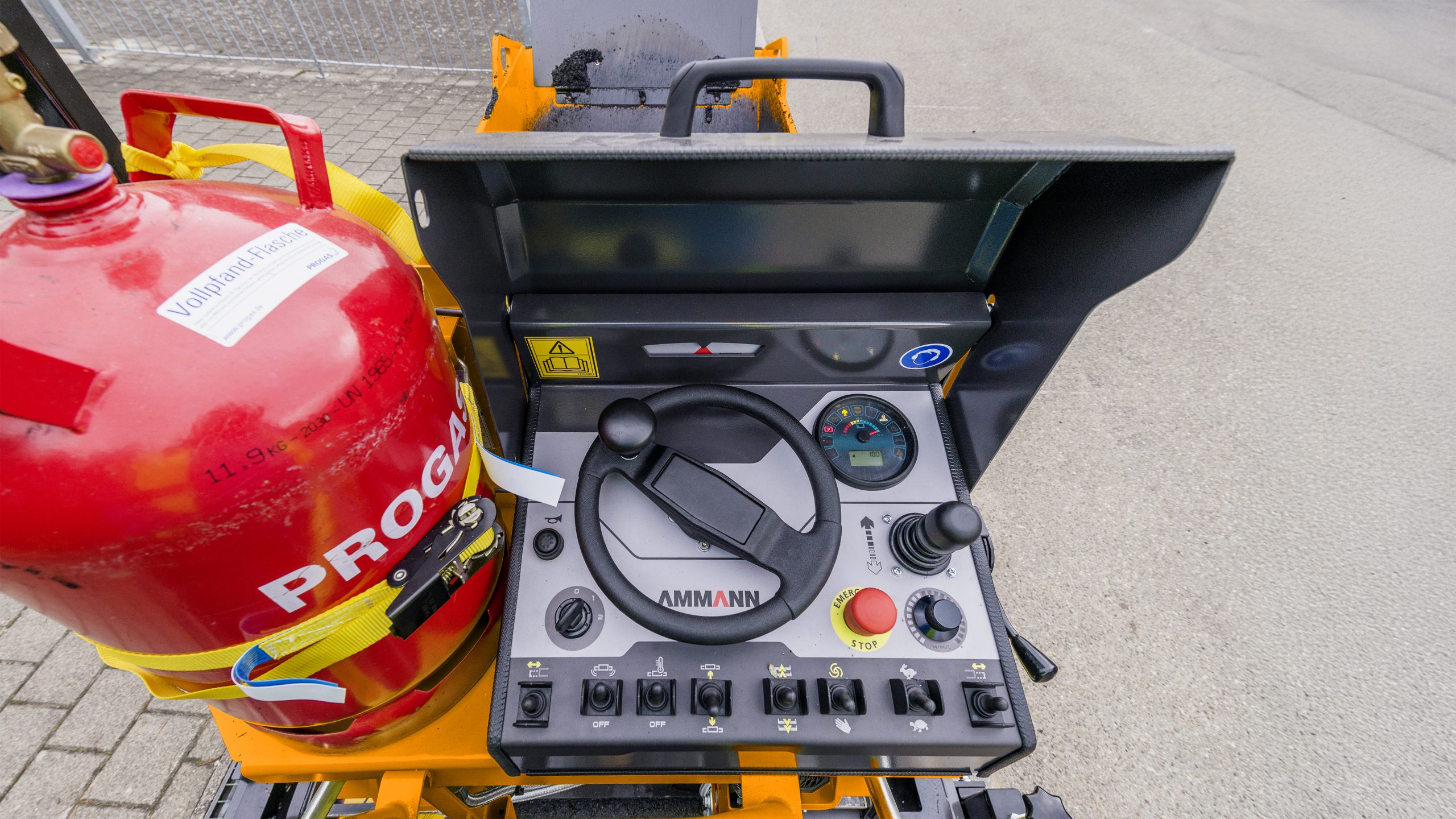

Ergonomic Operator Station

Ergonomic Operator Station

The newly designed operator station features an intuitive dashboard and ergonomic steering wheel, ensuring ease of use and quick adaptation for new operators, enhancing overall productivity and comfort.

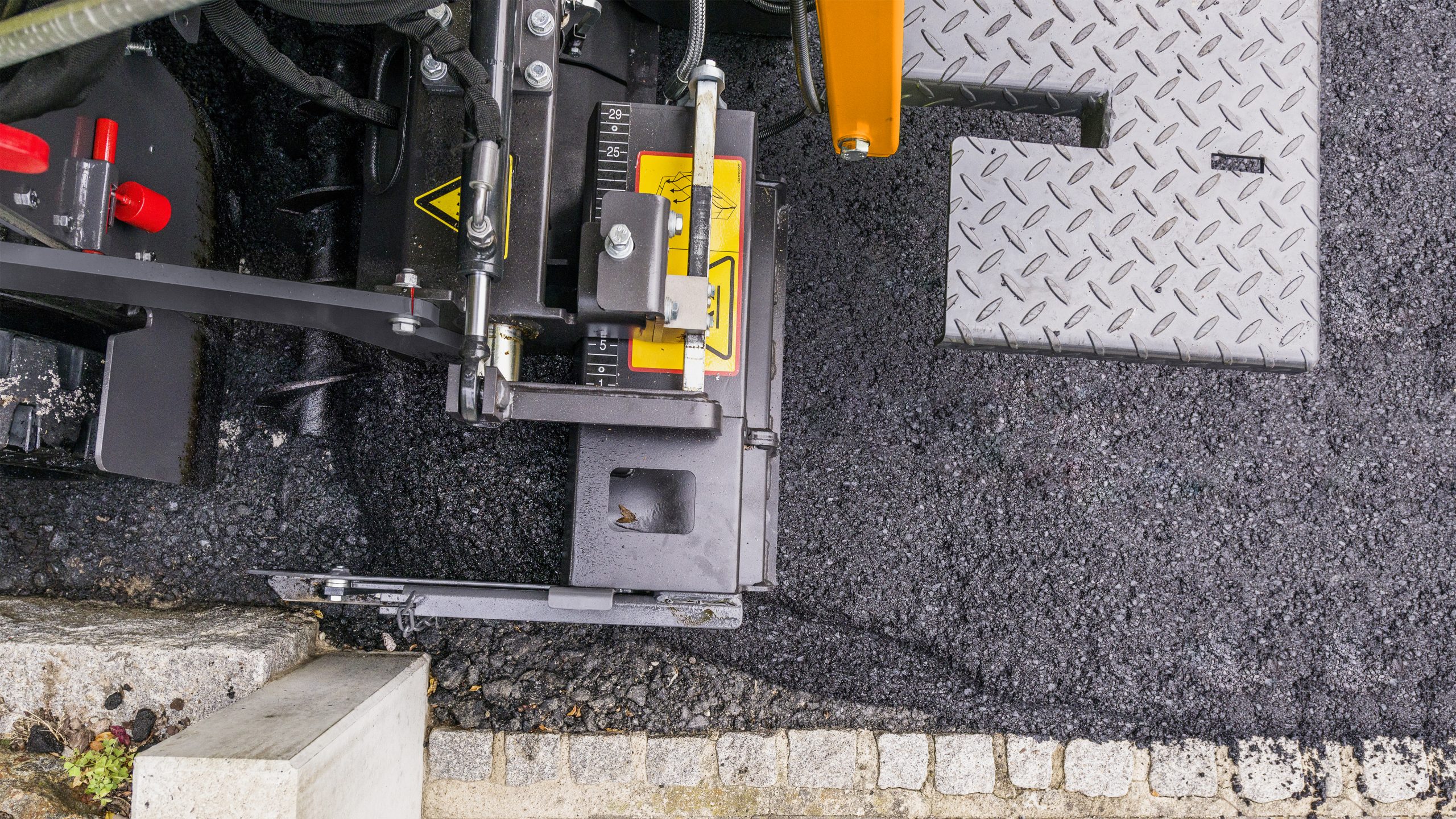

Optimized Material Flow

Optimized Material Flow

A large auger with a 120mm diameter optimizes material distribution in front of the screed. The unique flow divider system standardizes material flow, ensuring consistent paving quality.

Traction and Maneuverability

Traction and Maneuverability

The hydrostatic transmission, coupled with rear traction wheels and a maneuverable front wheel, provides reliable performance. Optional twin wheels enhance traction on challenging surfaces.

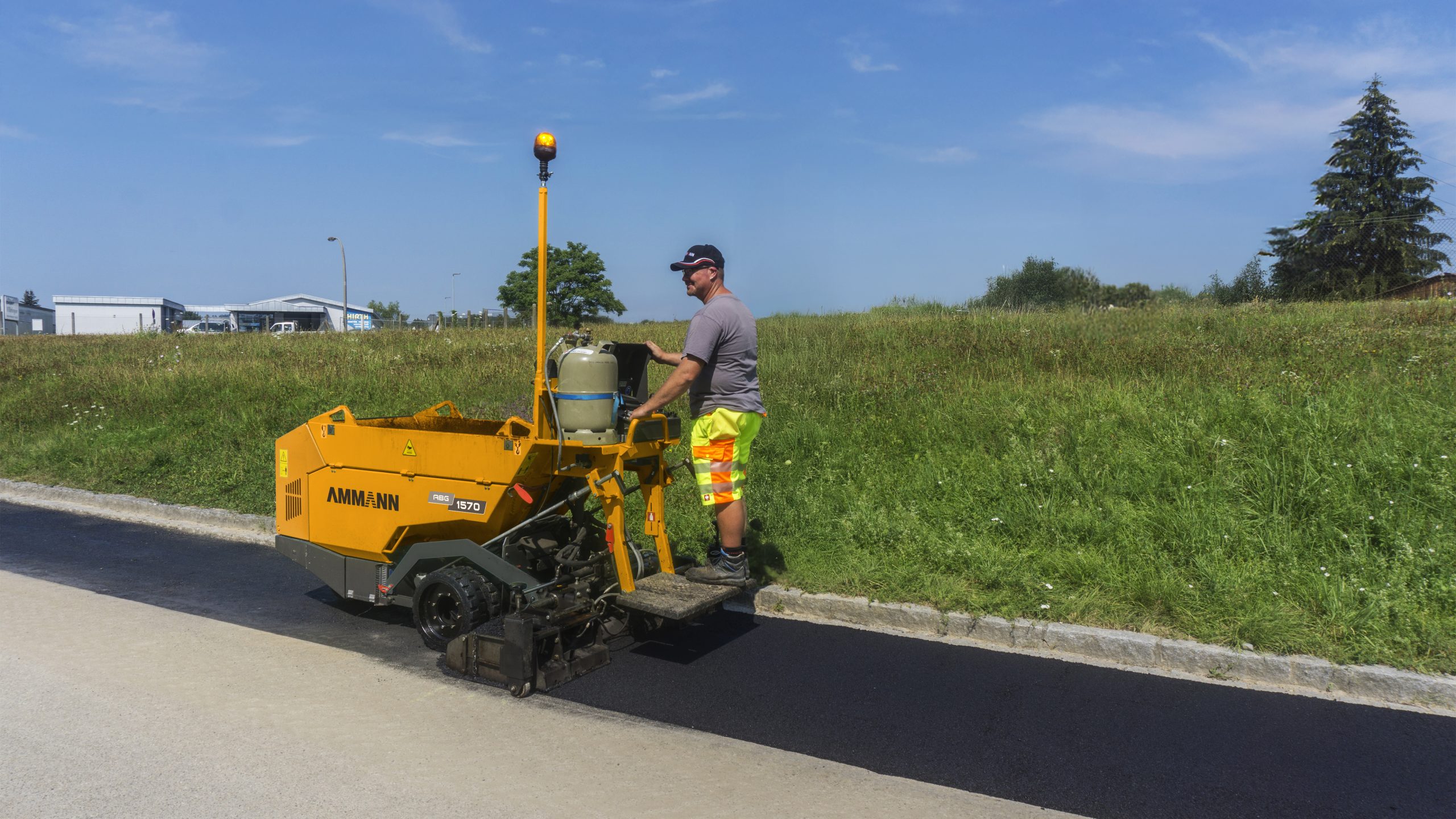

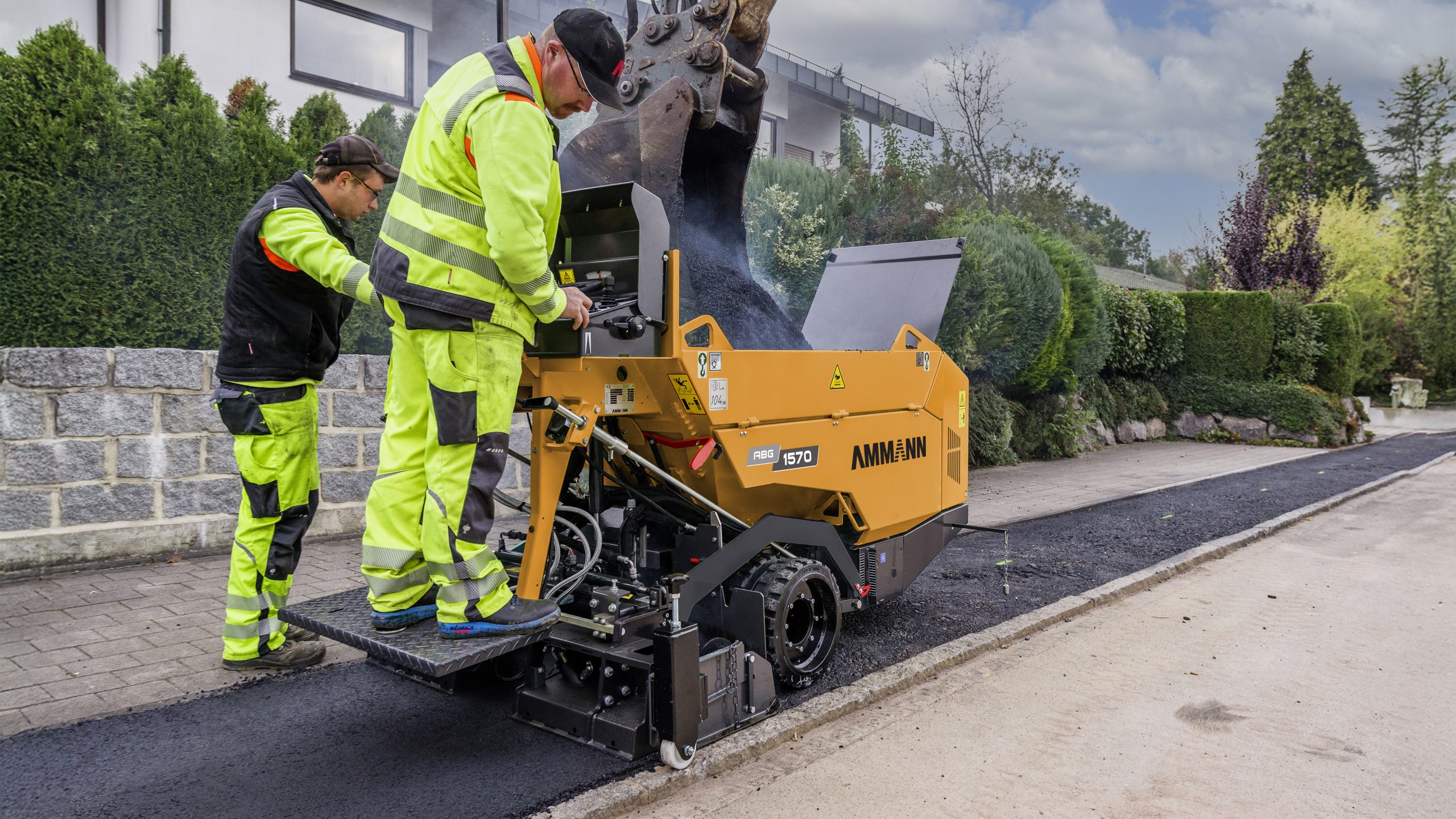

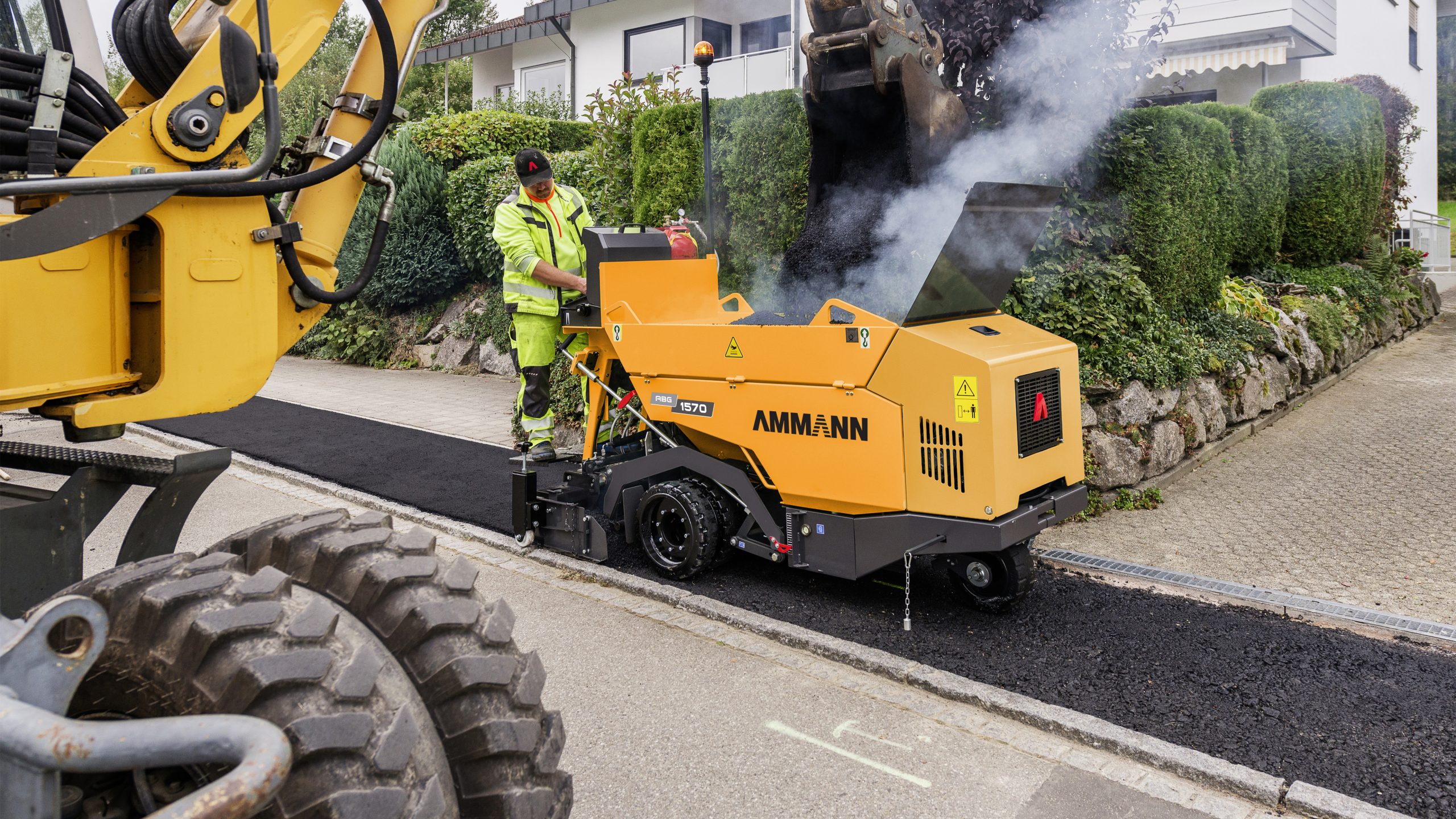

Versatile Applications

Versatile Applications

Designed for footpaths, cycle tracks, and trench closures, the ABG 1570 is versatile enough to handle layers on low weight-bearing surfaces and alleys, making it suitable for diverse environments.

Product Specifications for ABG 1570

Description

Specifications

Downloads

Contact us for More Details

ABG 1570 Key Specifications

OUTPUT

10 hp

COOLANT

Air cooling

Operating Weight

2950 lb

ENGINE

MANUFACTURER

Hatz

MODEL

1B50E

OUTPUT

10 hp

AT ENGINE SPEED

2200 r/min

COOLANT

Air cooling

FUEL TANK CAPACITY

5 l

HYDRAULIC OIL TANK CAPACITY

11 l

EXHAUST EMISSION

EU Stage V | US Tier 4F

Dimension

Operating Weight

2950 lb

OPERATING LENGTH

2865

SHIPPING LENGTH

2550

MACHINE WIDTH

1150

MACHINE HEIGHT

1598

HOPPER LENGTH

1668

OPERATOR PLATFORM HEIGHT

432

INTERNAL TURNING RADIUS

950

ABG Paver 1570
