ACR 70

ACR 70

ACR 70

Diesel

Engine Fuel

4 HP

ENGINE OUTPUT

183 lb

Operating Weight

Request Price View Product Specifications

Product Specifications for ACR 70

Description

Specifications

Downloads

Contact us for More Details

ACR 70 Key Specifications

Engine Fuel

Diesel

ENGINE OUTPUT

4 HP

Operating Weight

183 lb

Engine

Engine Fuel

Diesel

ENGINE

Yanmar L48 AE

ENGINE OUTPUT

4 HP

AT RPM

3250

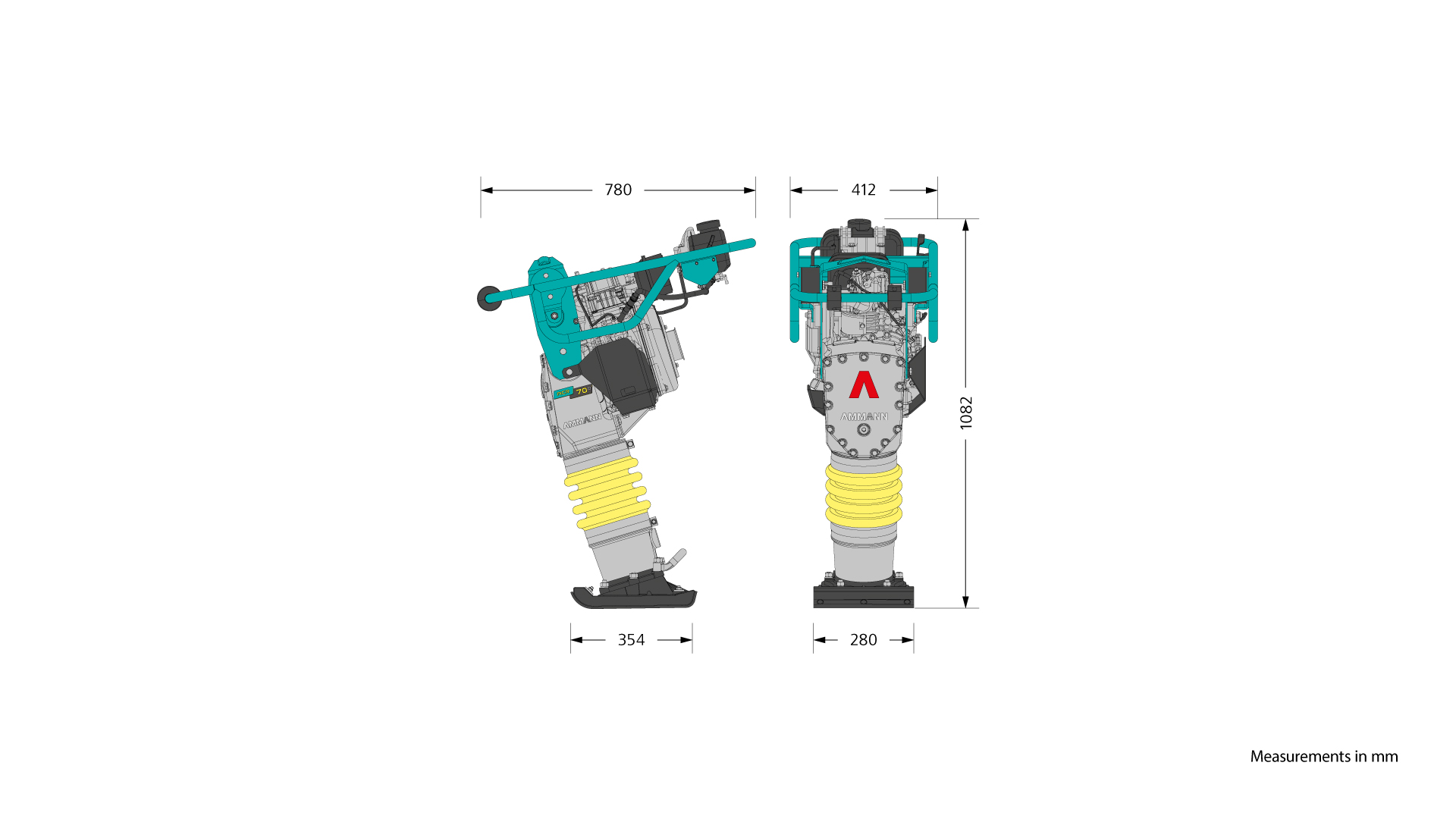

WEIGHT & DIMENSIONS

Operating Weight

183 lb

FOOT LENGTH

340 mm (13.4 in

FOOT WIDTH

280 mm (11 in)

HANDLE LENGTH

770 mm (30.3 in)

MACHINE HEIGHT

980 mm (38.6 in)

HANDLE WIDTH

360 mm (14.2 in)

COMPACTION FORCES

PERCUSSION RATE

730 bpm

STROKE HEIGHT

60 mm (2.4 in)

CENTRIFUGAL FORCE

16 kN (3.1 lbf)

SURFACE CAPACITY

210 m²/h (2260 ft²/h

MAX. COMPACTION PERFORMANCE (DEPENDING ON GROUND CONDITIONS)

60 cm (23.6 in)

MISCELLANEOUS

FUEL TANK CAPACITY

2.5 l (0.7 gal)

TRAVEL SPEED

12 m / min (0.5 mph)

OPTIONAL FOOT SIZES WIDTH

230–330 mm (9.1–13 in)
