Product Overview
Unmatched Compaction Power and Versatility
“The APF 20/50 delivers exceptional compaction performance with advanced technology, ideal for confined areas and diverse applications.
– Powerful exciter unit for superior compaction
– Maintenance-free design for ease of use
– Versatile options for various surfaces”

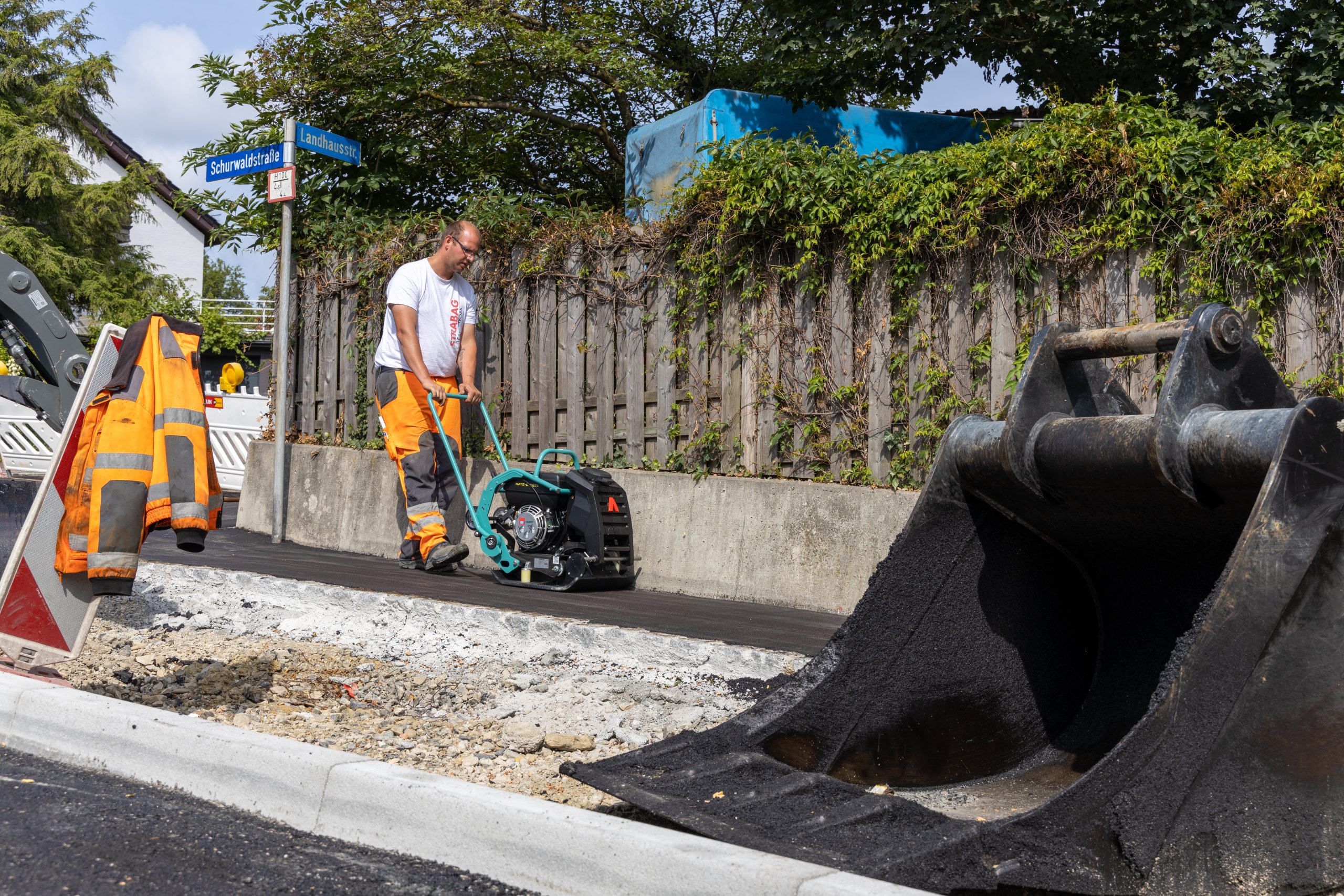

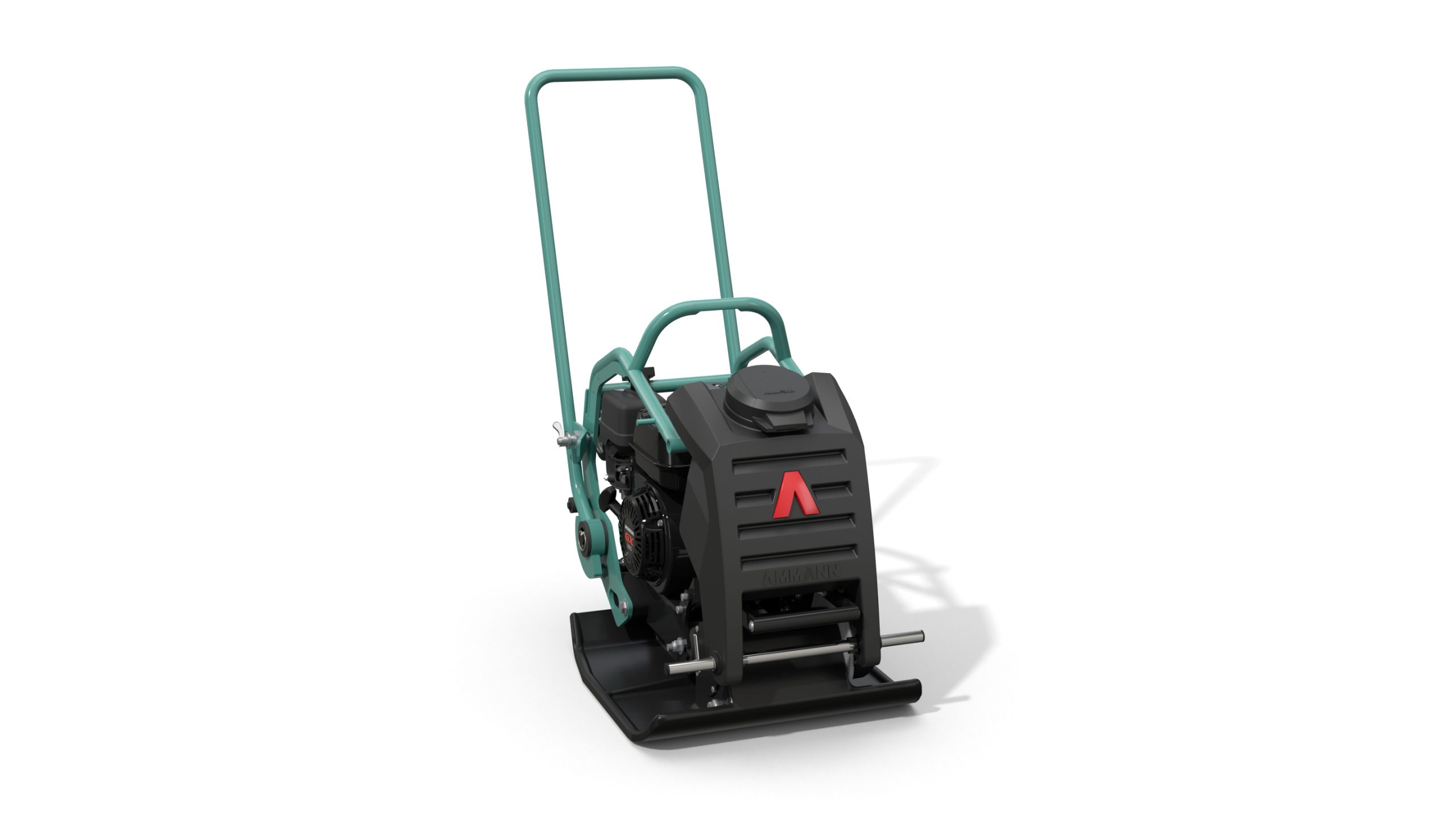

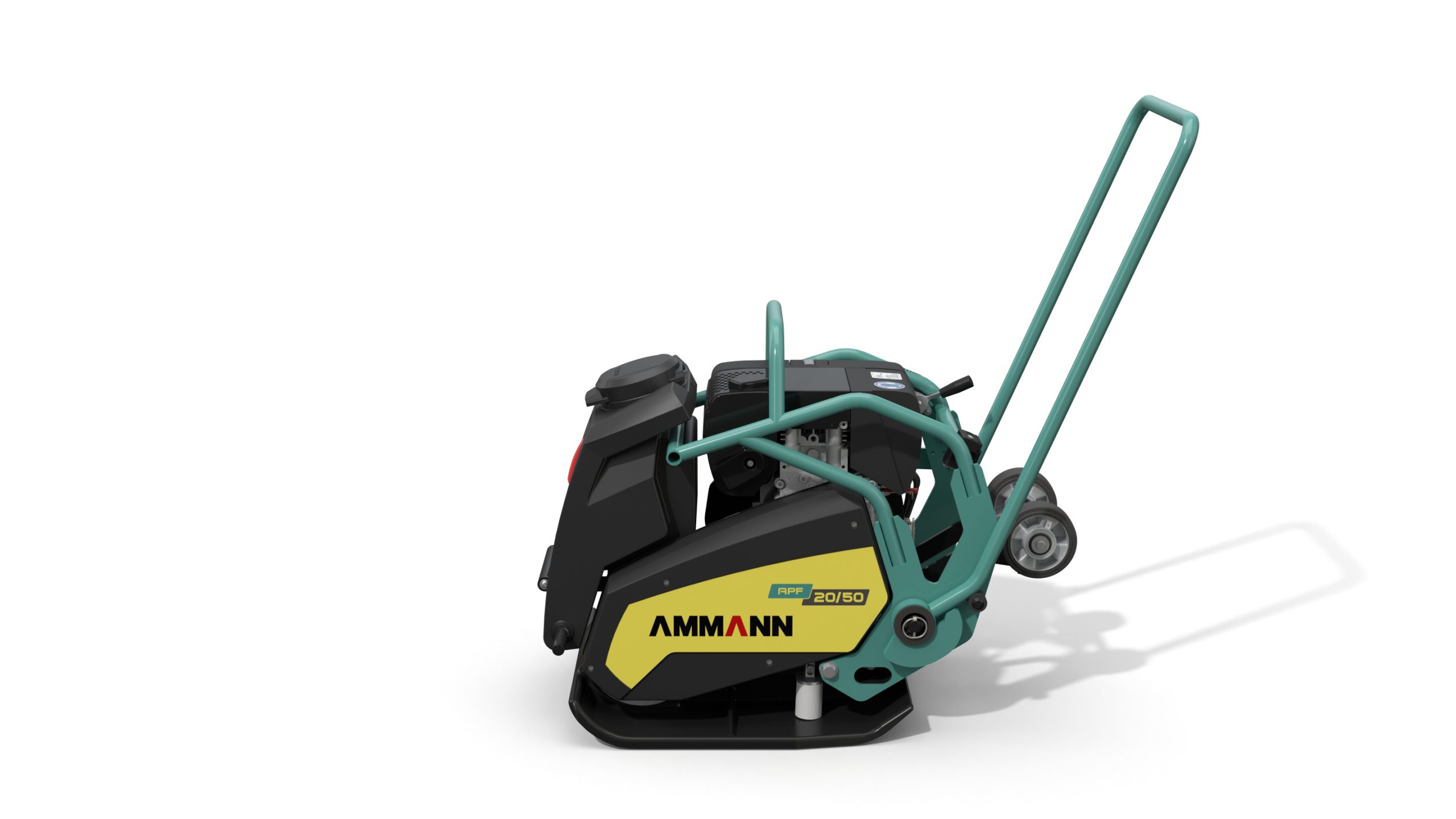

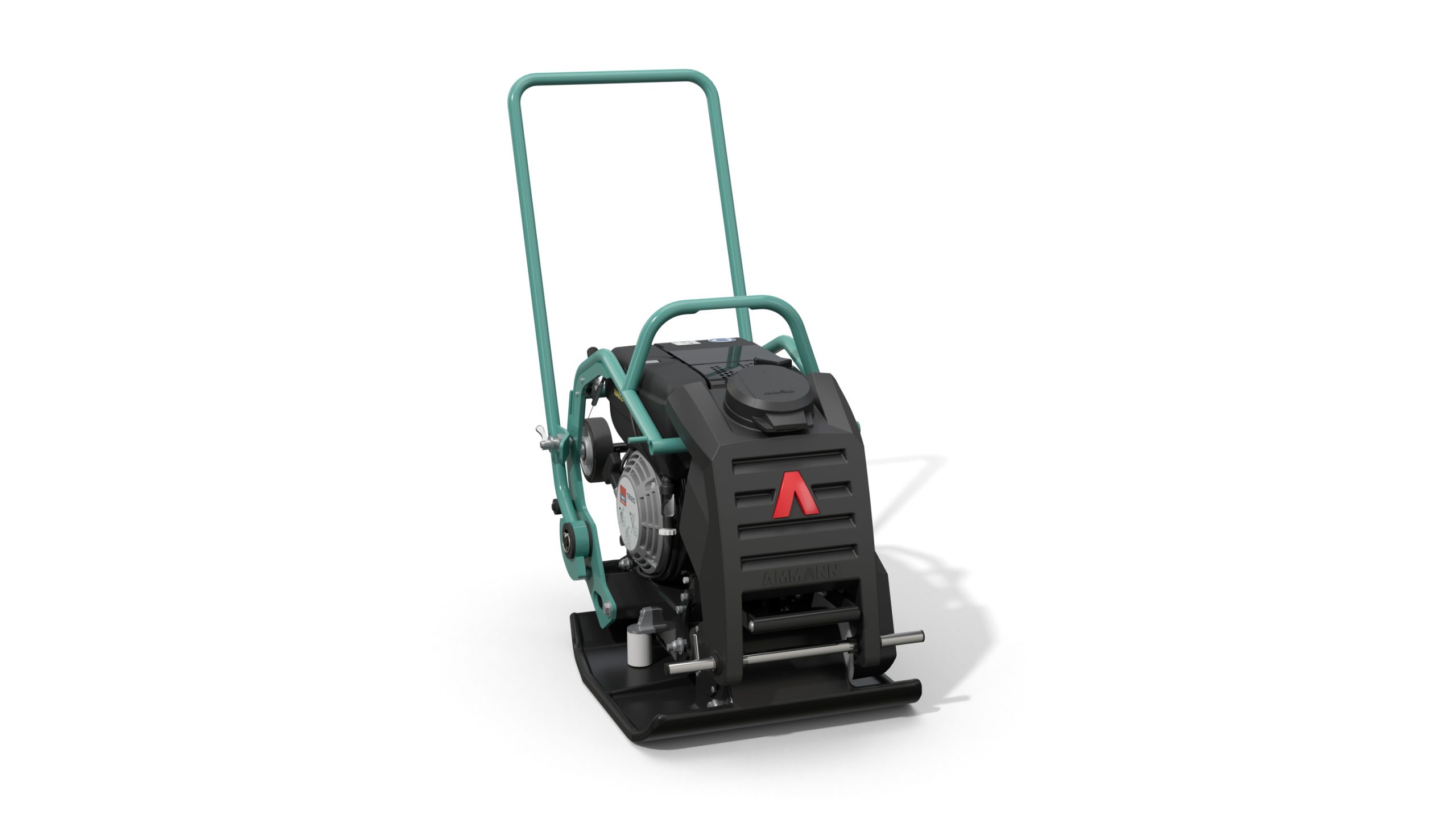

The APF 20/50 features a generously sized exciter unit, providing unmatched compaction power, speed, and climbing ability. Its compact dimensions make it perfect for sites with limited space, ensuring efficient operation in challenging conditions.
Designed with operator safety in mind, the machine offers low hand-arm vibration levels and a secure grip frame. Its great maneuverability boosts accuracy, making it easy to operate even for new users.

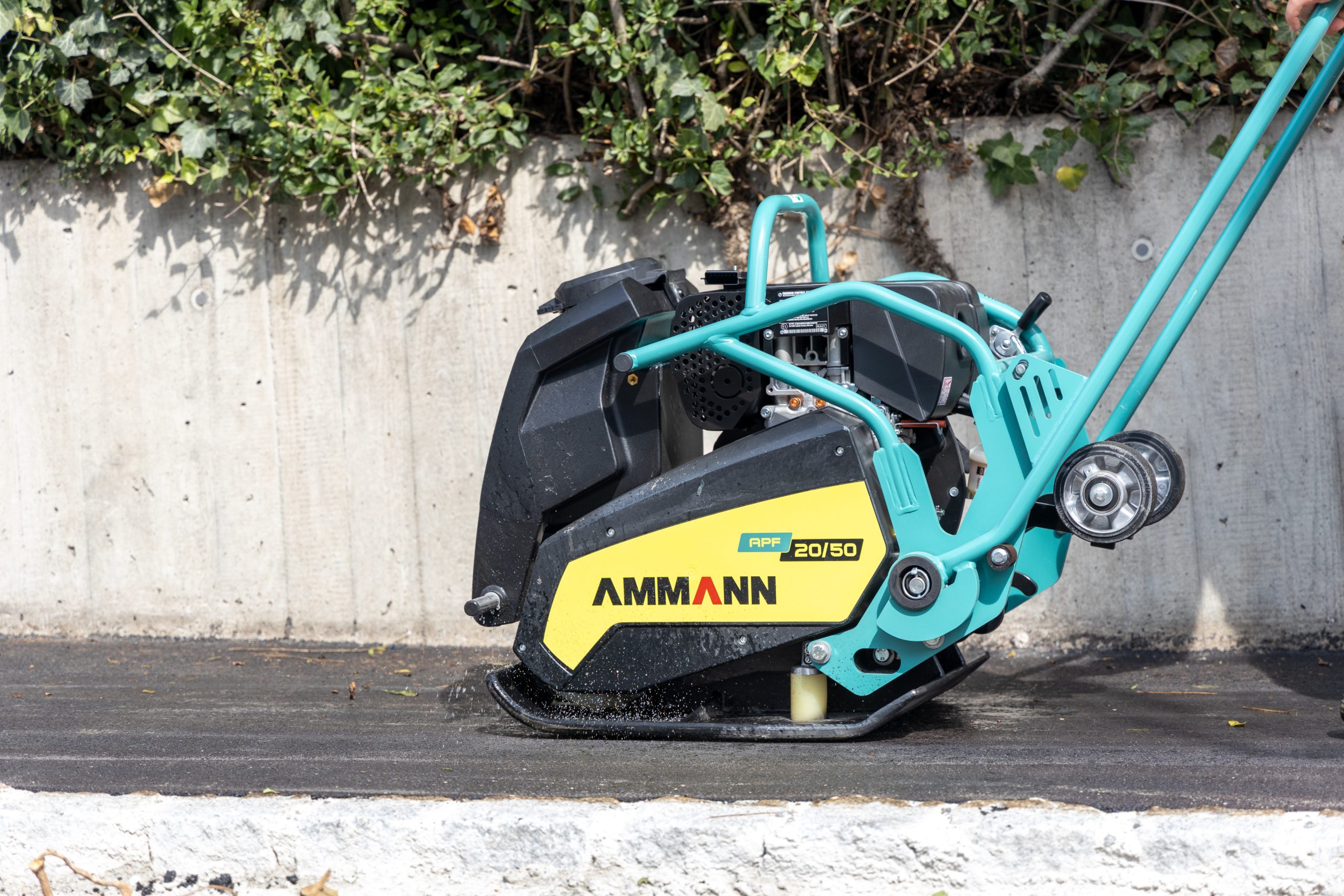

The APF 20/50 boasts a maintenance-free exciter system and a full engine protection frame. Daily maintenance is toolless, ensuring the machine remains in optimal condition with minimal effort.

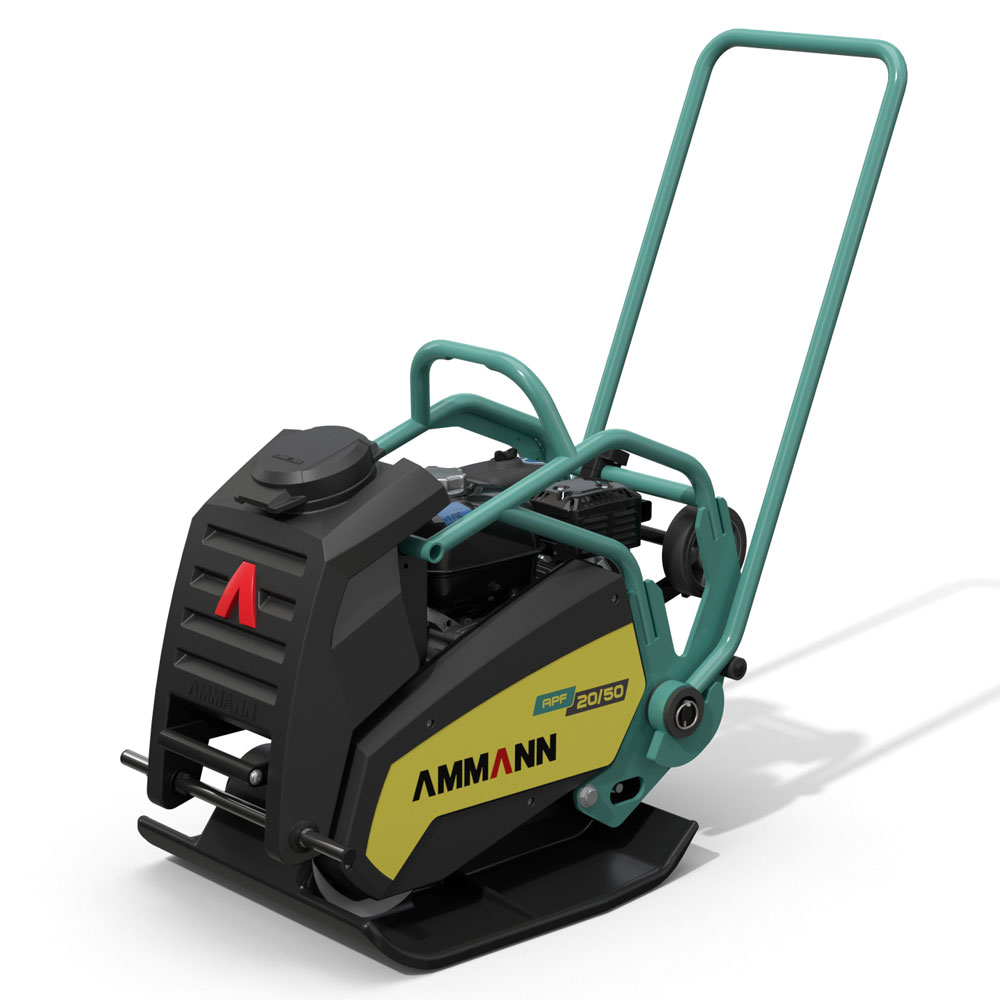

Equipped with toolless mountable water tanks and rubber mats, the machine can easily switch between different surfaces. Permanently mounted transport wheels facilitate easy relocation on site.

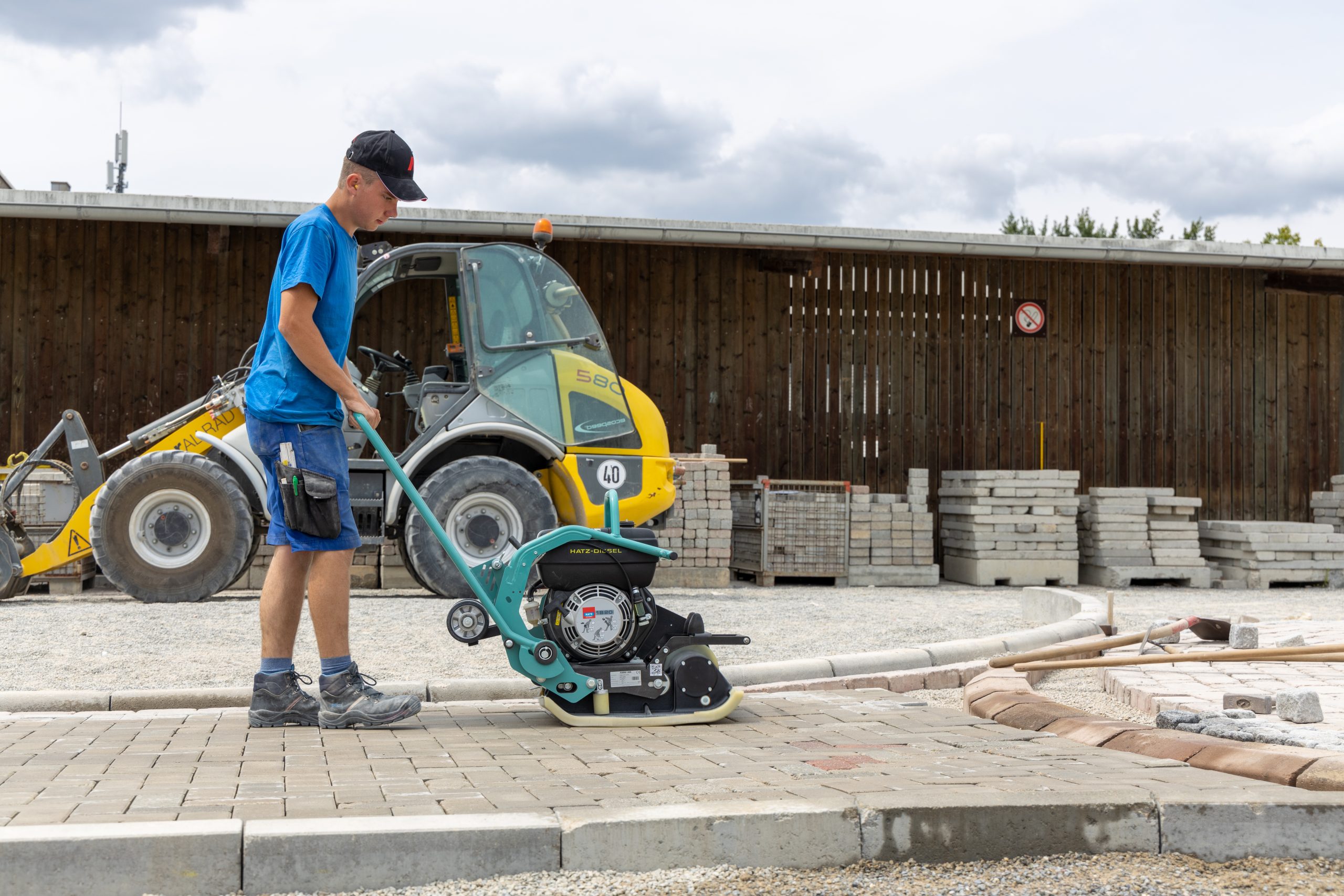

The low-vibration handle enhances operator comfort and safety, reducing fatigue during extended use. This feature ensures a more pleasant and productive working experience.
Engine Fuel
PetrolOperating Weight
194 lbMAX. GRADEABILITY
30 %Engine Fuel
PetrolOperating Weight
194 lbMACHINE WEIGHT (INCL. OPTIONAL SPRINKLER & WHEELS)
214 lbMACHINE LENGTH
700 mm (27.6 in)MACHINE LENGTH WITH HANDLE 1
1020 mm (40.2 in)BASE PLATE LENGTH
559 mm (22 inGROUND CONTACT LENGTH
352 mm (13.9 in)MACHINE HEIGHT
667 mm (26.3 in)WITH HANDLE (WORK)
976 mm (38.4 in)WITH HANDLE (TRANSPORT)
736/*960 mm (29/*37.8 in)MACHINE WIDTH
500 mm (19.7 in)MAX. VIBRATION FREQUENCY
90 Hz (5400 vpm)MAX. CENTRIFUGAL FORCE
20 kN (4496 lbf)WORKING SURFACE
930 m2 /h (10 010 ft2 /h)SPEC. SURFACE PRESSURE
11.4 N/cm2 (16.5 psi)HAND-ARM VIBRATION ON HANDLE
3.1 m/s²MAX. GRADEABILITY
0–31 m/min (0–101.7 ft/min)MAX. GRADEABILITY
30 %MAX. INCLINE
20°WATER SPRINKLER SYSTEM
12 l (3.2 gal)
