Product Overview
Reliable Compaction with Precision Control

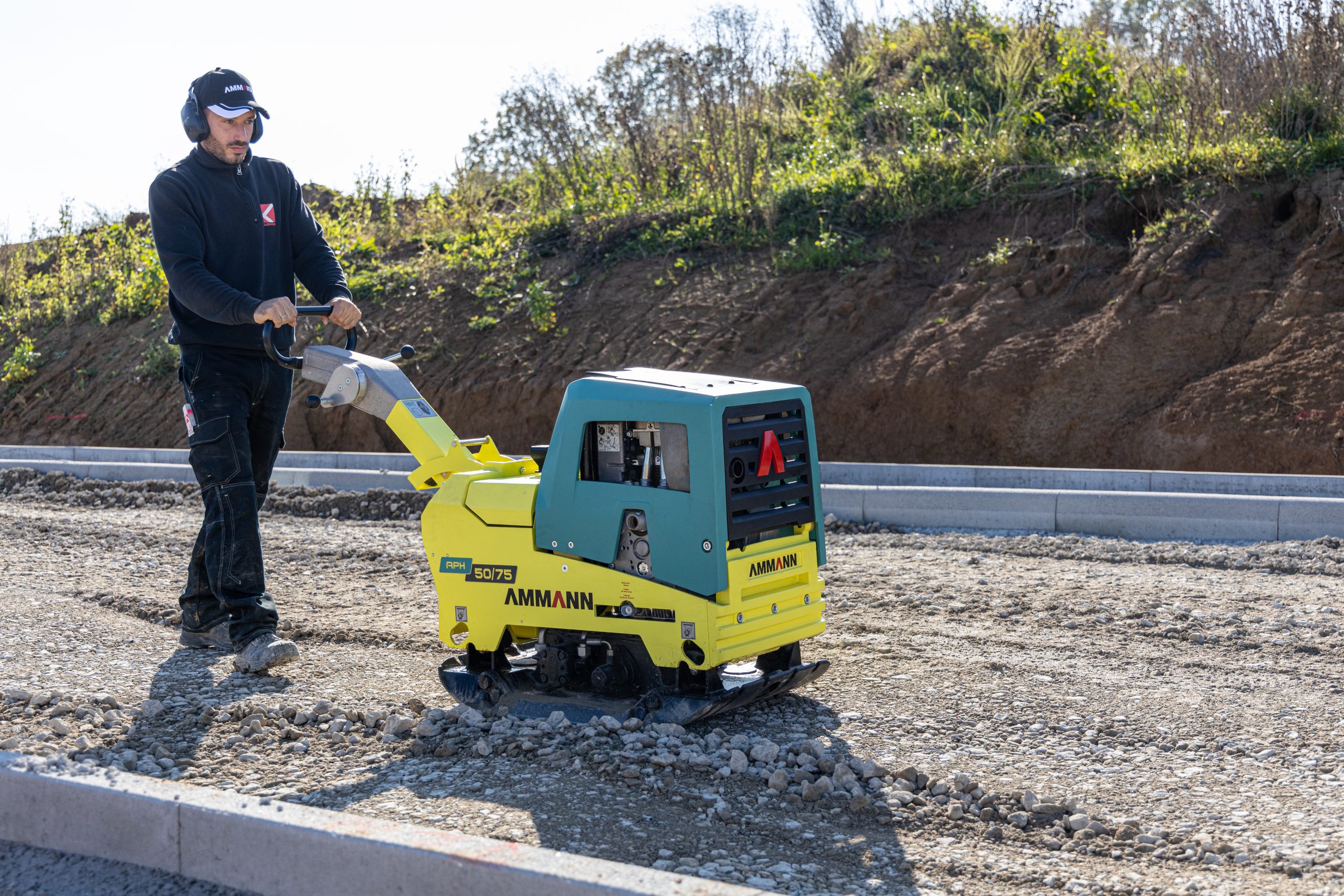

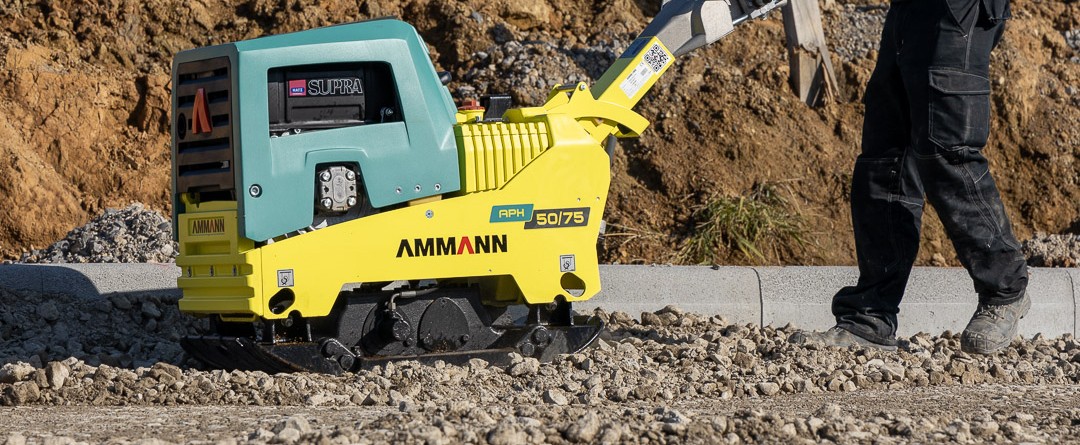

“The Ammann APH 50/75 Hydrostatic Vibratory Plate is a trusted compactor known for its robust design and powerful compaction forces. Ideal for tight areas and cohesive materials, it ensures superior performance and ease of use.
– Superior compaction performance
– Fully hydraulic drive
– ACE Intelligent Compaction System”
The APH 50/75 features a powerful vibratory unit that generates high compaction output, ensuring fast and consistent coverage across various surfaces, enhancing productivity on the job site.
Experience best-in-class machine control with the fully hydraulic drive, offering high accuracy and easy maneuverability even in confined spaces, making it perfect for complex projects.
The ACE system delivers exceptional compaction efficiency, providing operators with real-time data to achieve optimal results, reducing the need for rework and improving overall project quality.
Designed with industry-leading HAV values below 2.5 m/sec², the low-vibration guide handle protects operators, eliminating the need for time-consuming record keeping and enhancing comfort during operation.

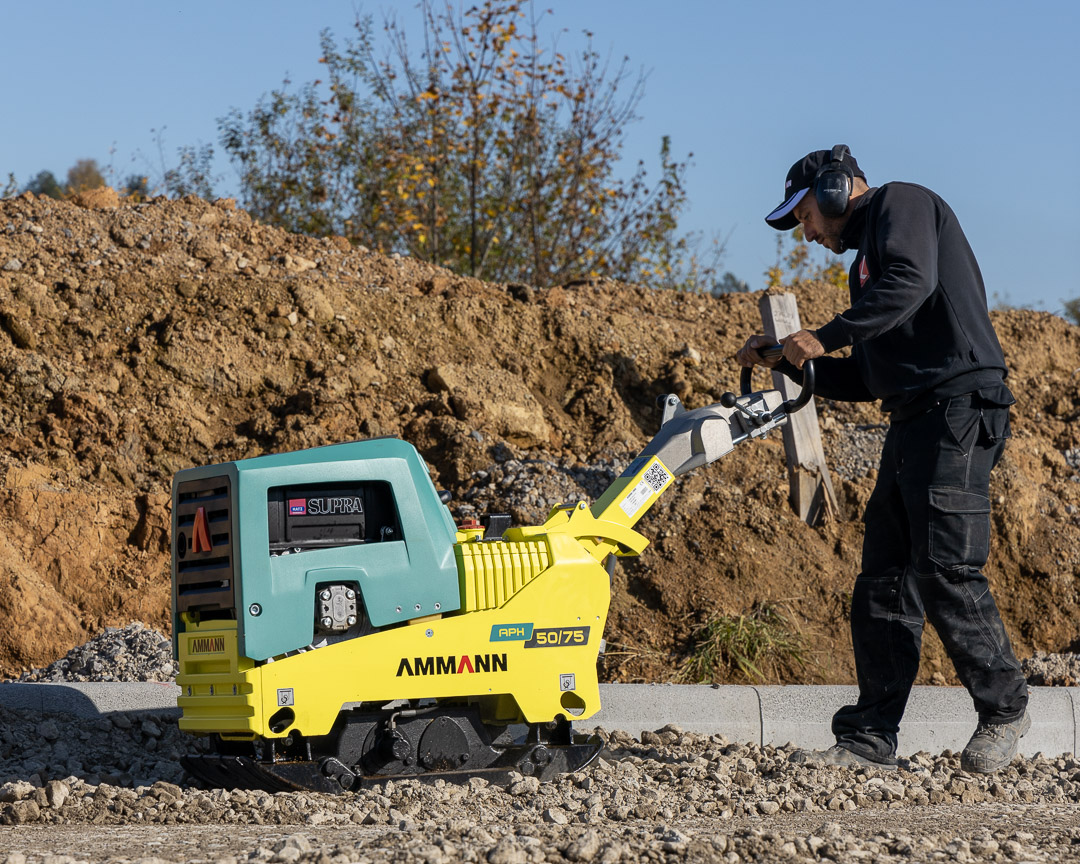

Daily maintenance is streamlined with tool-free inspection, reducing downtime and ensuring the machine remains in peak condition, enhancing reliability and longevity on the job site.
Engine Fuel
DieselENGINE OUTPUT AT RPM
9 HPOperating Weight
772 lbEngine Fuel
DieselENGINE
Hatz Supra 1D50SENGINE OUTPUT AT RPM
9 HPFUEL CONSUMPTION
1.7 l/hOperating Weight

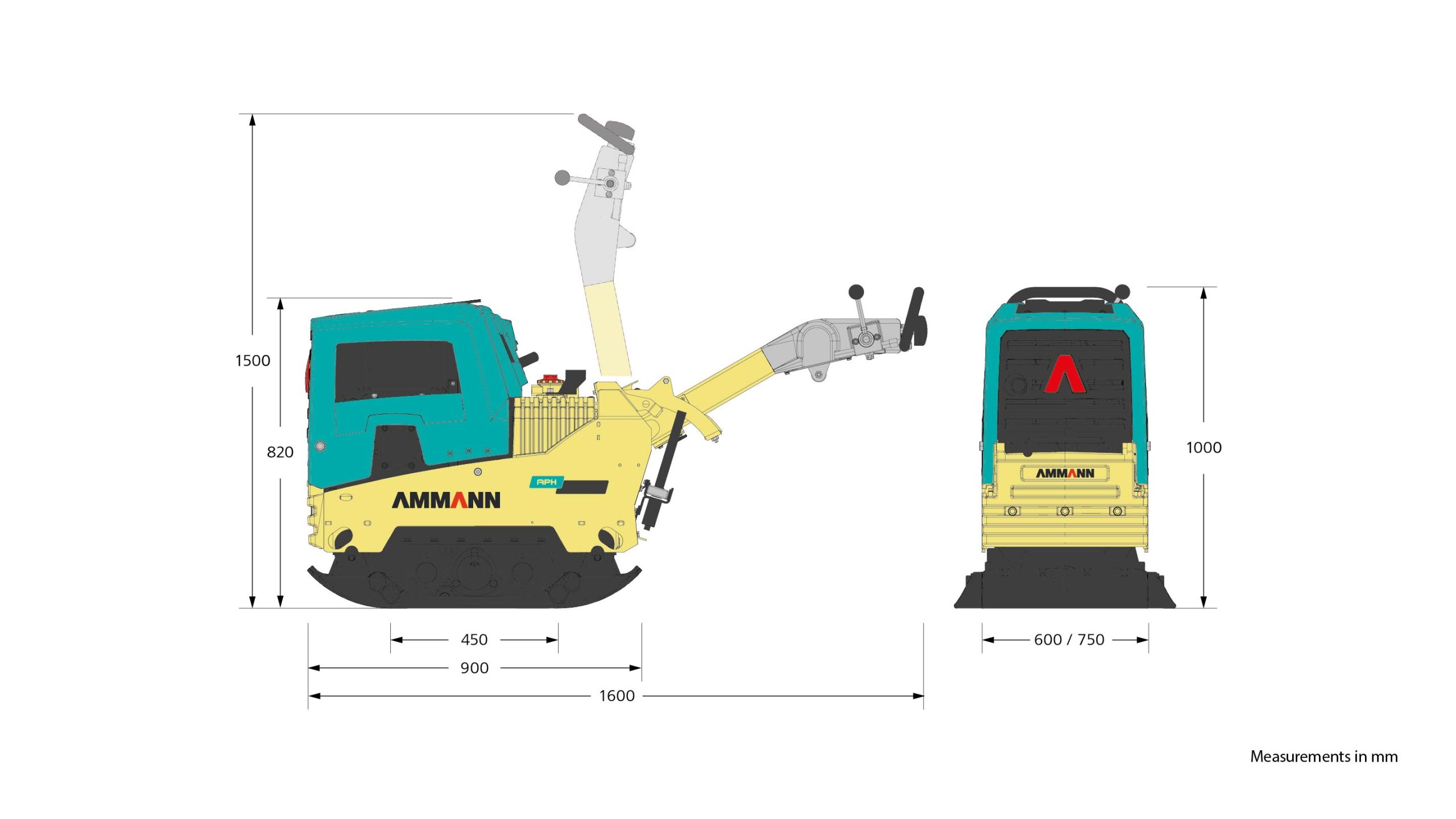

772 lbBASE PLATE LENGTH
450 mm (17.7 in)MACHINE LENGTH
900 mm (35.4 in)WITH HANDLE
1600 mm (63.0 in)MACHINE HEIGTH
820 mm (32.3 in)ANDLE HEIGHT (WORK)
1000 mm (39.4 in)HANDLE HEIGHT (TRANSPORT)
1500 mm (59.1 in)MACHINE WIDTH
450/600/750 mm (17.7/23.6/29.5 in)MAX. VIBRATION FREQUENCY
70 Hz (4200 vpm)MAX. CENTRIFUGAL FORCE
50 kN (11240 lbf)WORKING SURFACE BASIC UNIT
1125 m²/h (12,109 ft²/h)MAX SURFACE PRESSURE
24,7 N/cm² (35,8 psi)AMPLITUDE
1.7 mm (0.1 in)OPERATING SPEED
25 m/min (0.93 mph)TANK CAPACITY
5 l (1.3 gal)GRADEABILITY
36%MAX. INCLINE TO ALL SIDES
30°
