Product Overview
Unmatched Compaction Performance and Control
“The APH 65/85 Hydrostatic Vibratory Plate offers superior compaction with ease of use, thanks to its advanced triple-shaft exciter system. Ideal for various applications, it ensures efficient and consistent results.
– Industry-leading gradeability
– Ergonomic design for operator comfort
– Tool-free daily maintenance”
The innovative triple-shaft exciter system provides exceptional compaction force and climbing ability, making the machine highly responsive and easy to handle, even on challenging substrates.

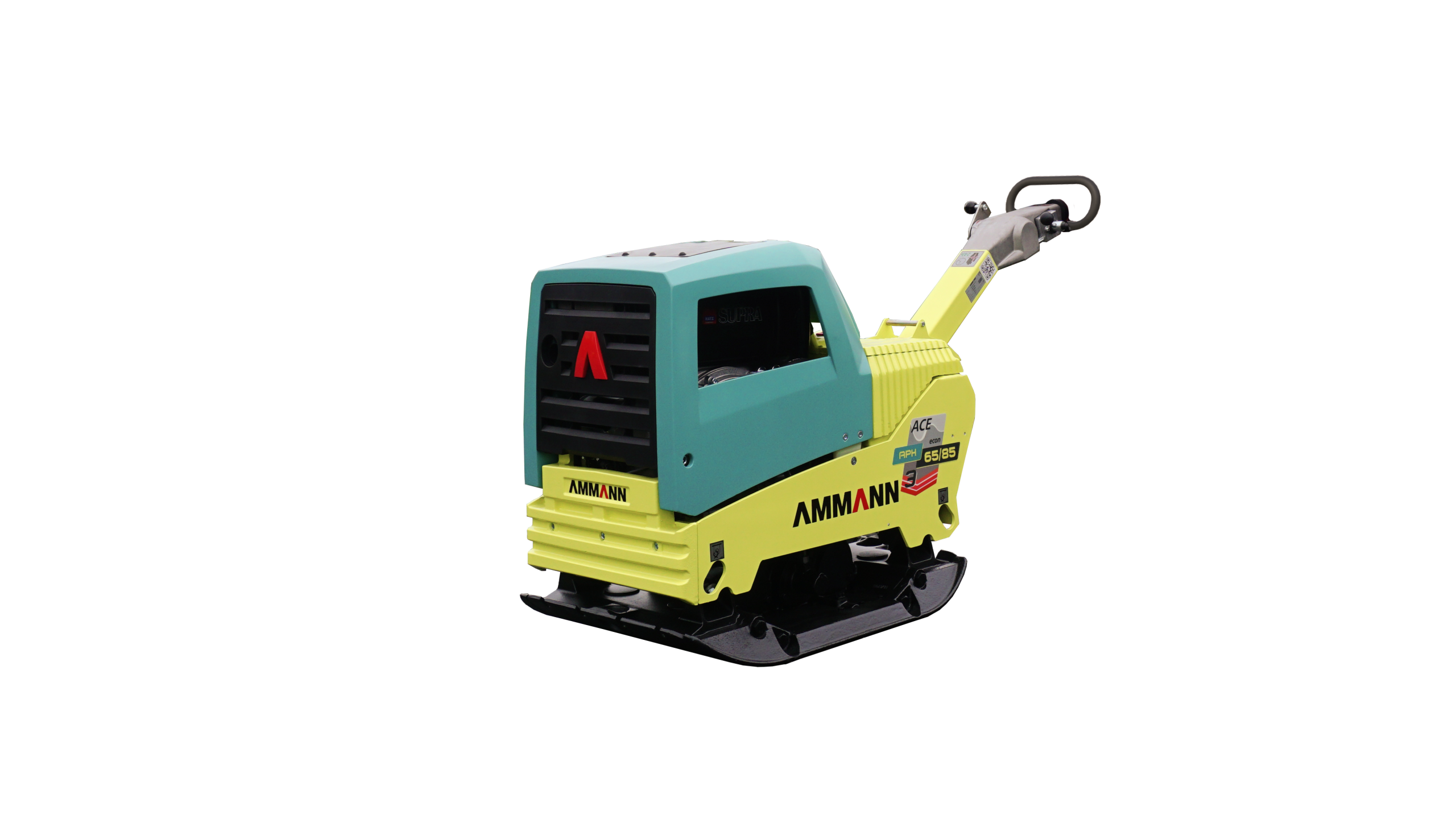

The optional ACE compaction measuring system ensures thorough and efficient compaction, allowing contractors to achieve optimal results with minimal effort and time.
Featuring a low-vibration guide handle and convenient orbitrol control, the machine is designed to minimize operator fatigue while maximizing control, ensuring comfort throughout long working shifts.
The fully hydraulic drive system offers best-in-class machine control with high accuracy, even in confined areas, reducing wear and downtime compared to conventional mechanical drives.
The robust protective frame and covers shield all essential components from potential damage during transport or on the jobsite, enhancing the machine’s durability and longevity.
Engine Fuel
DieselENGINE OUTPUT AT RPM
13 HPOperating Weight
1038 lbEngine Fuel
DieselENGINE
Hatz 1D81SENGINE OUTPUT AT RPM
13 HPFUEL CONSUMPTION
2.5 l/h (0.66 gal/h)Operating Weight

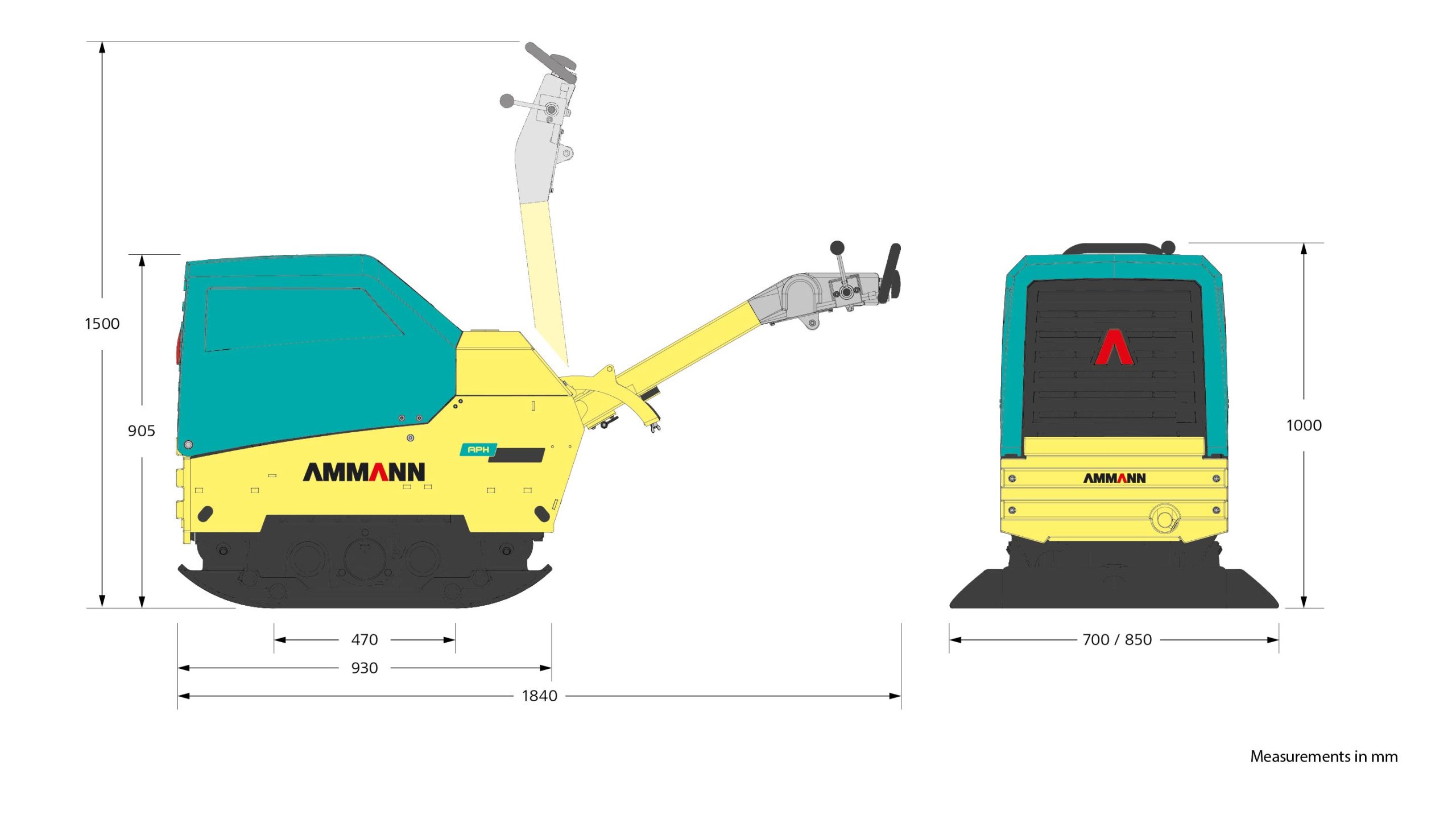

1038 lbBASE PLATE LENGTH
470 mm (18.5 in)MACHINE LENGTH
930 mm (36.6 in)WITH HANDLE
1840 mm (72.4 in)MACHINE HEIGTH
905 mm (35.6 in)HANDLE HEIGHT (WORK)
1000 mm (39.4 in)HANDLE HEIGHT (TRANSPORT)
1500 mm (59.1 in)MACHINE WIDTH
550/700/850 mm (21.7/27.6/33.5 in)MAX. VIBRATION FREQUENCY
55 Hz (3300 vpm)MAX. CENTRIFUGAL FORCE
65 kN (14 612 lbf)WORKING SURFACE BASIC UNIT
1632 m²/h (17,567 ft²/h)MAX SURFACE PRESSURE
25,1 N/cm² (36,5 psi)AMPLITUDE
3.9 mmOPERATING SPEED
32 m/min (1.19 mph)TANK CAPACITY
7 l (1.8 gal)GRADEABILITY
36%MAX. INCLINE TO ALL SIDES
30°
