APR 30/50 – General Trading & Equipment Co.

APR 30/50

APR 30/50

APR 30/50

APR 30/50

APR 30/50

APR 30/50

APR 30/50

Petrol

Engine Fuel

8 HP

ENGINE OUTPUT AT RPM

439 lb

Operating Weight

Request Price View Product Specifications

Product Overview

Maximize Efficiency with Superior Compaction

“The APR 30/50 and APR 30/60 reversible vibratory plates offer unmatched productivity with their powerful vibratory systems and ergonomic design, ideal for diverse applications from earthwork to sensitive surfaces.

– Superior compaction performance

– Unmatched speed

– Low-vibration guide handle

– Simplified maintenance”

Superior Compaction

Superior Compaction

The powerful vibratory system generates high compaction forces, ensuring fast and comprehensive compaction, making it ideal for tough-to-compact areas.

Unmatched Speed

Unmatched Speed

The balanced base plate design enables superior mobility and high working speed, allowing for efficient coverage of large areas.

Ergonomic Design

Ergonomic Design

The industry-leading low-vibration guide handle protects the operator and eliminates the need for time-consuming record keeping, enhancing comfort during long shifts.

Easy Maintenance

Easy Maintenance

Daily inspections and maintenance are simplified with easily accessible service points, ensuring minimal downtime and prolonged machine life.

Secure Transport

Secure Transport

The machine is easily secured during transport, providing convenience and safety, with a protective frame that guards against damage.

Product Specifications for APR 30/50

Description

Specifications

Downloads

Contact us for More Details

APR 30/50 Key Specifications

Engine Fuel

Petrol

ENGINE OUTPUT AT RPM

8 HP

Operating Weight

439 lb

Engine

Engine Fuel

Petrol

ENGINE

Honda GX 270

ENGINE OUTPUT AT RPM

8 HP

FUEL CONSUMPTION

2.1 l/h (0.6 gal/h)

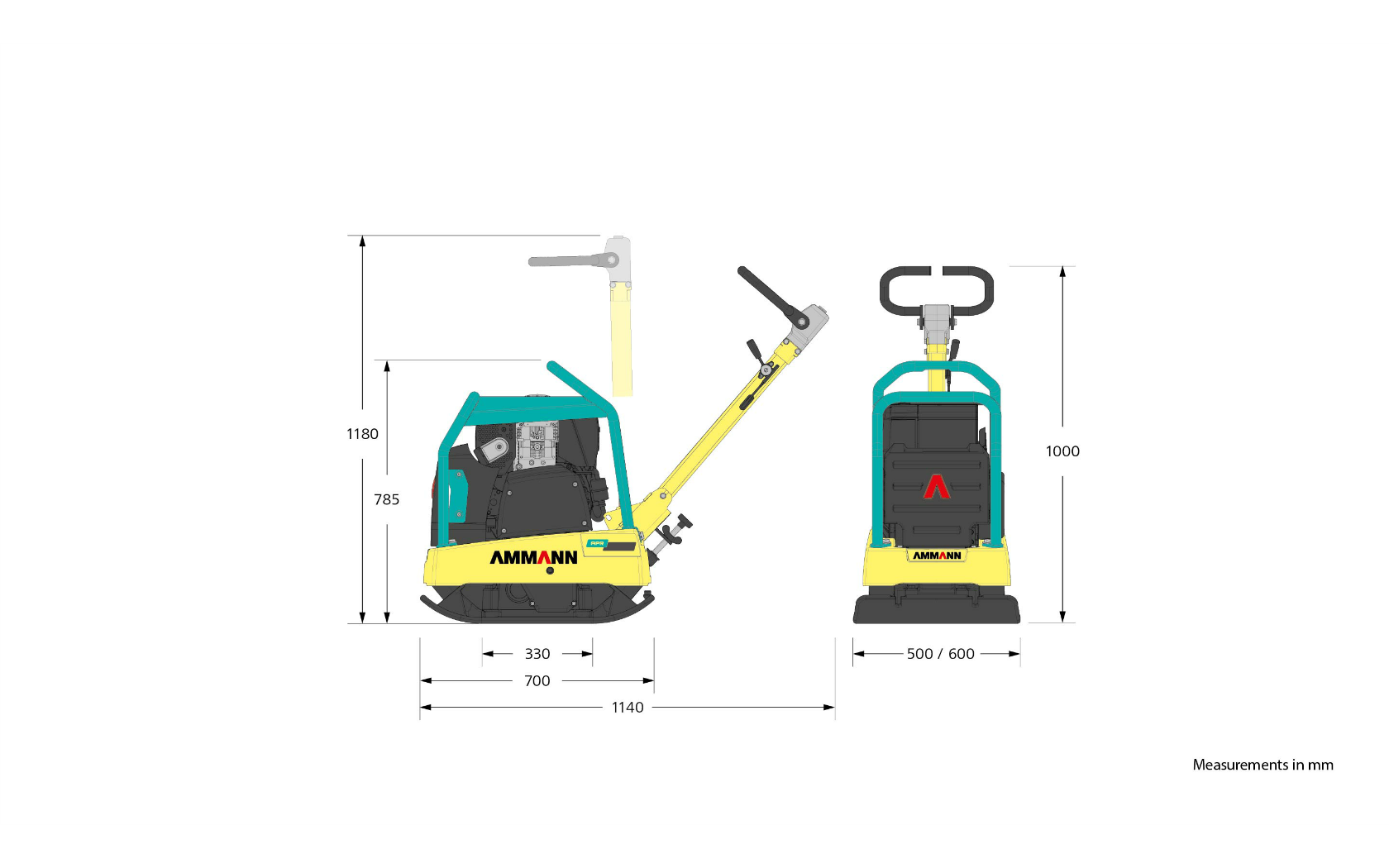

WEIGHT & DIMENSIONS

Operating Weight

439 lb

MACHINE WEIGHT (WITH OPTIONS)

472 lb

BASE PLATE LENGTH

330 mm (13.0 in)

MACHINE LENGTH

700 mm (27.6 in)

WITH HANDLE

1140 mm (44.9 in)

MACHINE HEIGHT

765 mm (30.1 in)

HANDLE HEIGHT (WORK)

1000 mm (39.4 in)

HANDLE HEIGHT (TRANSPORT)

1180 mm (46.5 in)

MACHINE WIDTH

500 mm (19.7 in)

COMPACTION FORCES

MAX. VIBRATION FREQUENCY

90 Hz (5400 vpm)

MAX. CENTRIFUGAL FORCE

32 kN (7194 lbf)

WORKING SURFACE

780 m²/h (8396 ft²/h)

SPEC. SURFACE PRESSUR

19,4 N/cm² (28,1 psi

AMPLITUDE

1.2 mm (0.05 in)

MISCELLANEOUS

HAND-ARM VIBRATIONS

< 2.5m/sec² (8.2 ft/sec2

SPEED

26 m/min (85 ft/min)

FUEL TANK

5.3 l (1.4 gal)

GRADEABILITY

35%

MAX. INCLINE TO ALL SIDES

20°
