Product Overview
Unmatched Compaction Performance

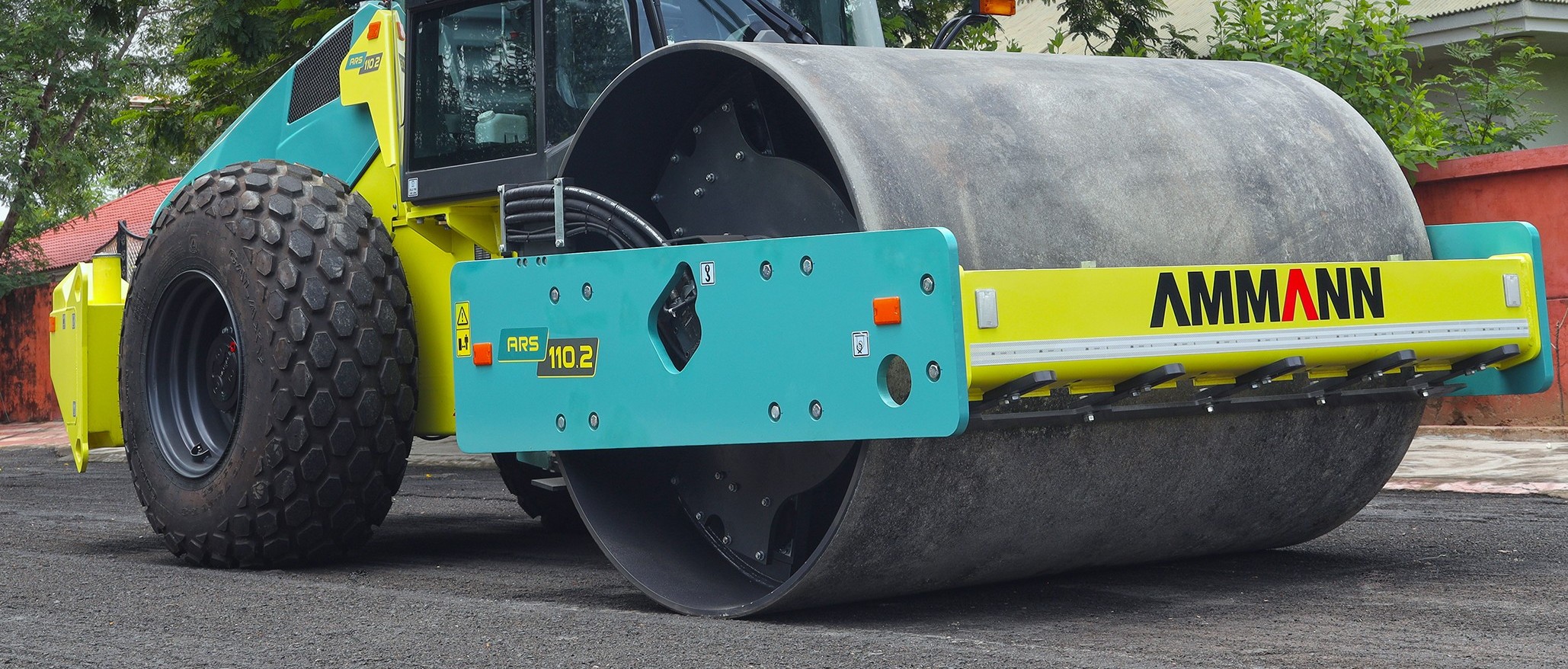

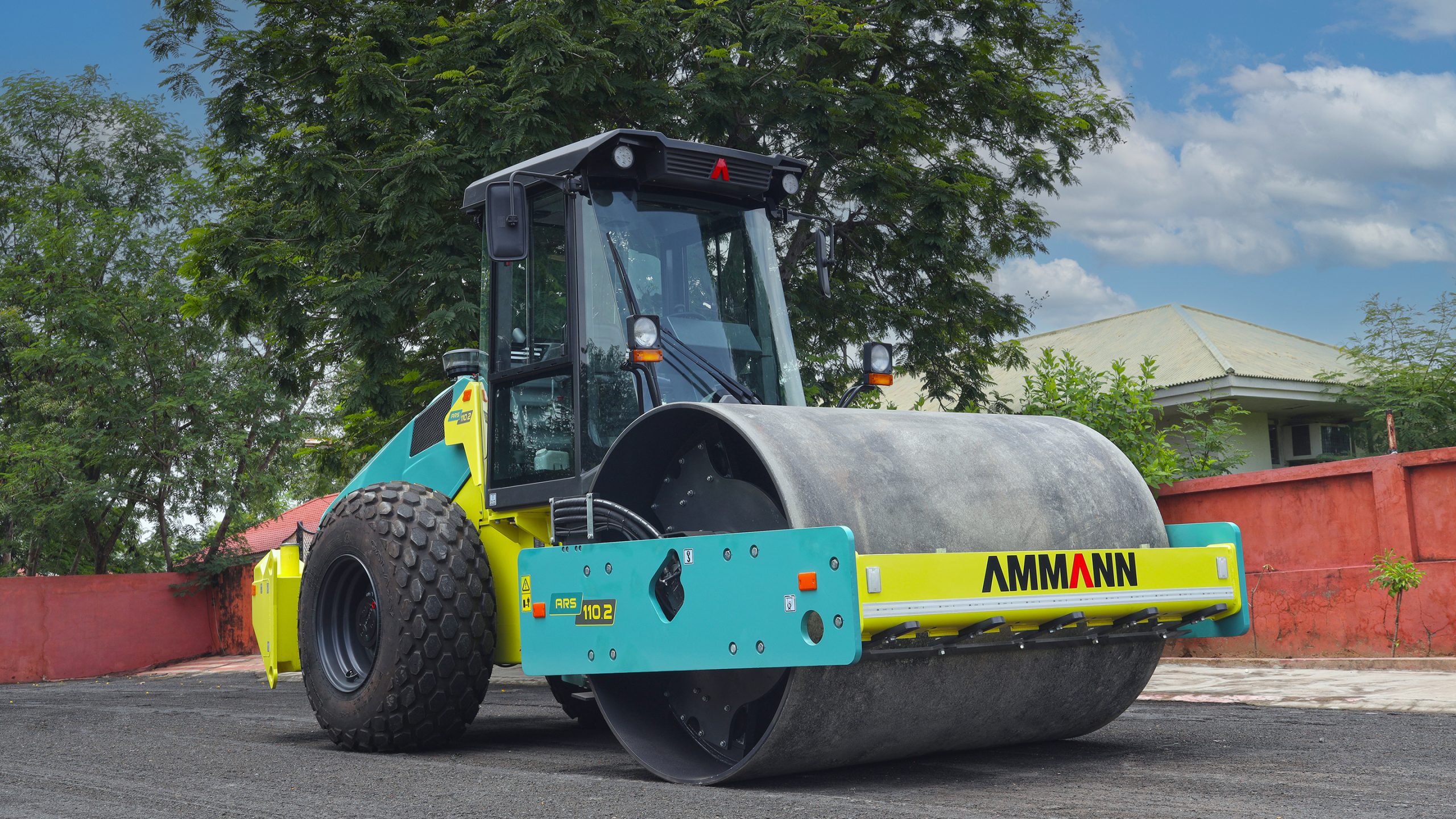

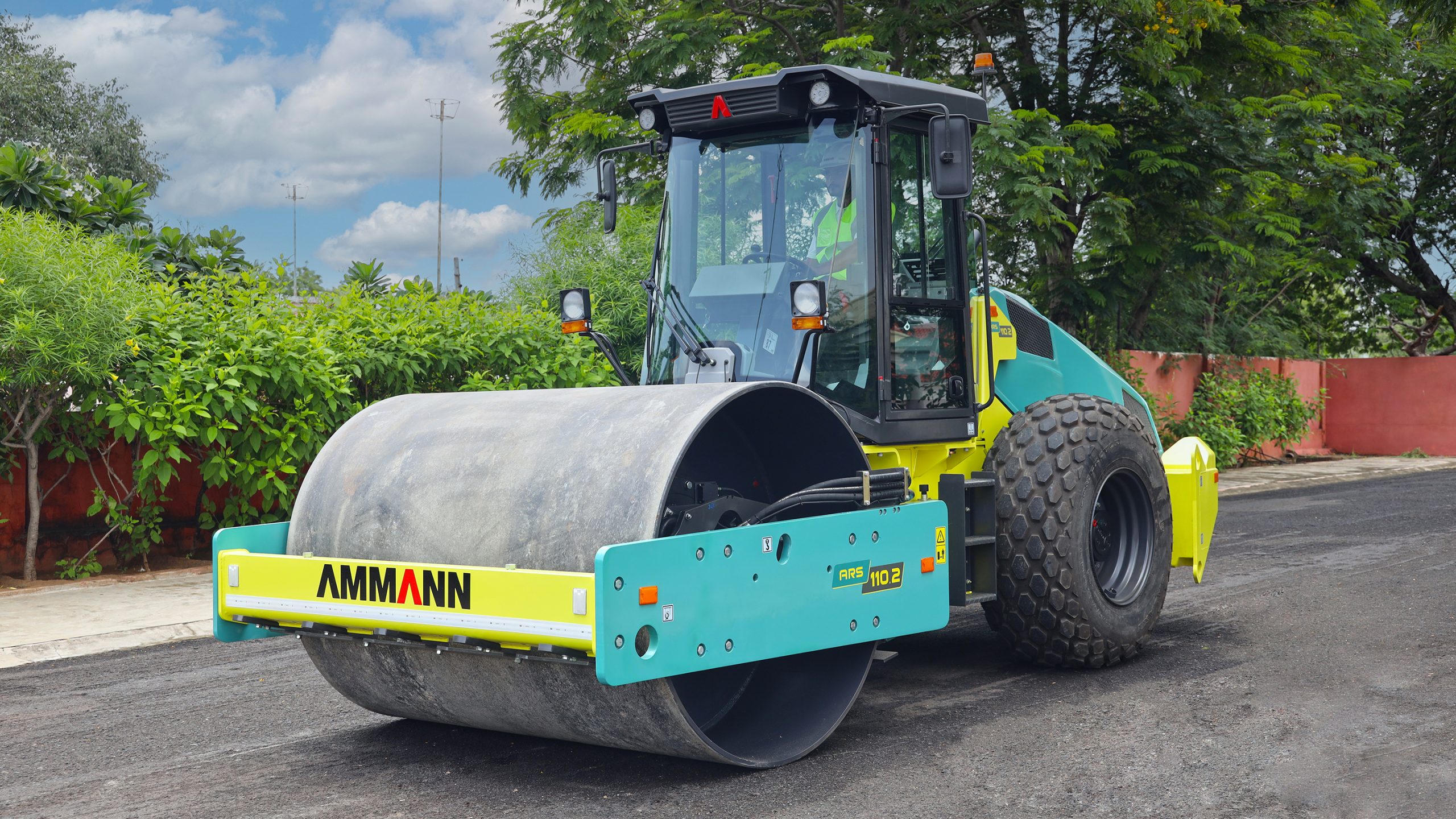

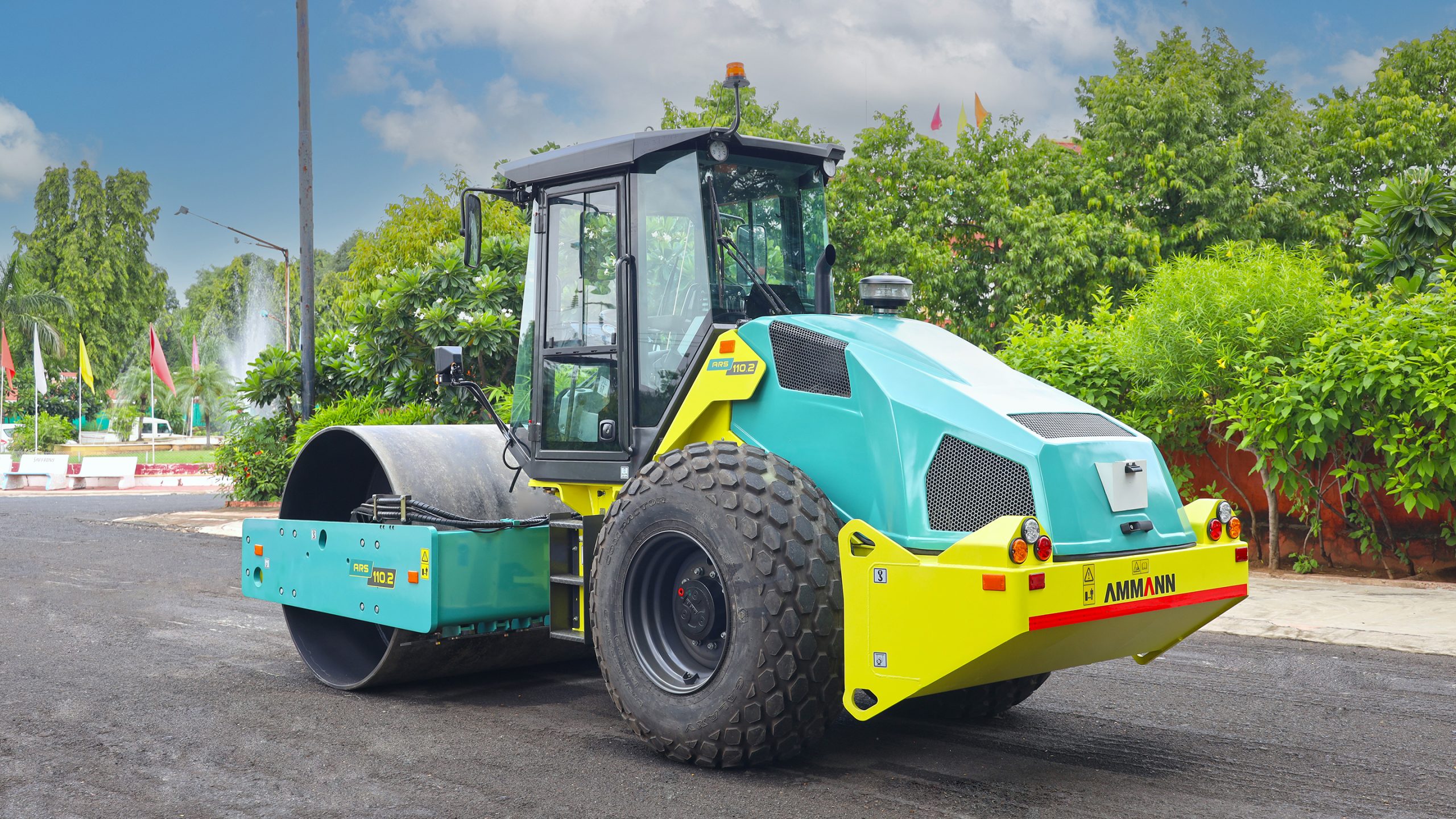

The ARS 110.2 single drum roller delivers exceptional compaction with a robust design for challenging jobsites. Ideal for medium to large projects, it ensures high productivity and efficiency.
– Two-stage vibratory system
– Spacious operator cab with 360º visibility
– Extended service intervals
– ECOdrop for reduced fluid use
The ARS 110.2 features a two-stage vibratory system that provides superior compaction output, making it perfect for medium to large construction sites, including transport construction and municipal roads.
The spacious operator cab offers 360º visibility, ensuring both comfort and safety. This ergonomic design reduces operator fatigue and enhances productivity on long workdays.
With heavy-duty components and easy-to-reach maintenance points, the ARS 110.2 minimizes downtime. Extended service intervals further reduce maintenance needs, ensuring continuous operation.

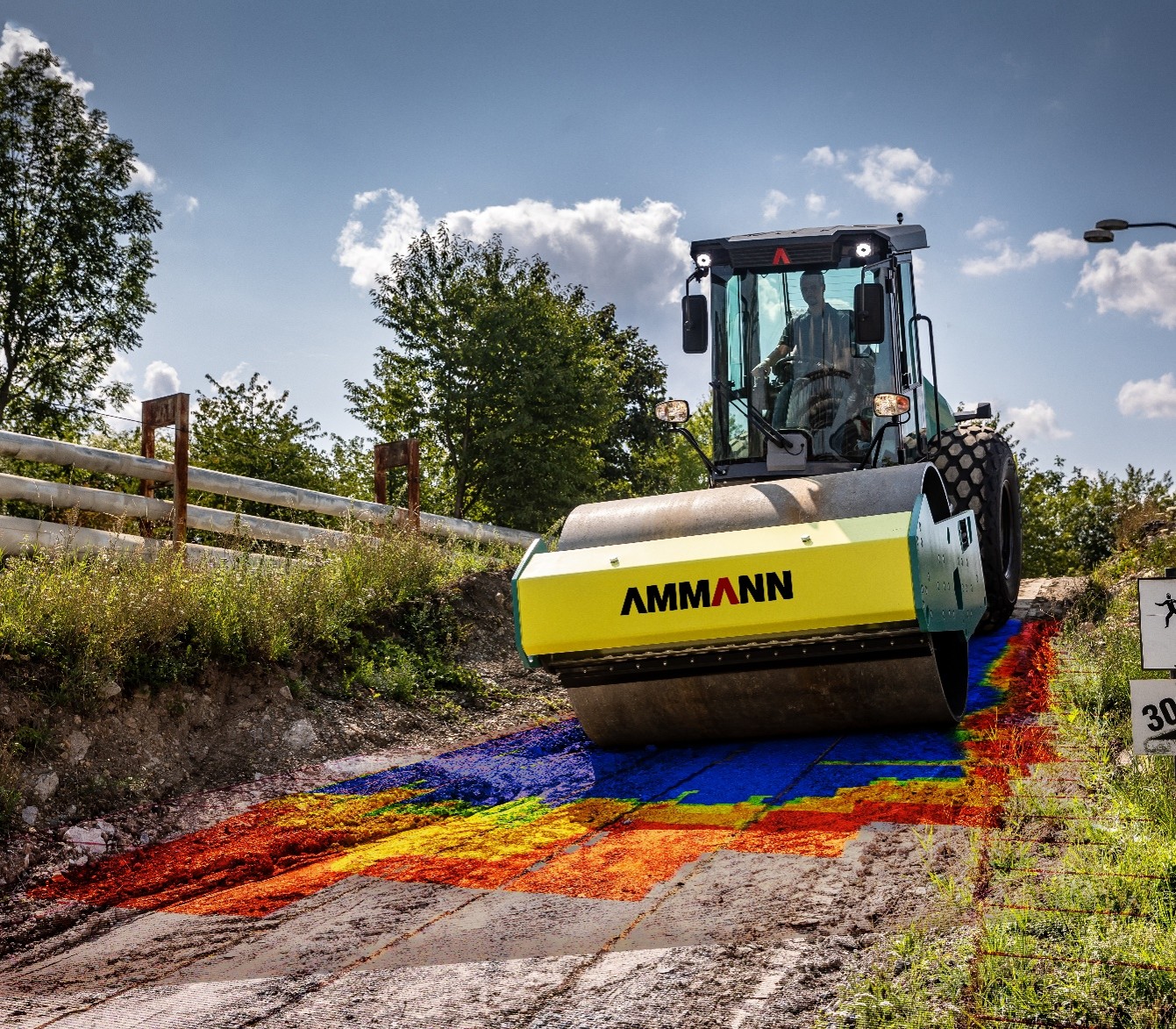

The ECOdrop feature enhances efficiency by reducing fluid usage, while advanced digital monitoring systems ensure optimal performance and sustainability on the job site.
The ARS 110.2 is suitable for diverse applications, including city centers, industrial zones, and rock fill dams, providing reliable performance across different terrains and conditions.
Horsepower
102 HPEMISSION STAGE
Tier 1Operating Weight
28880 lbHorsepower
102 HPTYPE
Cummins 4BT3.9EXHAUST GAS AFTER-TREATMENT
no EATEMISSION STAGE
Tier 1Operating Weight
28880 lbOPERATING WEIGHT CECE (OPEN ROPS-FOPS)
22,267 lbOPERATING WEIGHT CECE (CAB ROPS-FOPS, AC)
22,708 lbSTATIC LINEAR LOAD
24.4 kg/cm (136,6 lb/in)MAX. TRANSPORT SPEED
10.5 km/h (6.5 MPH)MAX. WORKING SPE
5 km/h (3.11 MGRADEABILITY WITH VIBRATION
40%GRADEABILITY WITHOUT
45%TURNING RADIUS (INNE
v3450 mm (135.9 in)FREQUENCY I
35 Hz (2100 vpm)FREQUENCY II
32 Hz (1920 vpm)AMPLITUDE I
1.85 mm (0.07 in)AMPLITUDE II
0.9 mm (0.04 in)CENTRIFUGAL FORCE I
275 kN (61,822 lbf)CENTRIFUGAL FORCE II
160 kN (35,969 lbf)BRAKES OPERATING
HydrostaticBRAKES PARKING
Multiple-disc spring brakeBRAKES EMERGENCY
Multiple-disc spring brakeFUEL TANK CAPACITY
310 l (81.9 gal)ARTICULATION ANGLE
±36°OSCILLATION ANGLE
±10°OPERATING VOLTAGE
12V DCBATTERY
150 AhROCKFILL
800 mm (31.5 in)SAND / GRAVEL
600 mm (23.6 in)MIXED SOILS
500 mm (19.7 in)SILT
400 mm (15.8 in)CLAY
250 mm (9.8 in)
