Product Overview
Versatile Compaction for Every Job Site

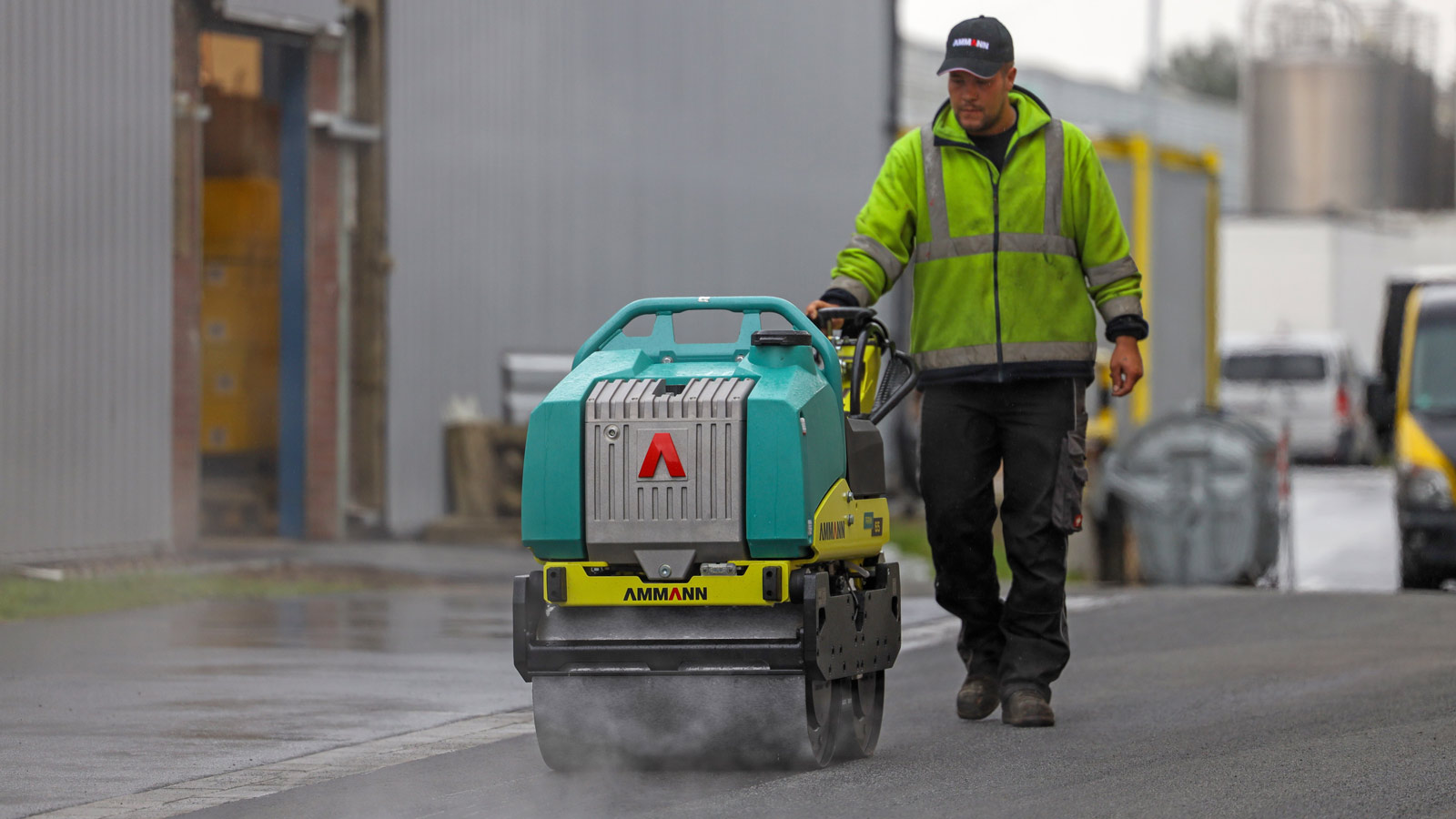

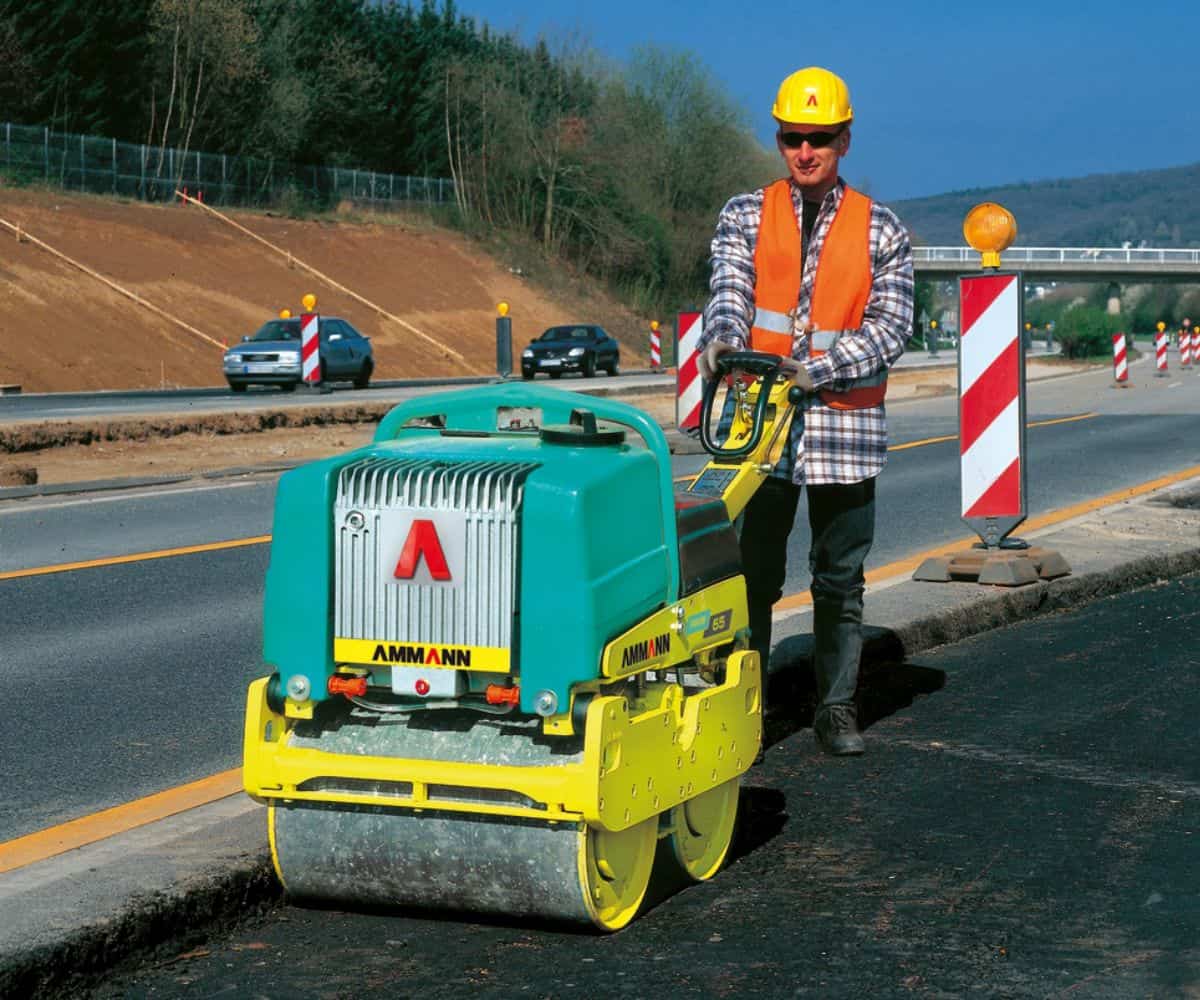

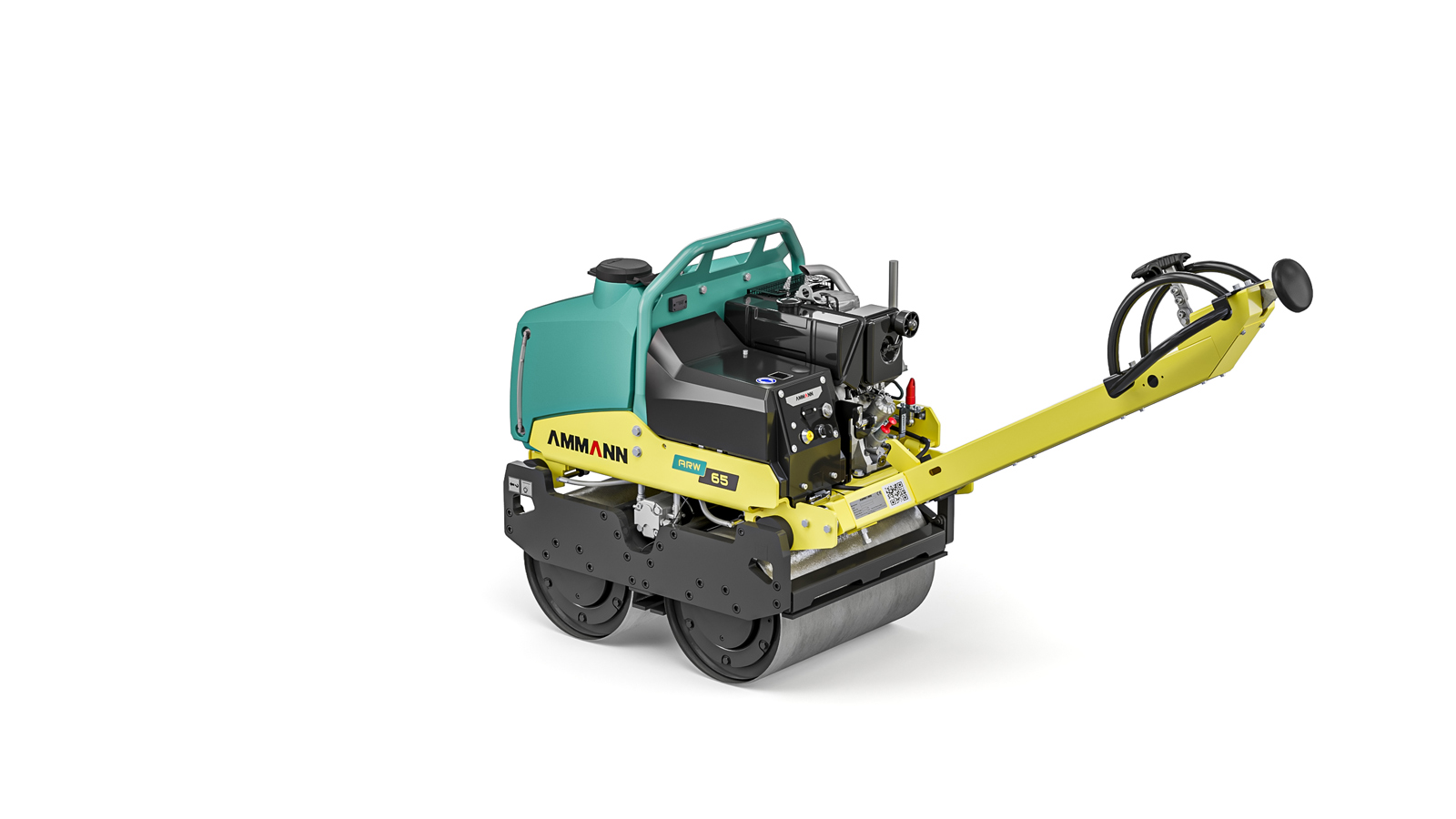

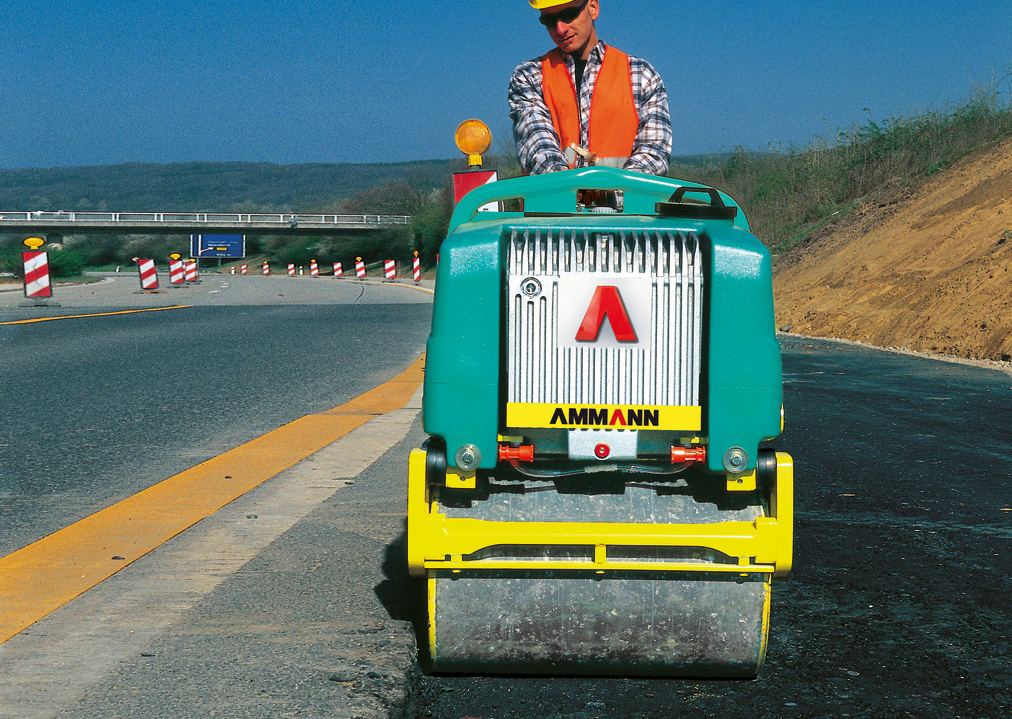

“The ARW 65 Walk-Behind Roller offers unmatched versatility with its dual-amplitude settings, making it ideal for both soil and asphalt applications. Its ergonomic design ensures ease of use and safety for operators.
– High-amplitude for gravel/soil
– Low-amplitude for asphalt
– Safety handle for operator protection”
The ARW 65 features high-amplitude settings for effective compaction on gravel and soil, while the low-amplitude setting is perfect for asphalt and bituminous materials, providing flexibility for various construction needs.
The hydraulic drive system allows for variable speed adjustment, ensuring smooth starting and braking actions. This reduces maintenance costs and enhances the machine’s operational efficiency.
Equipped with a safety handle, the ARW 65 stops automatically when released. It also changes direction to forward if the machine gets too close to the operator in reverse mode, ensuring maximum safety.

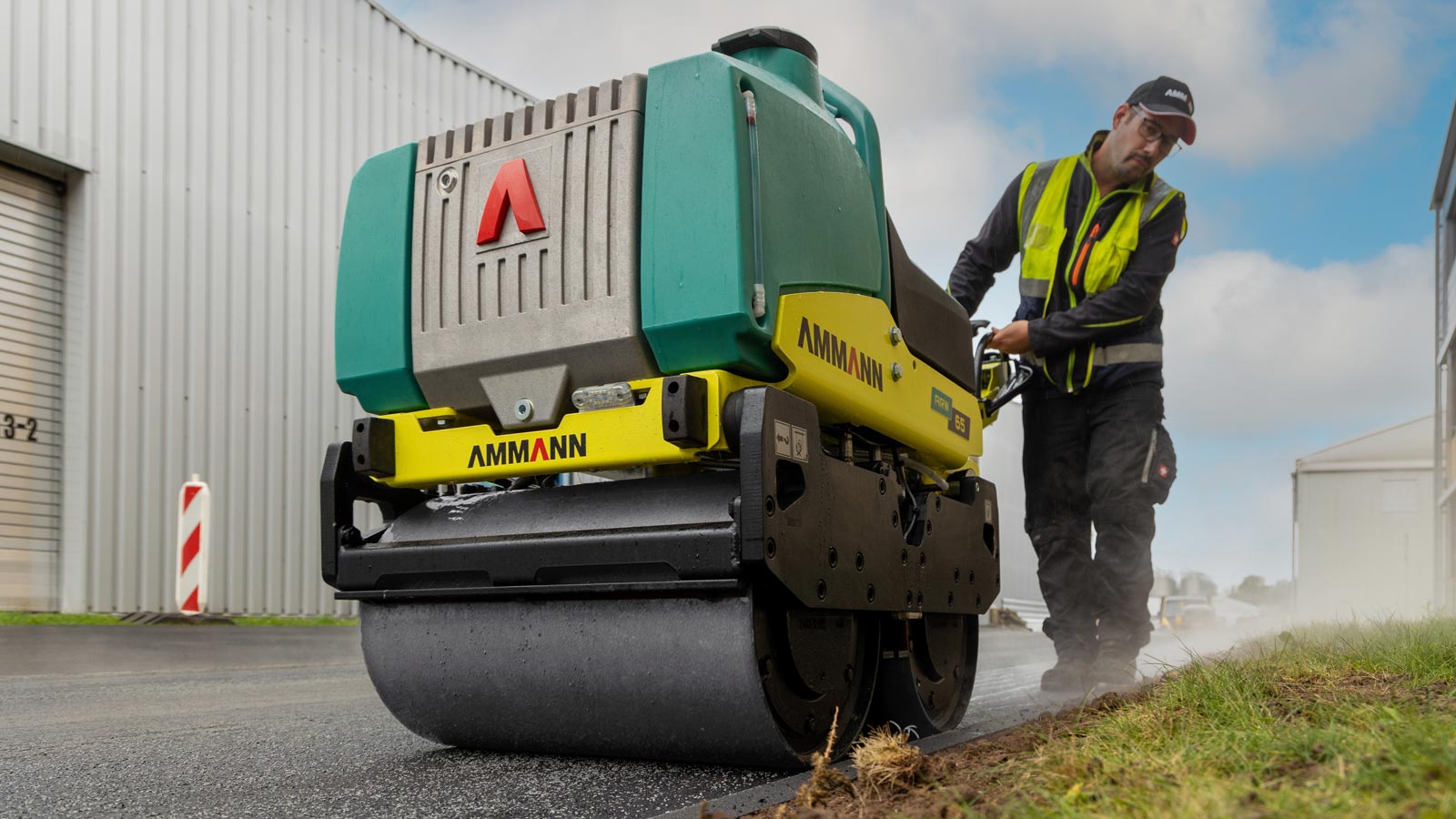

Clearance on both drum sides allows the ARW 65 to perform compaction work extremely close to obstacles, eliminating the need for time-consuming reworking on edges.

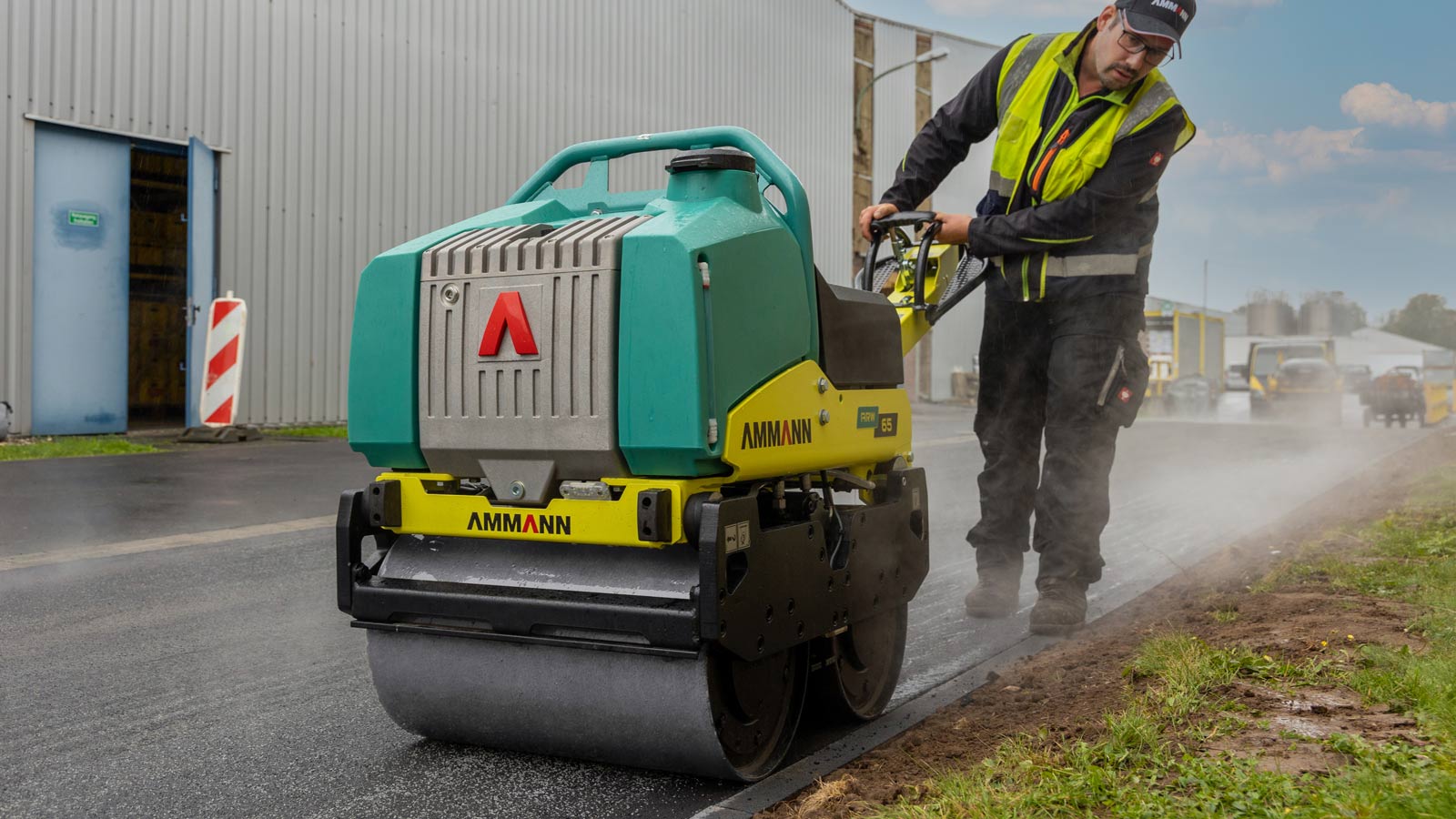

The integrated sprinkler system and large water tank ensure effective work on bituminous materials, preventing material from sticking to the drum and maintaining smooth operation.
ENGINE
Hatz 1D42ENGINE OUTPUT AT RPM
8.6 HPOperating Weight
1549 lbENGINE
Hatz 1D42FUEL
DieselENGINE OUTPUT AT RPM
8.6 HPFUEL CONSUMPTION
2 l/h (0.6 gal/h)Operating Weight
1549 lbMAX. WEIGHT (WITH ELECTRIC START & OPTIONS)

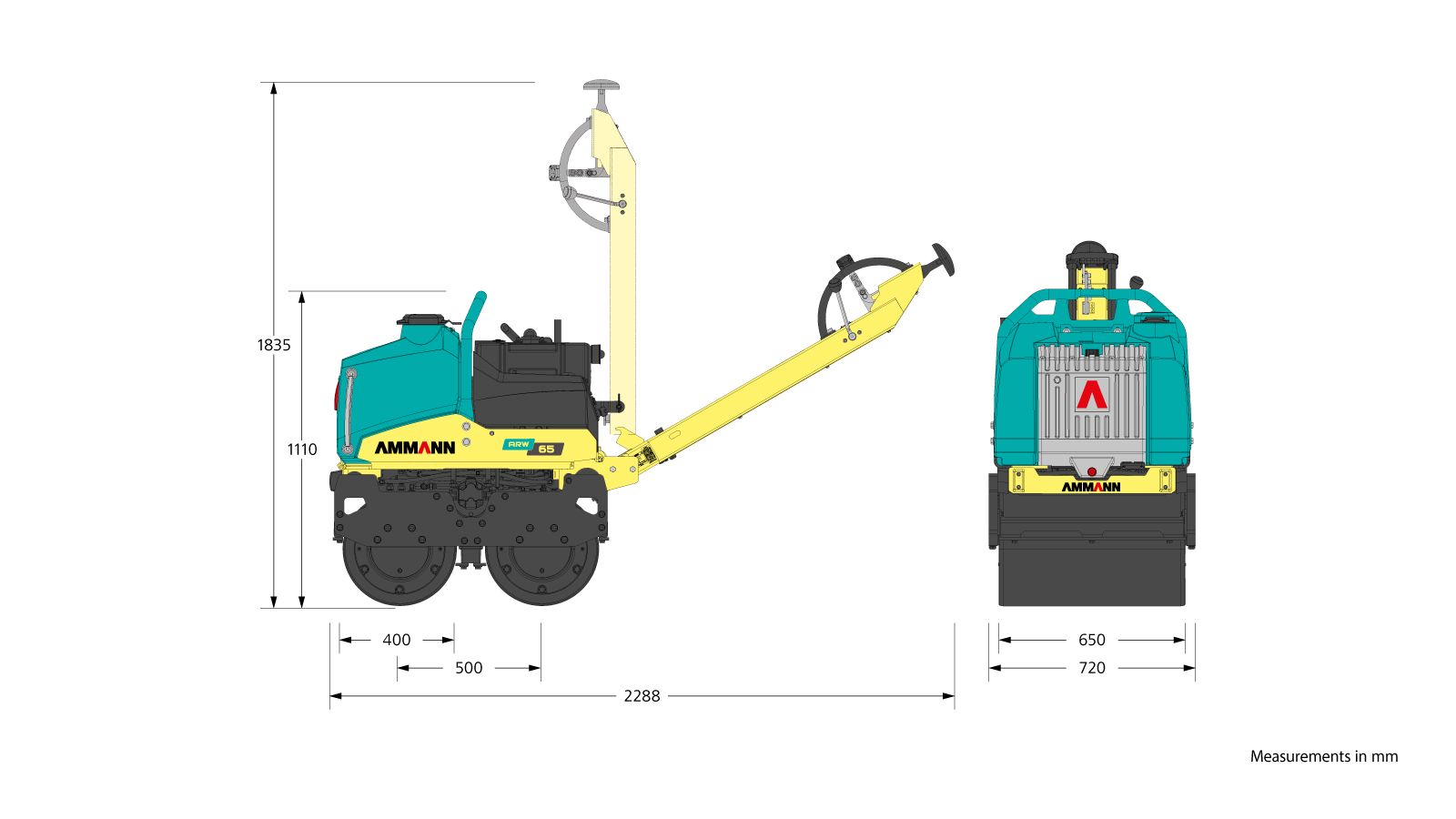

1571 lbMACHINE LENGTH
2288 mm (90.1 in)WHEEL BASE
500 mm (19.7 in)DRUM DIAMETER
400 mm (15.7 in)MACHINE HEIGHT
1110 mm (43.7 in)TRANSPORT HEIGHT
1835 mm (72.2 in)MACHINE WIDTH
720 mm (28.3 in)DRUM WIDTH
650 mm (25.6 in)MAX. VIBRATION FREQUENCY
Y 65 Hz (3900 vpm)MAX. CENTRIFUGAL FORCE
14/23 kN (2147 / 5171 lbf)LINEAR PRESSURE
5.7 kg/cm (31.8 lb/in)AMPLITUDE
0.3 /0.15 mm (0.01 / 0.005 in)MAX. COMPACTION DEPTH (SOIL)
20/15 cm (7.9/5.9 in)MAX. COMPACTION DEPTH (SAND)
30/25 cm (11.8/9.8 in)SPEED (FORWARD)
67 m/min (2.5 mph)SPEED (REVERSE)
42 m/min (1.6 mph)GRADEABILITY W./W.O. VIBRATION
25 % / 45 %FUEL CAPACITY
5 l (1.3 gal)WATER TANK CAPACITY
60 l (15.8 gal)
