Product Overview
Efficient Compaction for Diverse Applications
“The ARX 20-2 delivers reliable performance for small to medium construction sites, offering smooth rolling and enhanced compaction. Ideal for road maintenance and confined spaces.
– Smooth rolling for consistent operation
– Versatile for various job sites
– Enhanced operator comfort
– Low maintenance design”
The ARX 20-2 is designed to prevent sudden starts and stops, providing smooth and efficient rolling for a variety of construction applications, enhancing productivity and ease of use.

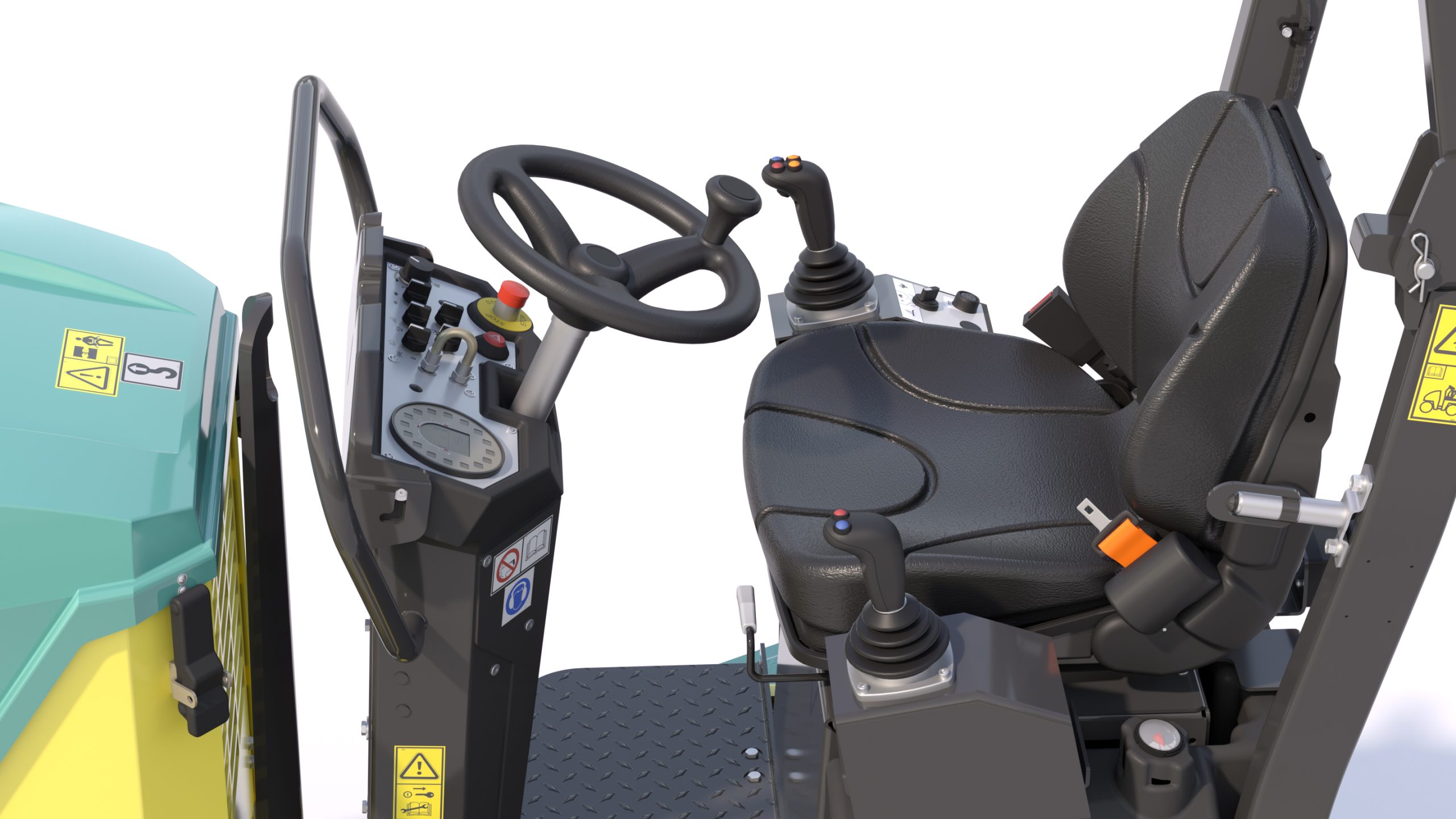

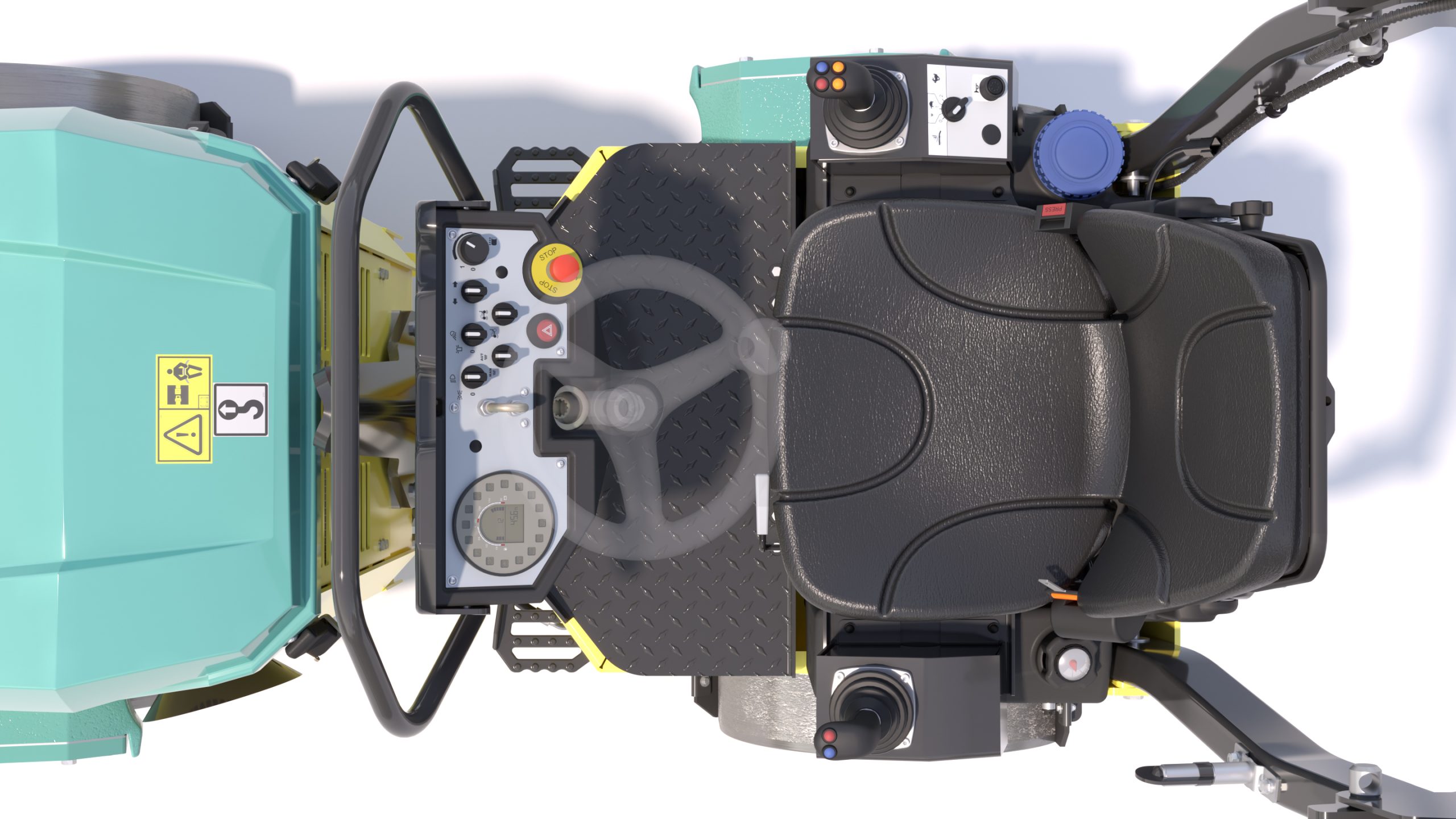

The operator platform is ergonomically designed for comfort, featuring a 360° all-around view to maximize safety and efficiency during operation, ensuring a pleasant experience for long shifts.
With easy-to-reach maintenance points and a robust design, the ARX 20-2 minimizes downtime and simplifies serviceability, ensuring the machine remains operational and efficient.
ECOdrop technology reduces fluid use and enhances machine efficiency, contributing to sustainable operation and precise documentation of machine usage.
Incorporating advanced technologies, the ARX 20-2 allows for controlled machine usage, boosting productivity and enabling precise documentation for better project management.
Horsepower
21 hpOperating Weight
3,781 lbBATTERY VOLTAGE
12VHorsepower
21 hpMANUFACTURER
KubotaENGINE TYPE
D1105ENGINE SPEED
2400 / 2600 rpmEMISSION STAGE
EU Stage V / U.S. EPA Tier 4 FinalOperating Weight
3,781 lbSTATIC LINEAR LOAD AVG.
7,85 kg/cm (44 lb/in)MAX. WORKING SPEED
8 km/h (5 MPH)GRADEABILITY WITHOUT VIBRATION
35%GRADEABILITY WITH VIBRATION
30%TURNING RADIUS (INNER)
2085 mm (82.1 in)DRUM OFFSET
48 mm (1.9 in)AMPLITUDE I
0,5 mm (0.020 in)AMPLITUDE II
0,5 mm (0.020 in)FREQUENCY I
60 Hz (3,600 vpm)FREQUENCY II
70 Hz (4,200 vpm)CENTRIFUGAL FORCE I
21 kN (4,721 lbf)CENTRIFUGAL FORCE II
24 kN (5,395 lbf)BRAKES OPERATING
HydrostaticBRAKES PARKING
Multiple-disc spring brakeBRAKES EMERGENCY
Multiple-disc spring brakeFUEL TANK CAPACITY
24 l (6.3 gal)WATER TANK CAPACITY
110 l (29.1 gal)TYPE OF WATERING
PressureHYDRAULIC TANK CAPACITY
28,5 l (7.5 gal)STEERING ANGLE
±30°OSCILLATION ANGLE
±6°BATTERY VOLTAGE
12VBATTERY CAPACITY
77 AhROCKFILL
N/ASAND / GRAVEL
200 mm (7.9 in)MIXED SOILS
150 mm (5.9 in)SILT
N/ACLAY
N/ASTABILISATION
100 mm (3.9 in)ASPHALT
80 mm (3.1 in)
