ARX 23-2C – General Trading & Equipment Co.

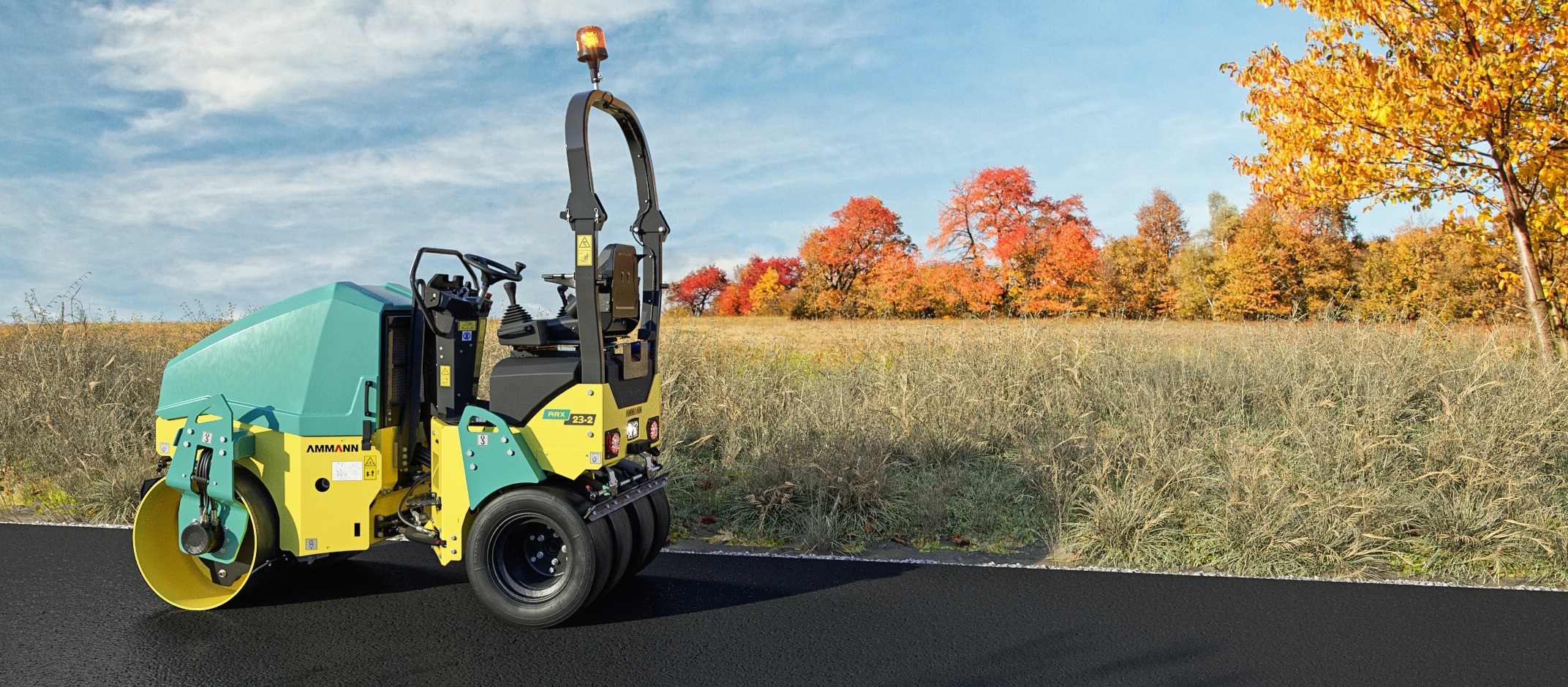

ARX 23-2C

ARX 23-2C

33 hp

Horsepower

5093 lb

Operating Weight

12 V

BATTERY VOLTAGE

Request Price View Product Specifications

Product Overview

Efficient Compaction for Diverse Applications

The ARX 23-2C delivers exceptional performance for small to medium construction sites, road maintenance, and city street repairs. Its ergonomic design ensures operator comfort and safety.

– Smooth rolling with no sudden starts or stops

– 360Â° visibility for enhanced safety

– Robust design for low downtime

Smooth Rolling

Smooth Rolling

The ARX 23-2C features smooth rolling capabilities, eliminating sudden starts and stops during operation. This ensures a consistent compaction process, enhancing productivity and reducing operator fatigue.

360Â° Visibility

360Â° Visibility

The operator station provides all-around visibility from the seat, allowing operators to maintain awareness of their surroundings. This feature significantly enhances safety on the jobsite, reducing the risk of accidents.

Robust Design

Robust Design

Designed with durability in mind, the ARX 23-2C protects critical components, reducing the need for frequent maintenance. Easy-to-reach maintenance points further ensure quick servicing, keeping the machine operational.

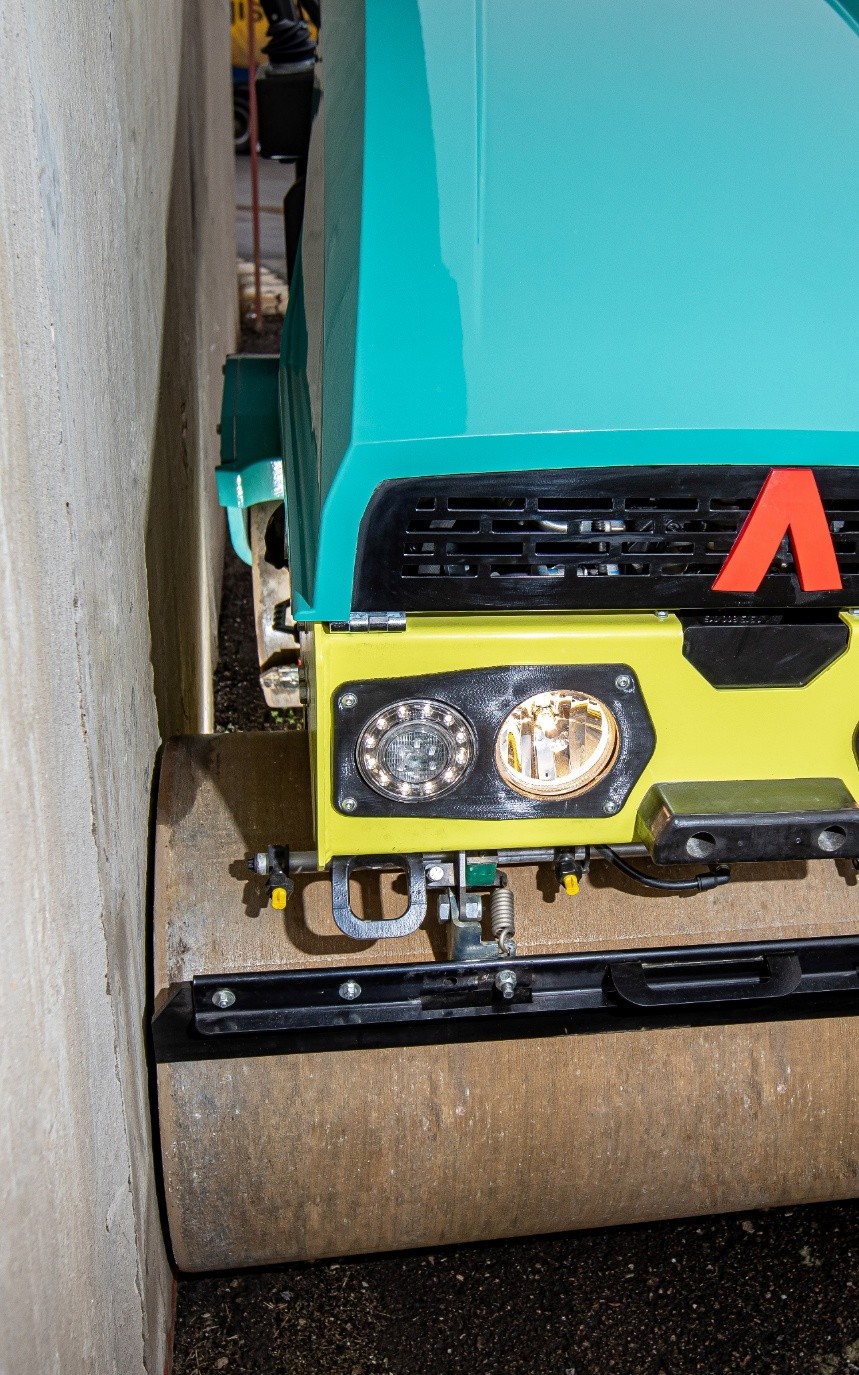

ECOdrop Technology

ECOdrop Technology

ECOdrop technology reduces fluid usage, enhancing the machine’s efficiency and sustainability. Advanced technologies enable precise documentation and control, contributing to overall productivity.

Ergonomic Operator Platform

Ergonomic Operator Platform

The operator platform is designed for maximum comfort, ensuring a pleasant experience regardless of shift length. This ergonomic design supports operator well-being and productivity.

Product Specifications for ARX 23-2C

Description

Specifications

Downloads

Contact us for More Details

ARX 23-2C Key Specifications

Horsepower

33 hp

Operating Weight

5093 lb

BATTERY VOLTAGE

12 V

Engine

Horsepower

33 hp

MANUFACTURER

Kubota

ENGINE TYPE

D1803-M-DI

ENGINE SPEED

2100 / 2400 rpm

POWER OUTPUT ISO 3046

24,8 kW / 33,3 HP

EMISSION STAGE

EU Stage IIIA / U.S. EPA Tier 4 interim

WEIGHT & OPERATING

Operating Weight

5093 lb

STATIC LINEAR LOAD AVG

10,7 kg/cm (59.9 lb/in)

MAX. WORKING SPEED

11 km/h (6.8 MPH)

GRADEABILITY WITHOUT VIBRATION

35%

GRADEABILITY WITH VIBRATION

35%

TURNING RADIUS (INNER)

2500 mm (98.4 in)

COMPACTION FORCES

AMPLITUDE I

0,5 mm (0.020 in)

AMPLITUDE II

0,5 mm (0.020 in)

FREQUENCY I

58 Hz (3,480 vpm)

FREQUENCY II

66 Hz (3,960 vpm)66 Hz (3,960 vpm)

CENTRIFUGAL FORCE I

30 kN (6,744 lbf)

CENTRIFUGAL FORCE II

36 kN (8,093 lbf)

MISCELLANEOUS

BRAKES OPERATING

Hydrostatic

BRAKES PARKING

Multiple-disc spring brake

BRAKES EMERGENCY

Multiple-disc spring brake

FUEL TANK CAPACITY

35 l (9.2 gal)

WATER TANK CAPACITY

190 l (50.2 gal)

ANTI-ADHESIVE TANK

12 l (3.2 gal)

TYPE OF WATERING

Pressure

HYDRAULIC TANK CAPACITY

28,5 l (7.5 gal)

STEERING ANGLE

±30°

OSCILLATION ANGLE

±6,5°

BATTERY VOLTAGE

12 V

BATTERY CAPACITY

77 Ah

NUMBER OF WHEELS

4 pcs

SIZE OF TIRES

205/ 60-R15

WHEEL LOAD

260 kg (573 lb)

MAXIMUM RECOMMENDED COMPACTED LIFT THICKNESS AT OPTIMAL WORKING CONDITIONS

ROCKFILL

N/A

SAND / GRAVEL

220 mm (8.7 in)

MIXED SOILS

150 mm (5.9 in)

SILT

N/A

CLAY

N/A

STABILISATION

100 mm (3.9 in)

ASPHALT

80 mm (3.1 in)

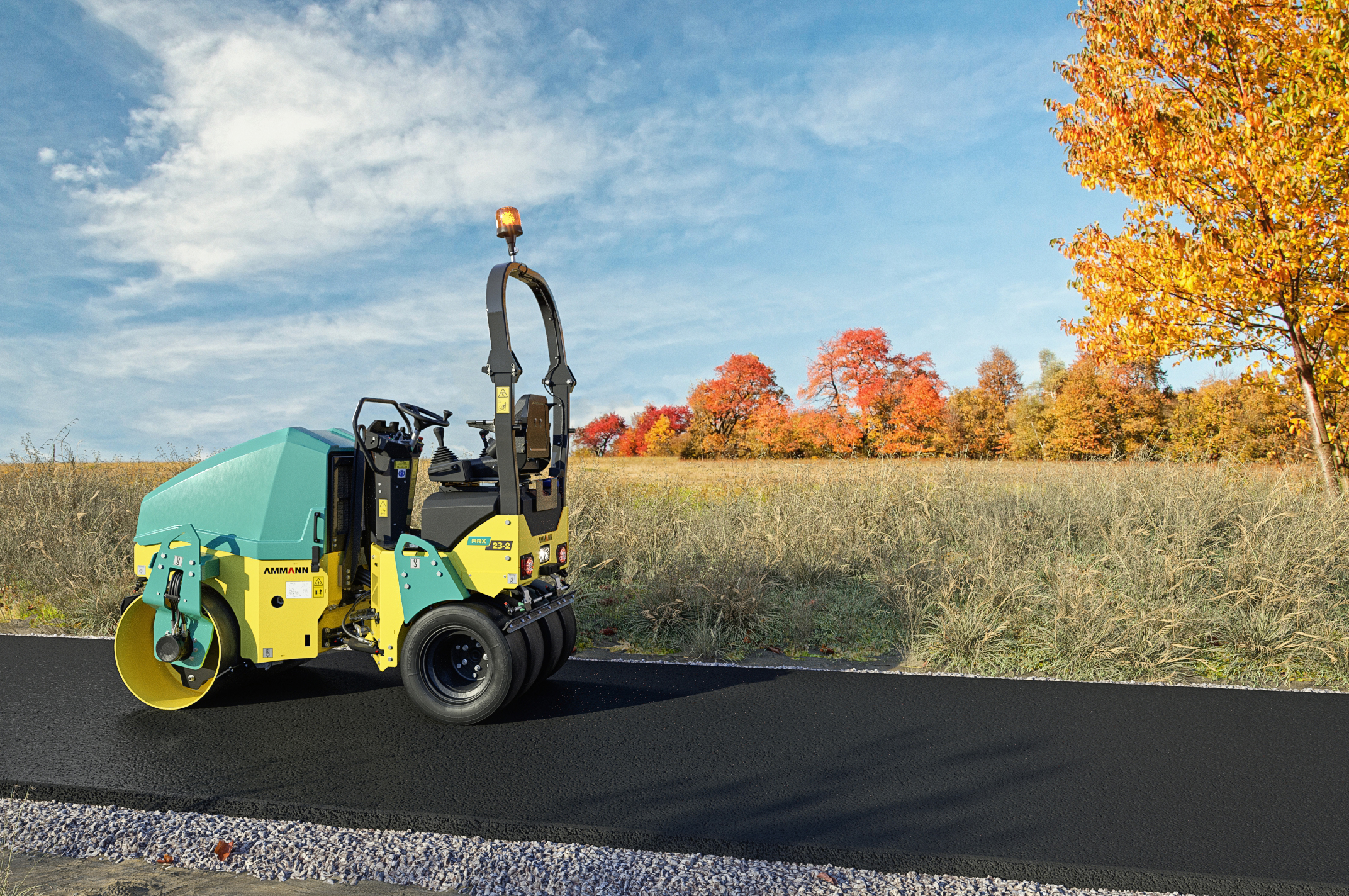

ARX23-2C
