AS4006 M6 – General Trading & Equipment Co.

AS4006 M6

AS4006 M6

230

Voltage

1646 lb

Weight

360º manual

Rotation

Request Price View Product Specifications

Product Overview

Efficient Lighting for Every Situation

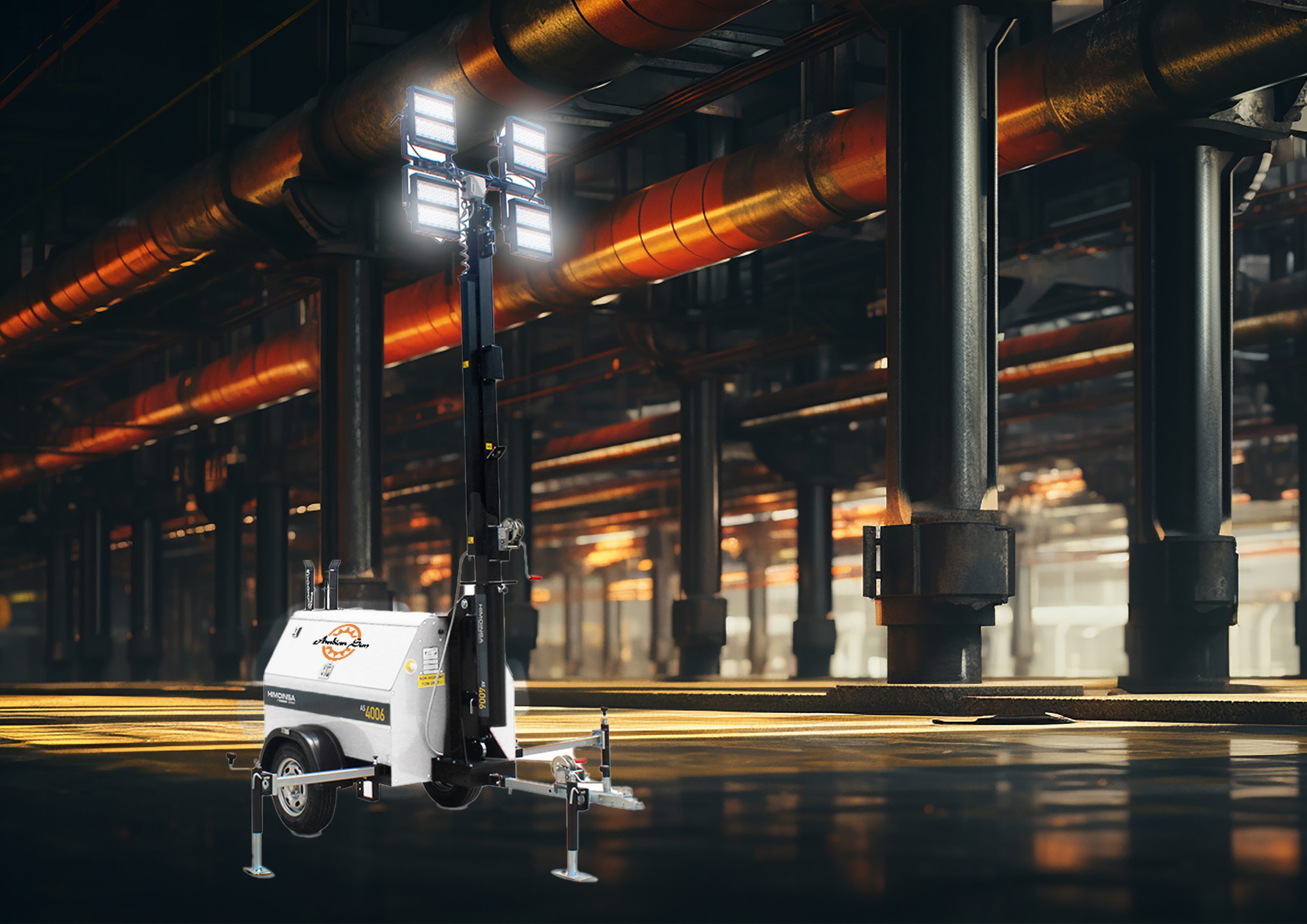

“The AS4006 M6 lighting tower offers robust performance with a 9-meter maximum height and 360° manual rotation, ideal for diverse environments. With a powerful 210,000 lumens output, it ensures optimal visibility.

– 207 hours of autonomy

– Water-cooled LED technology

– Easy manual lifting system”

High Lumen Output

High Lumen Output

The AS4006 M6 is equipped with four 350W LED lamps, delivering a total of 210,000 lumens, ensuring bright and consistent lighting for large areas, enhancing safety and productivity.

Extended Autonomy

Extended Autonomy

With a large 114-liter fuel tank, this lighting tower can operate continuously for up to 207 hours, reducing the need for frequent refueling and ensuring uninterrupted performance.

360° Manual Rotation

360° Manual Rotation

The manual rotation feature allows for complete 360° movement, enabling precise control over the lighting direction to suit any specific area or task requirements.

Robust Stability Features

Robust Stability Features

The tower includes four stabilizers, two of which are extensible, ensuring firm placement and stability even in challenging terrains, minimizing risks of tipping over.

User-Friendly Maintenance

User-Friendly Maintenance

Wide access points and a bubble level on the genset simplify maintenance and control, allowing for quick adjustments and servicing, keeping downtime to a minimum.

Product Specifications for AS4006 M6

Description

Specifications

Downloads

Contact us for More Details

AS4006 M6 Key Specifications

Voltage

230

Weight

1646 lb

Rotation

360º manual

Performance

Power kVA

2,8

Voltage

230

Maximum dimensions

3162 x 2781 x 9068

Minimum dimensions

3944 x 1451 x 1892

Weight

1646 lb

Fuel tank capacity

114

Tank refilling

External

Autonomy

207

Noise level

101 LWA - 76 dB(A)

Engine Specifications

Model

YANMAR 2TNV70WHR

Engine Type

4-stroke diesel

Injection Type

Indirect

Aspiration Type

Natural

Number of cylinders and arrangement

2-L

Bore and Stroke

70 x 74 mm

Displacement

0,57 L

Cooling System

Coolant

Lube Oil Specifications

SAE 3 class 10W30 / API grade CD,CF

Compression Ratio

23,4

Fuel consumption (lights only)

0,55 L/Hr

Governor

Mechanical

Air Filter

Dry

Inner diameter exhaust pipe

40

Mast

Mast type

Manual

Mast sections

3

Rotation

360º manual

Double safety block

Standard

Lamps

4 x 350 W nº

Lamps type

LED

Total lumens

4 x 52500 = 210.000 lm

Remaining power

1.4 kW

Bodywork

Canopy

Standard

Auxiliary sockets

2 x 16 Amp

Lifting hook

Standard

Chassis

Wheels

2 x 165R13

Stabilisers

4

Bracket holders

Standard

Himoinsa Arabian Sun AS4006 V5
