10 hp

Horsepower

3

Number of cylinders

2592 Ib

Operating Weight

Request Price View Product Specifications

Product Overview

Unmatched Versatility in Compact Spaces

The Bobcat E10z Compact Excavator delivers exceptional performance in tight spaces, making it ideal for urban construction and landscaping projects.

– Hydraulically expandable undercarriage

– Two-speed travel

– Electronically activated track expansion

– TOPS canopy for safety

Hydraulically Expandable Undercarriage

Hydraulically Expandable Undercarriage

The E10z features a hydraulically expandable undercarriage that adjusts from 710 mm to 1100 mm, providing stability and access in confined areas, enhancing operational flexibility.

Two-Speed Travel

Two-Speed Travel

Switch between low and high travel speeds, ranging from 2.1 km/h to 3.1 km/h, allowing for efficient maneuvering and reduced time on site.

Electronically Activated Track Expansion

Electronically Activated Track Expansion

With electronically activated track expansion, the E10z offers seamless transitions between different track widths, ensuring stability and adaptability in various terrains.

TOPS Canopy

TOPS Canopy

The Tip Over Protective Structure (TOPS) canopy meets ISO 12117 standards, providing essential protection for operators in challenging environments.

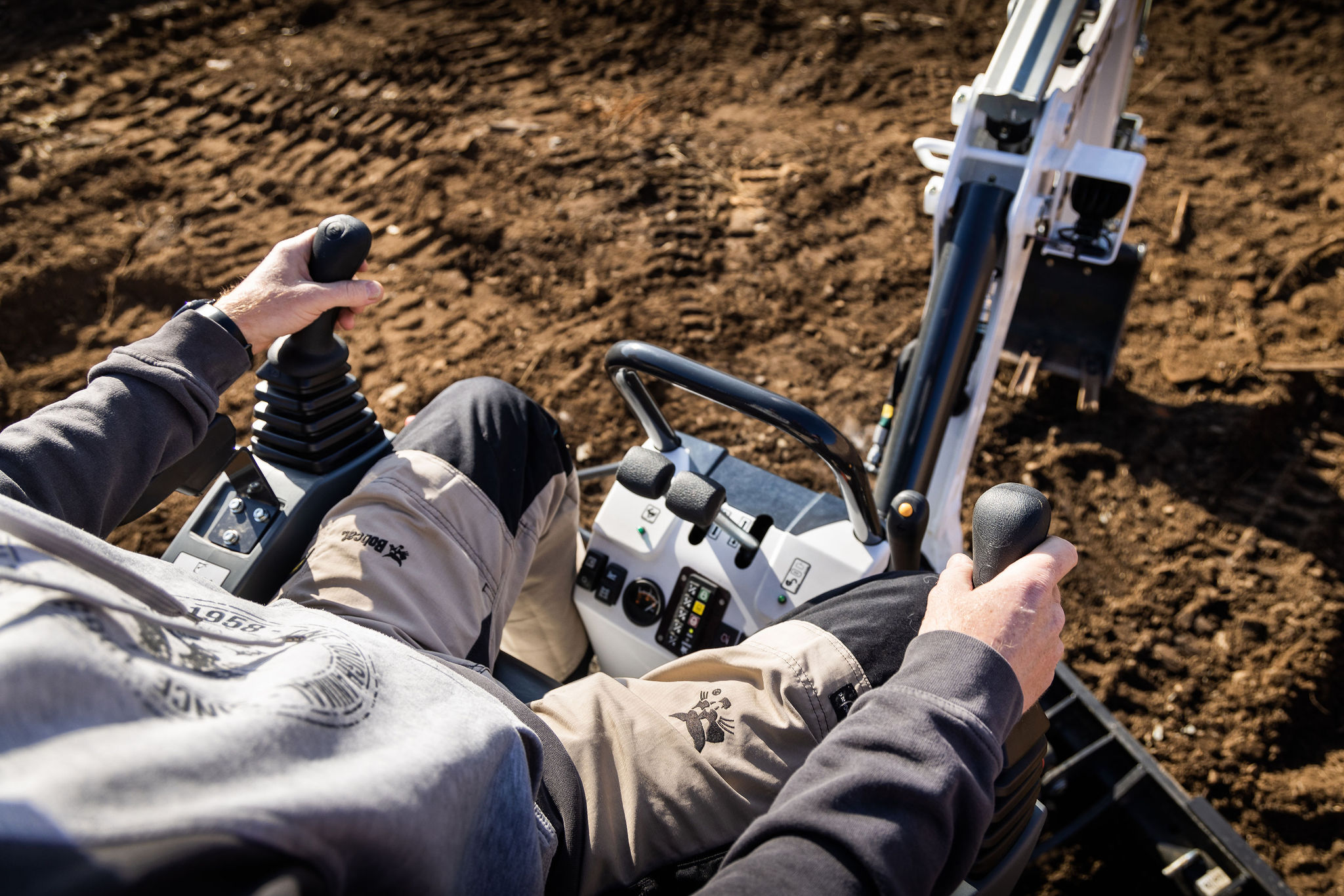

Auxiliary Hydraulics

Auxiliary Hydraulics

Equipped with auxiliary hydraulics on the boom with quick couplers, the E10z supports a variety of attachments, increasing its utility across diverse tasks.

Product Specifications for E10z

Description

Specifications

Downloads

Contact us for More Details

E10z Key Specifications

Horsepower

10 hp

Number of cylinders

3

Operating Weight

2592 Ib

Weights

Operating weight with TOPS canopy and bucket (ISO 6016)

1176 kg

Transport mass (no attachment)

1077 kg

Ground pressure with rubber tracks

29.70 kPa

Engine

Make / mode

Kubota / D722-E4B-BCZ-6

Engine Cooling

3.00

Engine Fuel

Diesel

Horsepower

10 hp

Number of cylinders

3

Displacement

0.72 L

Maximum power @ 2000 rpm (ISO 14396)

10 hp

Maximum torque (SAE)

40.1 Nm

Performance

Digging force, dipperstick (ISO 6015)

5550 N

Digging force, bucket (ISO 6015)

8294 N

Drawbar pull

9905 N

Travel speed, low range

2.1 km/h

Travel speed, high range

3.1 km/h

Hydraulic System

Pump type

Double gear pump

Total hydraulic capacity

20.00 L/min

Auxiliary flow

20.00 L/min

Auxiliary relief

184.0-192.0 bar

Slew System

Boom swing, left

67.0°

Boom swing, right

64.0°

Slew rate

9.0 RPM

Fluid Capacities

Cooling system

3.00 L

Engine lubrication plus oil filter

3.50 L

Fuel reservoir

16.00 L

Hydraulic reservoir

2.60 L

Hydraulic system

10.10 L

Environmental

Noise level LpA(EU Directive 2006/42/EC)

80 dB(A)

Noise level LWA(EU Directive 2000/14/EC)

93 dB(A)

Dimension

Operating Weight

2592 Ib

EN_E10z_Leaflet_B4501160_12-2019_HighRes
