Product Overview
Efficient Compaction for Diverse Applications

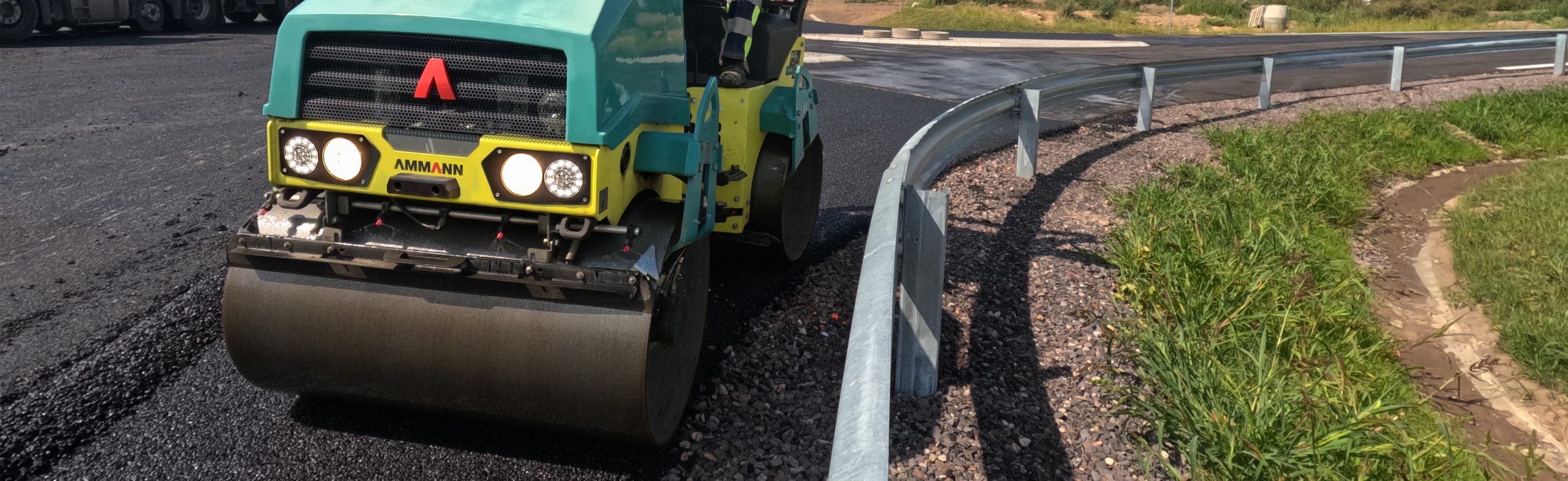

The ARX 26-2 delivers exceptional performance for small to medium construction sites, road maintenance, and city street repairs. Its ergonomic design ensures operator comfort and safety.
– Smooth rolling with no sudden starts or stops
– 360° visibility for enhanced safety
– Robust design for low downtime

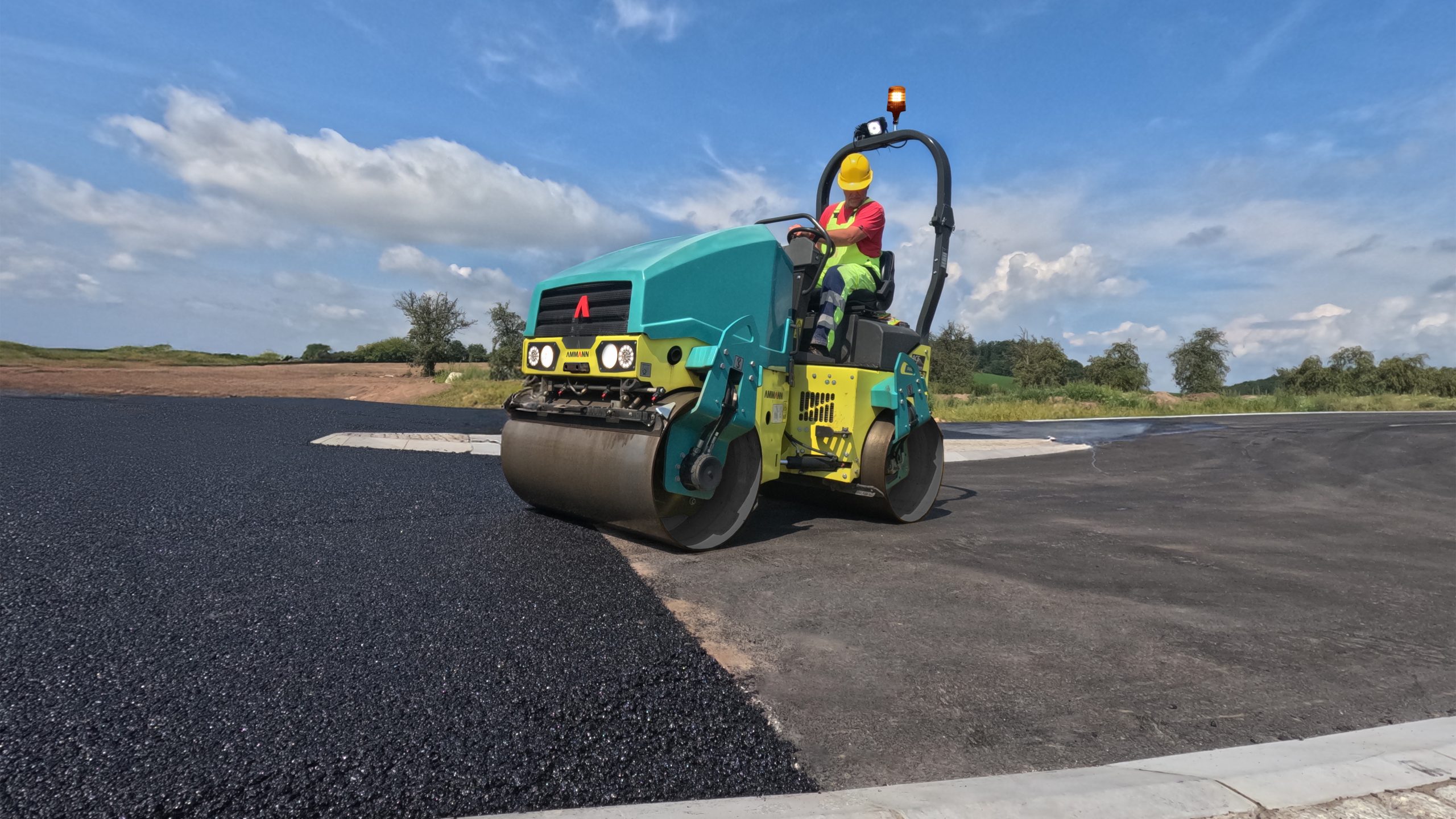

The ARX 26-2 features smooth rolling capabilities, eliminating sudden starts and stops during operation. This ensures a consistent compaction process, enhancing productivity and reducing operator fatigue.

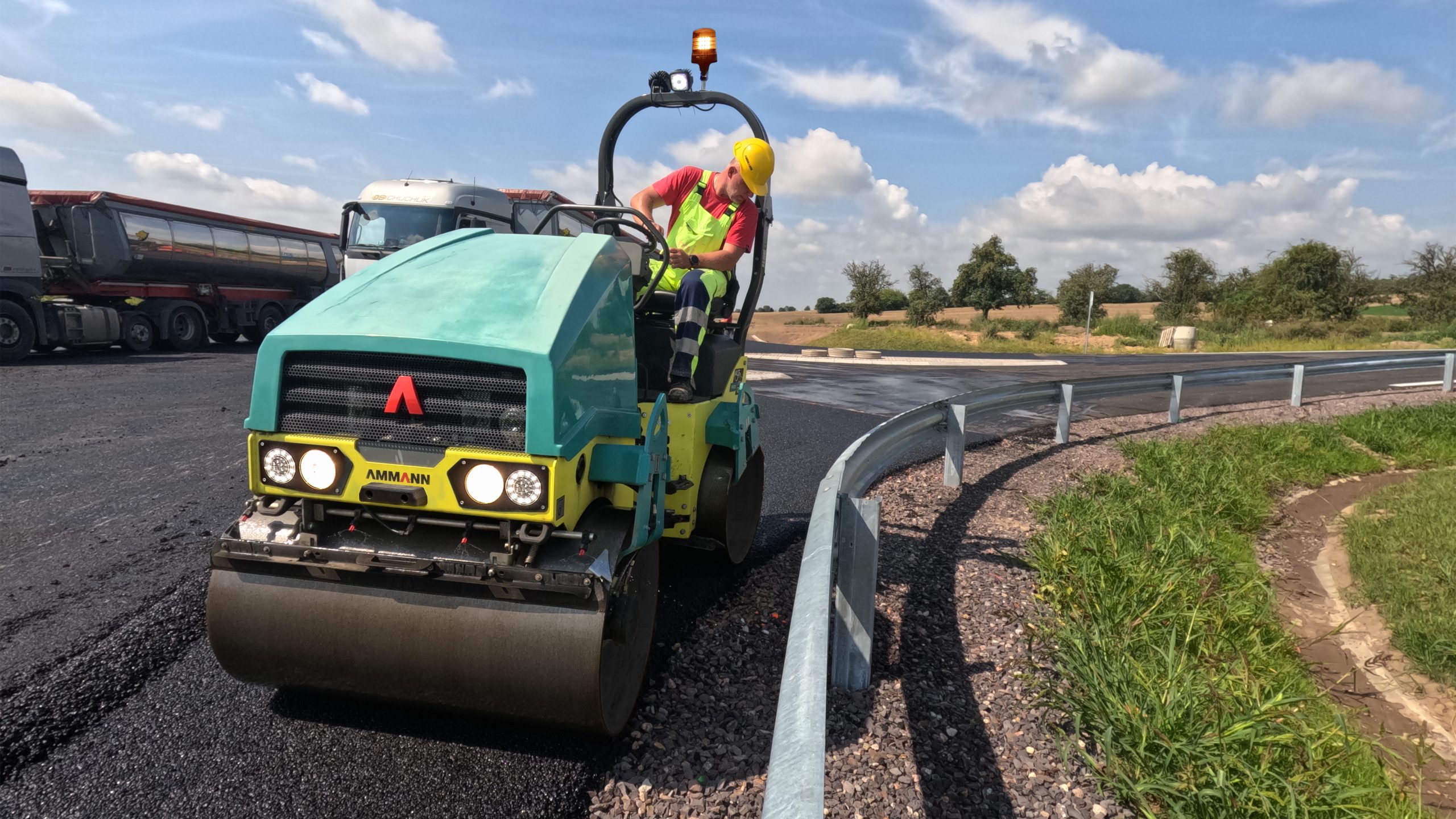

The operator station provides all-around visibility from the seat, allowing operators to maintain awareness of their surroundings. This feature significantly enhances safety on the jobsite, reducing the risk of accidents.

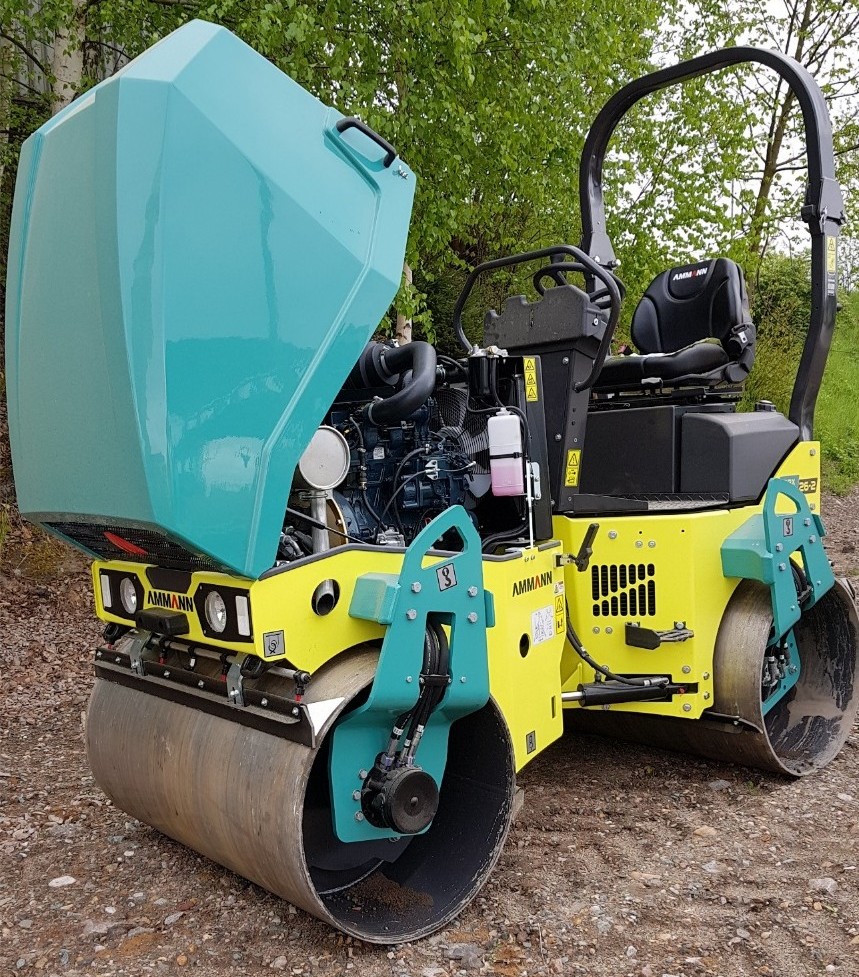

Designed with durability in mind, the ARX 26-2 protects critical components, reducing the need for frequent maintenance. Easy-to-reach maintenance points further ensure quick servicing, keeping the machine operational.
ECOdrop technology reduces fluid usage, enhancing the machine’s efficiency and sustainability. Advanced technologies enable precise documentation and control, contributing to overall productivity.

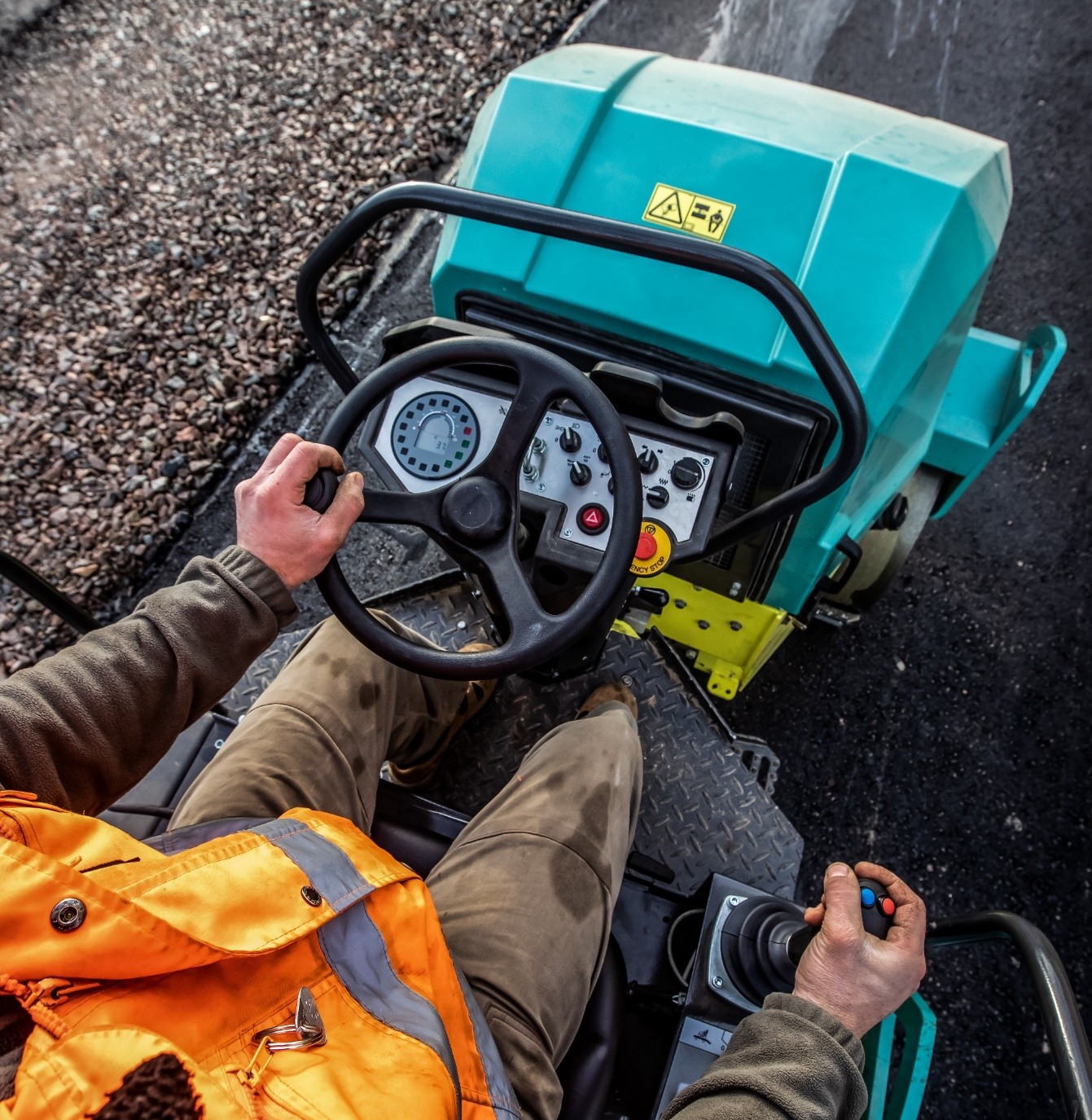

The operator platform is designed for maximum comfort, ensuring a pleasant experience regardless of shift length. This ergonomic design supports operator well-being and productivity.
Horsepower
33 hpOperating Weight
2655 kgBattery Voltage
12 VHorsepower
33 hpMANUFACTURER
KubotaENGINE TYPE
D1803-M-DIENGINE SPEED
2100 / 2400 rpmEMISSION STAGE
EU Stage IIIA / U.S. EPA Tier 4 interimOperating Weight
2655 kgSTATIC LINEAR LOAD AVG
10,3 kg/cm (57.7 lb/in)MAX. WORKING SPEED
11 km/h (6.8 MPH)GRADEABILITY WITHOUT VIBRATION
35%GRADEABILITY WITH VIBRATION
30%TURNING RADIUS (INNER)
2400 mm (100 in)DRUM OFFSET
40 mm (1.6 in)AMPLITUDE I
0,5 mm (0.020 in)AMPLITUDE II
0,5 mm (0.020 in)FREQUENCY I
58 Hz (3,480 vpm)FREQUENCY II
66 Hz (3,960 vpm)CENTRIFUGAL FORCE I
35 kN (7,868 lbf)CENTRIFUGAL FORCE II
42 kN (9,442 lbf)BRAKES OPERATING
HydrostaticBRAKES PARKING
Multiple-disc spring brakeBRAKES EMERGENCY
Multiple-disc spring brakeFUEL TANK CAPACITY
35 l (9.2 gal)WATER TANK CAPACITY
190 l (50.2 gal)TYPE OF WATERING
PressureHYDRAULIC TANK CAPACITY
28,5 l (7.5 gal)STEERING ANGLE
±30°OSCILLATION ANGLE
±6,5°Battery Voltage
12 VBATTERY CAPACITY
77 AhROCKFILL
N/ASAND / GRAVEL
250 mm (9.8 in)MIXED SOILS
180 mm (7.1 in)SILT
N/ACLAY
N/ASTABILISATION
120 mm (4.7 in)ASPHALT
100 mm (3.9 in)
