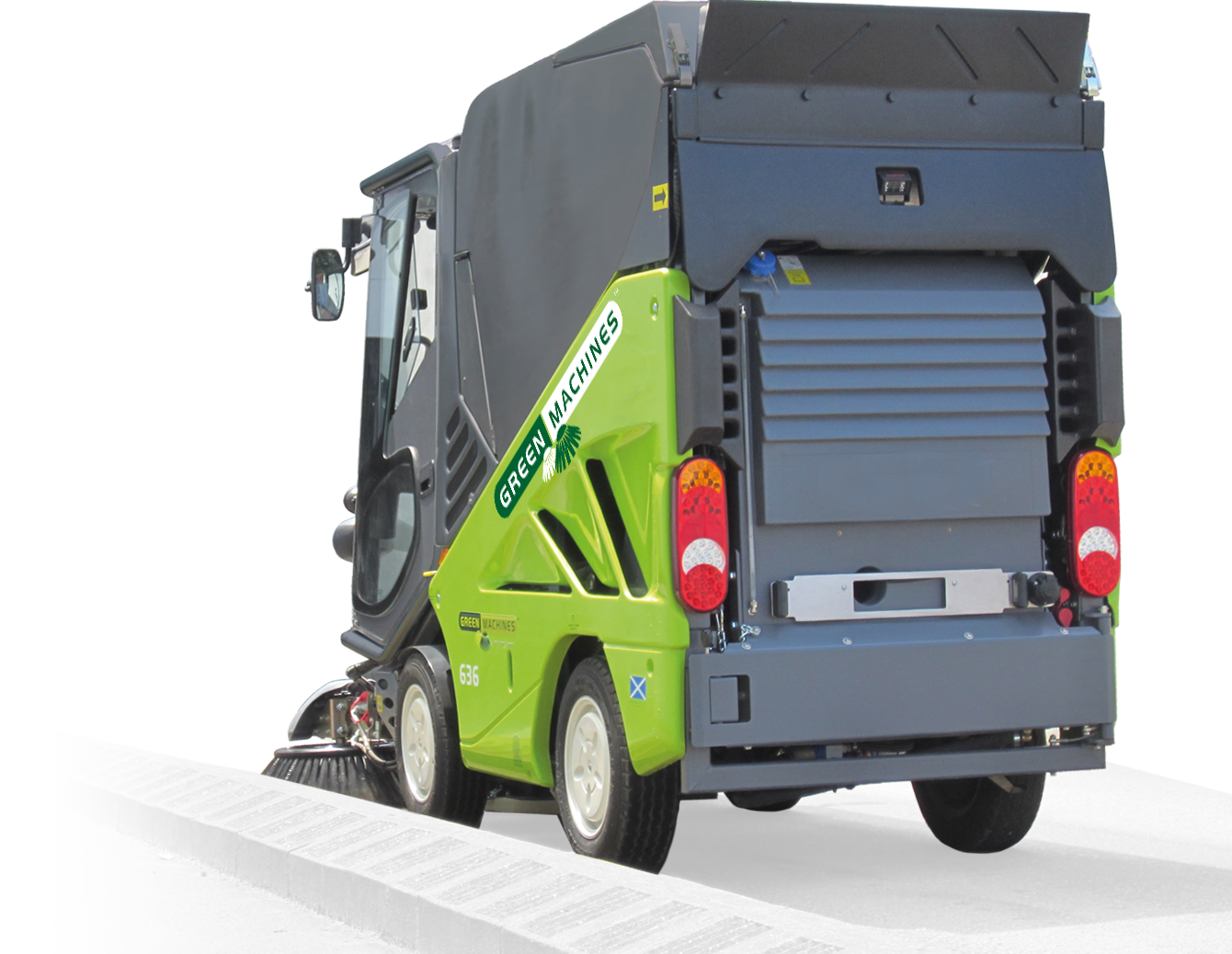

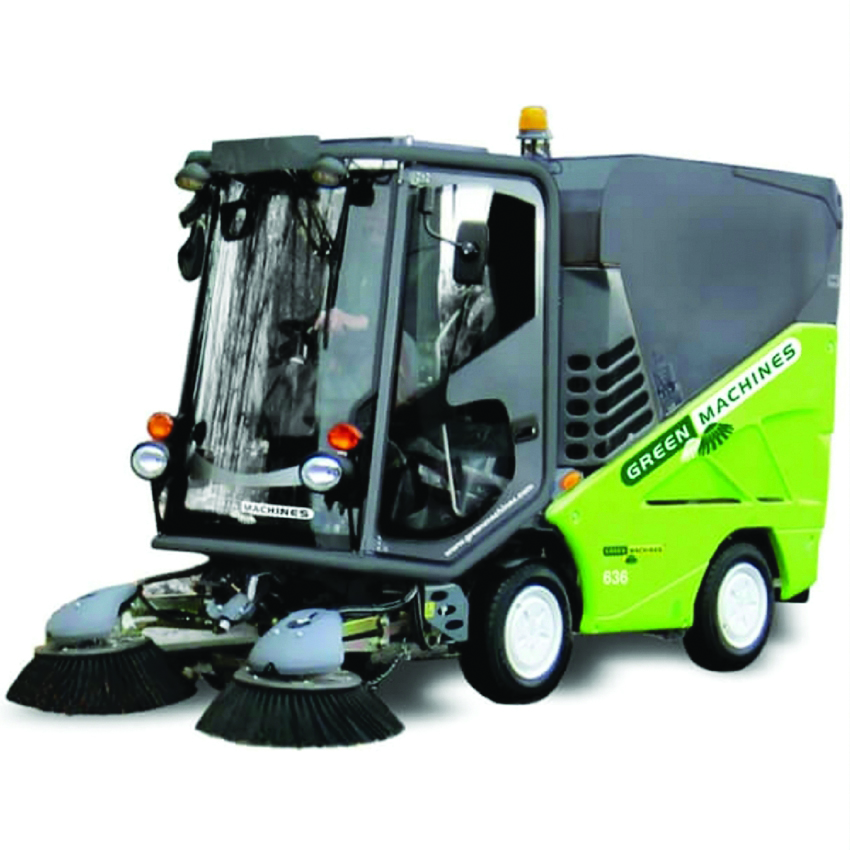

Product Overview
Efficient Urban Cleaning Solution

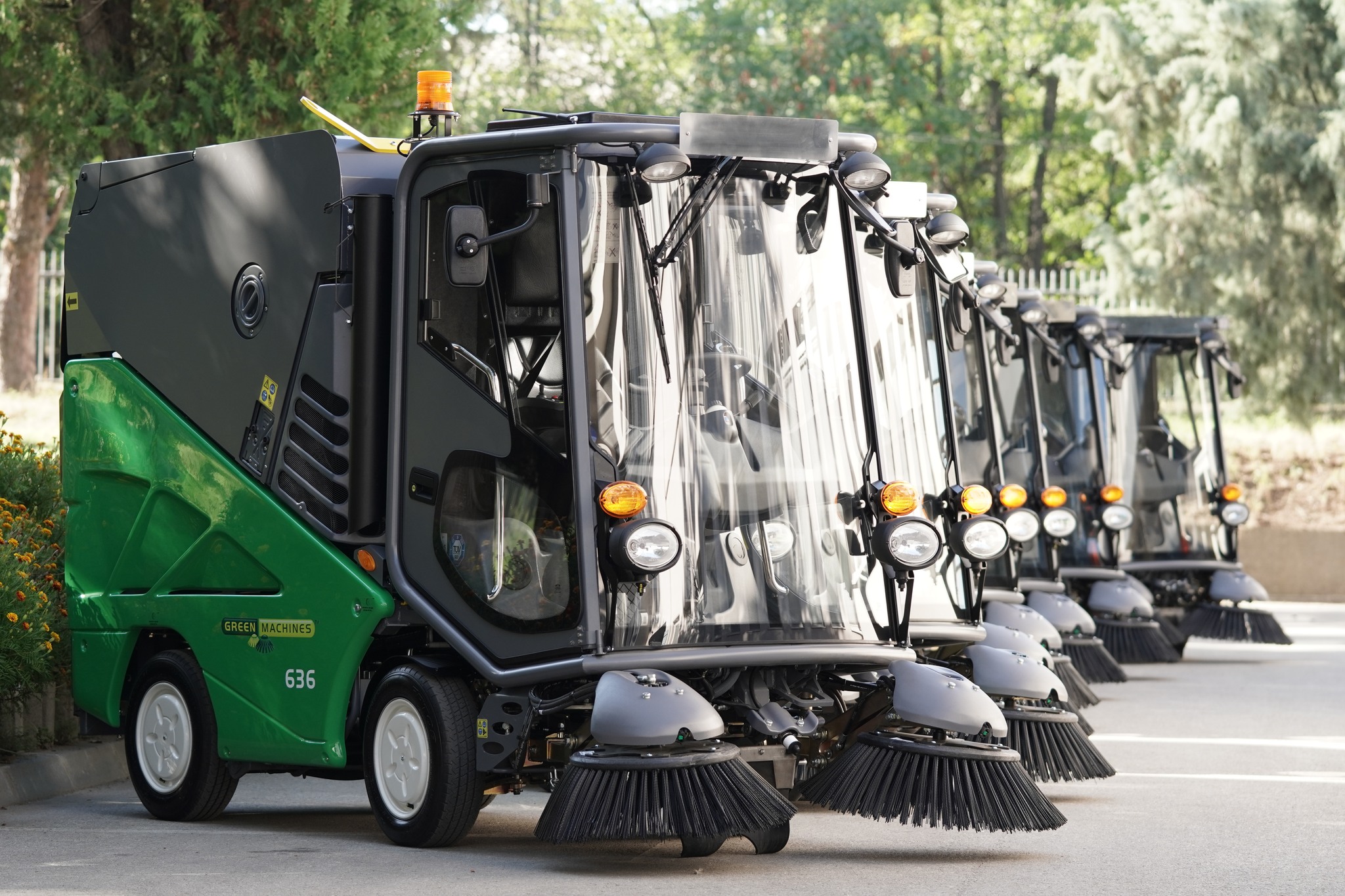

“The GM636HS offers unmatched performance for urban cleaning with its compact design and powerful suction. Ideal for roads and paved surfaces, it ensures efficient debris removal with minimal disruption.
– Tight turning circle for easy maneuverability

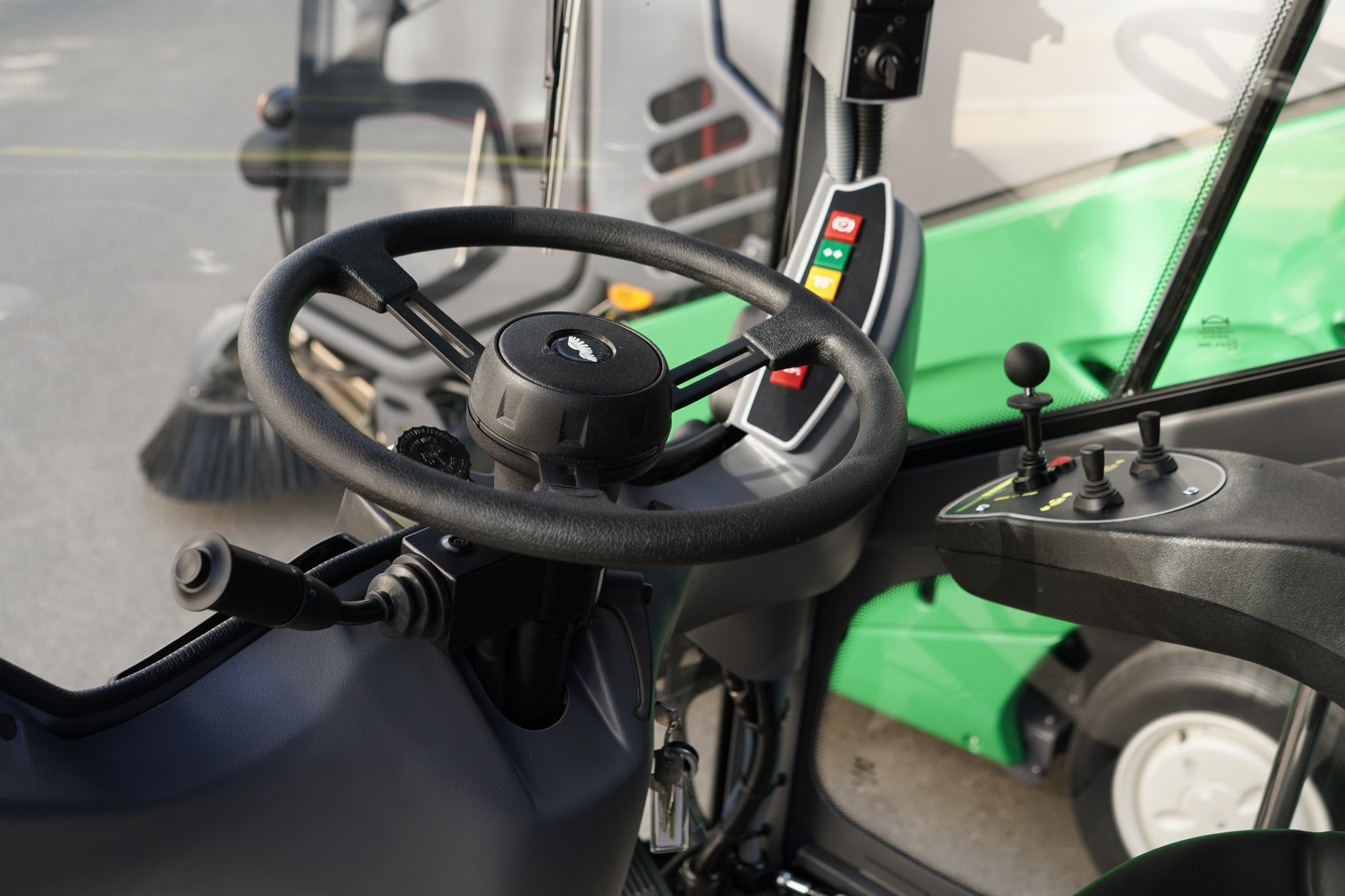

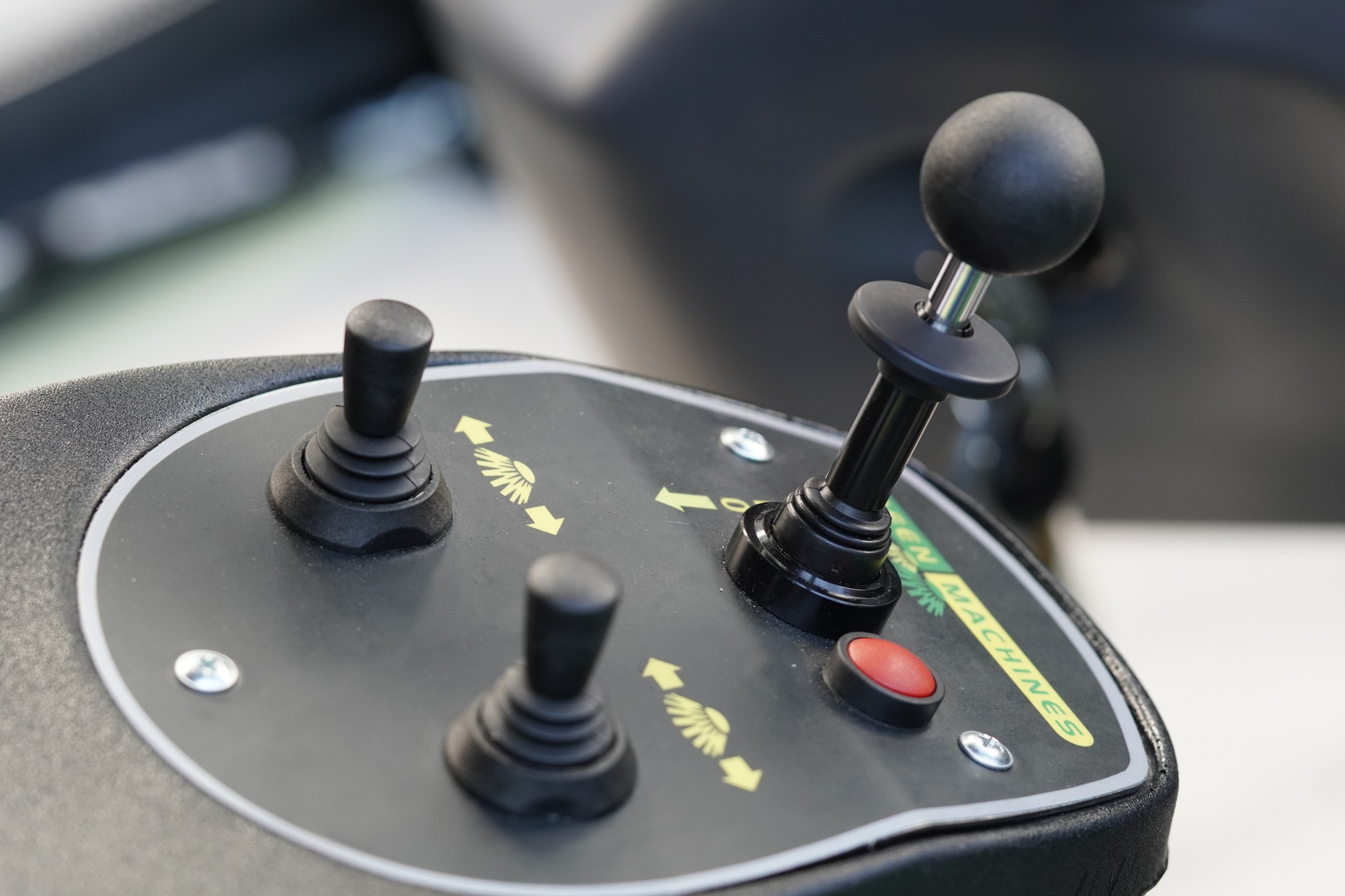

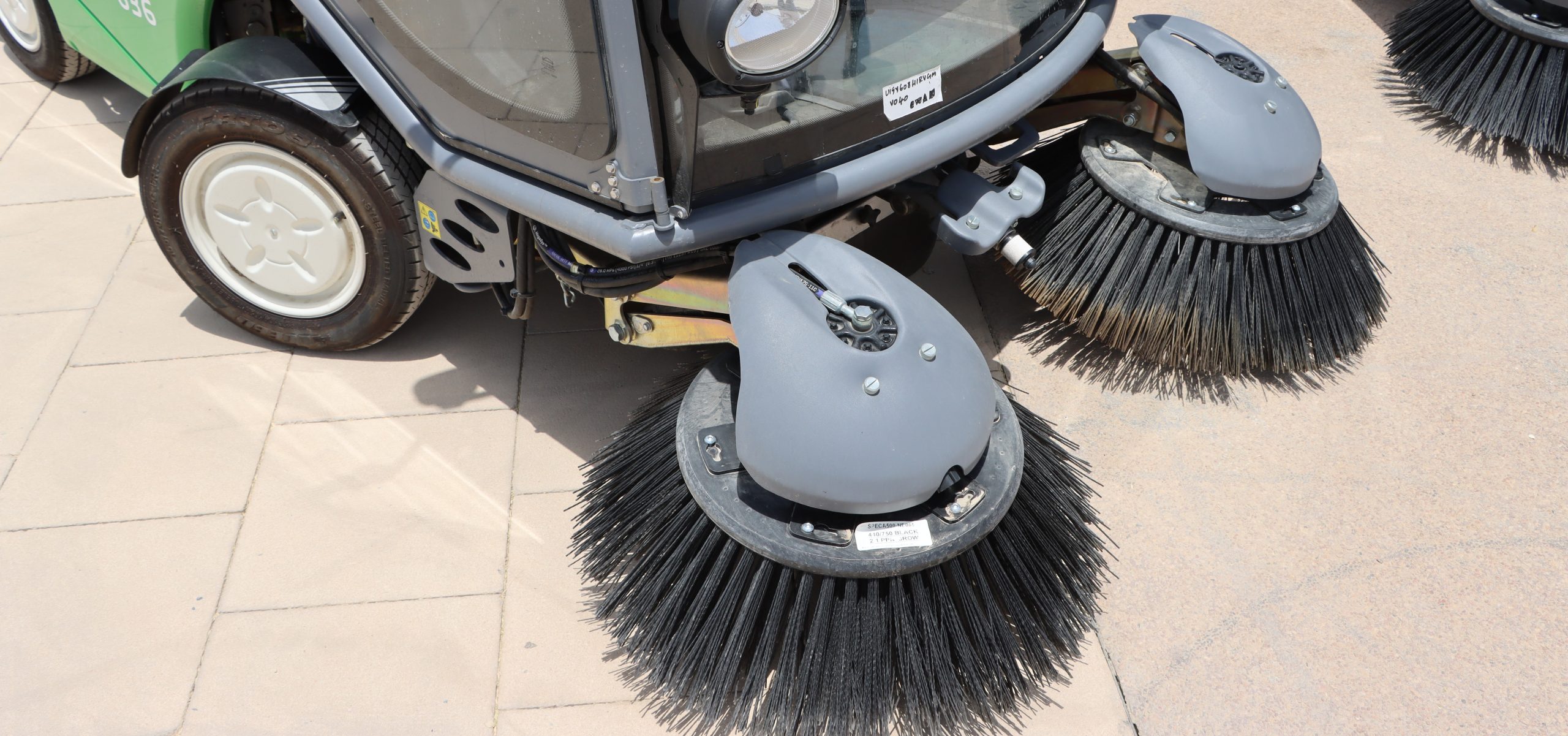

– Joystick-controlled brushes for precision
– High transit speed for quick operations”
With a 600mm diameter vacuum van, the GM636HS excels in removing coarse and heavy debris. Its innovative cyclonic separator and Cloudmaker systems ensure excellent dust control and sustained performance.

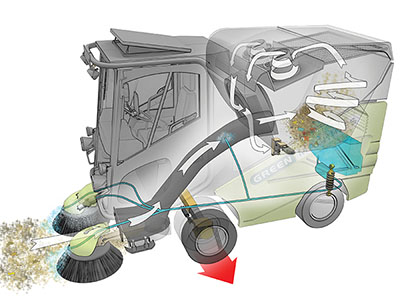

The GM636HS effectively manages dust with its 3-stage cyclonic separation and Cloudmaker misting system, extending operating time between water fills and enhancing overall efficiency.

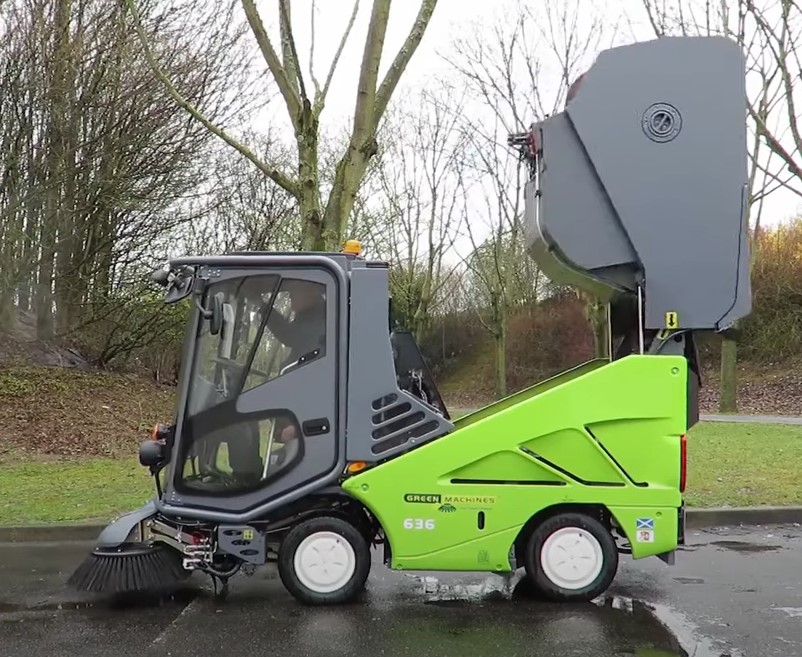

The GM636HS features a clamshell design with a tilting cab and swing-out sections, allowing for easy access and maintenance, making it user-friendly and efficient for operators.
Traveling up to 40 km/h, the GM636HS offers a smooth ride with fine-tuned coil spring suspension. The front axle tracks outwards at higher speeds to maintain stability and minimize rollover risk.
The GM636HS can function as a street-washer, scrubber, and more, with multi-tool capabilities for year-round use, including snowplow and sand/salt spreading during winter.
Horsepower
42 hpGVW
5621 hpTank Capacity
195 LHorsepower
42 hpType
Kubota V1505TE (Capacity
1.498 litresMax. Torque
118 Nm at 2000 rpmBioDeisel Usage
5% to EU Standard EN14214 & EN590Fuel Consumption under normal work
4 L/hrEngine Oil Type
15w40 API CE/SG - ACEA 2 (European) or higherEngine Oil Capacity
6 Its (1.59 US Gal)Length
3,555 mmHeight
1,980 mmHeight
1,980 mmGVW
5621 hpWhelbase
1,400 mmTurning Circle Crub to Crub
3,250 mmTurning Circle Wall to Wall
4,100 mmMaximum Flow
7200 m3/hMaximum Pressure
48 mbarTank Capacity
195 LMax System Pressure
8 barCloudmaker Flow Rate
15 L/hrWater flow
13 L/minMax water Pressure
90 barOil Specification
15w40 API CE/SG - ACEA 2 (EuropeanHydraulic Tank Operating Capacity
35 L (9.23 US Gal)Suction Fan - max RPM
2800 rpmBrush Motor - max speed
105 rpmTransmission Max Pressure
275 bar (4043 psi)Capacity
1.5 m3System Compaction Ratio
2:1Clearance for tipping
1.4 m (55 in)
