Product Overview
Efficient and Eco-Friendly Sweeping Solution

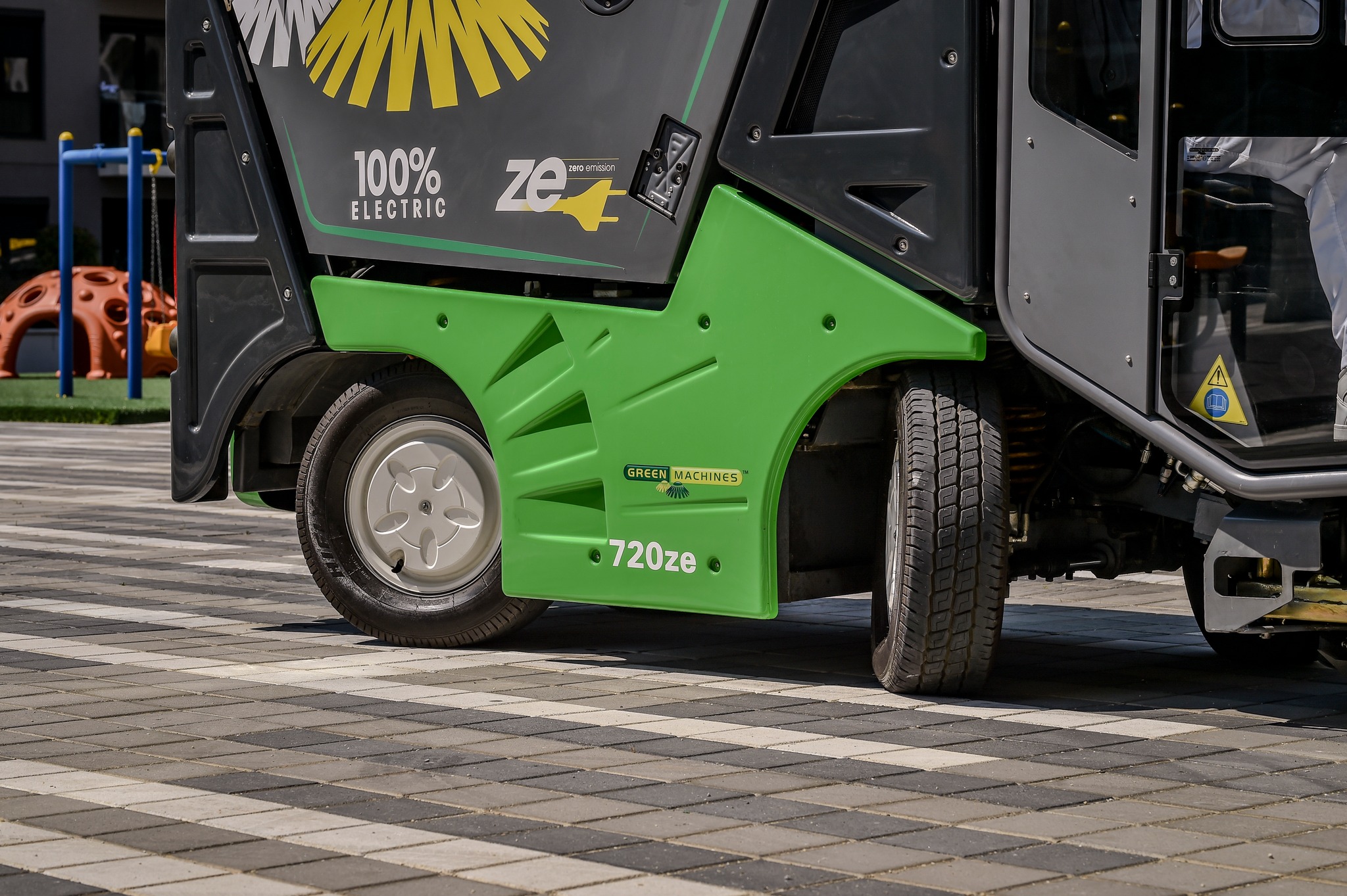

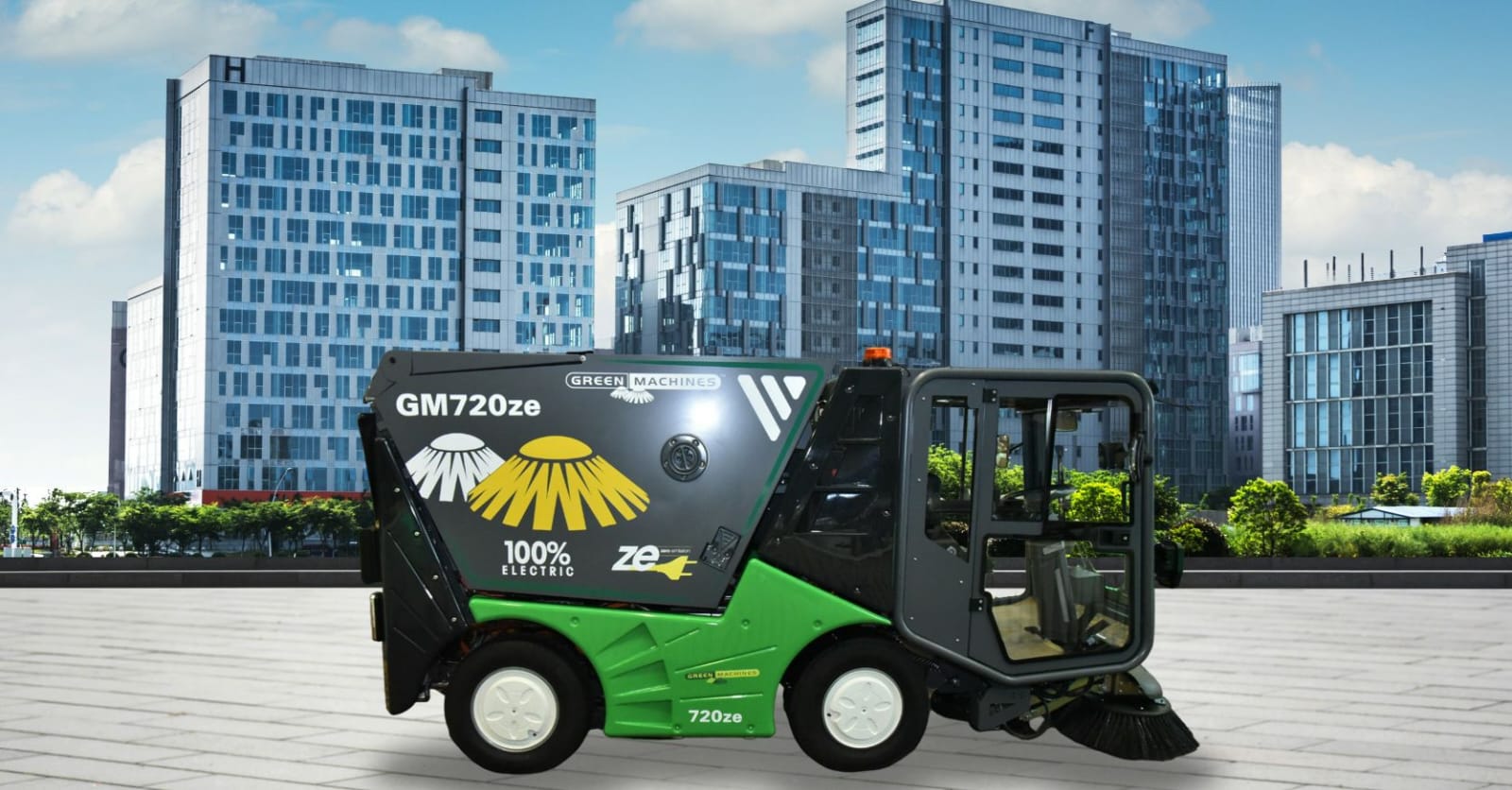

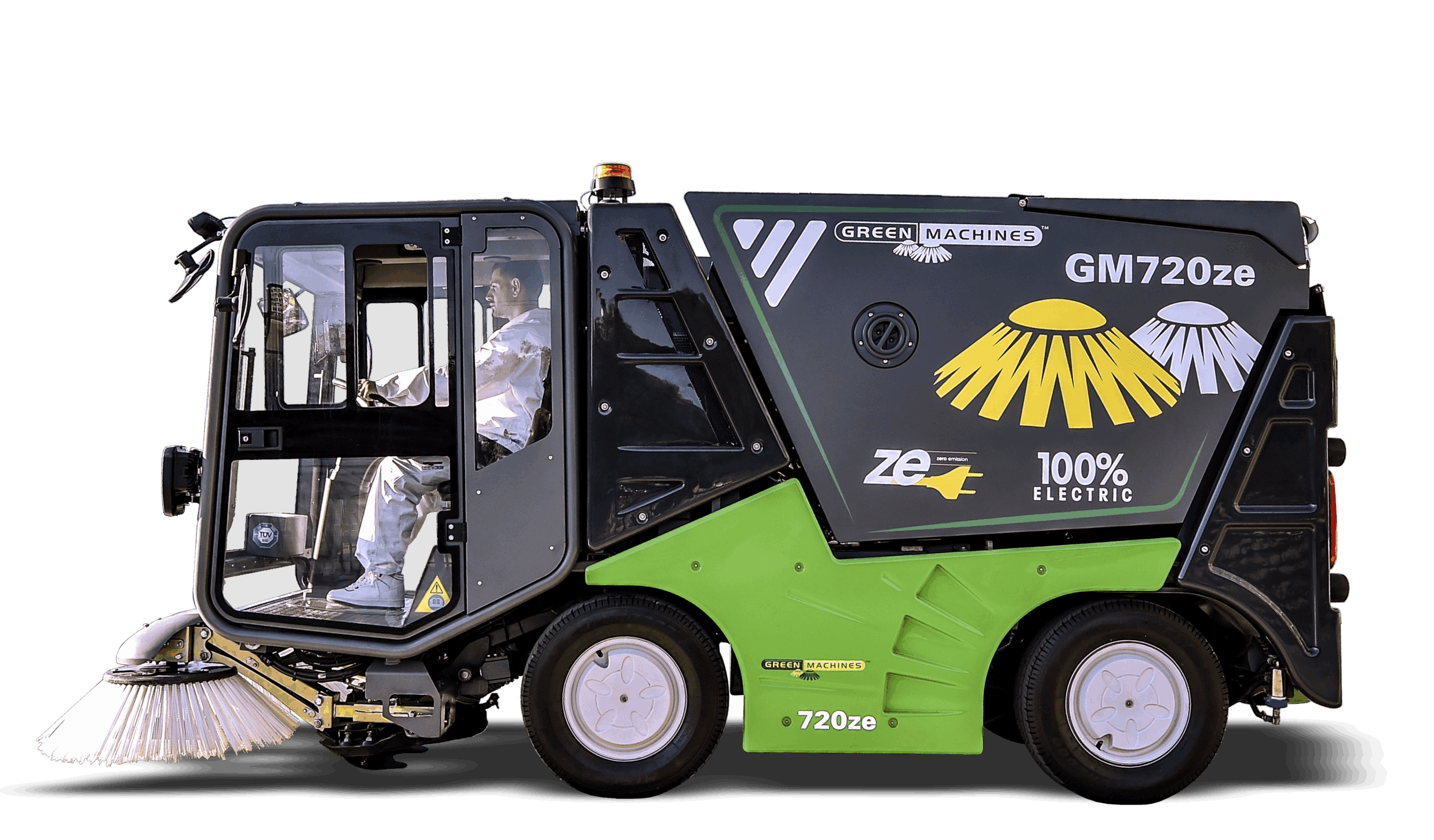

“The GM720ze offers a powerful, eco-friendly sweeping solution with its advanced electrical drive system and efficient design. Ideal for urban environments, it ensures thorough cleaning with minimal noise and emissions.
– Lithium-Ion battery for extended endurance
– Compact design for easy maneuverability
– High suction fan performance
– Biodegradable hydraulic oil”
The GM720ze is equipped with a Lithium-Ion NMC battery, providing up to 8.3 hours of operation under normal working conditions. This ensures sustainable performance with reduced environmental impact.
Featuring a suction fan with a maximum RPM of 2400, the GM720ze delivers a flow rate of 0.8 m3/s, ensuring efficient debris collection and spotless results.
With a maximum width of 1300 mm and a turning circle of 2505 mm (four-wheel steering), the GM720ze navigates tight spaces with ease, making it perfect for city streets.
The hydraulic system uses ISO 68 biodegradable oil, supporting eco-friendly operations without compromising on performance or reliability.

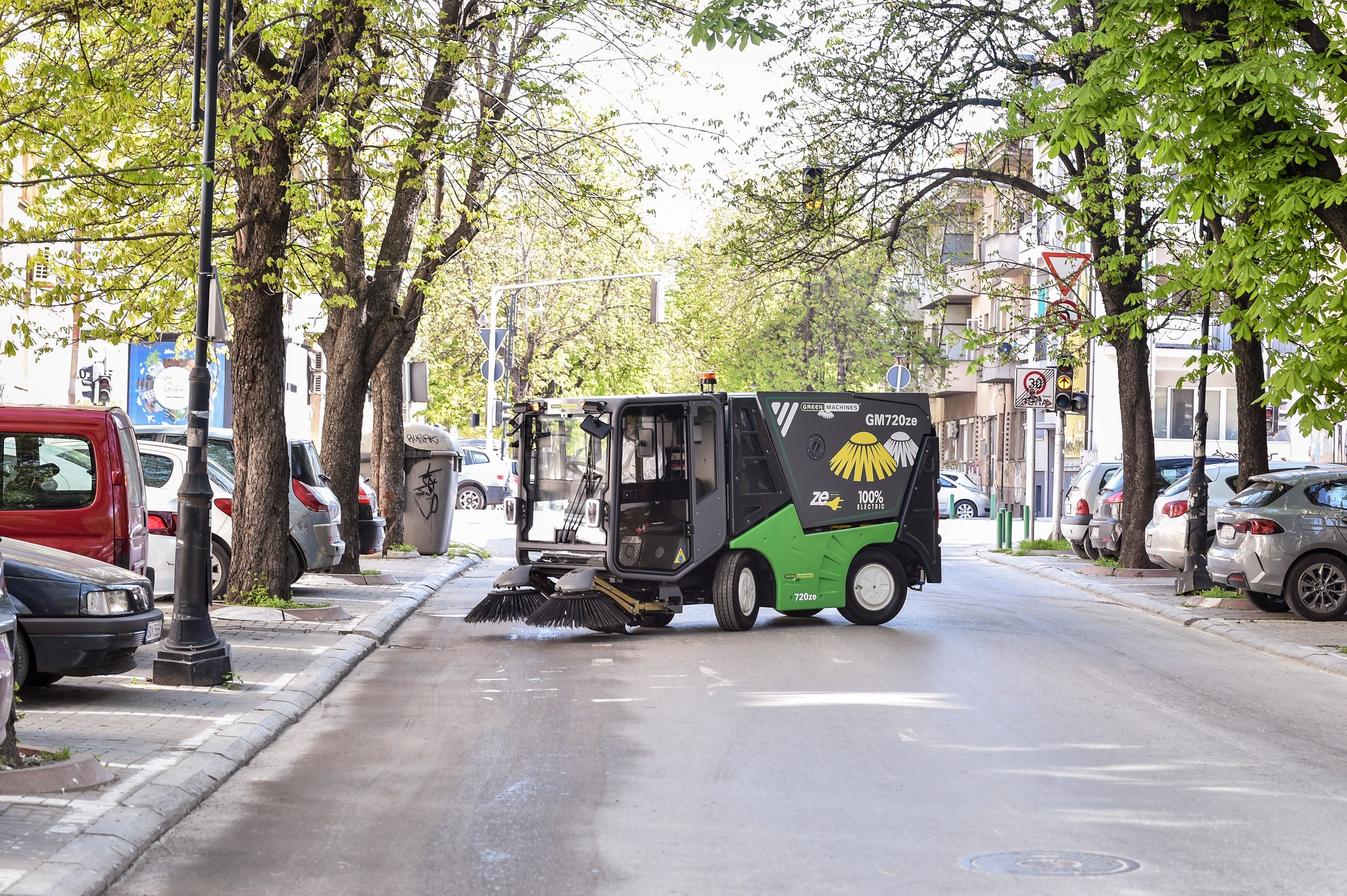

The water system features a 221 L tank capacity and a Cloudmaker flow rate of 15 L/hr, effectively managing dust and enhancing cleaning efficiency.
Horsepower
8 hpDrive By Noise
66 dBMax Loading
2469 lbHorsepower
8 hpLength
3840Height
2000Max Width – Work Mode (over brush plates)
1300 mmWidth over Body
1300 mmMax Length (including brushes)
4280 mmLength over Body
3840 mmMax Height (excluding folding beacon)
2000 mmWheel Base
1702 mmTrack Width
1038 mmMin. swept width (brushes in)
1705 mmMax. swept width (brushes out)
2300 mmBrush Diameter
850mmMax Hopper Dump (Unload) Height
1540 mmKerb to kerb (Two wheel steering)
3300 mmWall to wall (Two wheel steering)
4100 mmOver brushes (Two wheel steering)
4350 mmKerb to kerb (Four wheel steering)
2505 mmWall to wall (Four wheel steering)
3200 mmOver brushes (Four wheel steering)
3600 mmInside Cab with Fan at 1800 rpm (Eco Mode)
81 dBDrive By Noise
66 dBTest
§38 StVZODiameter of the steering wheel
385 mmFront Axle unladen
3703 lbFront Axle Max Weight
4243 lbRear Axle unladen
2116 lbRear Axle Max Weight
4629 lbNet Vehicle Weight (without options)
5765 lbNet Vehicle Weight (with options)
5820 lbMax Total Permissible Wht (GVW)
7716 lbKerb wht(ready for sweeping) (No options)
6250 lbForward Transit Mode
40 km/hForward Sweep Mode (Work Mode)
12 km/hForward Brush Lift (Brushes Up)
16 km/hFour wheel steering
8 km/hReverse
6 km/hMaximum Capacity 2 m3Climb
2 m3Continuous power/torque
1200 NmPeak power/torque
2680 NmSuspension: Front and rear
Mechanical (spiral spring)Battery Type
Lithium-Ion NMCNo of Cells
4 x 1260 psc.Battery Weight
4 x 84 kgBattery Charge time (0% – 100%)
8 hBattery Endurance under normal working
EN 15429: 8.3h (6.6h using AC + lights)Battery life (No of Charge cycles)
3000 CyclesCell Capacity
2,3 (net) / 3,1 (gross) AhGross energy
4 x 14918 WhNet energy
4 x 10723 WhTypes
2x Delta Q Chargers (on board)Output power (nominal)
2 x 3,3 kWDC output voltage
30 - 58,8 VAC input voltage range
85 - 265 VType 2 charging
YesOil Specification
Hydraulic oil ISO 68 biodigradableHydraulic Tank Capacity
17 LBrush Motor – max speed
110 rpmAuxiliary System Max Pressures
125 barSuction Fan – max RPM
2400 rpmMaximum Flow
0.8 m3/s (2880 m3/h)Nozzle Dimensions (inlet)
760mm Wide x 95mm HighTube
200 mmSize
225/70 R15cMax Loading
2469 lbTyre Pressure
4.5 barTank Capacity
221 LMax system Pressure
5.5 barCloudmaker Flow Rate
15 L/hrWater Flow
11 L/minMax Water Pressure
140 bar
