Product Overview
Unmatched Performance and Versatility
The HB Series Bobcat breakers deliver exceptional performance with reduced maintenance needs. Designed for durability and versatility, they fit various Bobcat carriers, ensuring maximum productivity.
– Ergonomic and robust design
– Virtually maintenance-free
– Easy mounting and versatility
– Smooth operation and reduced noise
The automatic pressure regulator maximizes performance by maintaining optimal pressure despite flow variations, carrier back pressure, or temperature changes. It prevents excessive pressure at start-up, safeguarding the energy chamber diaphragm.
The new design features improved dust protection and easy access for part changes, enhancing durability and simplifying maintenance. This ensures the breakers last longer and are easier to service.
Upper and lower shock absorbers isolate the breaker from the housing, minimizing noise and vibrations. This design enhances operator efficiency by providing a smoother operation.
Positioning the energy chamber and diaphragm at the top of the piston ensures consistent nitrogen pressure and maximized performance. The breaker is ready to use immediately upon mounting, without the need for recharging.

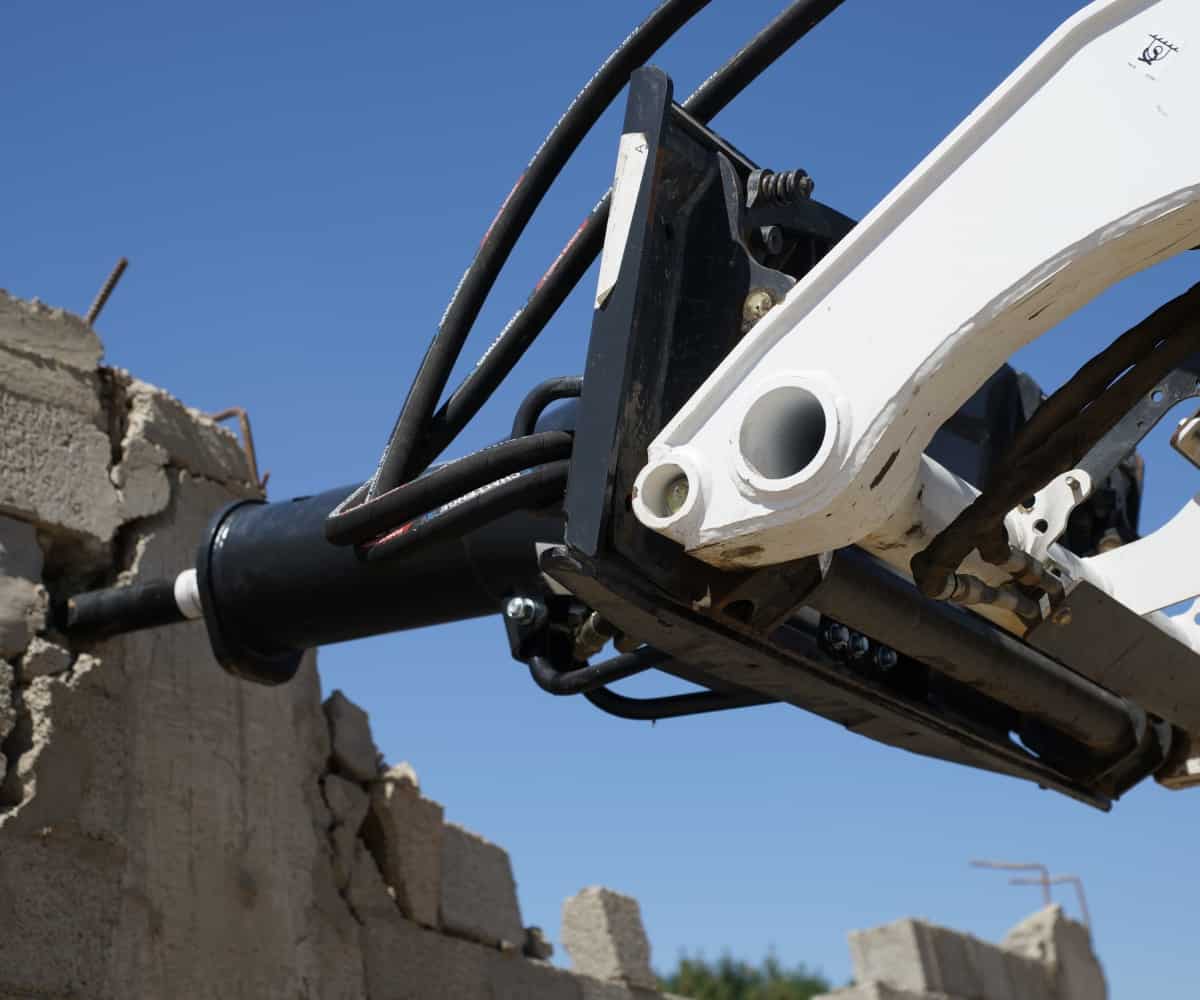

The breakers can be easily mounted on skid-steer loaders, compact tracked loaders, and excavators. This versatility allows for optimal carrier selection, enhancing the efficiency of demolition tasks.
Operating Weight
127 lbShipping Weight
128 lbOverall Length
866Operating Weight
127 lbShipping Weight
128 lbOverall Length
866Base plate width (mm)
200Base plate height (mm)
250Flow (l/min) [MIN]
13-23Blow rate soft ground (min-1
1120Blow rate hard ground (min-1)
1290Operating pressure (bar)
120
