Product Overview
Compact Power for Versatile Performance
Bobcat’s Small Articulated Loaders deliver exceptional maneuverability and power in a compact design, perfect for diverse tasks in tight spaces.
– Intuitive operation for quick start
– Low ground disturbance for delicate surfaces
– Versatile attachments for multiple applications

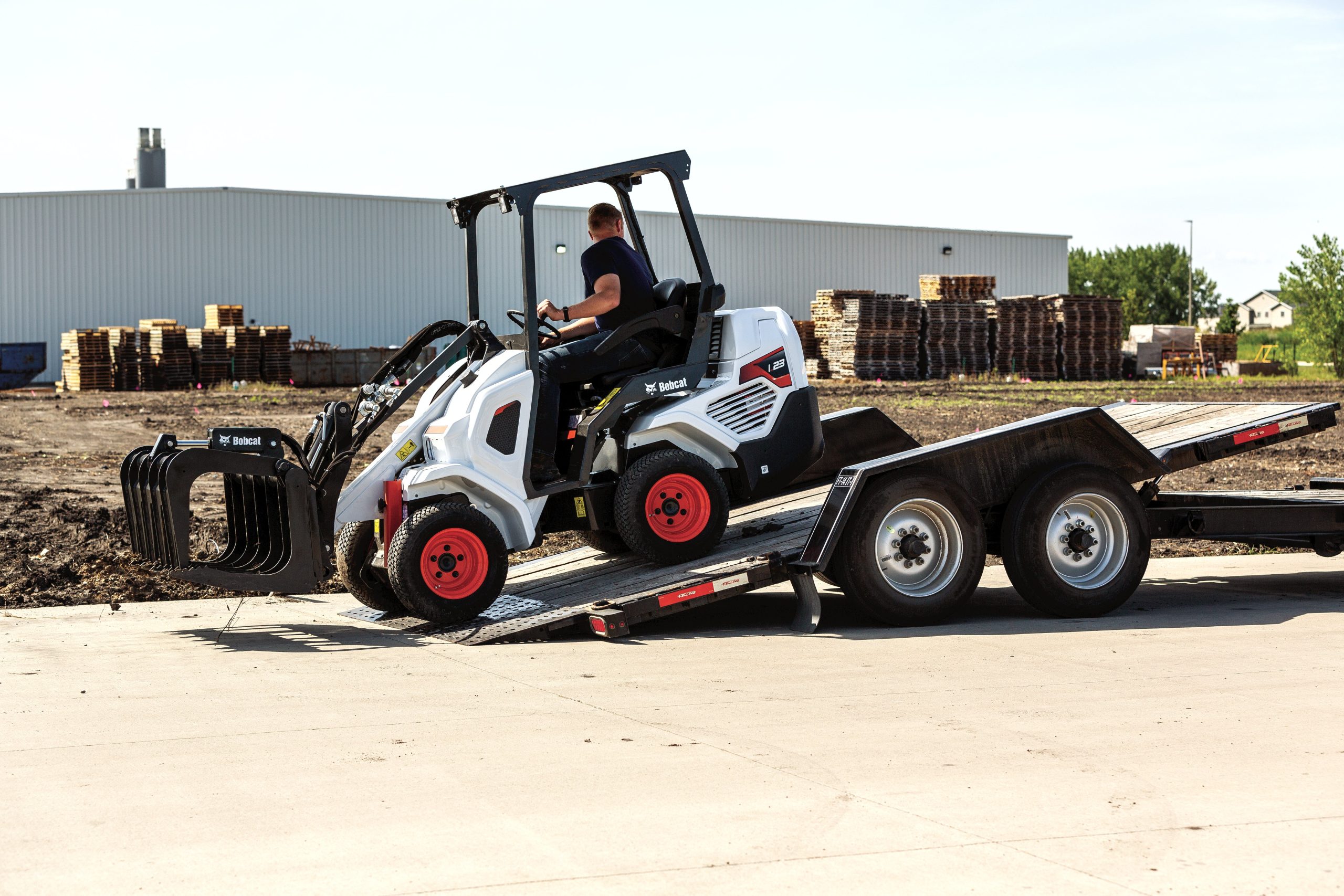

– Easy transport for on-the-go jobs
The loaders feature intuitive controls and an open design, allowing operators to quickly jump in and begin work without extensive training, enhancing productivity from the get-go.
Equipped with a dedicated turf mode, these loaders minimize ground disturbance, making them ideal for operations on delicate terrains such as gardens and landscaped areas.

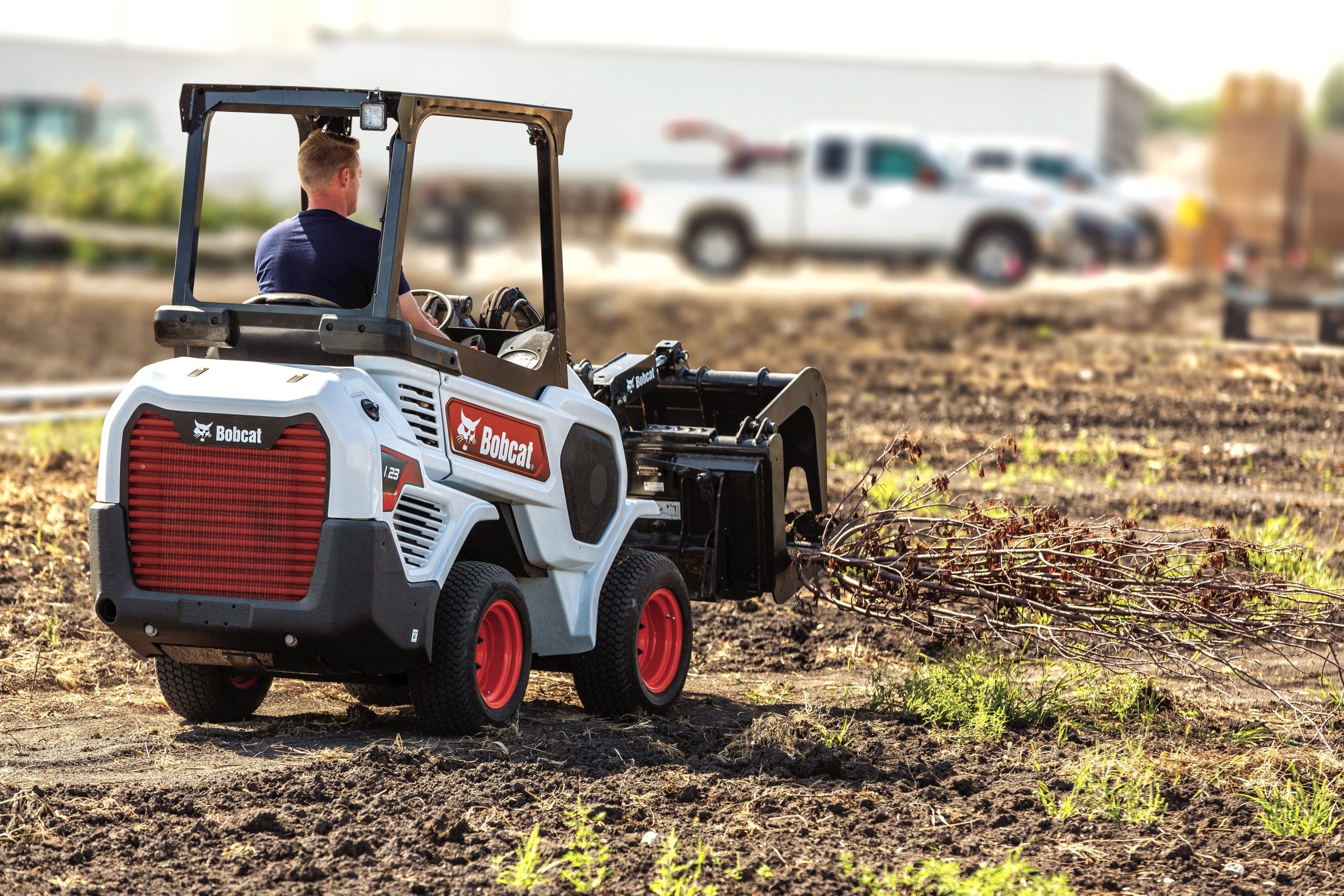

With the Hybrid Bob-Tach system, these loaders can connect to both mini and standard attachments, providing flexibility to tackle a wide range of jobs with a single machine.
The small size and tight turning radius of the loaders enable them to operate efficiently in confined areas, ensuring that no space is too challenging to access.
The telescopic boom on the L28 model offers extended reach and impressive stability, allowing operators to handle materials over obstacles with precision and safety.
Power at 2 600 RPM (ISO 14396)
24 hpOperating Weight
3789 lbRated Operating Capacity - Straight - Bucket
1395 lbTipping load – straight – bucket
1265 kgTipping load – straight – forks
872 kgTipping load – straight – extended – bucket
–Tipping load – straight – extended – forks
–Tipping load – articulated – bucket
1051 kgTipping load – articulated – forks
724 kgTipping load – articulated – extended – bucket
–Tipping load – articulated – extended – forks
–Rated operating capacity – straight – bucket
633 kgRated operating capacity – straight – forks
436 kgRated operating capacity – straight – extended – bucket
–Rated operating capacity – straight – extended – forks
–Rated operating capacity – articulated – bucket
525 kgRated operating capacity – articulated – forks
362 kgRated operating capacity – articulated – extended – bucket
–Rated operating capacity – articulated – extended – forks
–Lift capacity (to maximum height – bucket – ISO 14397-2)
1116 kgBreakout force – boom
1047 kgMake / model
Kubota / D1305-E4B-BC-1Engine Cooling
53% PROPYLENE GLYCOL / 47% WATER MIXTUREEngine Fuel
DieselPower at 2 600 RPM (ISO 14396)
24 hpTorque at 1 700 RPM (ISO 14396)
81.3 NMNumber of cylinders
3 in-lineDisplacement
1.3 cm3Operating Weight
3789 lbRated Operating Capacity - Straight - Bucket
1395 lbOperating weight
1719 kgShipping weight
1540 kgSystem relief
20 MPaImplement pump
Engine driven gear typeImplement pump capacity
45.8 l/minMain filter
Replaceable 16(c) ≥ 75 ISO 4572, spin on with o-ring, 0.34 MPa [50 PSI] bypassTank breather filter
Non-replaceable 10 micron, thread-on capControl valve
Manually operated series type (lift & tilt functions) with float detent on lift E/H operated parallel type (aux & telescopic functions)Hydraulic fluid
Premium grade, anti-wear, multi-viscosity ISO VG46, petroleum-basedRollback time L23
1.2 sCooling system
5.71Fuel tank
36.21Engine oil
3.8 lHydraulic and hydrostatic system L23
18.51Transmission
4 wheel drive with automatic drive modes, optional traction assist functionAlternator
90 Amp ventilatedBattery
12 Volt BCI group 26; 540 Amps cold cranking capacity at -18 C; 80 minute reserve capacityStarter
12 V gear type 2.0 kW [2.68 HP]Ignition switch
Activates starter and instrumentationRaising time
2.4 sLowering time
2 sDump time
1.7 sCab height
1983.7 mmGround clearance
198.7 mmWheelbase
1200 mmOverall length with bucket
3109 mmDig depth
19.5 mmMaximum dump height L23
1654.8 mmMaximum rollback at ground
30°Hinge pin at maximum height L23
2169.2 mmDeparture angle
23°Turning radius over bucket L23
2406.2 mmTurning radius inside tire L23
1042.6 mmWidth over bucket L23
1270 mmMachine width L23
1180.7 mmArticulation angle
43°Dump angle at maximum height
40°
