Product Overview
Efficient Cleaning for a Healthier Environment

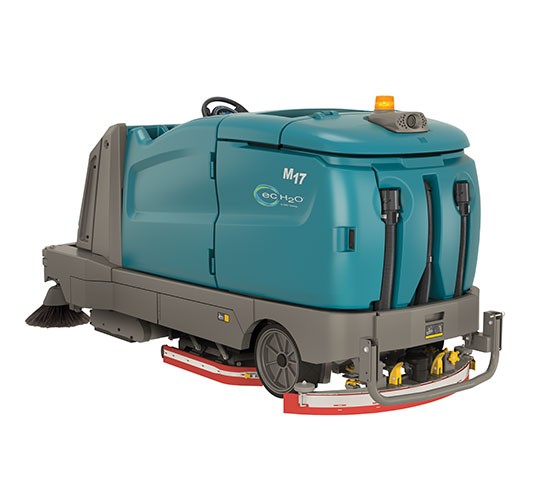

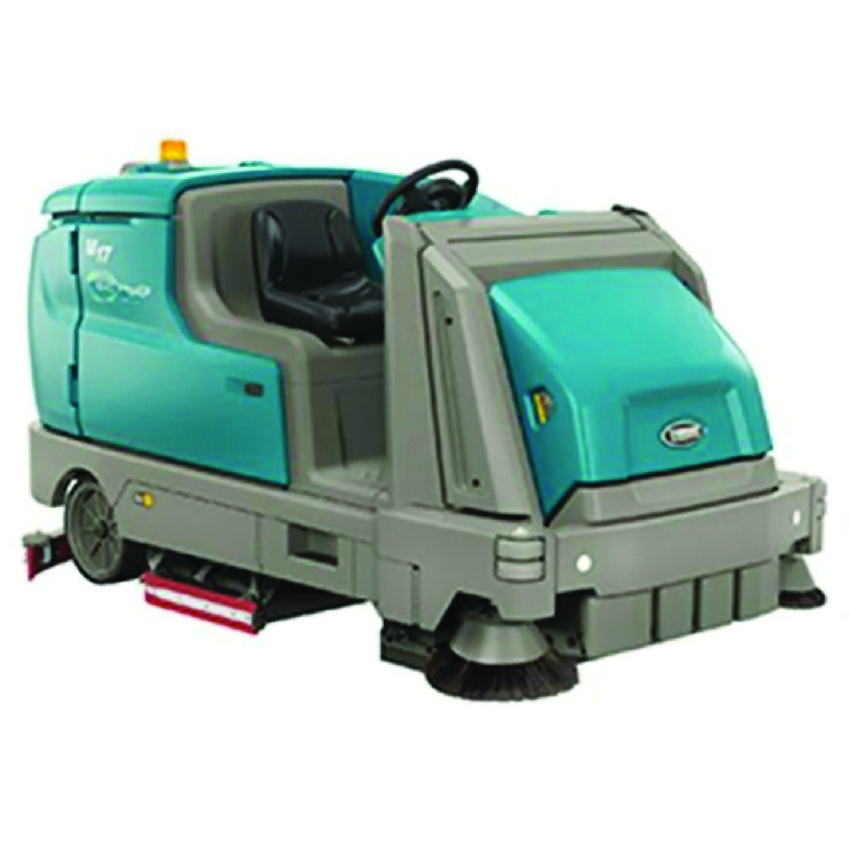

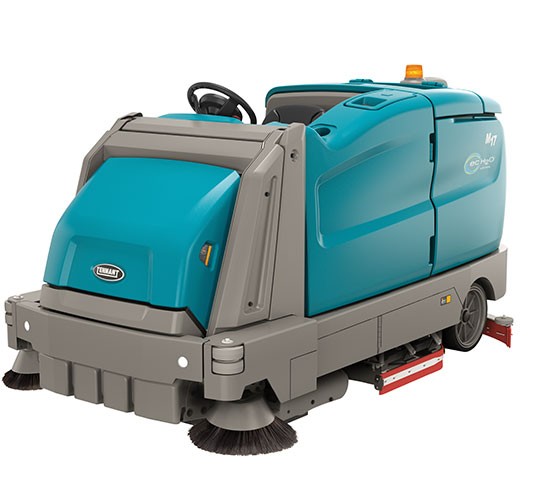

“The M17 Battery Sweeper-Scrubber offers high-performance cleaning with emissions-free operation, ensuring a safer and healthier indoor environment. Its advanced design maximizes visibility and ease of use.
– Exceptional sweeping and scrubbing performance
– Emissions-free battery operation
– Enhanced visibility with cab-forward design
– Pro-Panel technology for improved user experience”

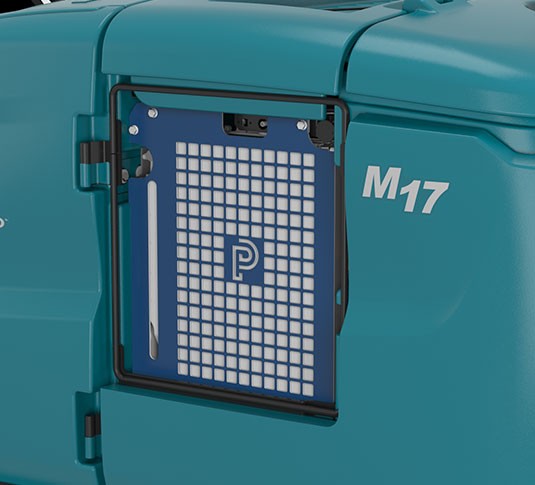

The two-stage dust control system with ShakeMax filter shaker maintains indoor air quality by effectively containing dust generated during sweeping, ensuring a cleaner and safer environment.

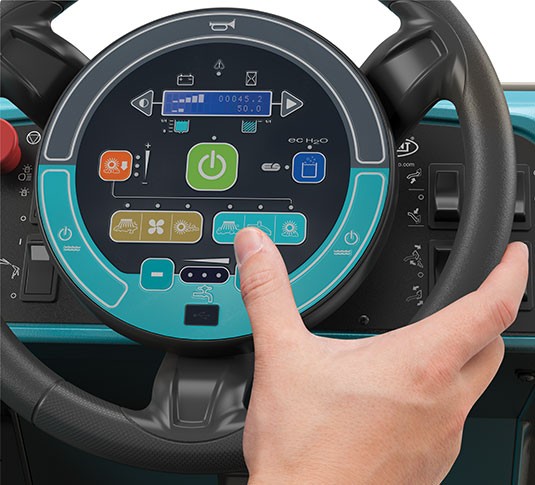

Pro-Panel technology simplifies operation with intuitive controls, improving both operator and supervisor experience, and ensuring efficient and effective cleaning processes.
Equipped with the largest battery capacity in its class, the M17 maximizes runtime and productivity, allowing for longer cleaning sessions without the need for frequent recharging.

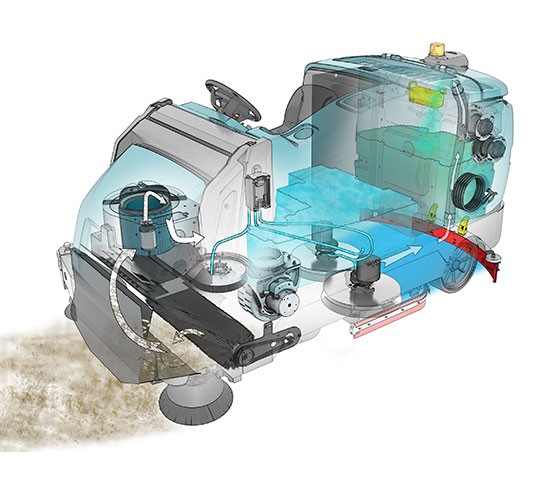

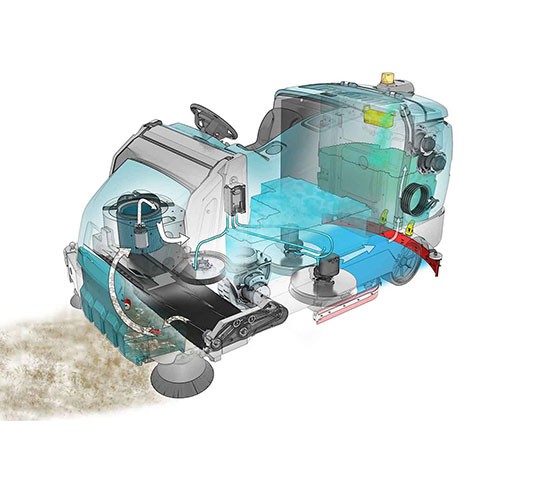

The DFS technology captures both large and small debris in one pass, making the M17 highly efficient in maintaining cleanliness in various environments.

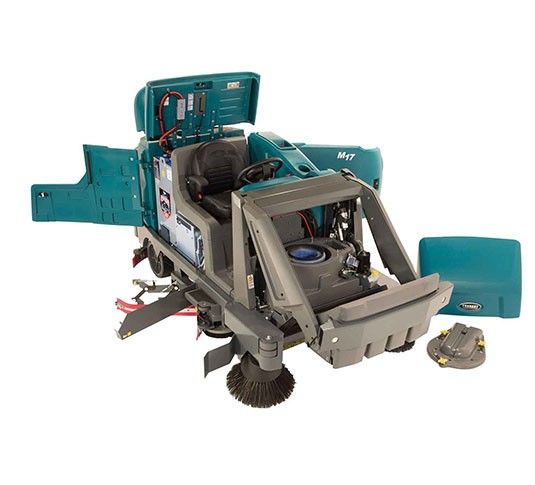

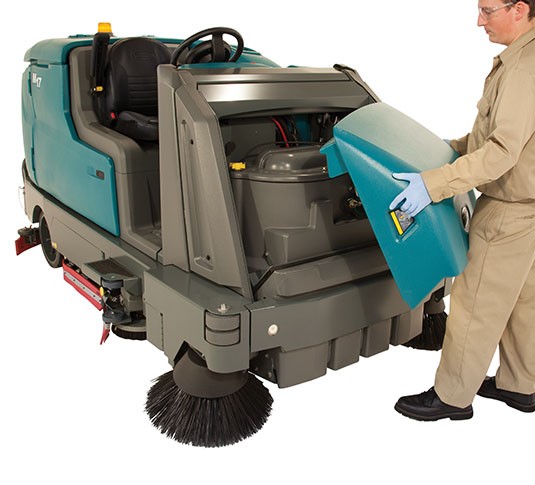

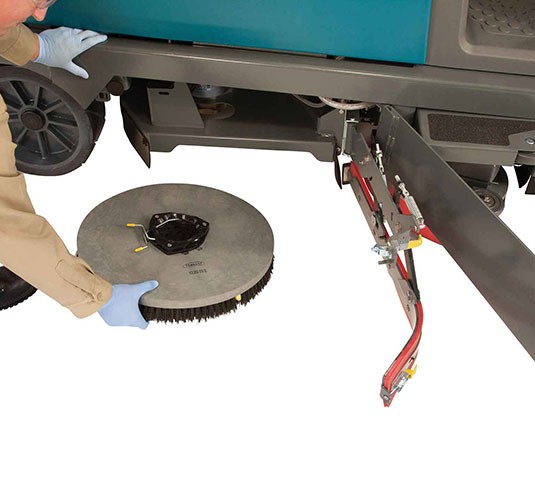

With yellow touch points and tool-free access to key components, the M17 ensures quick and easy maintenance, reducing downtime and enhancing operational efficiency.
Brush speed
315 rpmSpeed
14,500 rpmOperating Weight
3340 lbScrubbing (main scrub deck)
1,015 mmWith scrubbing side brush
1,220 mmSweeping (main sweeping system)
915 mmWith dual sweeping side brush
1,700 mmBrush speed
500 rpmBrush diameter (2)
230 mmBrush down force (up to)
250 kgBrush motors, brushless (2)
1.125 kWDebris hopper
20 LBrush speed
315 rpmBrush size diameter (2)
20 inBrush down force (up to)
250 kgBrush motor, brushless (2)
1.125 kWSolution tank
285 LSolution capacity (ES®)
435 LRecovery tank
346 LDemisting chamber
61 LVacuum fans – water recovery (dual)
2 x .6 kWSpeed
14,500 rpmWater lift
1,650 mmDual main sweeping brooms
915 mmDual side sweeping brooms (standard)
StandardSide sweeping broom diameter
480 mmDebris capacity (light litter)
85 LDump height (variable to)
1,525 mmFilter canister
5.1 m 2Vacuum fan (brushless maintenance free)
0.85 kWPropel speed forward (transport variable to)
9 km/hPropel speed forward (scrubbing variable to)
6.5 km/hPropel speed reverse (variable to)
5 km/hSpeed control
Electronic - ACTransport (empty for trailering)
11.6° / 20%Transport at gross weight
7.5° / 13%Working (scrubbing)
6.5° / 11%Battery optional packages
510 AH C6(Battery chargers available for all optional batteries)
750 AH C6Opportunity charging available on the 930 AH C/6
930 AH C6Length basic machine
2,850 mmWidth, body
1,370 mmHeight (top of steering wHeight (top of steering wheel)
1,480 mmheel) 1,480 mmWith overhead guard
2,096 mmWeight empty (no battery)
1,515 kgMinimum aisle turn
3,003 mmSound level (operator’s ear)*
75 dBA; Kpa 3 dBAOperating Weight
3340 lb
