OFD 1550 – General Trading & Equipment Co.

OFD 1550

532 hp

Horsepower

2100

Rated Speed rpm

21,640 lb

Working weight

Request Price View Product Specifications

Product Overview

Reliable Oil-Free Air, Anywhere

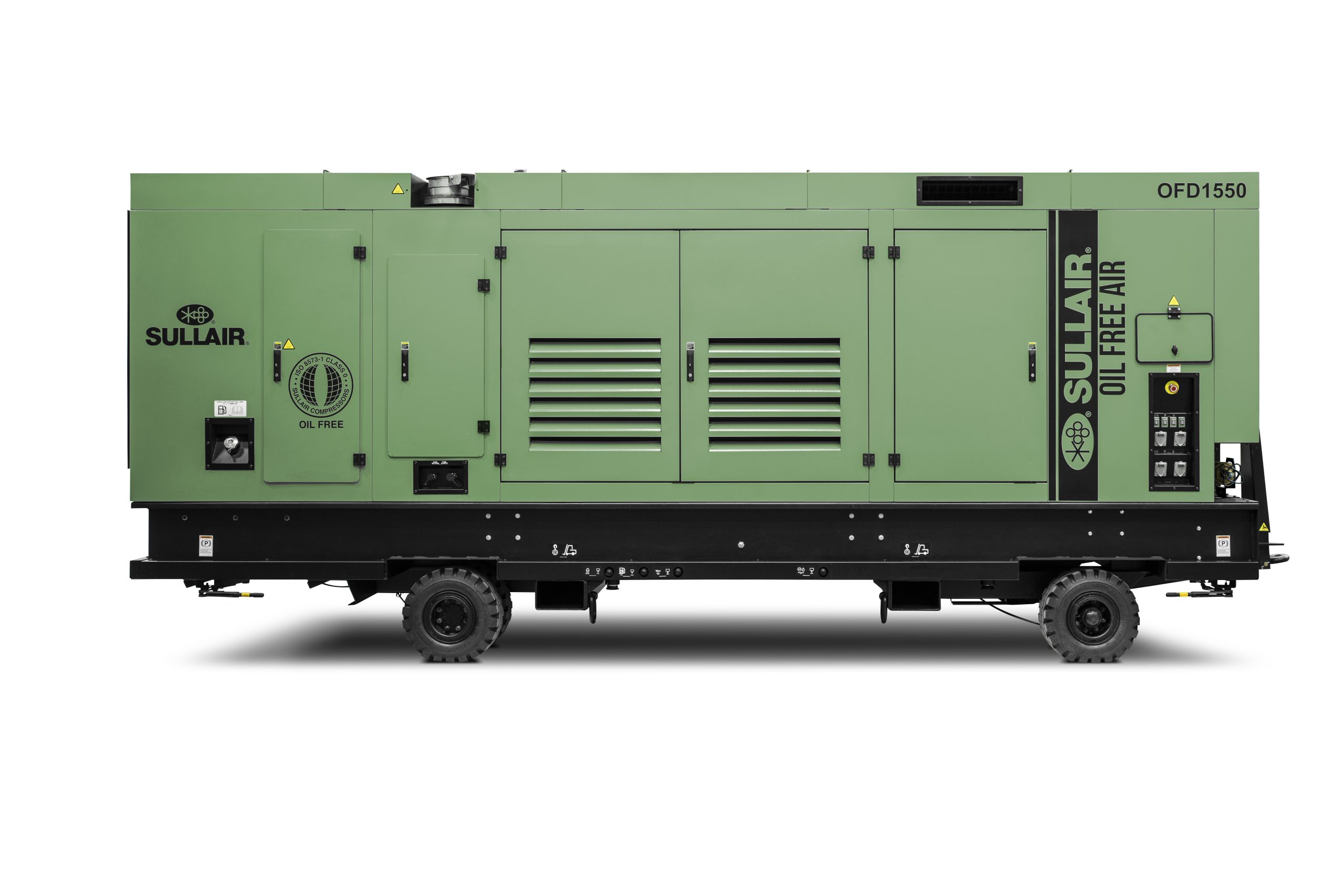

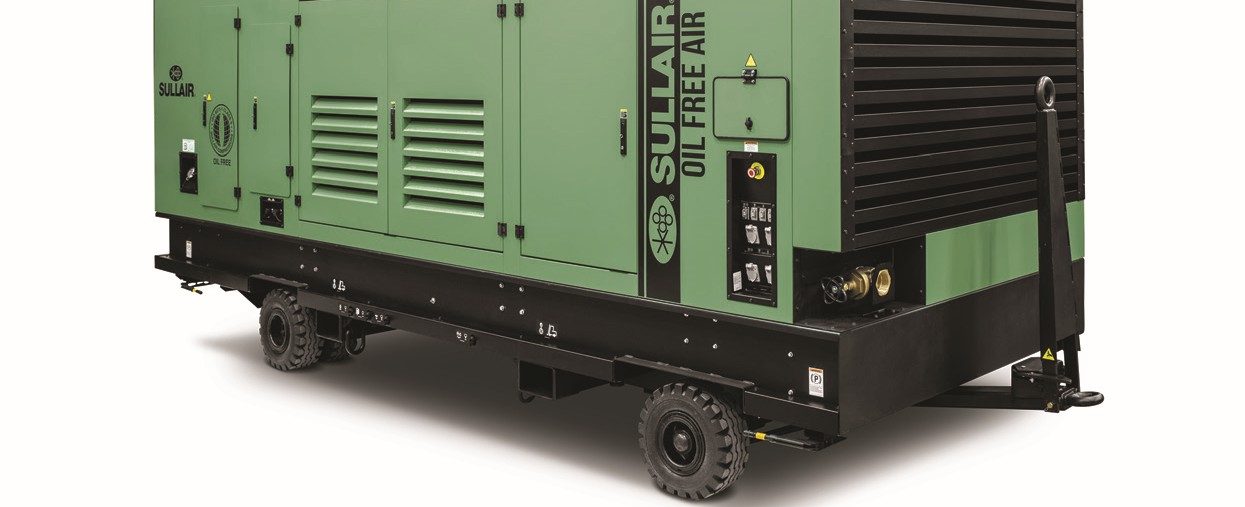

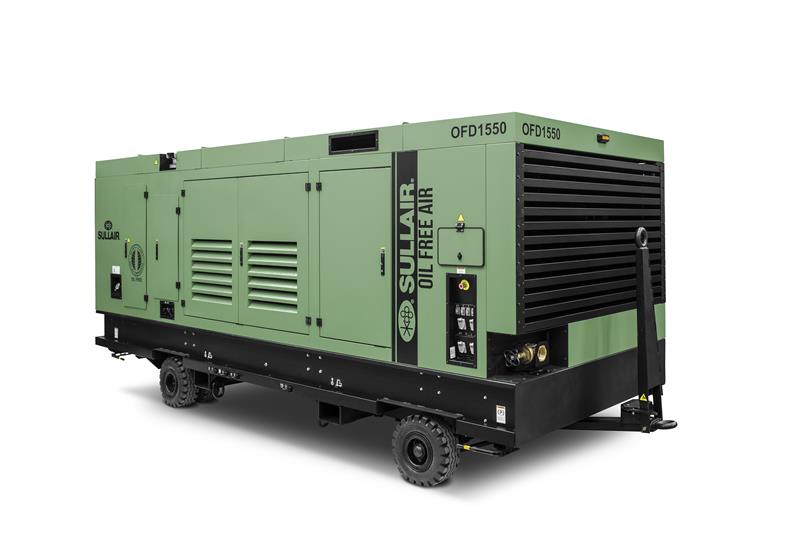

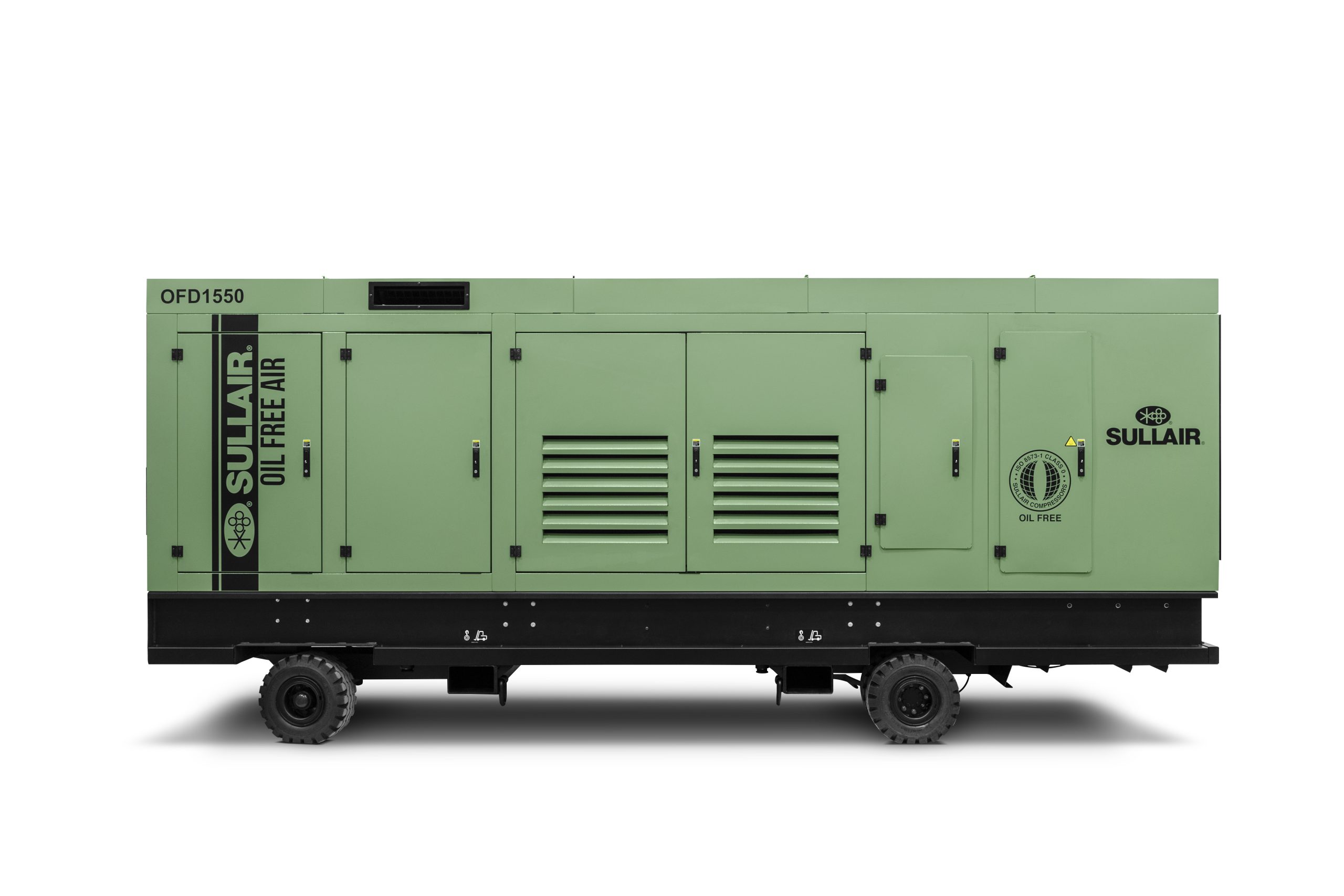

“The Sullair OFD1550 delivers dependable Class 0 oil-free air for sensitive operations, ensuring performance in diverse environments. Compact and portable, it’s perfect for plants, refineries, and job sites.

– Class 0 oil-free air

– Portable and compact design

– Advanced touch screen control

– High-altitude and temperature capabilities”

Class 0 Oil-Free Air

Class 0 Oil-Free Air

The OFD1550 provides Class 0 oil-free air, ideal for sensitive applications requiring the highest air purity standards. This ensures your operations run smoothly without contamination risks.

Portable Design

Portable Design

Designed for mobility, the OFD1550 is compact and site-towable, making it easy to navigate job sites and store. Its pivoting drawbar and forklift pockets enhance transport efficiency.

Advanced Touch Screen

Advanced Touch Screen

The 7-inch Sullair Touch Screen Controller offers intuitive access to compressor data and pressure adjustments, ensuring seamless operation even in challenging conditions.

Durable Two-Stage Air End

Durable Two-Stage Air End

Featuring high-efficiency rotors with PTFE coating, the two-stage air end resists corrosion and extends the machine’s lifespan, providing reliable performance over time.

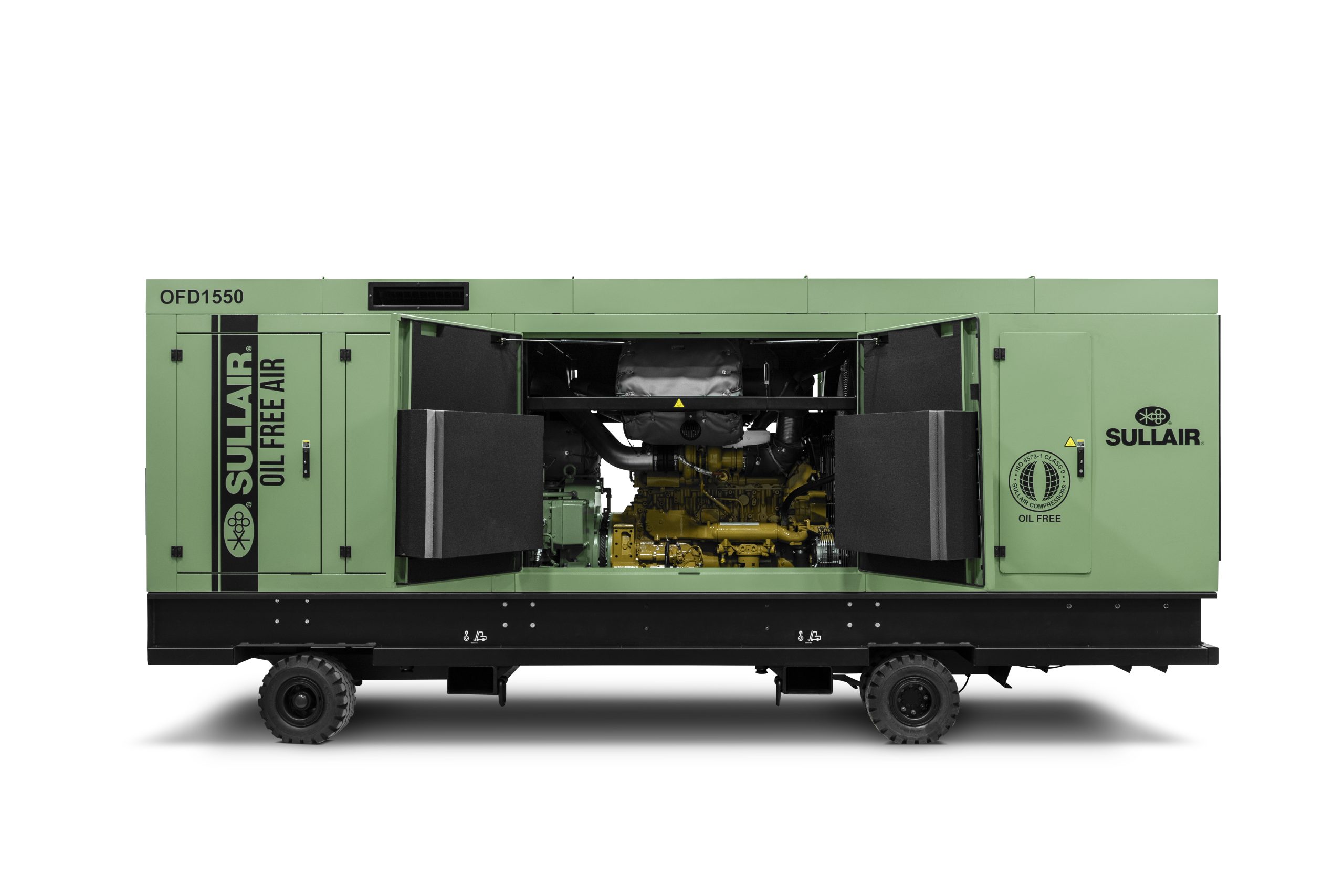

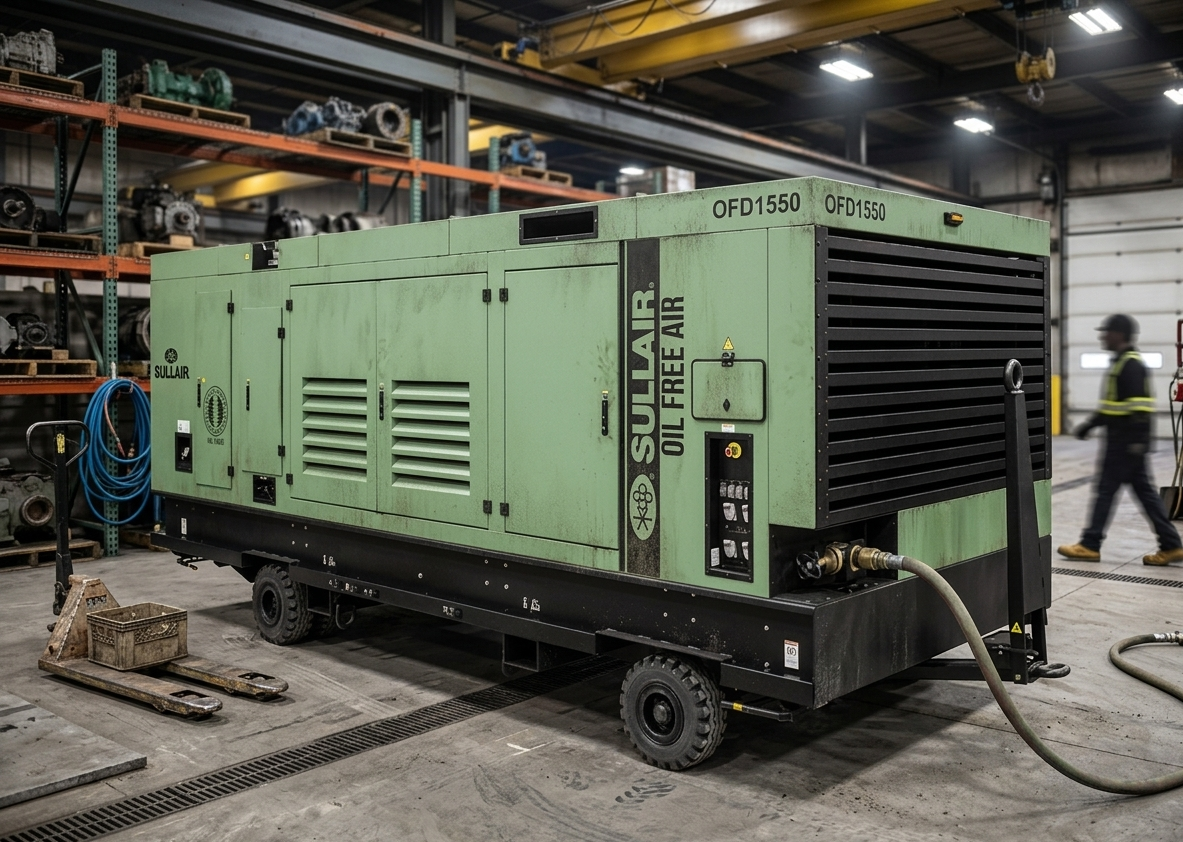

Versatile Engine Options

Versatile Engine Options

Equipped with either a Caterpillar C15 or Perkins 2506D-E15TA Tier 3 engine, the OFD1550 offers powerful performance tailored to various operational requirements.

Product Specifications for OFD 1550

Description

Specifications

Downloads

Contact us for More Details

OFD 1550 Key Specifications

Horsepower

532 hp

Rated Speed rpm

2100

Working weight

21,640 lb

Engine

Horsepower

532 hp

Make (Emissions Level)

15 (927)

Displacement I / in³

6

Cylinders

137 x 171.4 (5.4 x 6.75)

Bore × Stroke mm (in)

137 x 171.4 (5.4 x 6.75)

Rated Speed rpm

2100

Rated Power kW (bhp)

397 (540)

Electrical System voltage

24VDC

Battery Rating CCA

1450

Alternator Rating amp

110

Radiator Capacity I (gal)

113.6 (30)

Engine Water Shutdown Temperature °C (°F)

104 (219)

Fuel Tank Capacity gal (l)

946 (250)

PERFORMANCE

Actual Delivery m³/min

43.89

Rated Pressure bar

8.6

Pressure Range, max/min bar

10.3 / 5.2

Service Valves, main/auxiliary bar

1 - 19.05/ 1 - 75.2

Operating Ambient Temperature, max/min °C

52 / -7

Maximum Operating Altitude m

3657

Fuel Consumption Full Load at 125 psi l/h

92

Comp. Discharge Shutdown Temperature °C

232

Maximum Operating Tilt

15°

Sound Level @7 meters dbA

83.7

DWQ PACKAGE

Working weight

21,640 lb

Dry weight

18,825 lb

Length mm (in)

6375 (251)

Width mm (in)

2235 (88)

Height mm (in)

2565 (101)

Track width mm (in)

2032 (80)

Maximum Towing Speed km/h (mph)

24 (15)

Tire size

21x8-9

Tire type

Foam Filled

Rim Size

9.00 E-9

LIT_Sullair OFD1550 Tier 3 Brochure_PAPOFD1550T3202201-2_EN
