Product Overview
Compact Power for Versatile Performance

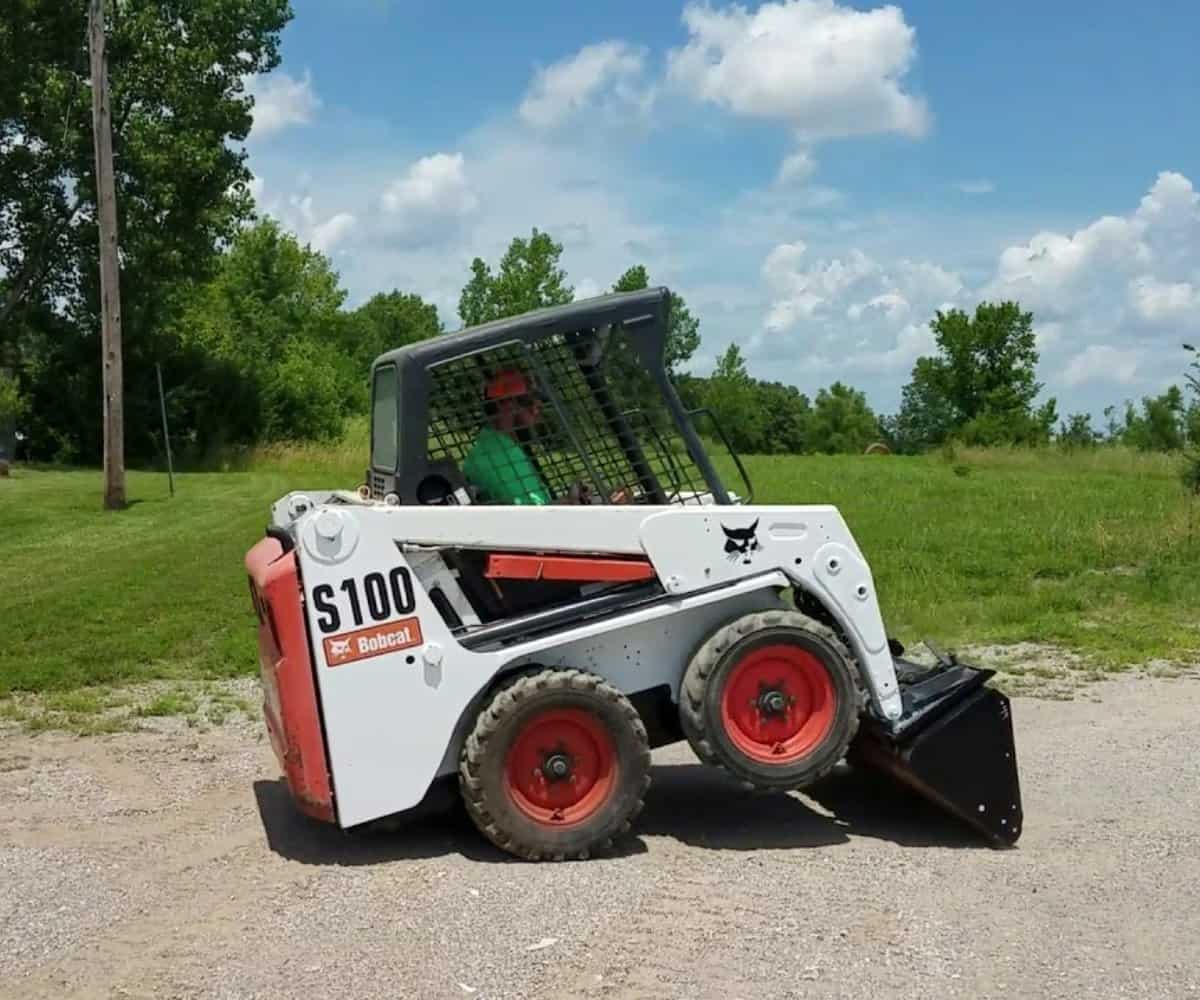

The Bobcat S100 Skid Steer Loader offers robust performance in a compact design, perfect for tight spaces and demanding tasks. Its versatility and durability make it ideal for construction and landscaping projects.
– Rated operating capacity: 457 kg
– Max travel speed: 13.4 km/h
– Engine power: 18.2 kW
The S100 is equipped with a Kubota V1505-T4F-ST5 engine, delivering 18.2 kW of power at 2300 RPM. This ensures efficient operation even in challenging conditions, providing the reliability needed for continuous use.
With an operating weight of 1860 kg and compact dimensions, the S100 is designed to navigate tight spaces with ease. Its small footprint allows for greater maneuverability without sacrificing performance.

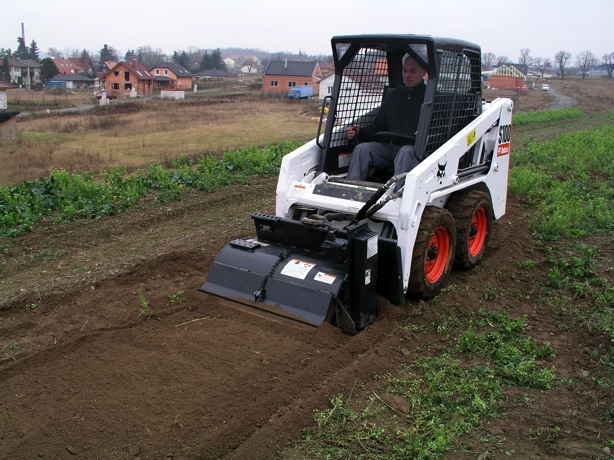

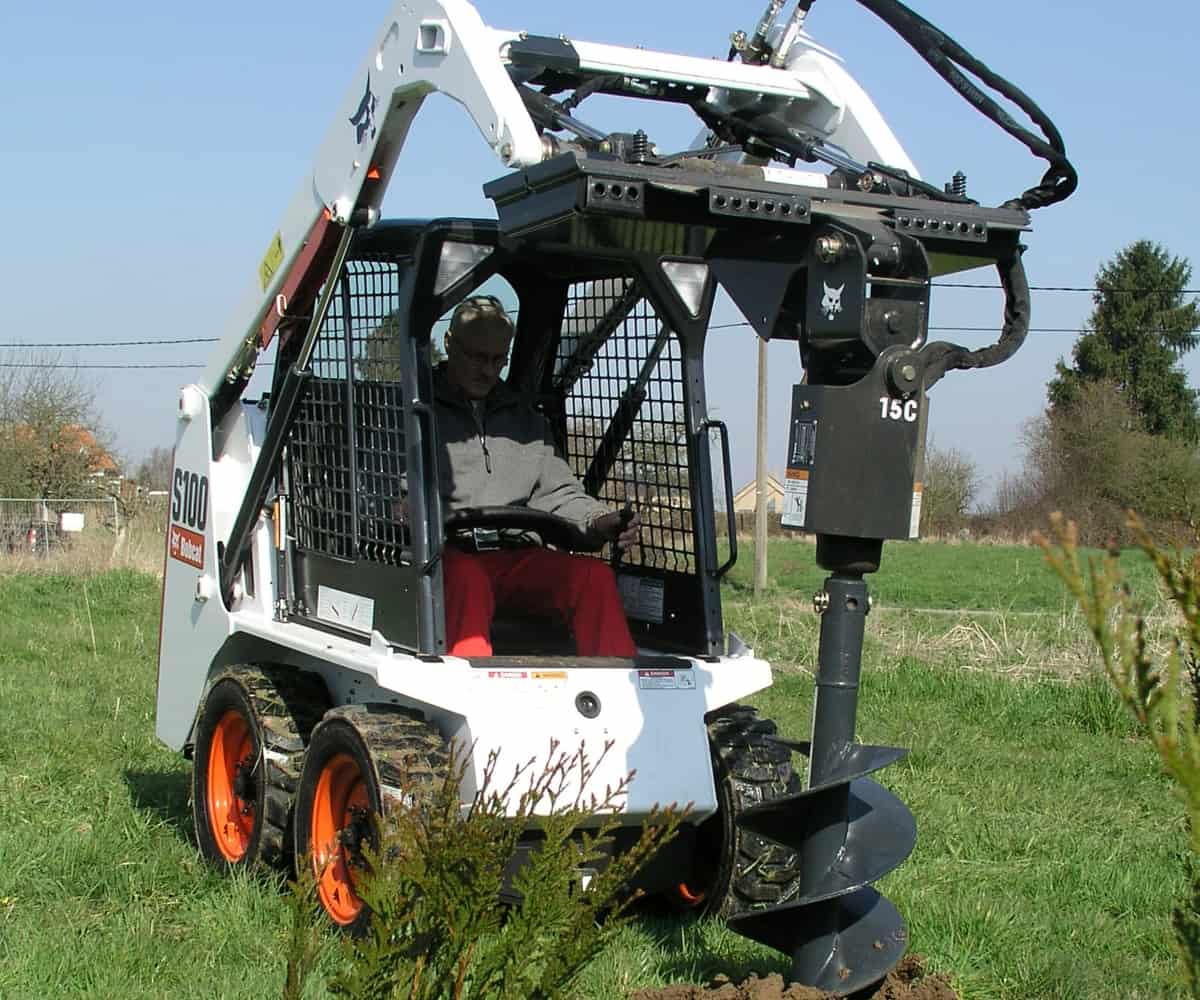

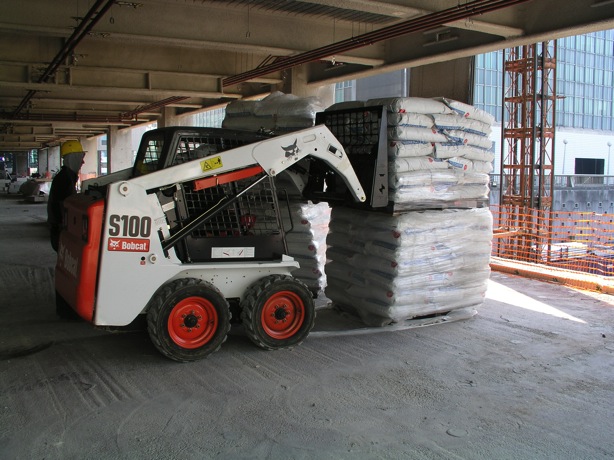

The S100 supports a wide range of attachments, including angle brooms, augers, and pallet forks. This versatility allows operators to tackle diverse tasks, from sweeping to digging, with a single machine.

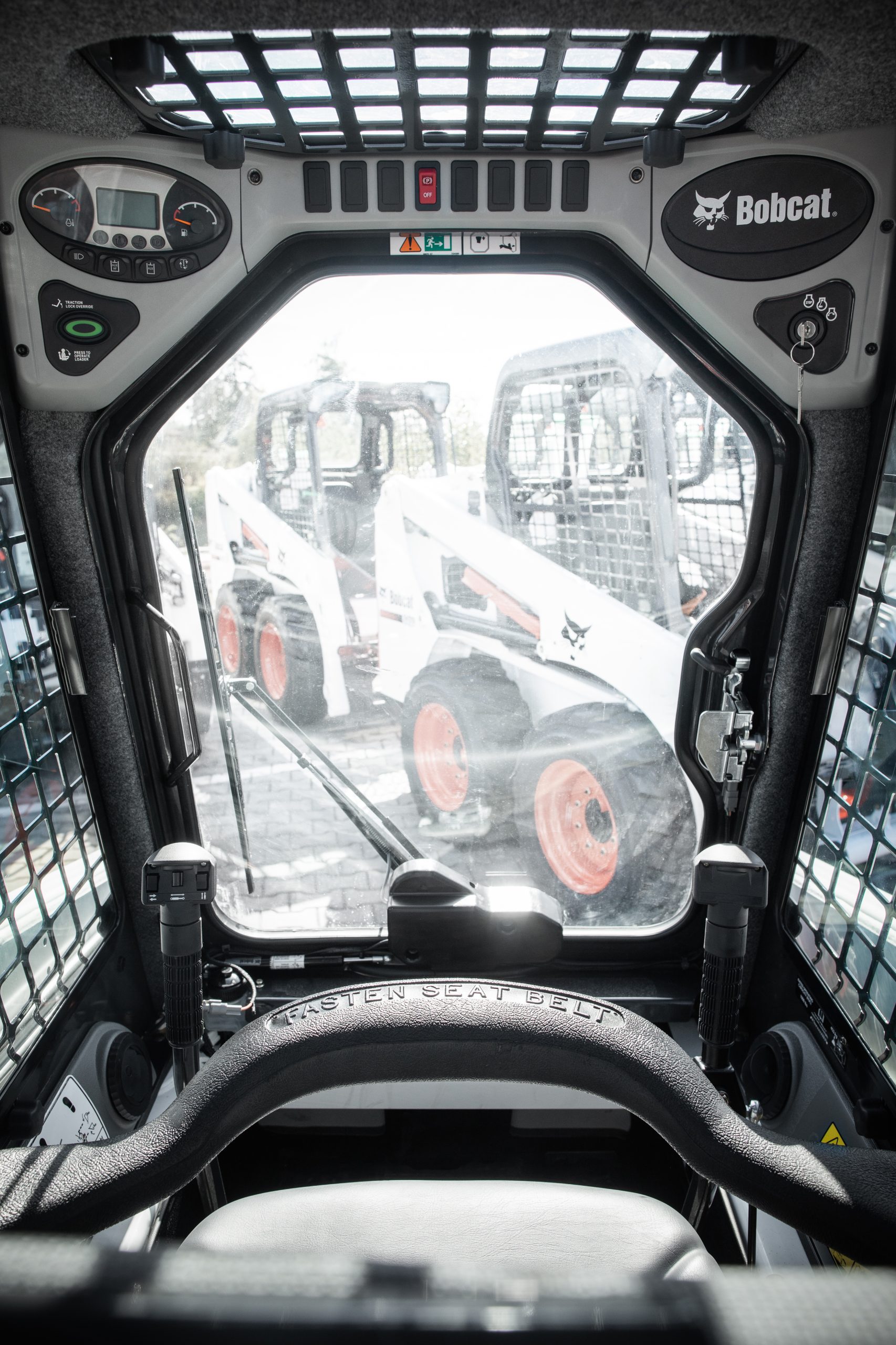

The S100 features separate foot pedals for loader hydraulics and hand levers for vehicle steering, offering precise control over direction and speed. This enhances operator comfort and efficiency during extended use.

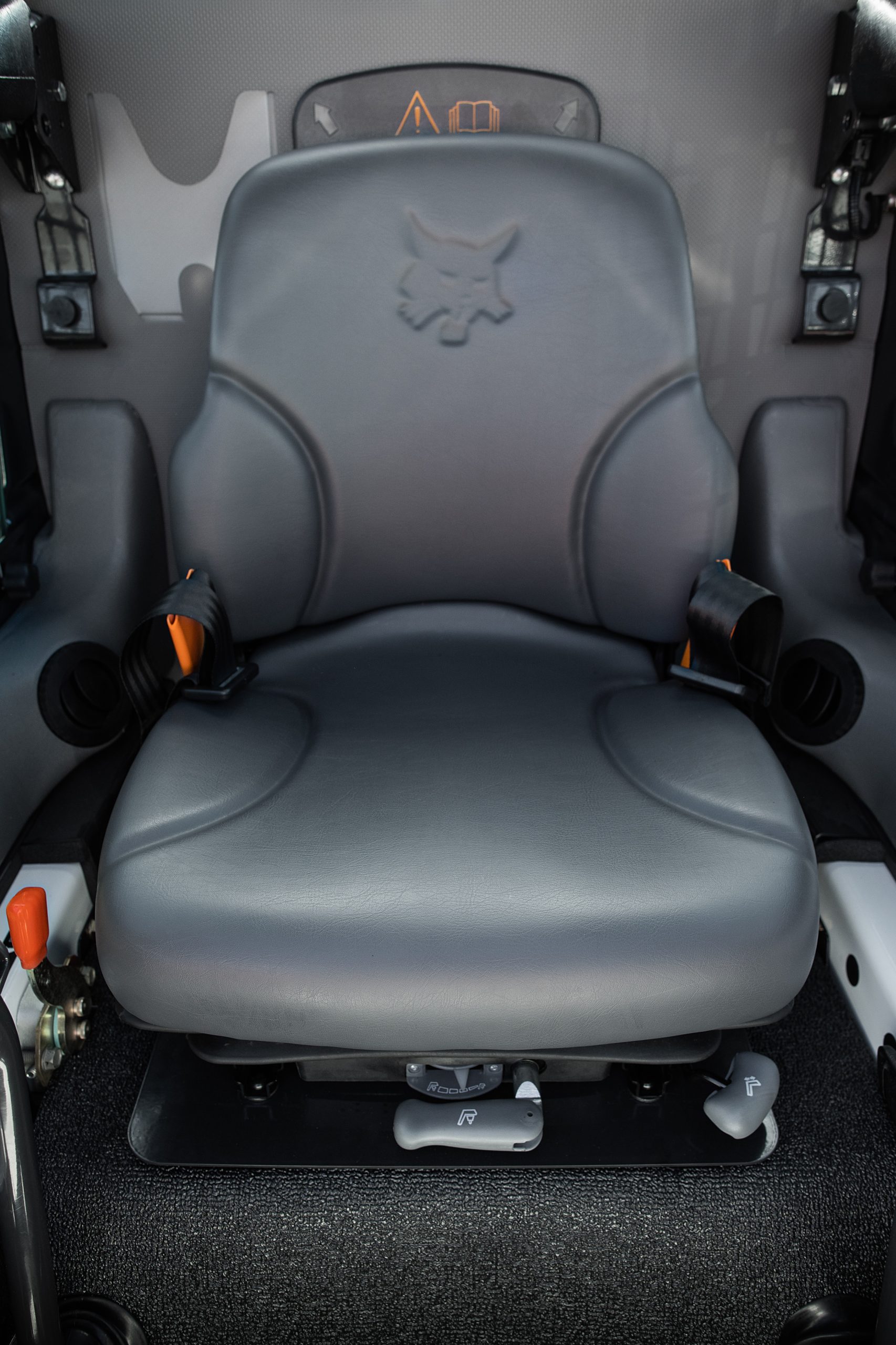

The operator cab includes a Roll Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS), meeting stringent safety standards. Additional features like a deluxe seat and interior cab foam enhance comfort.
Horsepower
24 hpOperating Weight
4100 lbRated Operating Capacity
457 lbTipping load (ISO 14397-1)
915 kgRated operating capacity (ISO 14397-1)
457 kgPump capacity
36.00 L/minSystem relief at quick couplers
20.7 MPaMax. travel 2-speed (SJC controls)
13.4 km/hMax. travel 1 speed (manual controls) 8.2 km/h
8.2 km/hMake / Model
Kubota / V1505-T4F-ST5Engine Cooling
LiquidHorsepower
24 hpTorque at 1600 RPM (ISO 9249) Gross
86.4 NmNumber of cylinders
4Displacement
1498 cm3Fuel tank
45.00 LOperating weight (with HD tyres, 50 inch C/I bucket)
1860 kgShipping weight (with HD tyres, without bucket)
1693 kgOperating weight (with SOLID tyres, 50 inch C/I bucket)
2149 kgShipping weight (with SOLID tyres, without bucket)
2074 kgOperating Weight
4100 lbNoise level LpA(EU Directive 2006/42/EC)
86 dB(A)Operator LpA uncertainty
2 dB(A)Noise level LWA(EU Directive 2000/14/EC)
96 dB(A)Rated Operating Capacity
457 lb
