S20 – General Trading & Equipment Co.

S20

S20

S20

S20

32 hp

Horsepower

749 lb

Operating Weight

749 lb

Rated Operating Capacity

Request Price View Product Specifications

Product Overview

Efficient Cleaning in Any Environment

“The S20 Compact Ride-On Sweeper offers robust performance for both indoor and outdoor cleaning, even in harsh environments. Enhance your silica dust control plan with the optional HEPA filtration system.

– Three-stage SweepMax technology

– Optional HEPA filtration

– IRIS Asset Manager”

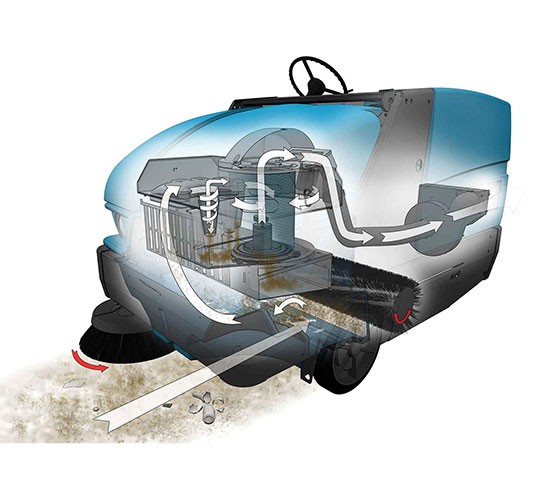

Three-Stage SweepMax

Three-Stage SweepMax

The SweepMax system features a three-stage filtration process that captures bulky debris, fine dust, and sub-micron particulates, ensuring superior air quality and cleanliness.

HEPA Filtration Option

HEPA Filtration Option

Optional HEPA filtration captures particles as small as 0.3 microns with 99.97% efficiency, significantly reducing silica dust exposure and improving air quality.

Durable Construction

Durable Construction

The S20’s corrosion-proof, heavy-duty Duramer hopper and shrouds ensure a long machine life, even in demanding environments.

Operator Safety Features

Operator Safety Features

Features like Thermo-Sentry alert and shut down air flow if hopper temperatures rise, ensuring operator safety during use.

Efficient Maintenance

Efficient Maintenance

Quickly access the machine’s core components with no-tool, easy-to-open covers, minimizing service time and maintenance costs.

Product Specifications for S20

Description

Specifications

Downloads

Contact us for More Details

S20 Key Specifications

Horsepower

32 hp

Operating Weight

749 lb

Rated Operating Capacity

749 lb

SWEEPING SYSTEM DIESEL/PETROL/LPG BATTERY

Cleaning path: Single side brush | Dual side brush

1,270 mm | 1,575 mm

Main brush length (tubular)

910 mm

Side brush diameter

580 mm

Debris hopper volume capacity: Polyethylene | Steel

310 L | 319 L

Debris hopper weight capacity: Polyethylene | Steel

340 kg | 318 kg

Debris hopper: Dump height (variable to) | Dump reach

1,525 mm | 355 mm

Engine

Horsepower

32 hp

Dimension

Operating Weight

749 lb

Capacities

Rated Operating Capacity

749 lb

DUST CONTROL SYSTEM

Filtersystem: Stage 1 | Stage 2 | Stage 3 (canister fille

Perma-filter TM | Cyclonic per-filter | 7².4 m

Dust filtration

0.5 microns at 99% efficiency

HEPA filtration (Optional)

0.3 microns at 99.97%

Vacuum fan

1.12 kW

Vacuum fan speed

6,480 rpm

Vacuum diameter

230 mm

PROPELLING SYSTEM

Propel speed forward (variable to): 3-wheel

12.9 km/h

Propel speed reverse (variable to)

3.0 mph / 4.8 km/h

Engine-gasoline Gross Intermitten Power* | Tennant Governed Power

24.2 kW @3600 rpm | 18.5 kW @2500 rpm

Engine-LPG Gross Intermitten Power* | Tennant Governed Power

23.1 kW @3600 rpm | 18.3 kW @2500 rpm

Engine-diesel: Gross Intermitten Power* | Tennant Governed Power

14.2 kW @2500 rpm | 13.8 kW @2400 rpm

Gradeability: full hopper | empty hopper

10° / 17.6% | 14° / 25%

MACHINE Performance

Length

2,090 mm

Width

1,230 mm

Height with overhead guard | Without overhead guard

2,085 mm | 1,260 mm

Weight (net, with standard battery)

1,110 kg

Minimum aisle turn

2,415 mm

s20-brochure-en-au
