Product Overview

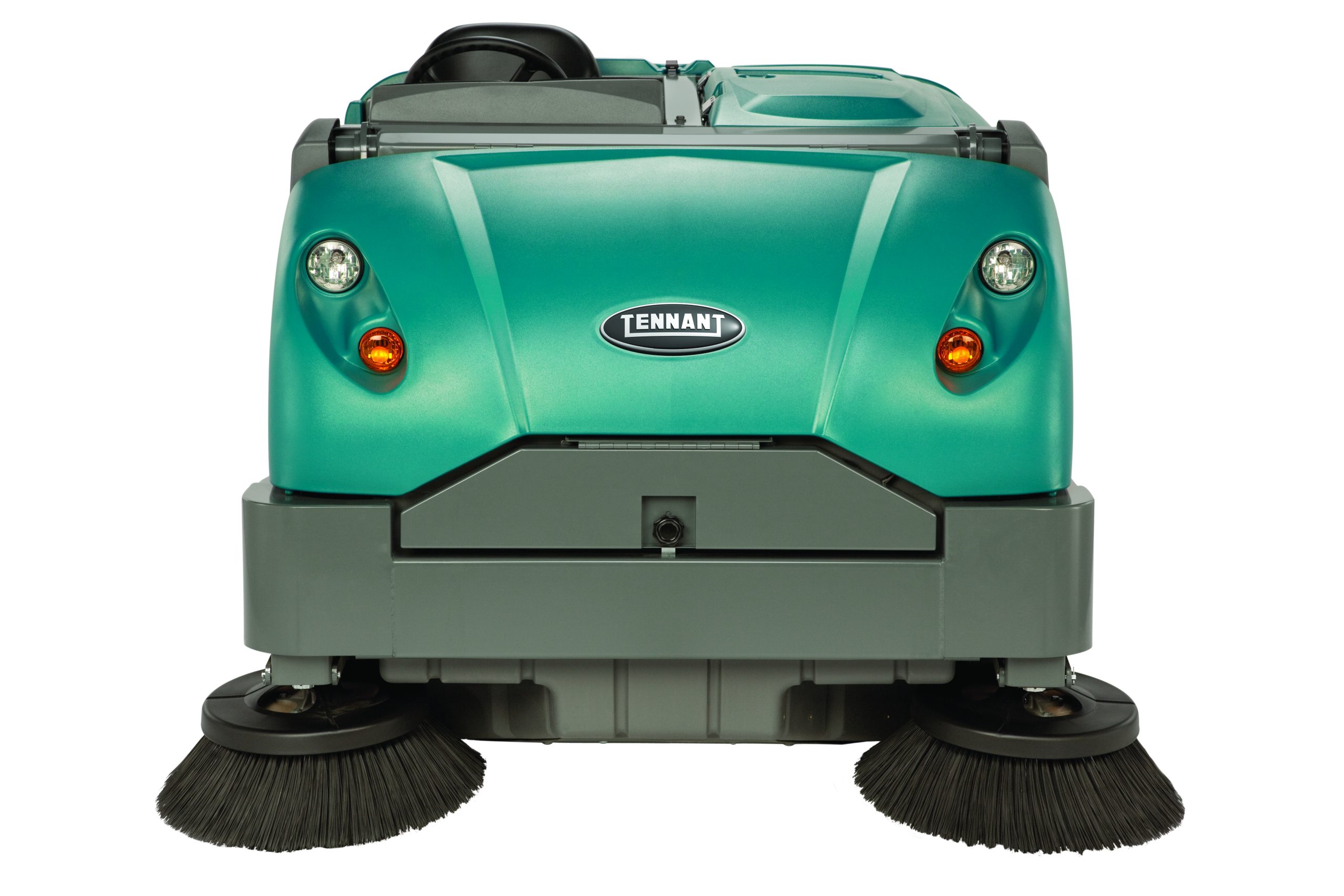

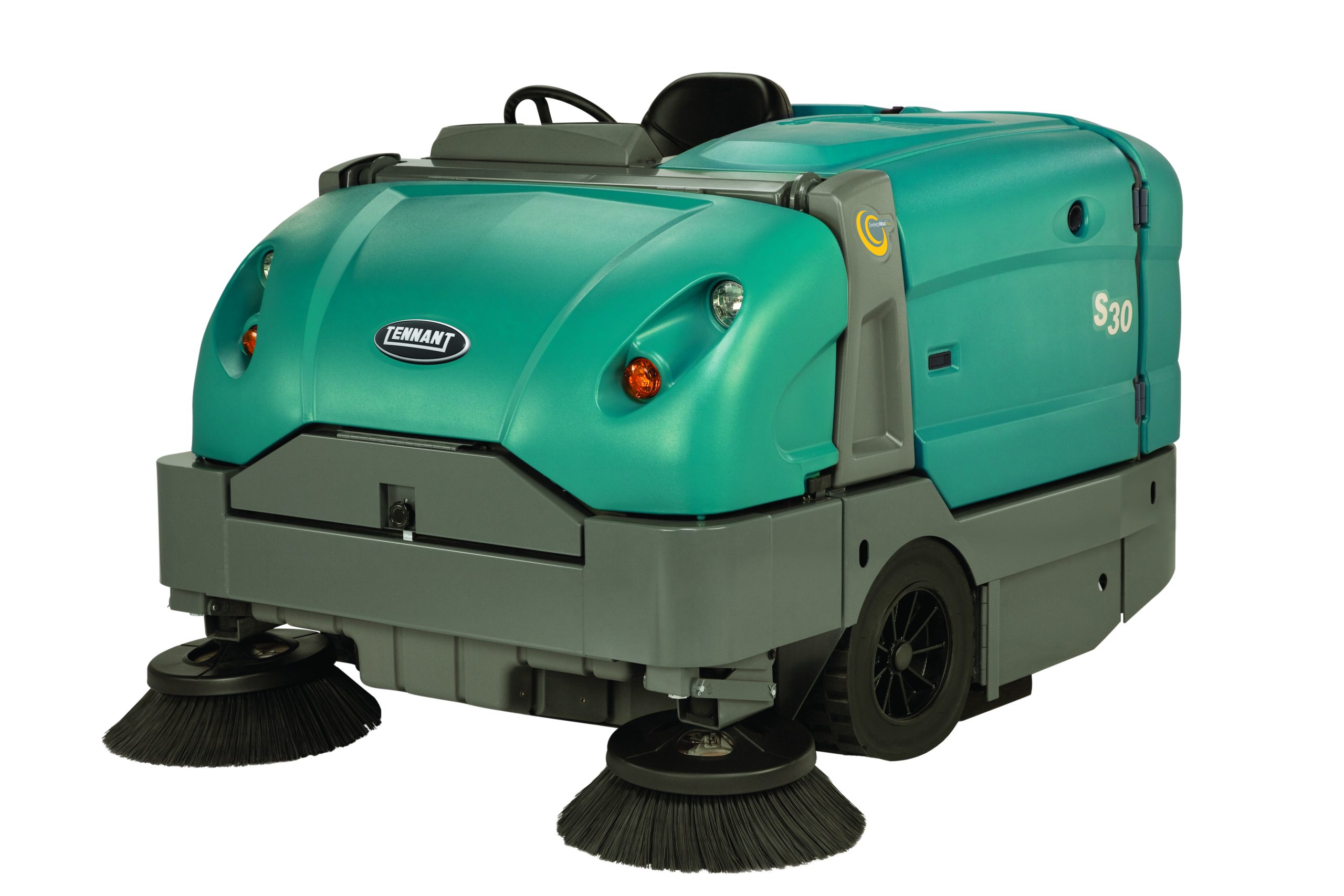

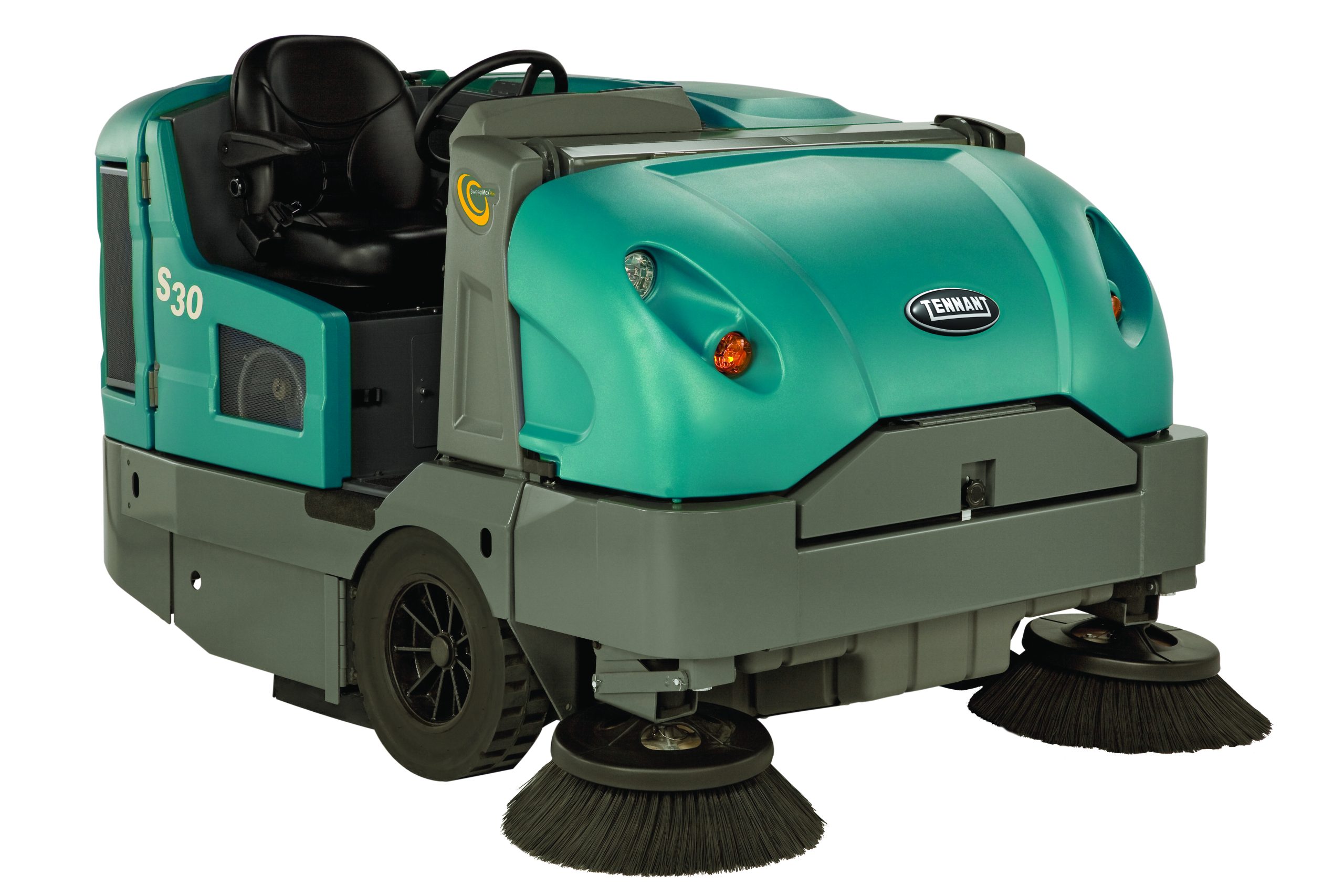

S30

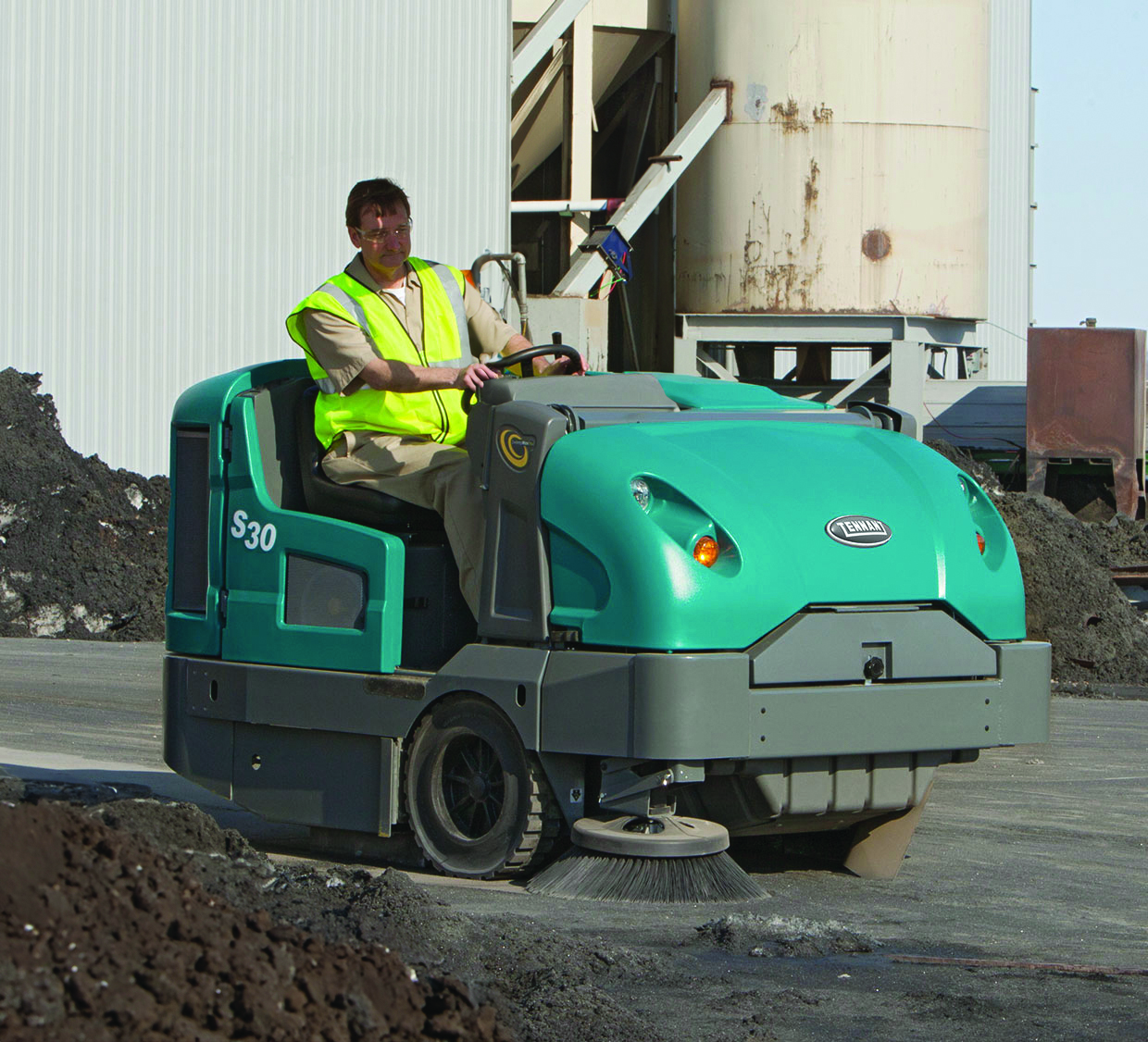

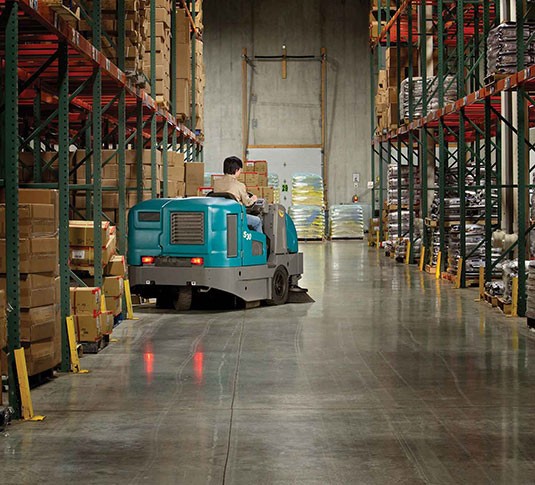

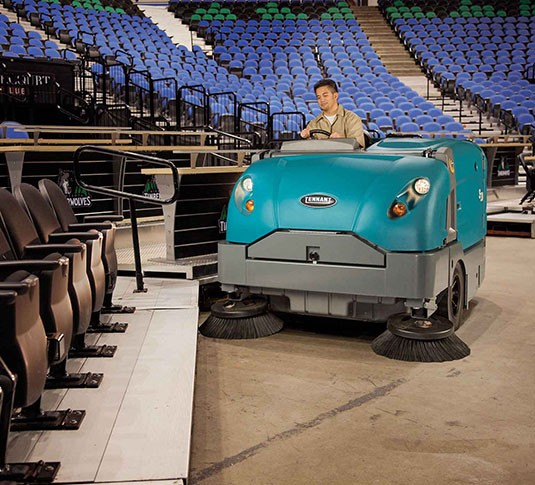

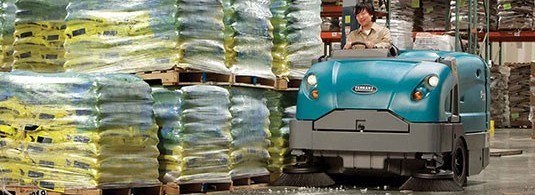

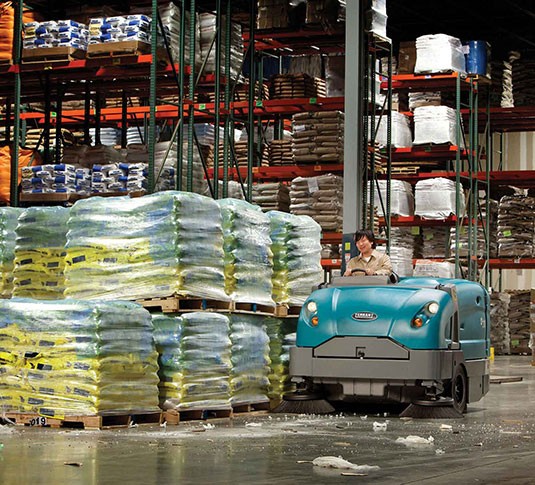

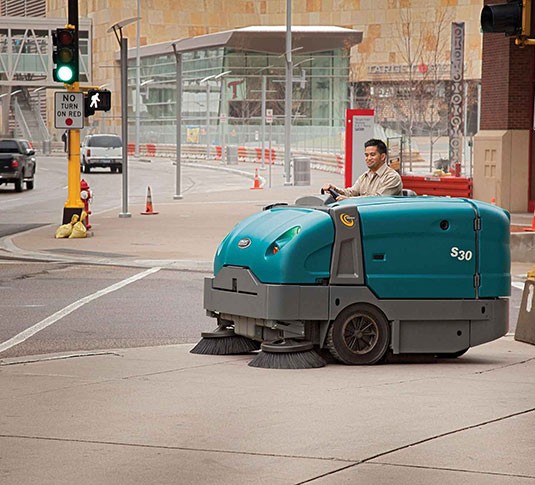

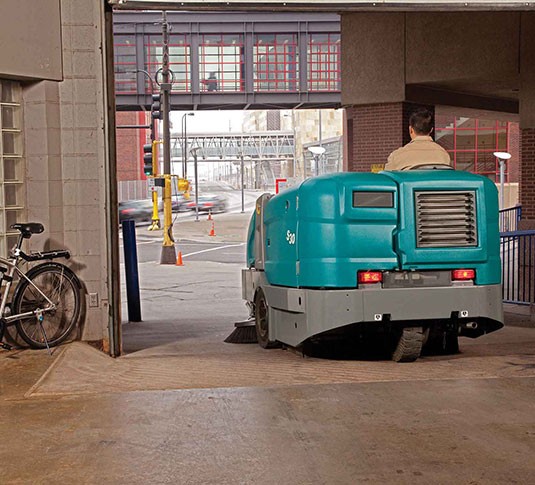

“The S30 Ride-On Sweeper delivers powerful performance for both indoor and outdoor cleaning, efficiently handling everything from fine dust to heavy debris. Enhance your cleaning strategy with optional HEPA filtration.
– Three-stage SweepMax Plus
– Optional HEPA filtration system
– IRIS Asset Manager”
The SweepMax Plus system features a three-stage filtration process that effectively captures 99% of dust particles, ensuring cleaner air and longer filter life. This technology is designed to handle the toughest cleaning environments.

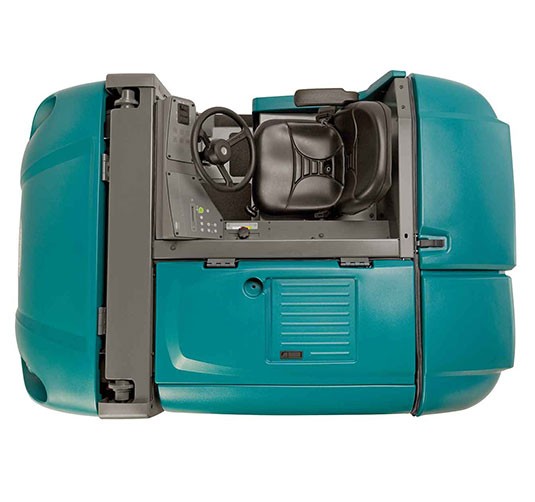

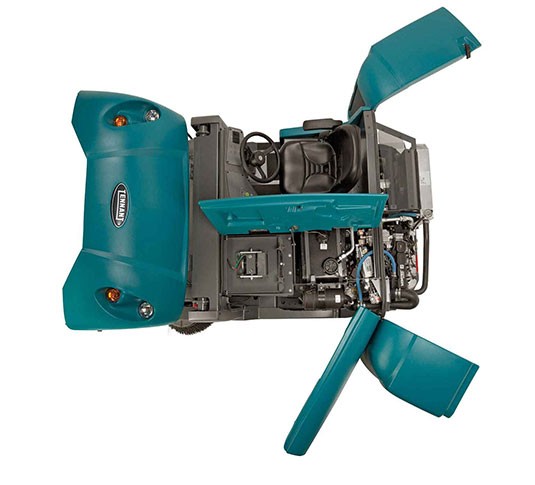

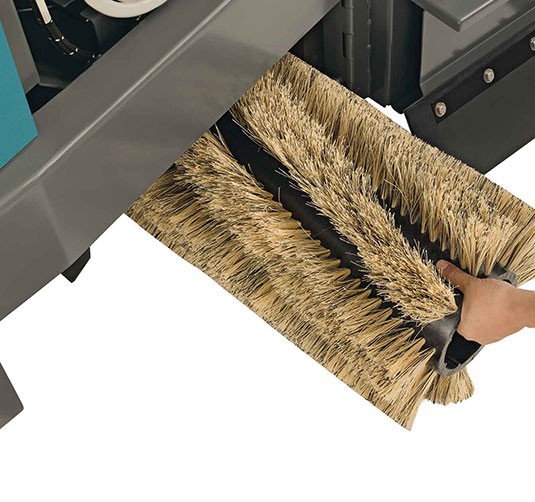

Reduce downtime with no-tool brush removal and easy-to-set color-coded brush wear indicators. This design minimizes operator fatigue and maximizes productivity by allowing quick adjustments and maintenance.
The II-Speed system increases the speed of the main brush, side brush, and vacuum fan by 15%, providing superior cleaning performance and efficiency in various environments.
Constructed with a heavy-gauge steel frame, the S30 ensures structural reliability and strength, making it suitable for demanding applications and providing long-lasting performance.
The optional HEPA filtration system helps manage silica dust exposure, making the S30 an ideal choice for environments where air quality is a priority.
Length
2,360 mmHorsepower
51 hpRated Operating Capacity
1201 lbCleaning path: Single side brush | Dual side brush
1,588 mm | 2,032 mmMain brush length (tubular)
1,145 mmSide broom diameter
660 mmDebris hopper
395 LDebris hopper weight capacity: Plastic | Steel
490 kg | 545 kgDebris hopper: Dump height (variable to) | Dump reach
1,525 mm | 760 mmFilter area
7.4 mDust filtration (seasoned filter)
0.5 microns at 99% efficiencyVacuum fan speed: Normal sweeping mode | Litter sweeping mode
4,600 rpm | 5,500 rpmVacuum diameter
280 mmPropel speed forward (variable to)
13 km/hPropel speed reverse (variable to)
5.0 km/hEngine - LPG Gross Intermittent Power* | Tennant Governed Power
38.5 kW @ 2800 rpm | 31.6 kW @ 2300 rpmEngine - gasoline: Gross Intermittent Power* | Tennant Governed Power
37.8 kW @ 2800 rpm | 30.3 kW @ 2300 rpmEngine - diesel: Gross Intermittent Power* | Tennant Governed Power
18.5 kW @ 2300 rpm | 18.5 kW @ 2300 rpmGradeability - full hopper
10° / 18%Gradeability - empty hopper
14° / 25%Ground clearance
100 mmLength
2,360 mmWidth
1,590 mmHeight with overhead guard | Without overhead guard
2,095 mm | 1,475 mmWeight (net)
1,620 kgMinimum aisle turn
