S510 – General Trading & Equipment Co.

S510

S510

S510

S510

S510

46 hp

Horsepower

5921 lb

Operating Weight

1785 lb

Rated Operating Capacity

Request Price View Product Specifications

Product Overview

Unmatched Versatility and Performance

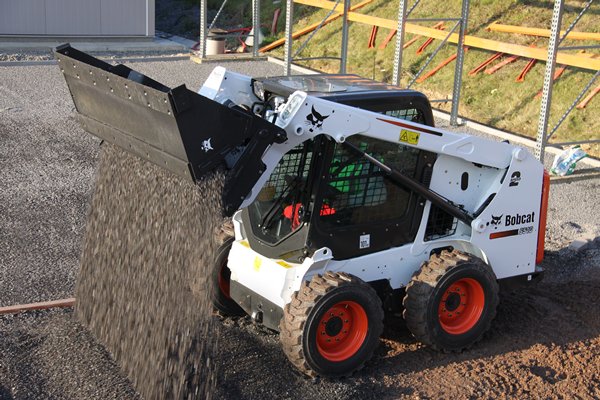

The Bobcat S510 Skid Steer Loader offers exceptional power and agility for diverse construction tasks. With a robust engine and advanced hydraulics, it ensures reliable performance in demanding environments.

– Rated operating capacity of 810 kg

– Max travel speed of 17.3 km/h

– Efficient Kubota diesel engine

– Versatile attachment options

Powerful Engine

Powerful Engine

The S510 is equipped with a Kubota V2403-MDI-E3 engine, delivering 34.4 kW at 2700 RPM, ensuring robust performance and efficiency in various applications.

Advanced Hydraulics

Advanced Hydraulics

Featuring a pump capacity of 64.70 L/min and system relief at quick couplers of 23.8-24.5 MPa, the S510 provides superior hydraulic power for demanding tasks.

Featuring a pump capacity of 64.70 L/min and system relief at quick couplers of 23.8-24.5 MPa, the S510 provides superior hydraulic power for demanding tasks.

Featuring a pump capacity of 64.70 L/min and system relief at quick couplers of 23.8-24.5 MPa, the S510 provides superior hydraulic power for demanding tasks.

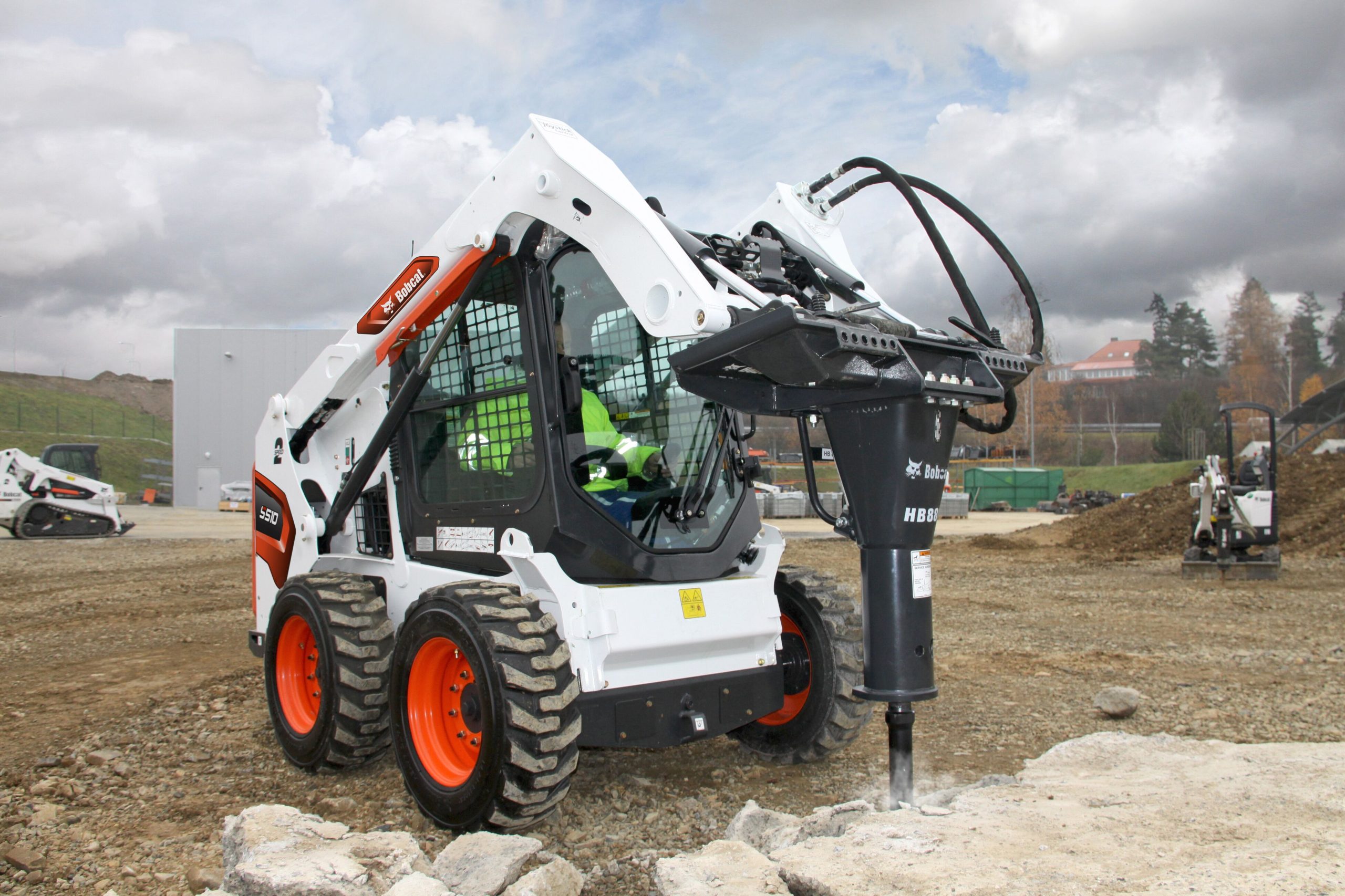

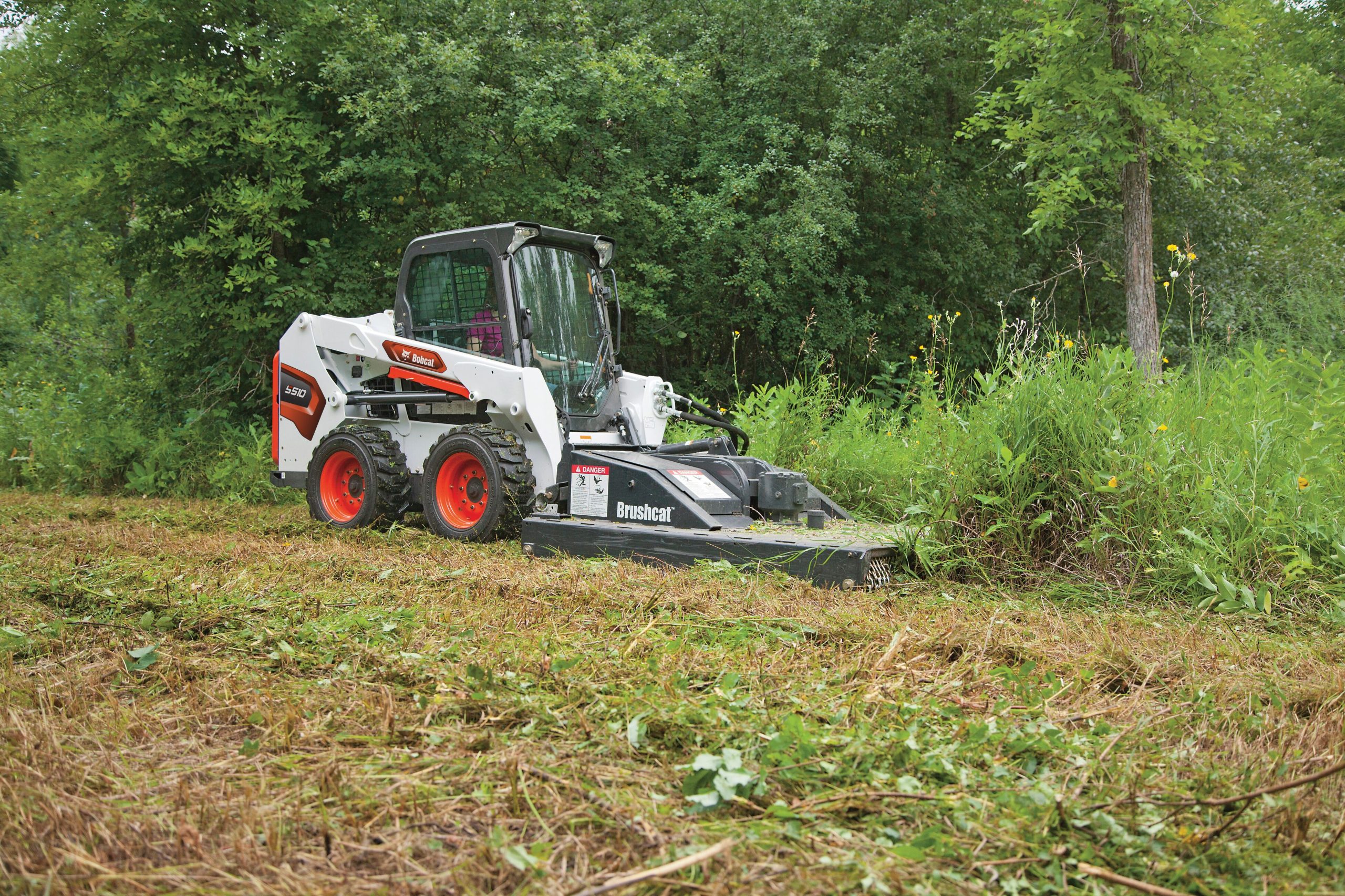

The S510 supports a wide range of attachments, including augers, breakers, and buckets, allowing for customization to meet specific job requirements.

Enhanced Operator Comfort

Enhanced Operator Comfort

With selectable joystick controls and a deluxe operator cab option, the S510 ensures operator comfort and intuitive handling for improved productivity.

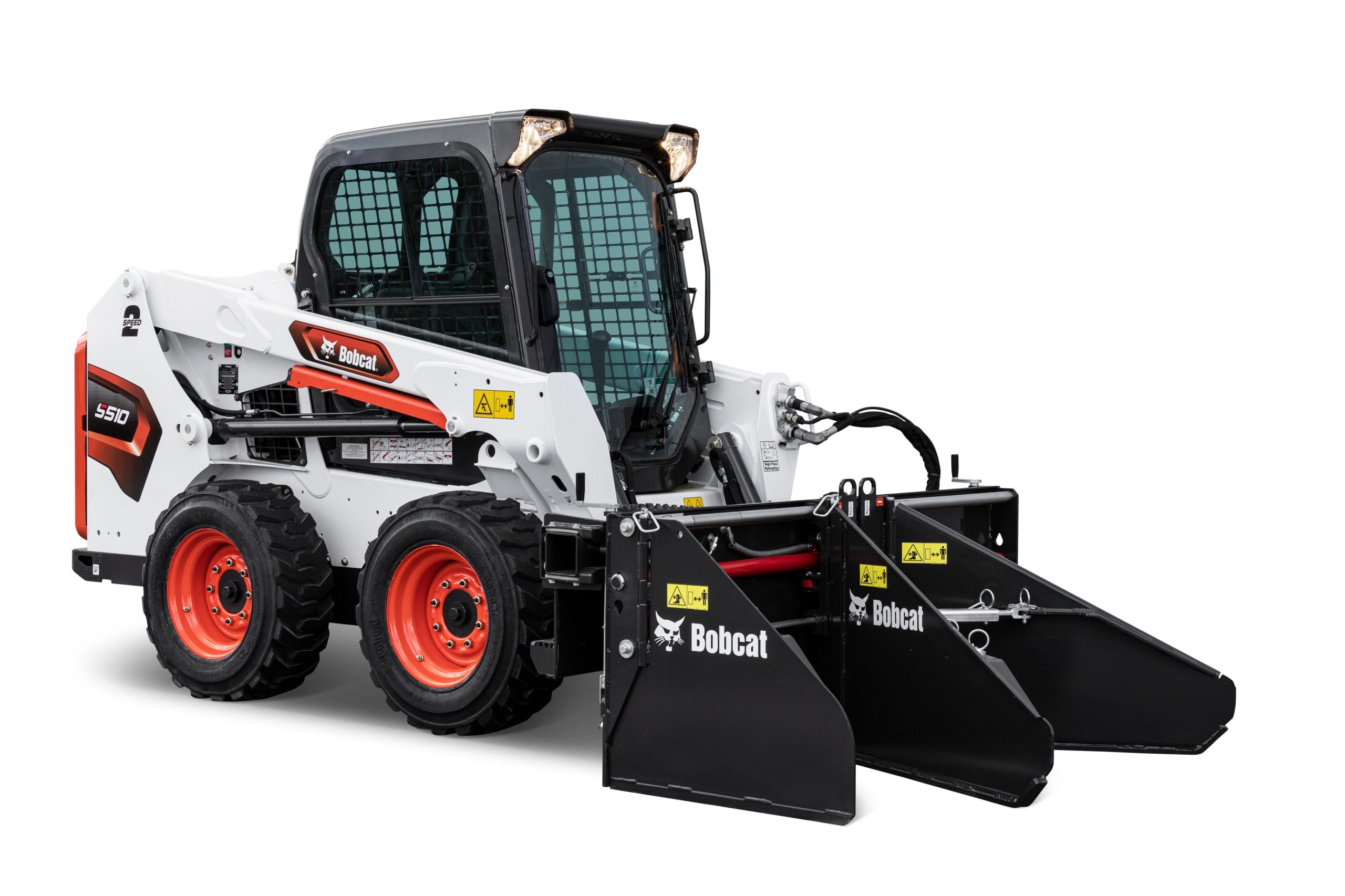

Durable Construction

Durable Construction

The S510 features heavy-duty tires and a robust frame, designed to endure challenging environments while maintaining optimal performance.

Product Specifications for S510

Description

Specifications

Downloads

Contact us for More Details

S510 Key Specifications

Horsepower

46 hp

Operating Weight

5921 lb

Rated Operating Capacity

1785 lb

Performance

Tipping load (ISO 14397-1)

1619 kg

Rated operating capacity (ISO 14397-1)

810 kg

Pump capacity

64 L/min

System relief at quick couplers

23-24 MPa

Max. travel speed (high range - option)

17 km/h

Max. travel speed (low range)

11 km/h

Engine

Make / Model

Kubota / V2403-MDI-E3

Engine Cooling

Liquid

Engine Fuel

Diesel

Horsepower

46 hp

Power at 2700 RPM:

34 kW

Torque at 1425 RPM (SAE J1995 Gross)

158 Nm

Number of cylinders

4

Displacement

2433 cm3

Fuel tank

93 L

Weights

Operating weight

2686 kg

Shipping weight

2343 kg

Dimension

Operating Weight

5921 lb

Capacities

Rated Operating Capacity

1785 lb

EN_S510_B424_Non-EU_Leaflet_B4501730_01-2021
