Product Overview
Unmatched Versatility and Power
The Bobcat S570 Skid Steer Loader delivers exceptional performance and versatility for various applications. With a robust design and advanced features, it excels in demanding environments.
– High operating capacity
– Advanced control options
– Durable and reliable
– Wide range of attachments
The S570 offers a rated operating capacity of 944 kg, making it ideal for lifting and transporting heavy materials efficiently, enhancing productivity on any job site.
Choose between foot pedals, Advanced Control System (ACS), or Selectable Joystick Controls (SJC) for intuitive and precise operation, tailored to your preference and task requirements.
Engineered with heavy-duty components and a robust frame, the S570 ensures long-lasting performance and reliability, even in the most challenging environments.

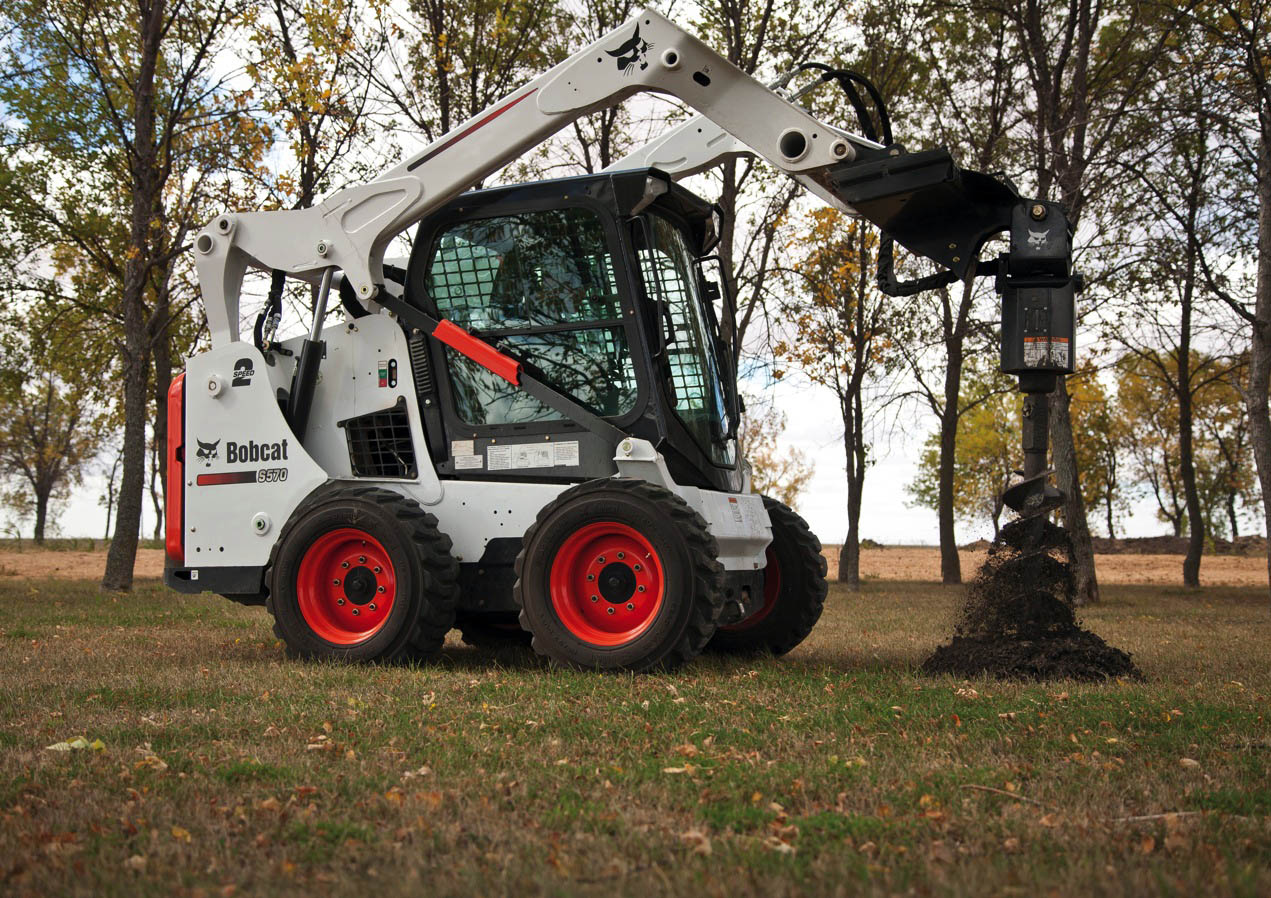

Compatible with a wide range of attachments, including augers, breakers, and buckets, the S570 can be customized to tackle diverse tasks, from construction to landscaping.
Powered by a Kubota diesel engine, the S570 delivers 45.5 kW of power, ensuring optimal performance while maintaining fuel efficiency for cost-effective operation.
Horsepower
61 hpOperating Weight
6393 lbRated Operating Capacity
2081 lbTipping load (ISO 14397-1)
1888 kgRated operating capacity (ISO 14397-1)
944 kgPump capacity
64.70 L/minPump capacity (with high flow option)
101.10 L/minSystem relief at quick couplers
23.8-24.5 MPaMax. travel speed (high range - option)
17.3 km/hMax. travel speed (low range)
11.8 km/hMake / Mode
Kubota / V2607-DI-T-E3B-BC-2Engine Cooling
LiquidEngine Fuel
DieselHorsepower
61 hpMaximum power at 2700 RPM (SAE J1995)
45.5 kWTorque at 1425 RPM (SAE J1995 Gross)
201.0 NmNumber of cylinders
4Displacement
2600 cm 3Fuel tank
93.70 LOperating weight
2900 kgShipping weight
2560 kgOperating Weight
6393 lbRated Operating Capacity
2081 lb
