Product Overview
Elevate Your Load Handling Efficiency

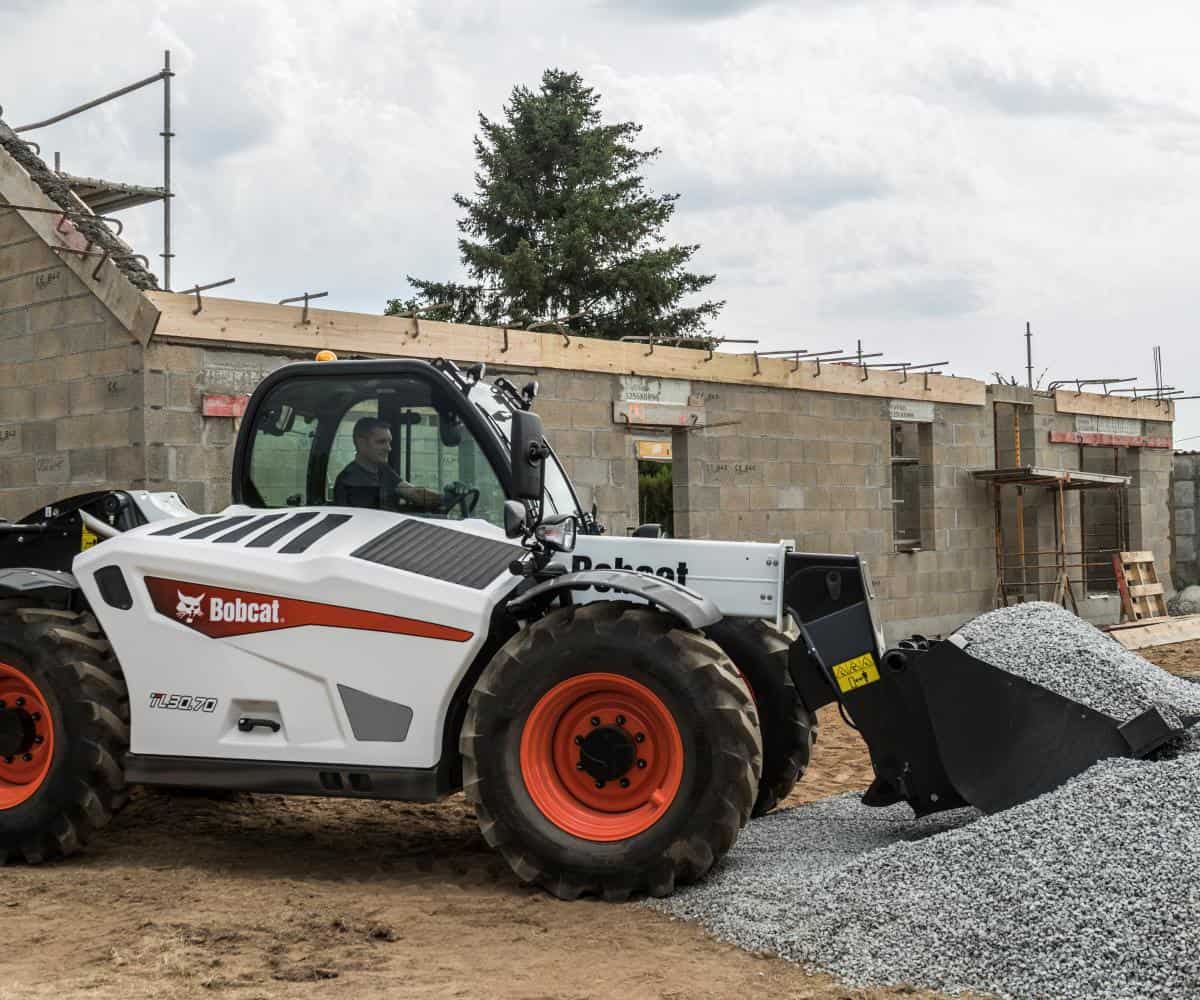

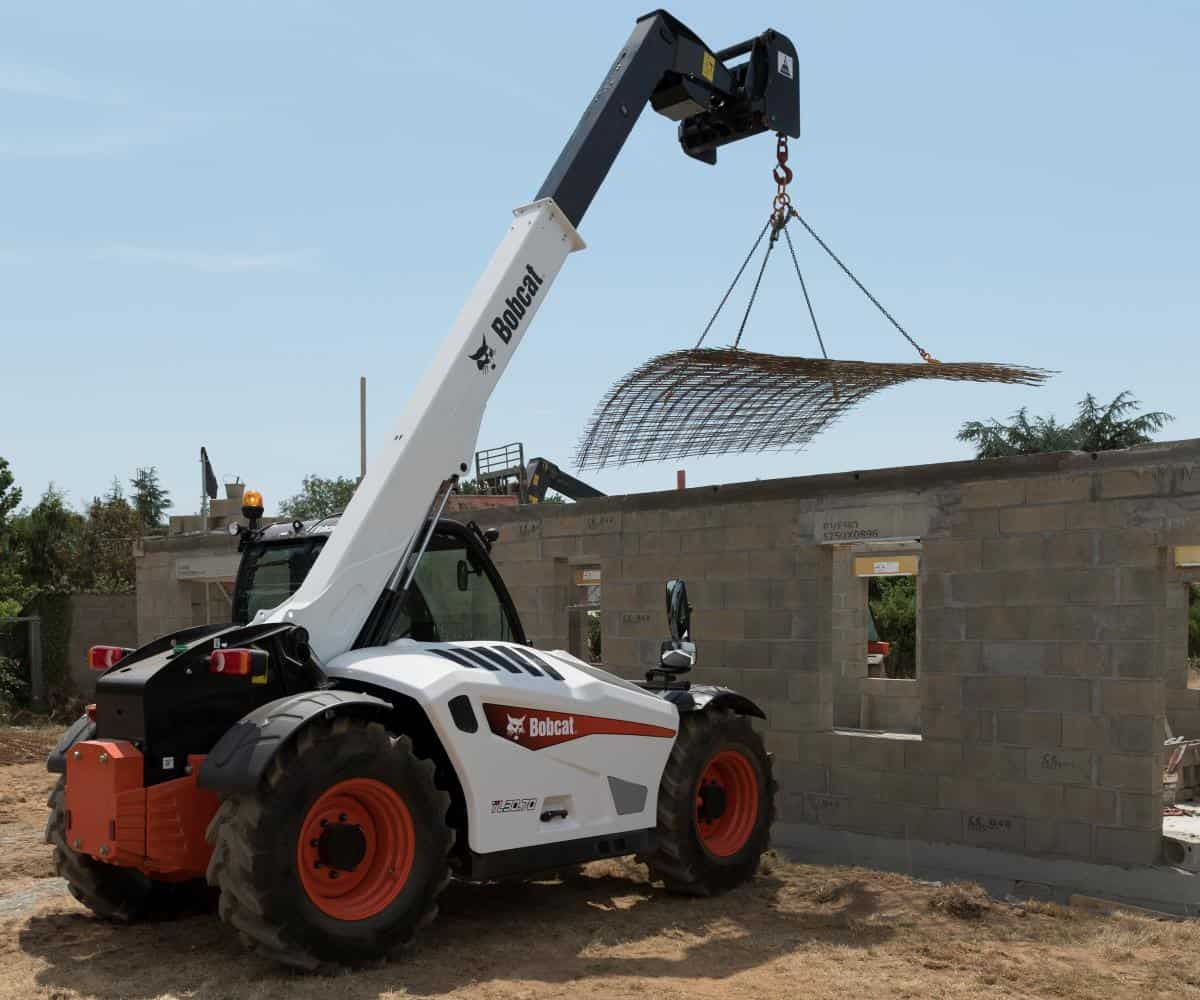

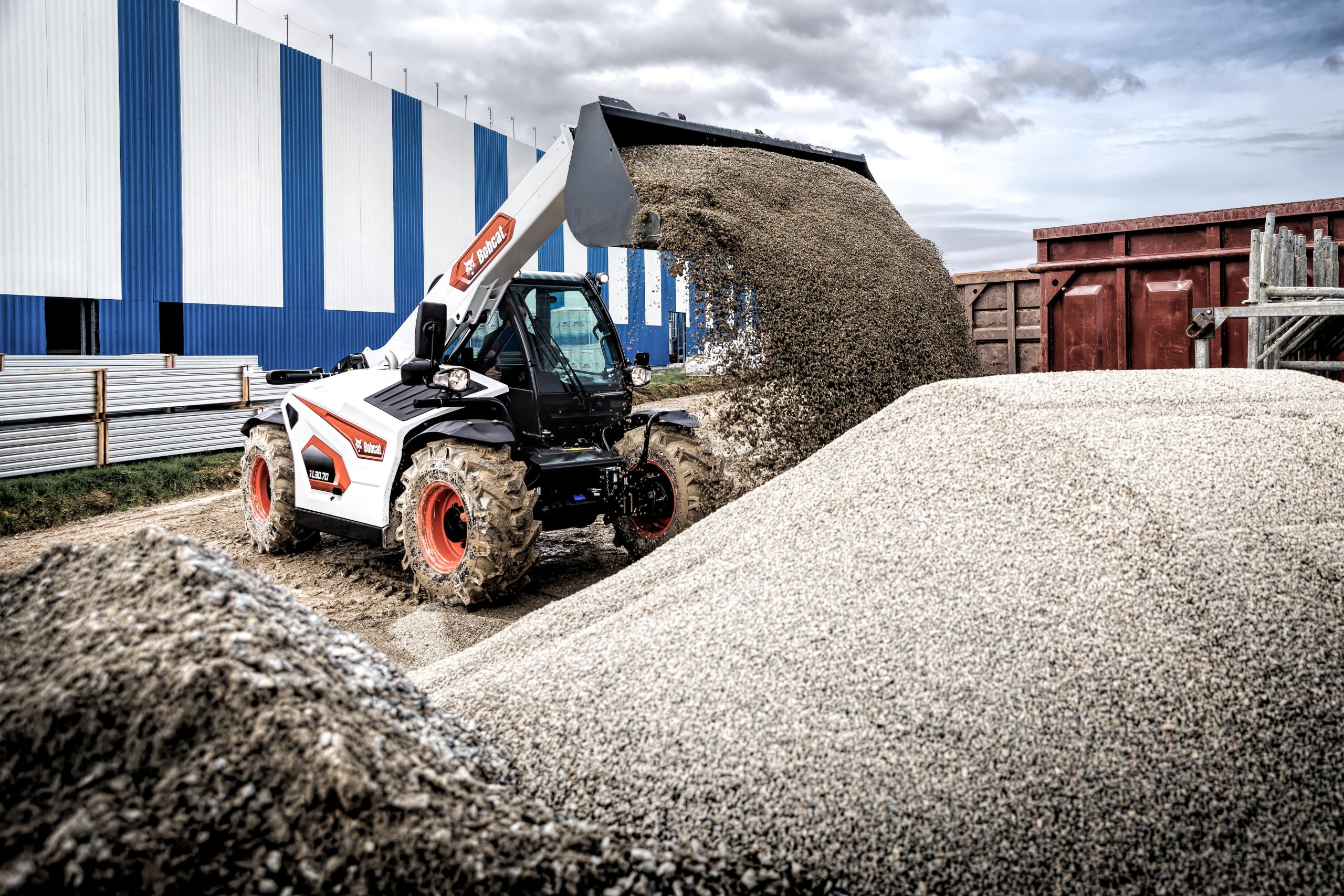

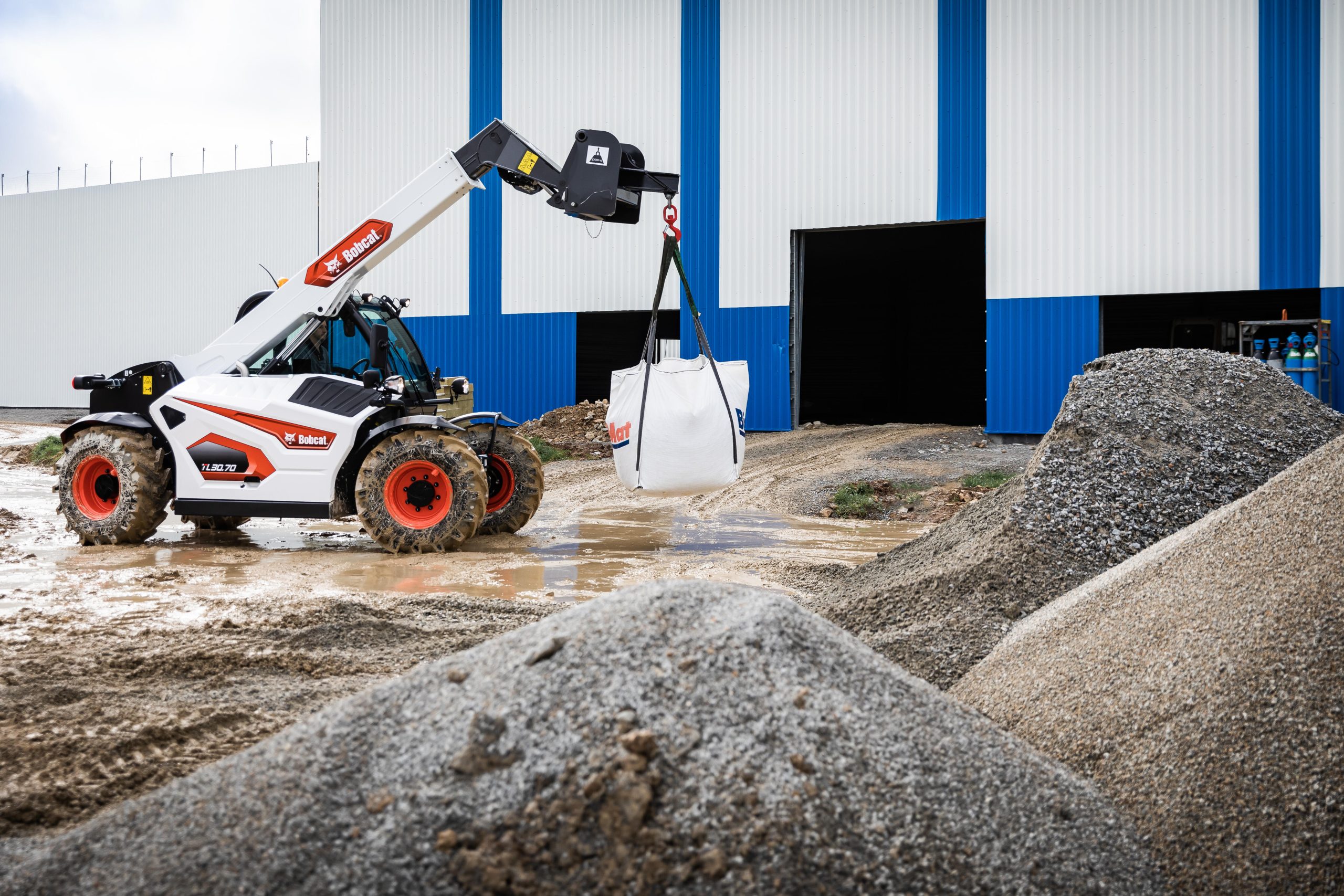

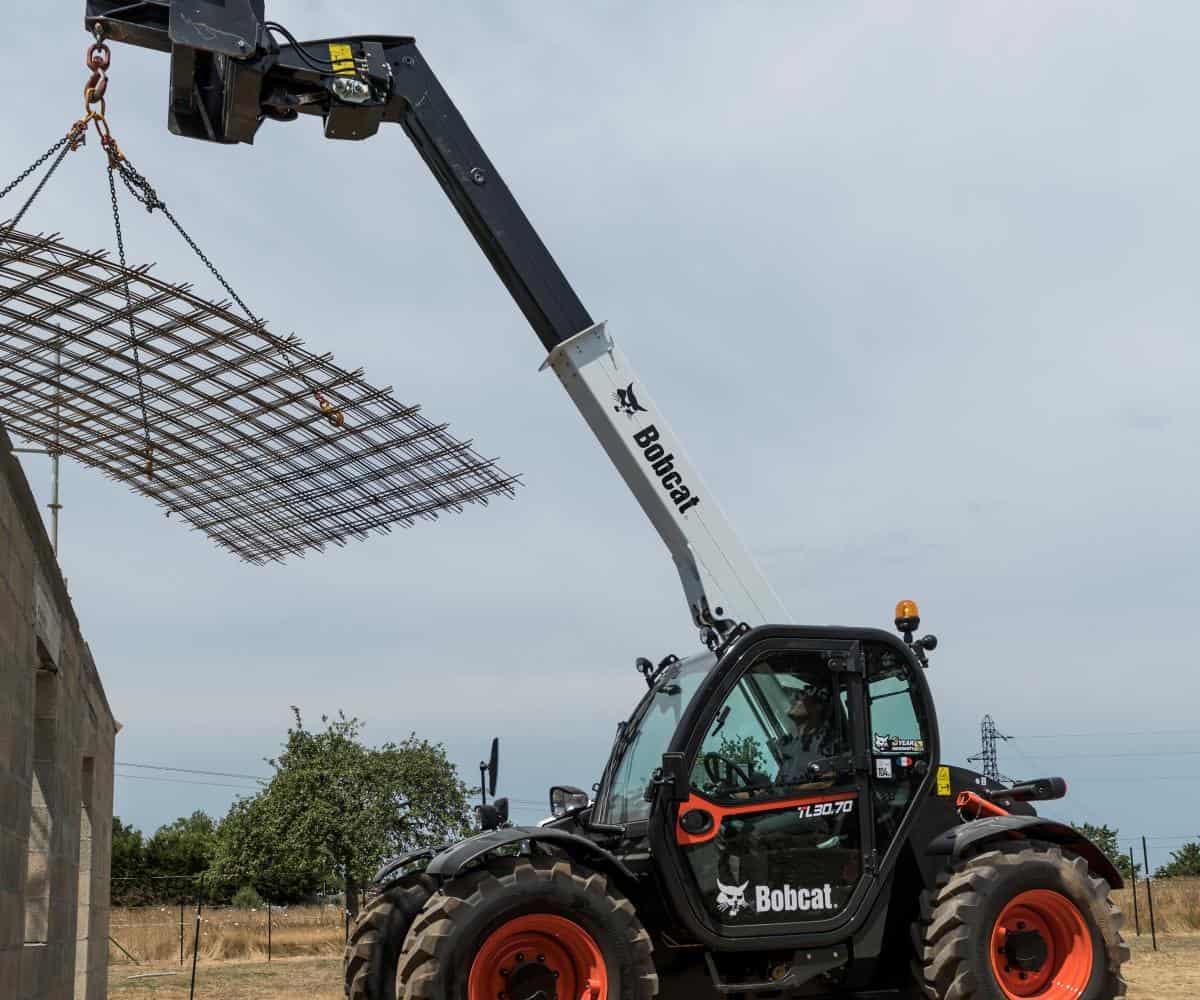

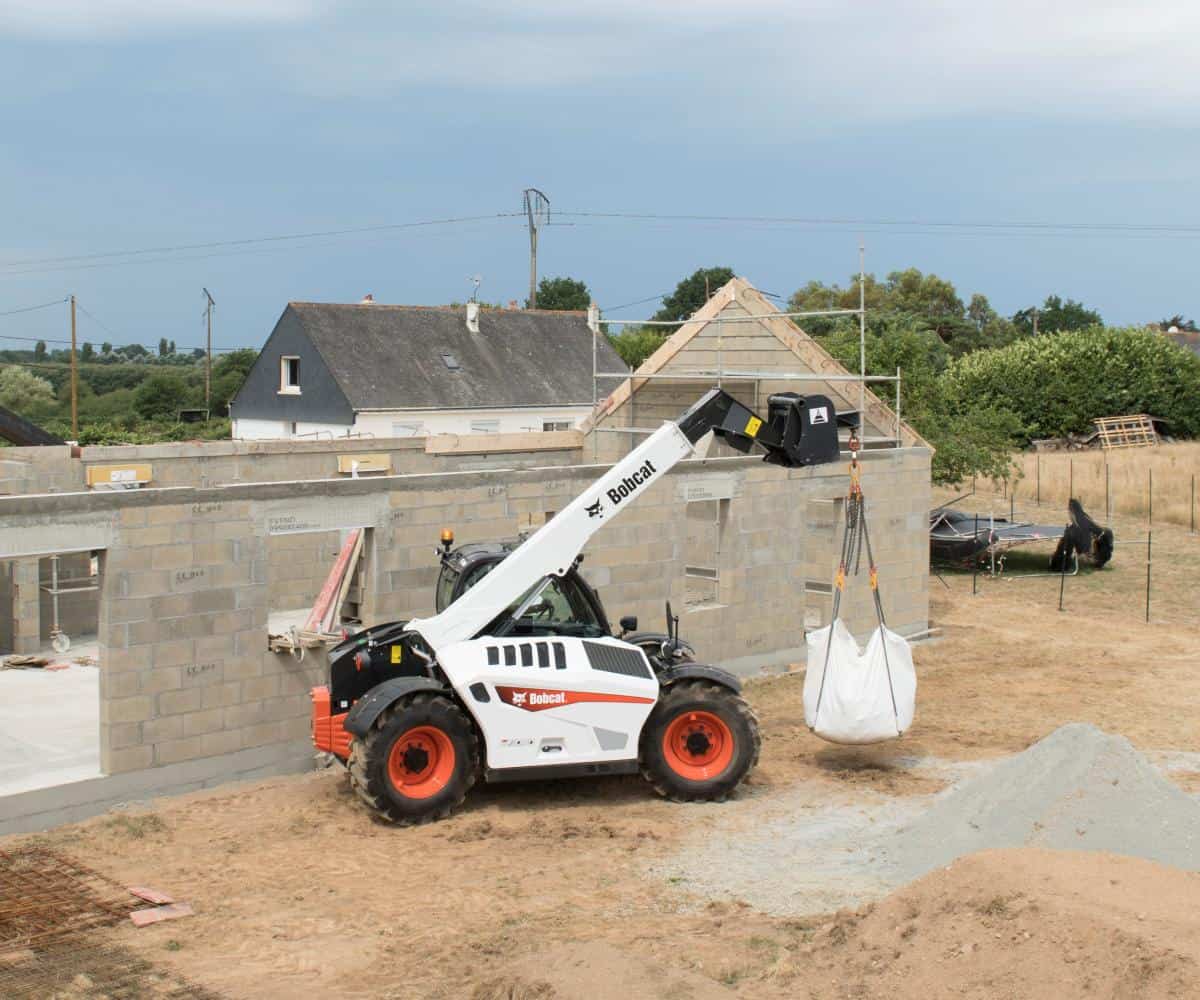

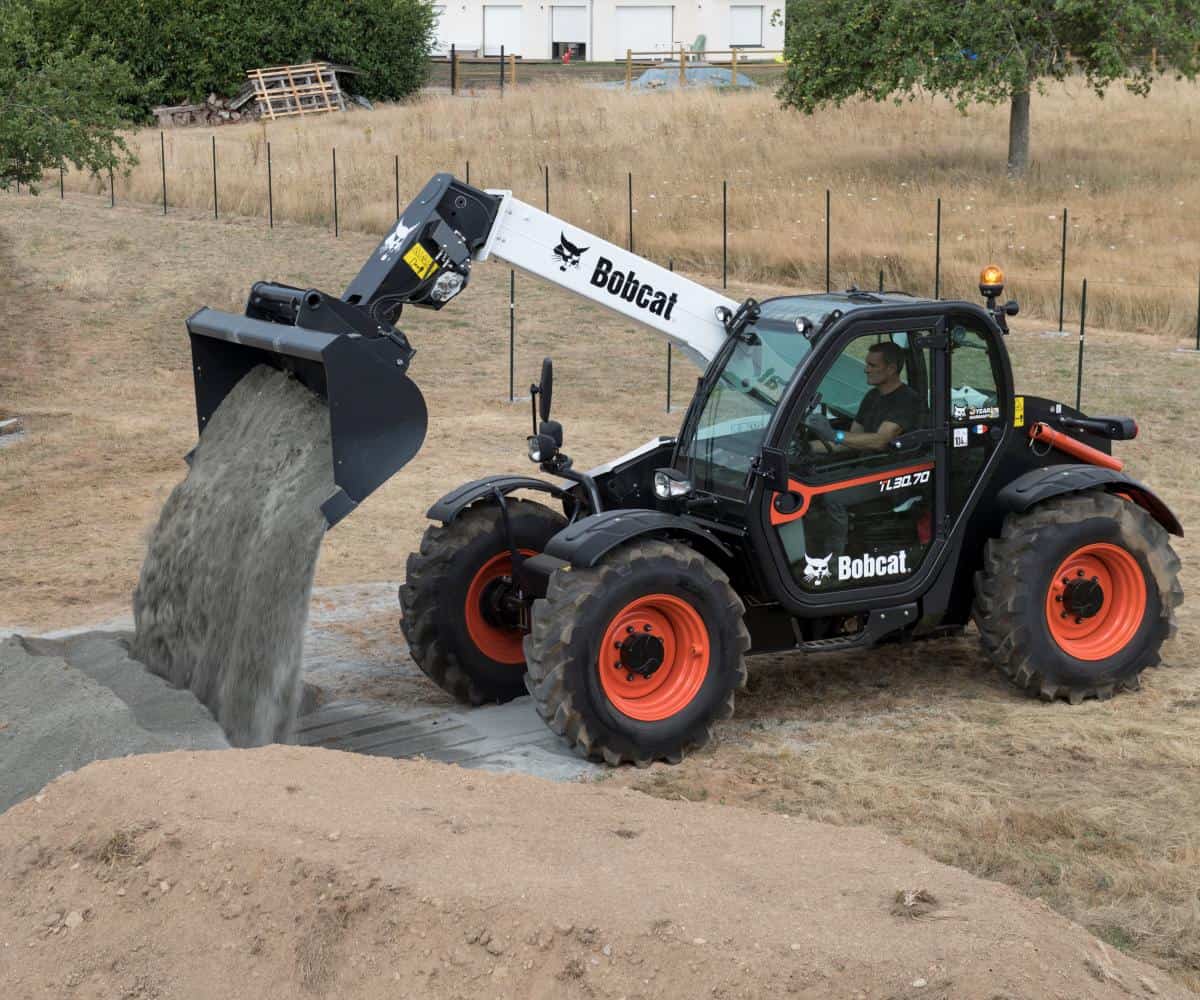

The Bobcat TL30.70 Telescopic Loader offers exceptional lifting capabilities and versatility for demanding construction tasks. With a lifting height of 6675 mm and a rated capacity of 3000 kg, it ensures optimal performance in various environments.
– Hydrostatic transmission for smooth operation
– Advanced hydraulic system for precise control
– Robust design for durability
The TL30.70 boasts a remarkable lifting height of 6675 mm, allowing operators to handle materials at elevated positions with ease, enhancing productivity on construction sites.
Designed to manage heavy loads, the TL30.70 supports a rated capacity of 3000 kg, making it ideal for transporting substantial materials efficiently and safely.
Equipped with a hydrostatic transmission, the TL30.70 provides seamless speed adjustments and precise maneuverability, enhancing operator comfort and control.
The gear pump with LS valve in the hydraulic system delivers a capacity of 100 L/min, ensuring efficient and precise control over the loader’s movements.
Constructed with durability in mind, the TL30.70 is engineered to endure challenging environments, ensuring long-lasting performance and reliability.
Horsepower
100.0 HPNumber of cylinders
4Rated Operating Capacity
6613 lbLifting height — on tyres
6675.0 mmRated capacity
3000 kgCapacity (at max. height on tyres)
2000 kgCapacity (at max. reach on tyres)
1050 kgMax. reach on tyres
4020.0 mmWeight (unladen)
5800 kgStandard tyres
SOLIDEAL 405/70-20 14PRTransmission
Hydrostatic with electronic regulationMain drive
Hydrostatic motor1st gear – Turtle (40 KM/H option)
10 (10) km/h1st gear – Rabbit (40 KM/H option)
31 (40 with 24 inch tyres) km/hMake / Mode
Bobcat D34Engine Cooling
CoolantEngine Fuel
DieselHorsepower
100.0 HPRated power (ISO 14396:2002) at 2400 RPM
74 hpMaximum torque at 1400 RPM
430.0 NmNumber of cylinders
4Displacement
3.40 LPump type
Gear pump with LS valvePump capacity
100.00 L/minRelief valve pressure setting
250.00 barLift time - no load
5.3 sLower time - no load
4.0 sTelescope in time at max. reach - no load
4.2 sTelescope in time at max. height - no load
4.2 sTelescope out time at max. reach - no load
6.3 sTelescope out time at max. height - no load
6.3 sEngine braking
HydrostaticParking and emergency brake
Passive brakeFuel tank
115.00 LHydraulic reservoir
47.00 LOperator noise level (LpA) (EN 12053)
77 dB(A)Operator noise level (LpA) (EN 12053) uncertainty
4 dB(A)Level of acoustic power (LWA)
106 dB(A)Whole body vibration (EN 13059)
1.70 ms-2Rated Operating Capacity
6613 lb
