Product Overview
Versatile Power and Precision

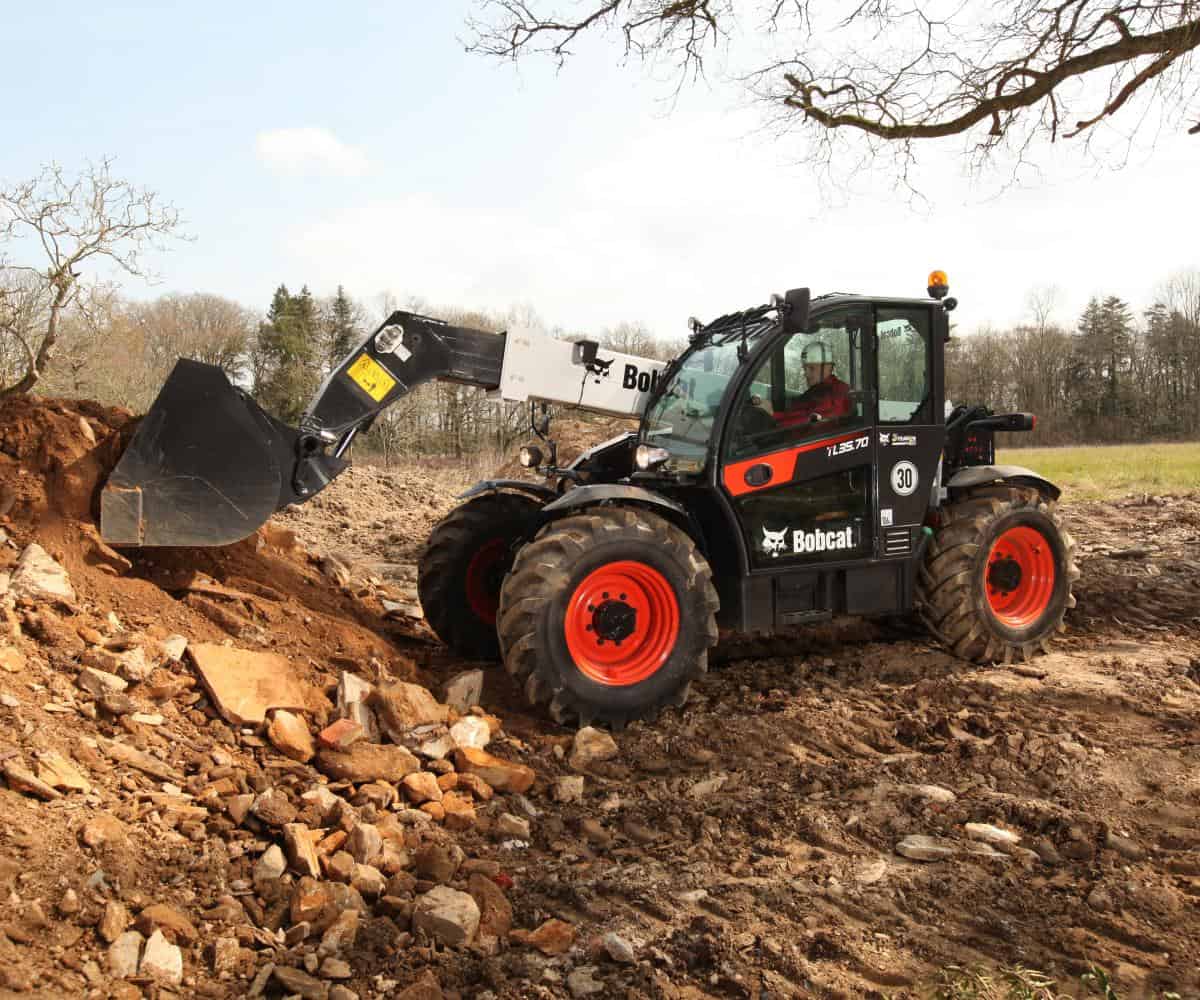

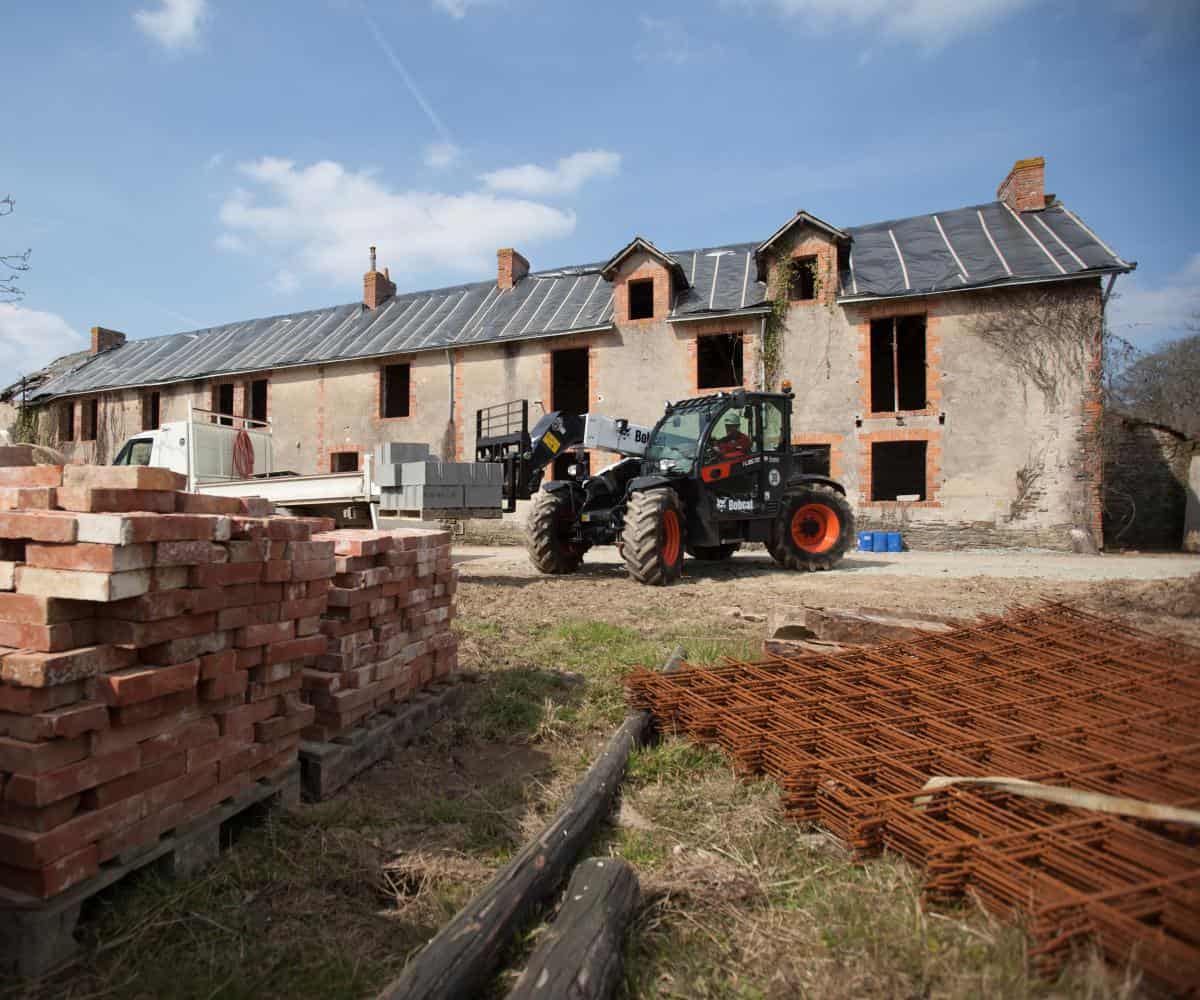

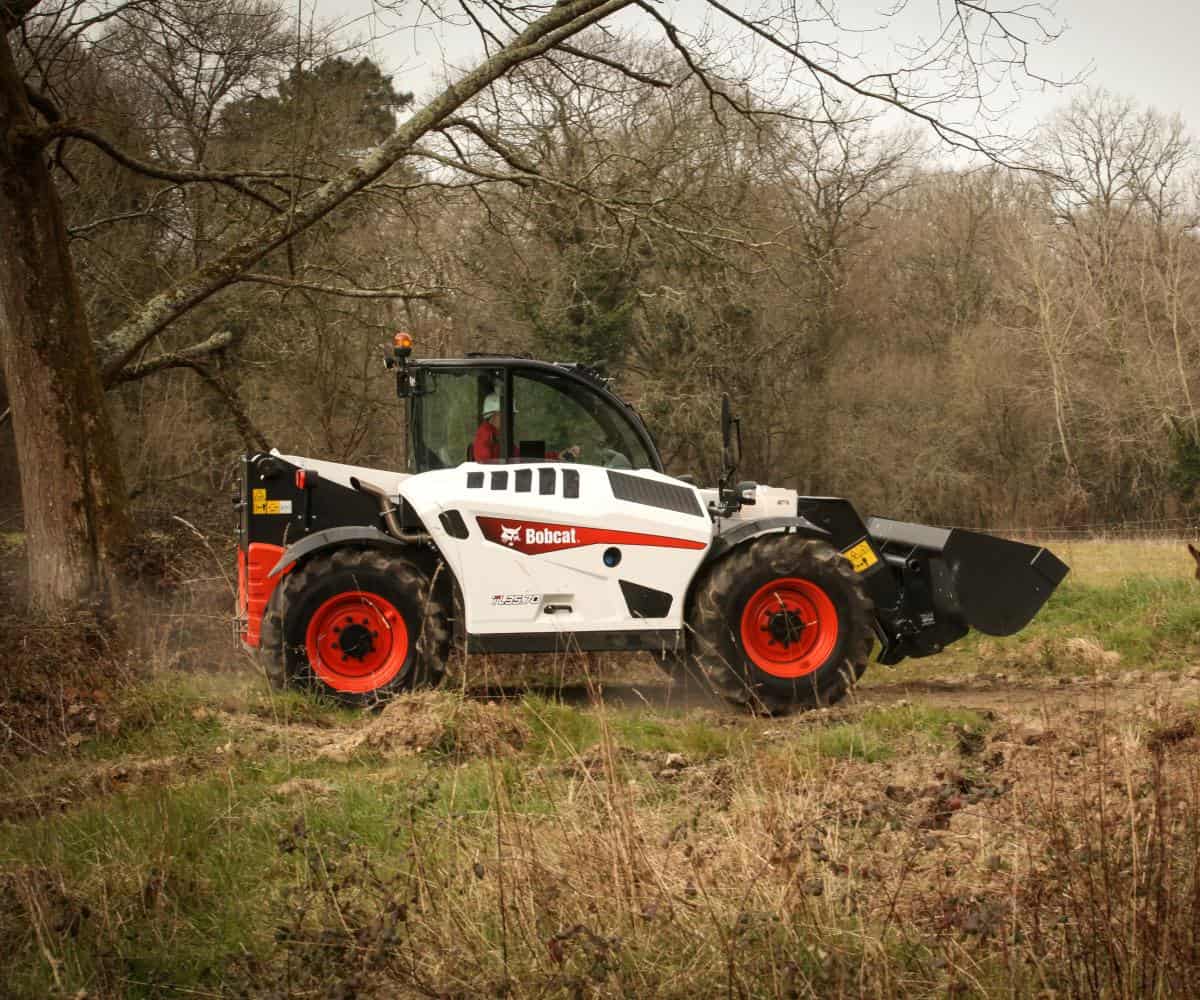

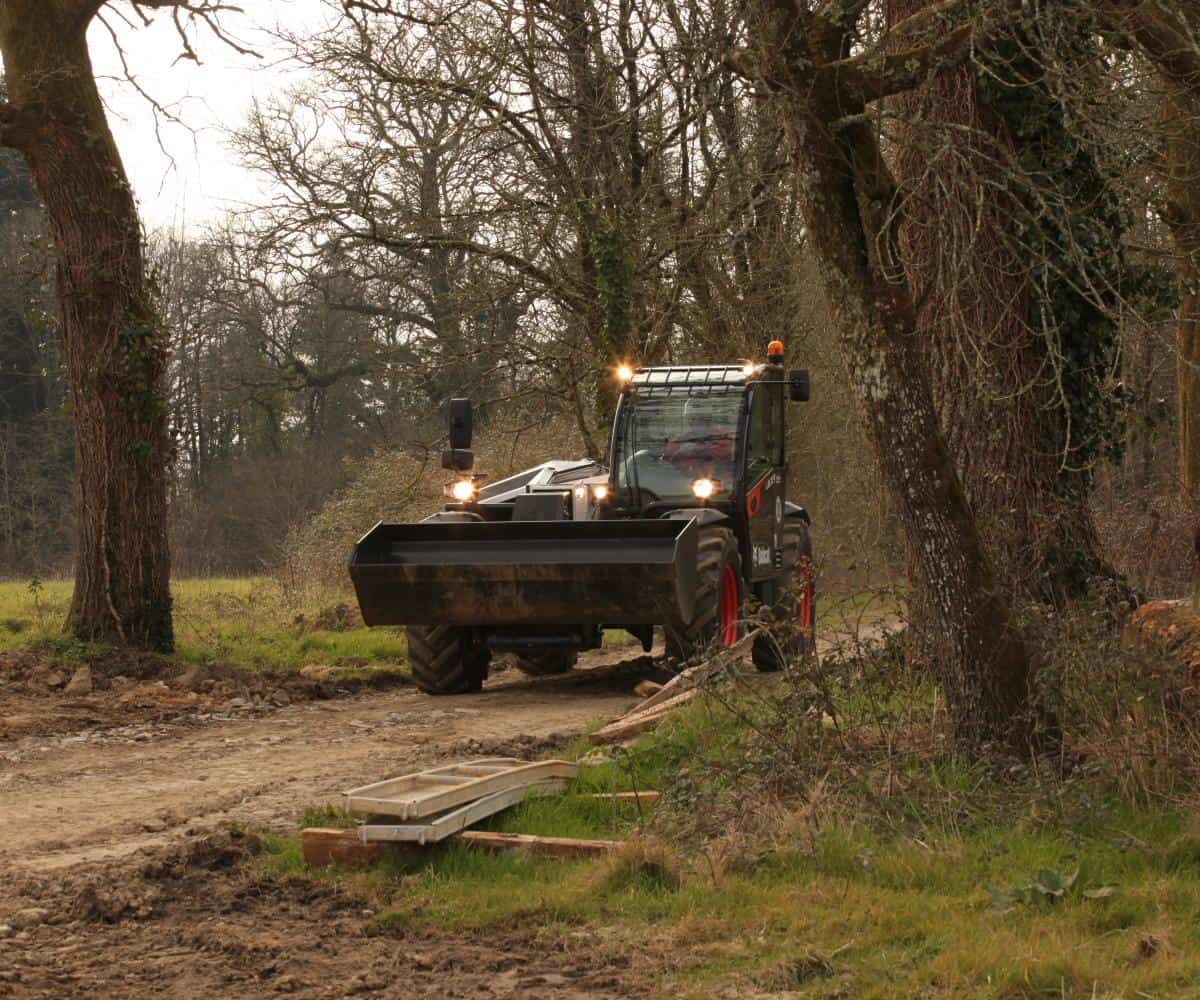

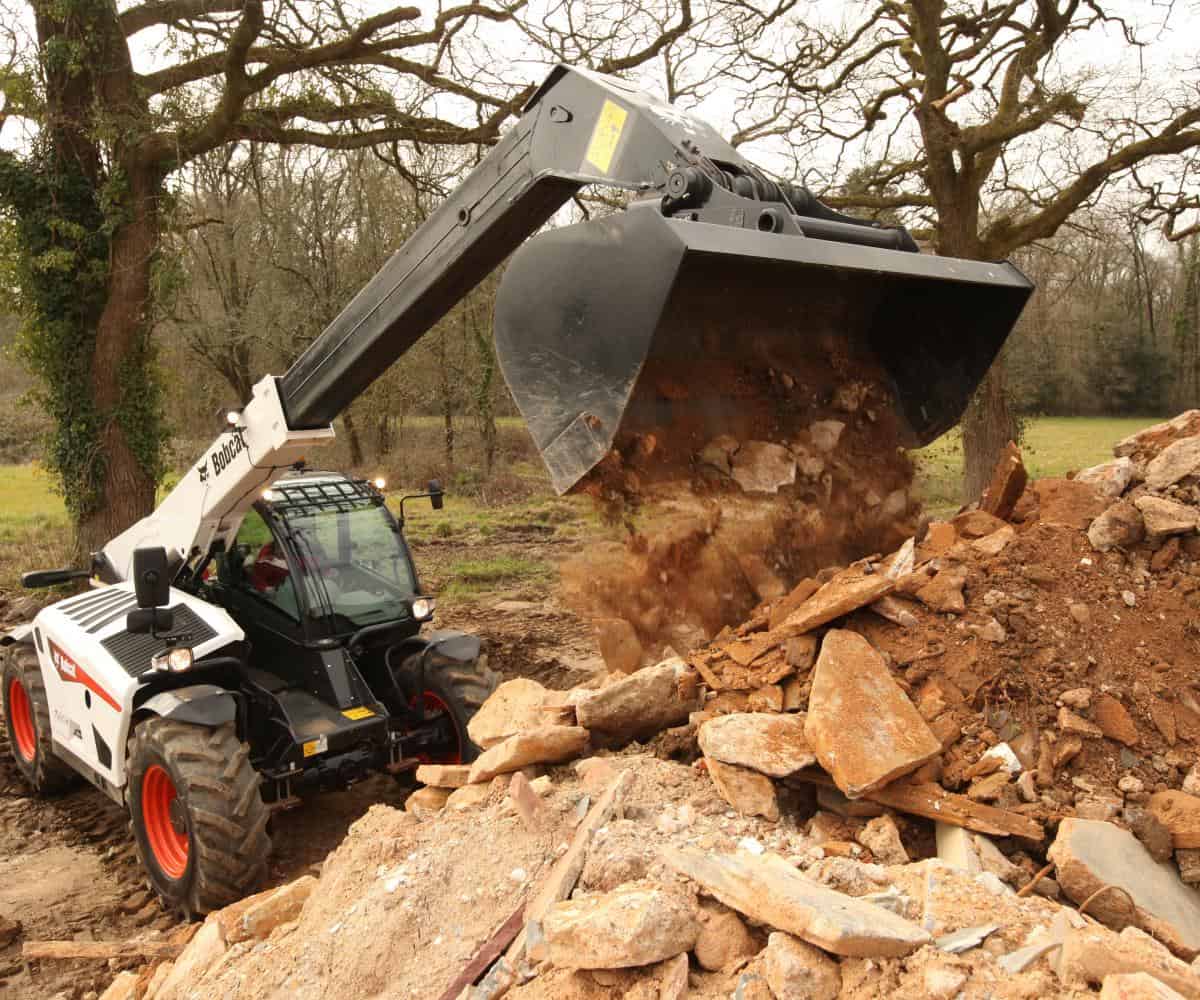

The Bobcat T3571 Telehandler offers robust lifting capabilities and precise handling for demanding tasks. Ideal for construction and agricultural use, it combines power with versatility.
– Lifting height of 6889 mm
– Rated capacity of 3500 kg
– Hydrostatic transmission for smooth operation
The T3571 Telehandler is engineered to lift heavy loads with ease, boasting a rated capacity of 3500 kg. This makes it suitable for a variety of industrial and agricultural applications, ensuring efficiency and reliability.

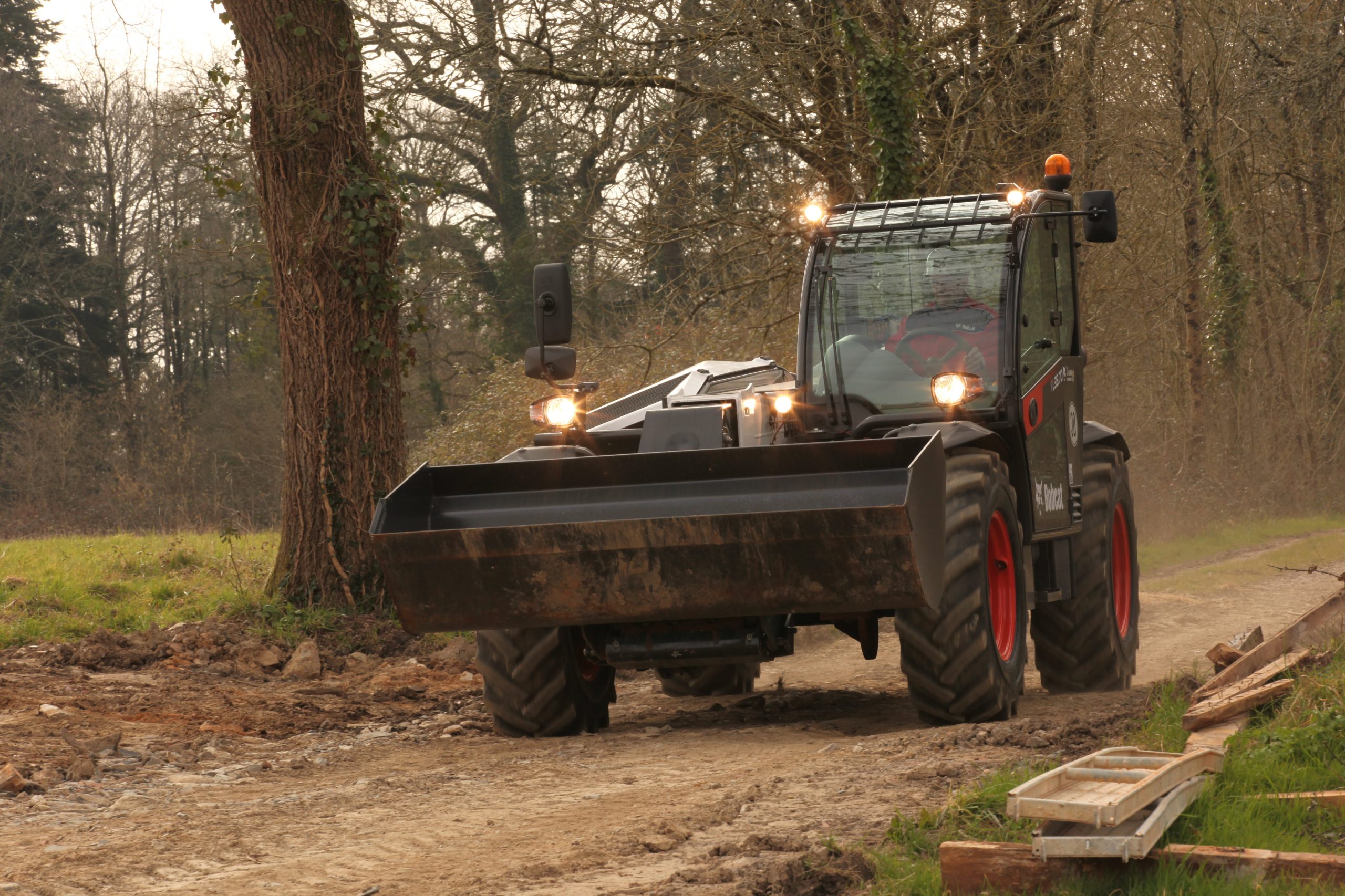

Equipped with a hydrostatic transmission, the T3571 offers seamless and precise control. This advanced drive system enhances maneuverability, allowing operators to handle tasks with greater accuracy and less effort.
Featuring a gear pump with an LS valve, the hydraulic system delivers a pump capacity of 100 L/min. This ensures fast cycle times, enhancing productivity by reducing the time needed for lifting and lowering operations.
The telehandler is powered by a Perkins 1104D-44TA engine, providing 100 horsepower. This robust engine ensures high performance and reliability, even in challenging conditions, making it ideal for heavy-duty tasks.
With a sound pressure level of 76 dB(A) at the operator station, the T3571 ensures a quieter working environment. Additionally, the design minimizes whole body vibration, enhancing comfort during extended use.
Horsepower
100.0 HPNumber of cylinders
4Rated Operating Capacity
7716 lbLifting height — on tyres
6889.0 mmRated capacity
3500 kgCapacity (at max. height on tyres)
3500 kgCapacity (at max. reach on tyres)
1500 kgMax. reach on tyres
4002.0 mmWeight (unladen)
7050 kgStandard tyres
SOLIDEAL 405/70-20 14PR1st gear / low range (40 km/h option)
6 (6) km/h1st gear / high range (40 km/h option)
11 (12) km/h2nd gear / low range (40 km/h option)
16 (18) km/h2nd gear / high range (40 km/h option)
30 (40) km/hMake / Model
Perkins / 1104D-44TAEngine Cooling
WaterEngine Fuel
DieselHorsepower
100.0 HPRated power (ISO 14396:2002) at 2200 RPM
100 hpMaximum torque at 1400 RPM
410.0 NmNumber of cylinders
4Displacement
4.40 LPump type
Gear pump with LS valvePump capacity
100.00 L/minRelief valve pressure setting
250.00 barLift time - no load
8.0 sLower time - no load
6.0 sTelescope in time at max. reach - no load
6.5 sTelescope in time at max. height - no load
6.5 sTelescope out time at max. reach - no load
7.1 sTelescope out time at max. height - no load
7.1 sEngine braking
HydrostaticParking and emergency brake
Passive brakeFuel tank
138.00 LHydraulic reservoir
59.00 LSound pressure level at the operator station EN 12053 - 30kmh (LpA)
76 dB(A)Level of acoustic power (LWA)
106 dB(A)Whole body vibration (EN 13059)
1.50 ms-2Rated Operating Capacity
7716 lb
