Product Overview
Versatile Performance for Diverse Jobsites

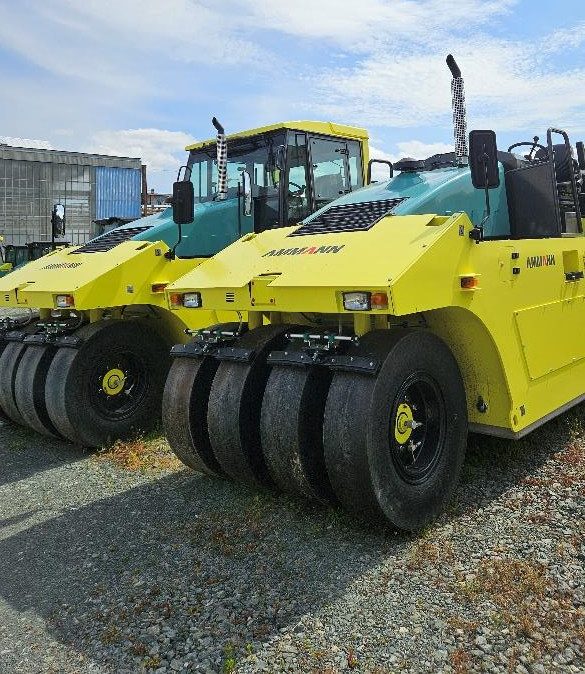

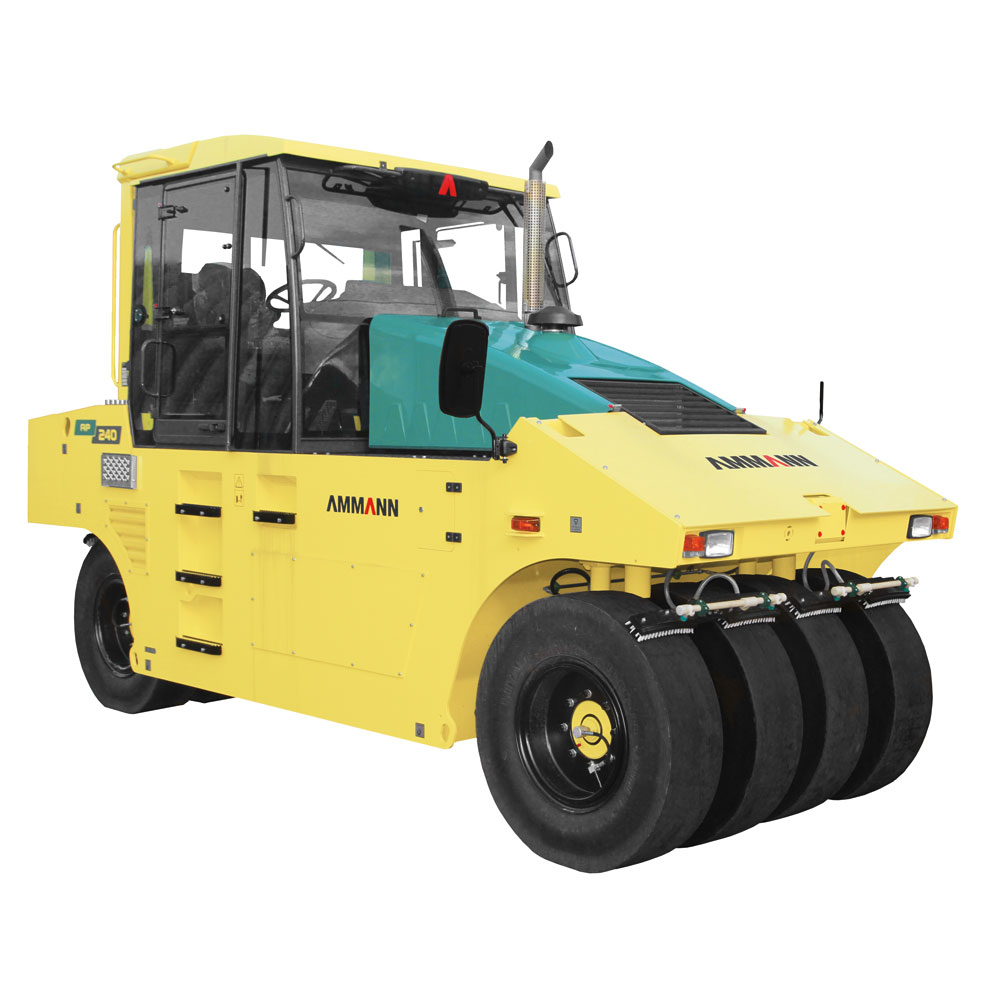

“The Ammann AP 240 Pneumatic Tyred Roller offers unmatched flexibility with its adjustable ballasting system and Air-on-run tyre pressure control, making it ideal for various construction applications.
– Wide weight range from 9 to 24 tons
– Ergonomic operator station
– Excellent visibility for safety
– Easy maintenance and robust design”

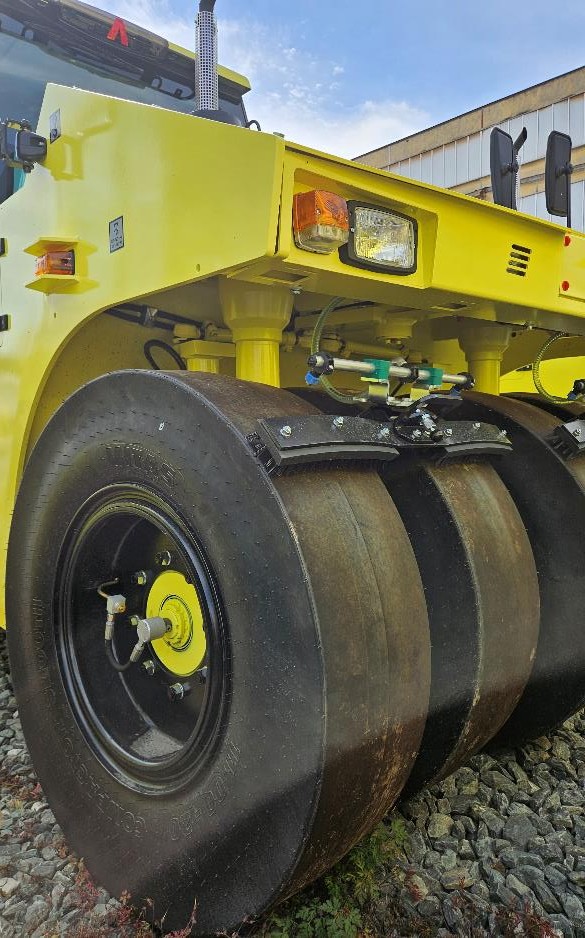

The ballasting system allows the machine to operate with weights ranging from 9 to 24 tons, providing the flexibility needed to adapt to different jobsite requirements and ensuring optimal performance in various conditions.

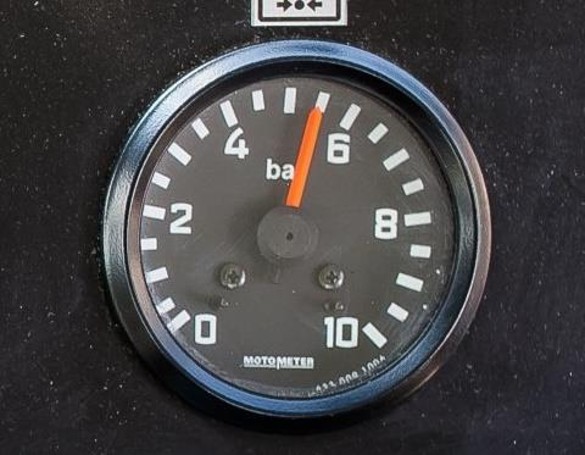

This central inflation system enables operators to adjust tyre pressure directly from the cab, enhancing machine efficiency and adaptability without interrupting the workflow, thus improving productivity and ease of use.

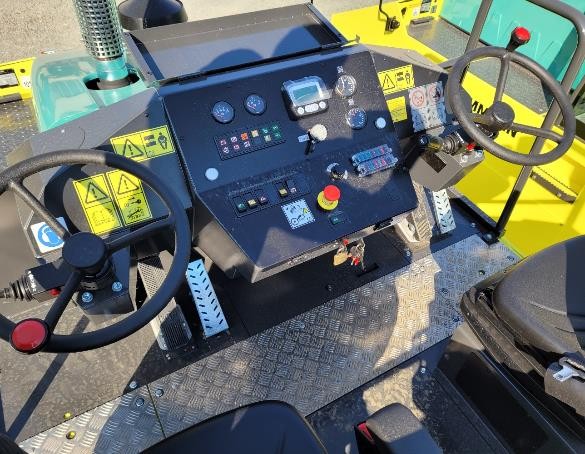

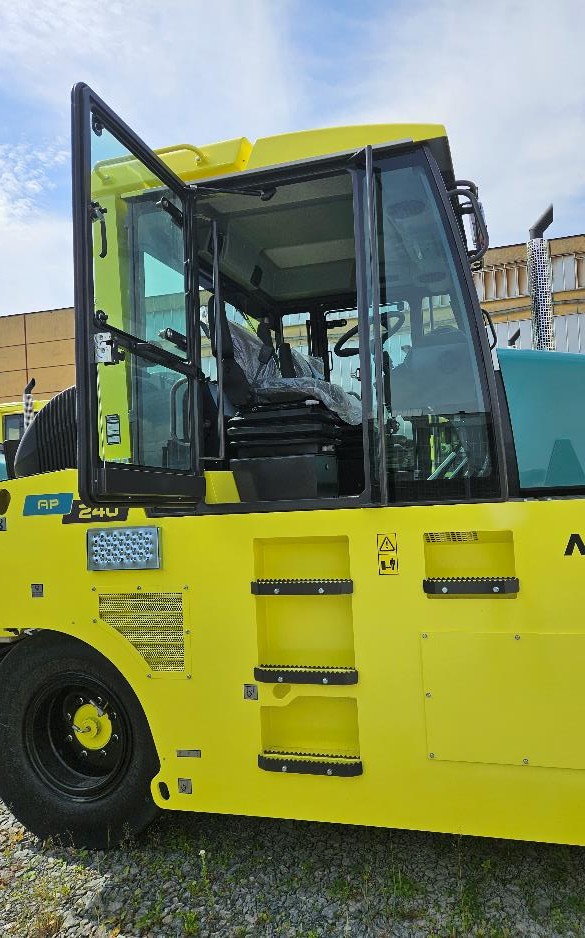

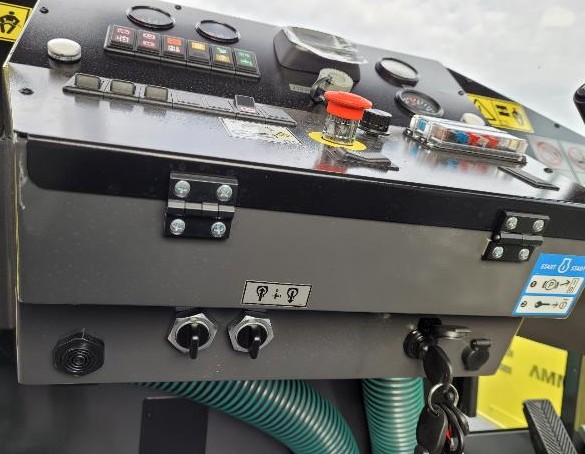

The operator station is designed for high comfort, featuring a simple and reliable dashboard that ensures intuitive control, even for unskilled operators, promoting a more productive and less fatiguing work environment.
The Ammann Traction Control system boosts the machine’s performance on challenging surfaces, ensuring reliable traction and stability, which enhances productivity and safety across various construction sites.

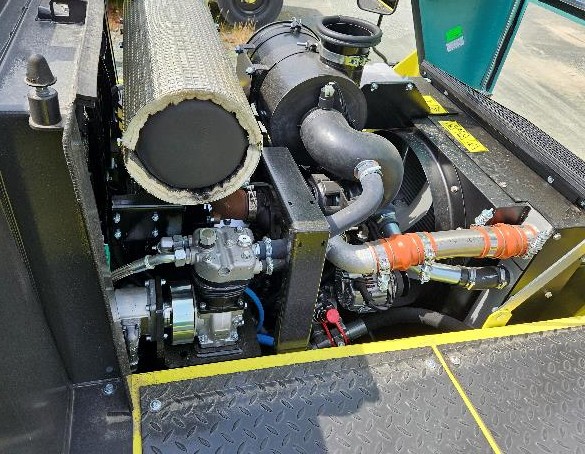

The machine’s design focuses on easy maintenance with tool-free daily inspections and accessible draining points, reducing downtime and ensuring the machine remains operational and efficient for longer periods.
Horsepower
99 HPNumber of cylinders
4Operating Weight
52910 IbVoltage
12 VHorsepower
99 HPManufacturer
Cummins QSB 3.3-C99Maximum torque
415 (306) / 1600 Nm (ft lb) / rpmEmmission class
EU Stage IIIA / U.S. EPA Tier 3Number of cylinders
4Cooling system of engine
LiquidOperating Weight
52910 IbMax. transport speed
19 km/h (11.8 MPH)Climbing ability
25%Turning radius inner (edge) left
6180 mm (243.3 in)Turning radius inner (edge) right
6065 mm (238.8 in)Number of front wheels
4Number of rear wheels
4Size of tyres
11 × 20”Machine length

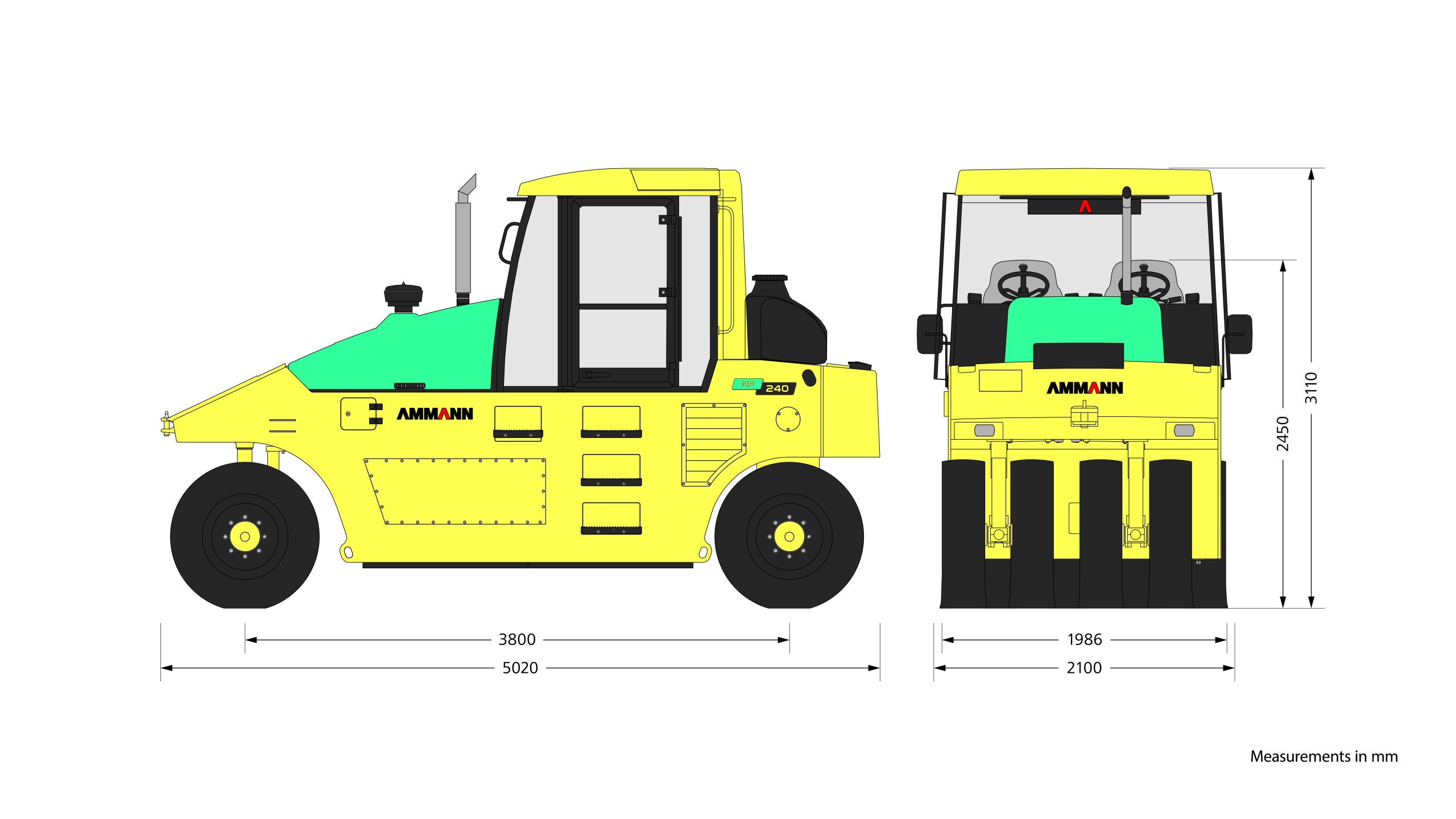

5020 mm (197.6 in)Machine length (thermal aprons)
5780 mm (227.6 in)Wheelbase
3800 mm (149.6 in)Machine height
3110 mm (122.4 in)Machine height (removed ROPS)
2450 mm (96.5 in)Working width
1986 mm (78.2 in)Machine width
2100 mm (82.7 in)Machine width (thermal aprons)
2310 mm (90.9 in)Brakes operating
DrumBrakes parking
Mechanical discBrakes emergency
Mechanical discType of drive
HydrodynamicNumber of driven wheels
4Oscillation angle
3°Angle of steering
32°Type of watering
PressureFuel tank capacity
250 l (66 gal)Water for tyre watering
460 l (121.5 galVoltage
12 V
