Product Overview
Ultimate Clean Compressed Air
BOGE’s DCZ Series ensures the highest standard of compressed air quality, eliminating oil vapors and odors. Ideal for industries requiring pristine air quality.
– Flow capacity: 8 – 6100 m³/h
– Max. operating pressure: up to 16 bar
– Residual oil content: up to 0.003 mg/m³

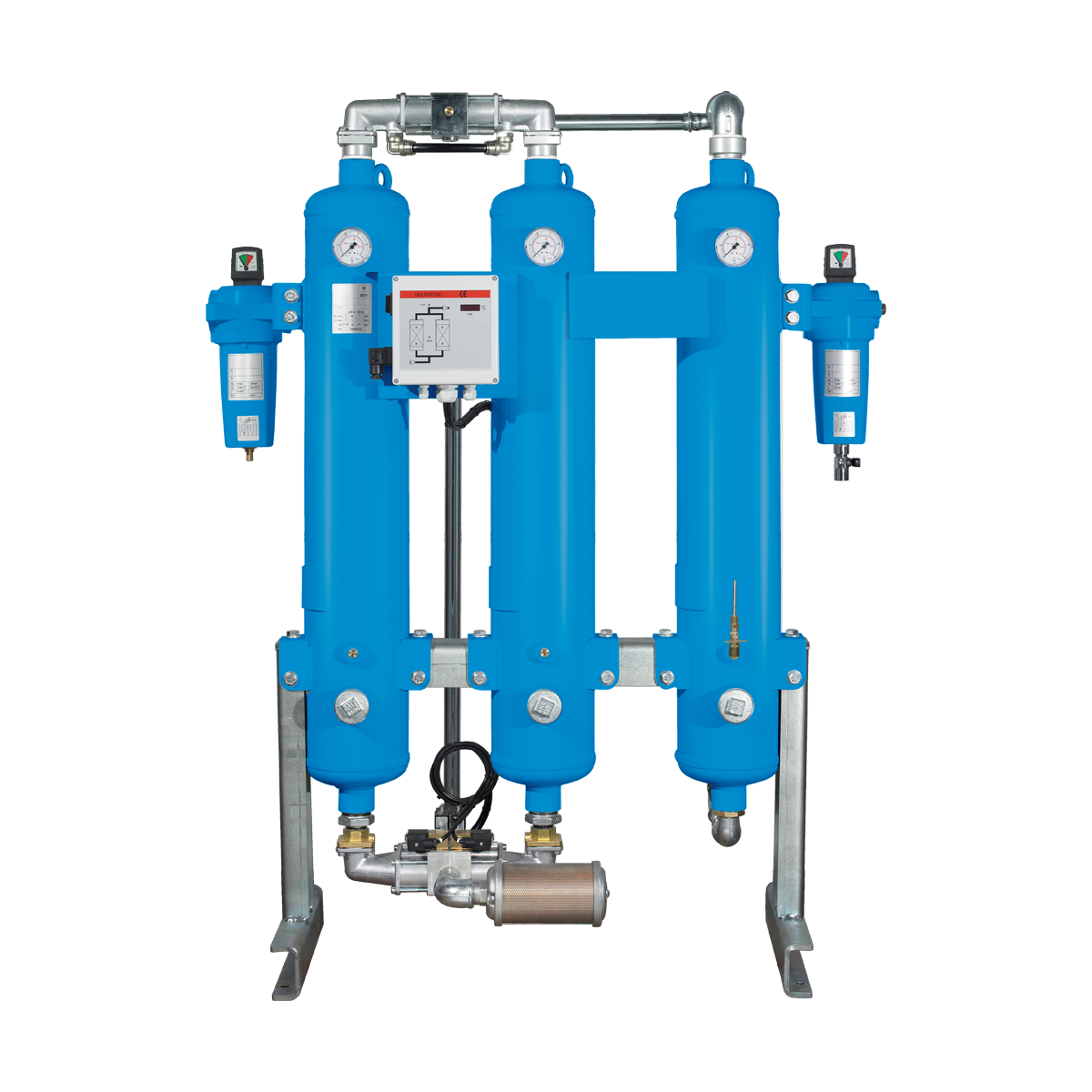

Every BOGE activated carbon adsorber includes an easy-to-read oil indicator, allowing for continuous monitoring to ensure even the smallest oil aerosol particles and unpleasant odors are reliably filtered out.
The adsorbers are filled with high-quality activated carbon, providing ideal contact time, air flow-rate, and carbon bed depth for consistently high compressed air quality.
A downstream BOGE F..P filter prevents the finest solid particles from escaping the activated carbon bed, ensuring only clean air is passed through.
BOGE F..M original filters are recommended to be fitted upstream, guaranteeing ideal results and significantly extending the service life of the adsorber.

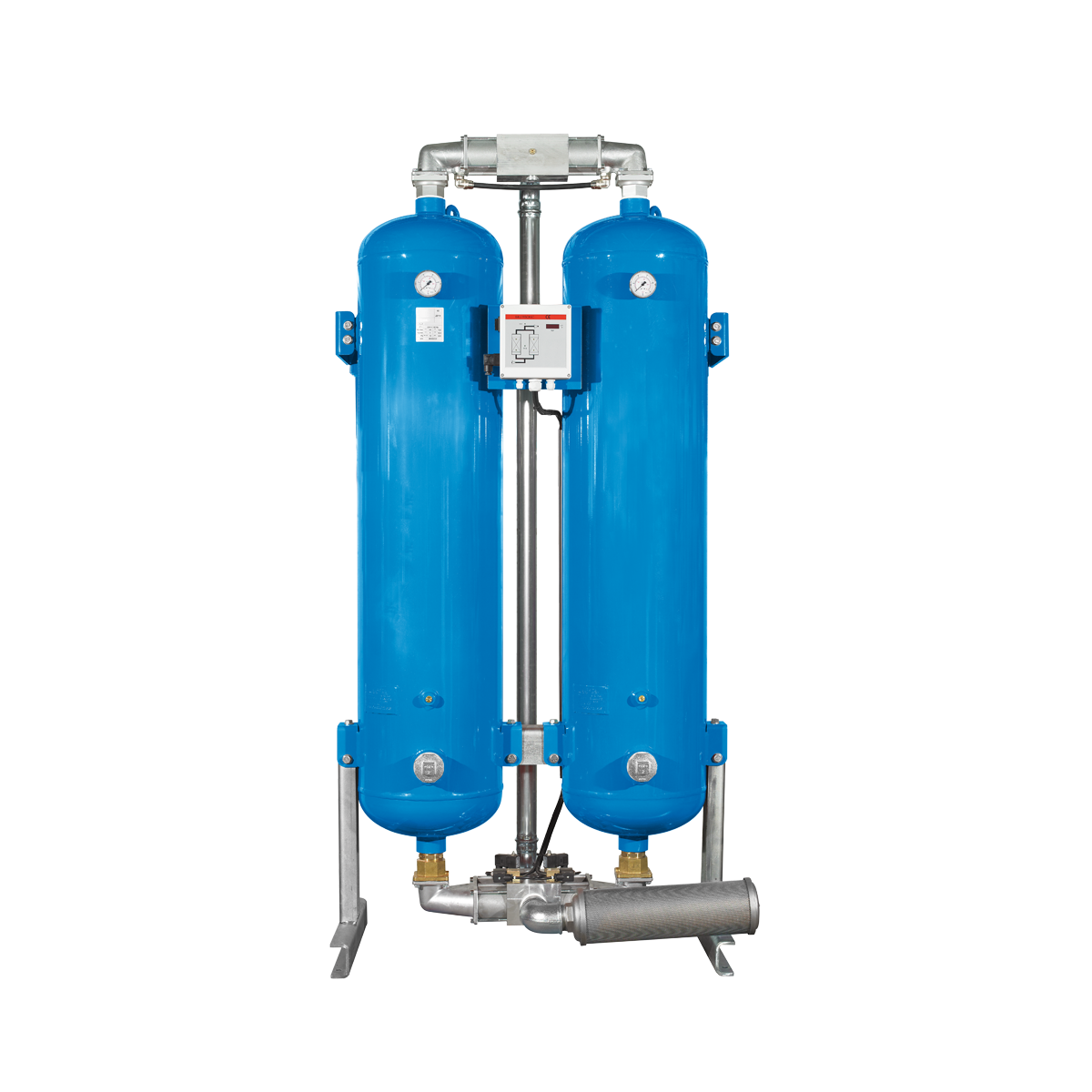

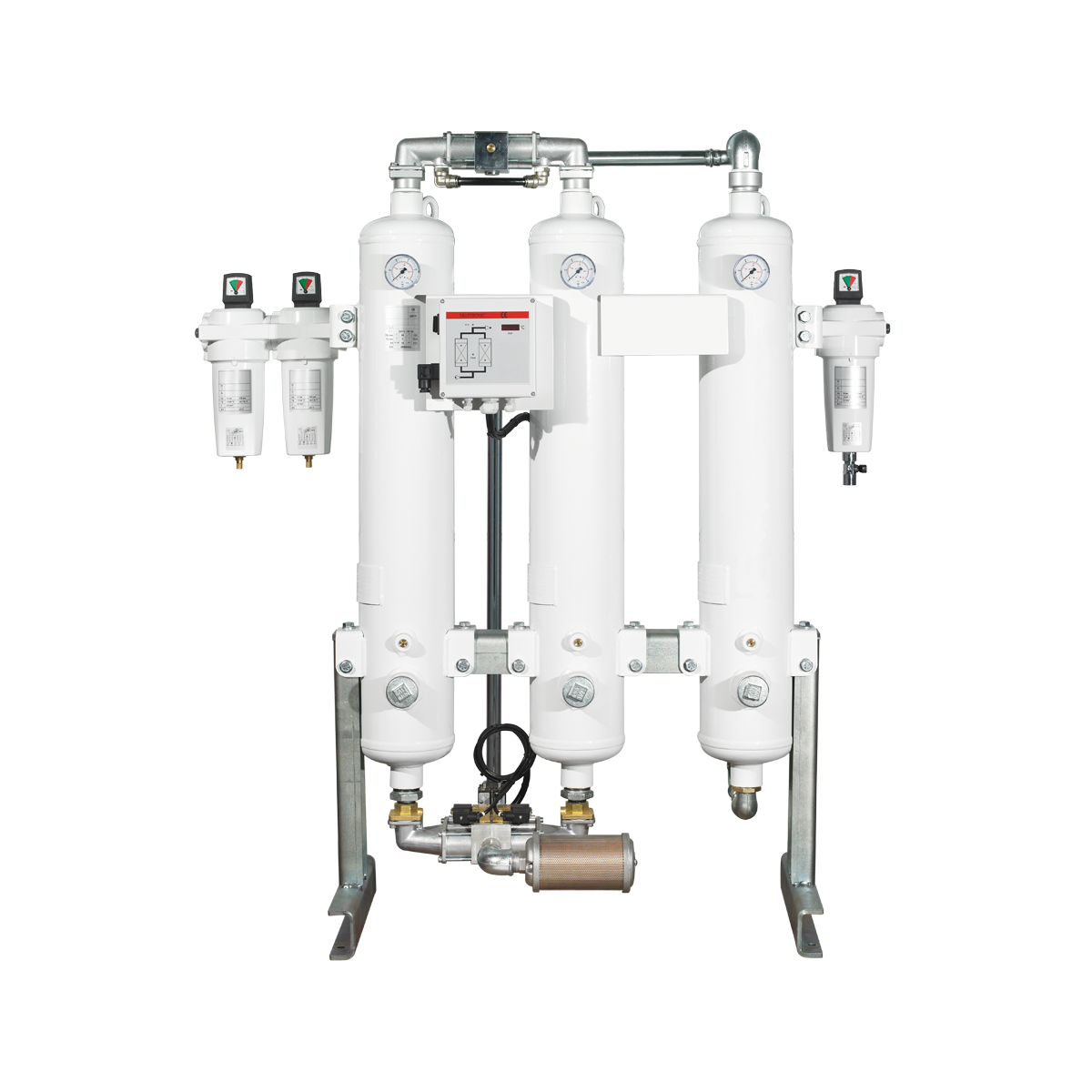

Desiccant dryers deliver extremely dry compressed air with very low dew points, making them ideal for sensitive applications and high-humidity environments. Using high-efficiency desiccant media, they continuously remove moisture vapor and ensure stable, reliable air quality even under the most demanding operating conditions.
| الموديل MODEL |
سعة التدفق م³/دقيقة Flow capacity m³/min |
سعة التدفق م³/ساعة Flow capacity m³/h |
القدرة المتوسطة (كيلو واط) Average power kW |
الوصلة / نوع التوصيل Connection |
الأبعاد (مم) Dimensions (mm) |
الوزن بدون فلتر (كجم) Weight without filter (kg) |
|---|---|---|---|---|---|---|

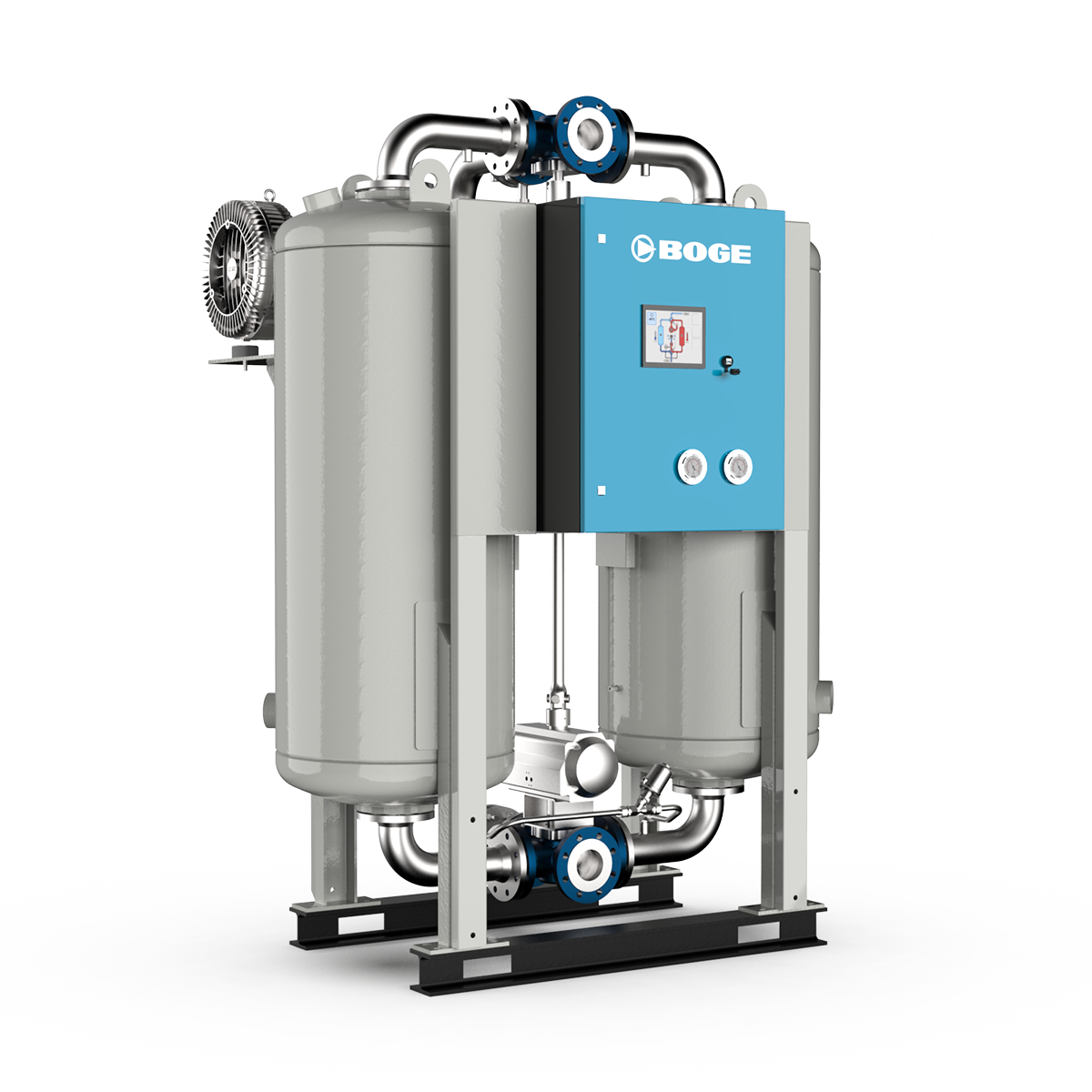

| DAV 75-2 | 7.5 | 450 | 3.6 | DN 50 | 1222 × 1229 × 2029 | 730 |
| DAV 105-2 | 10.2 | 610 | 5.3 | DN 50 | 1222 × 1219 × 2029 | 760 |
| DAV 135-2 | 13.3 | 800 | 6.8 | DN 50 | 1222 × 1219 × 2379 | 860 |
| DAV 195-2 | 19.5 | 1170 | 9.5 | DN 80 | 1629 × 1412 × 2151 | 1290 |
| DAV 245-2 | 24.5 | 1470 | 12.8 | DN 80 | 1692 × 1412 × 2301 | 1400 |
| DAV 345-2 | 34.2 | 2050 | 16.8 | DN 80 | 1692 × 1462 × 2751 | 1850 |
| DAV 510-2 | 50.8 | 3050 | 25.4 | DN 100 | 2115 × 1702 × 2692 | 2540 |
| DAV 620-2 | 61.7 | 3700 | 30.8 | DN 100 | 2151 × 1702 × 2692 | 2830 |
| DAV 845-2 | 84.2 | 5050 | 41.8 | DN 150 | 2582 × 1910 × 3120 | 4205 |
| DAV 1010-2 | 100.8 | 6050 | 52.6 | DN 150 | 2982 × 1910 × 3460 | 4635 |
| DAV 1220-2 | 121.7 | 7300 | 58.5 | DN 150 | 2782 × 2010 × 3450 | 5280 |
