Product Overview
Efficient Peak Performance
BOGE compressed air filters deliver unmatched efficiency and reliability, ensuring optimal performance across various industries.
– Maximum energy savings
– Certified for food applications
– Durable and long-lasting
– Space-saving design
The BOGE CCD condensate drain’s compact form makes it perfect for installations in tight spaces, offering space-saving benefits without compromising on performance.
With electronic level control, the BOGE CCD condensate drain operates without pressure loss, leading to significant energy savings and cost efficiency.
Innovative sensor technology minimizes wear on the drain, enhancing its life cycle and ensuring long-term reliability and performance.

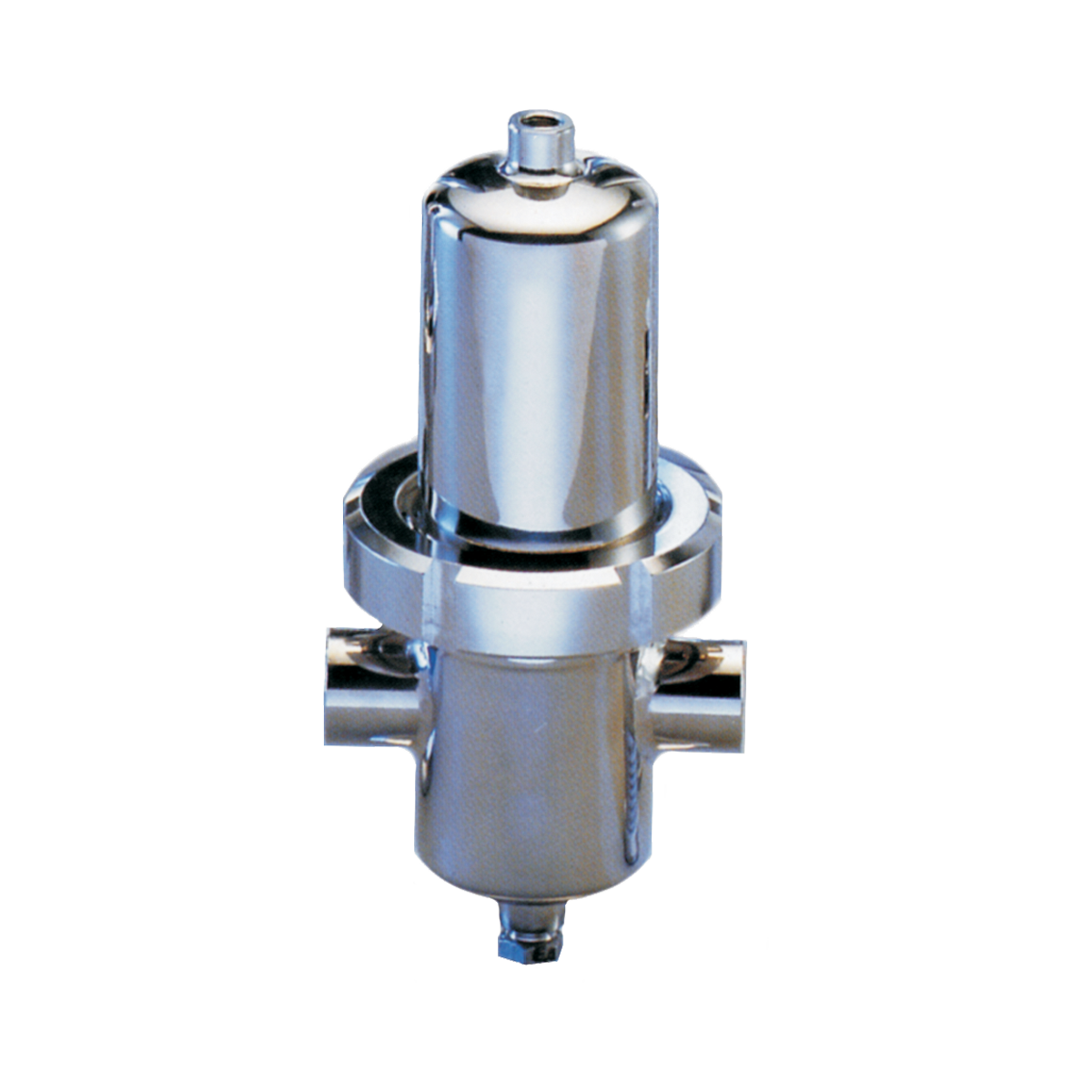

BOGE filters are certified for use in food, beverage, and pharmaceutical industries, complying with FDA Title 21 CFR and EU regulations for safe and reliable operation.
BOGE offers a 12-month performance warranty and a 10-year warranty on filter housing, ensuring low differential pressure and high separation performance throughout the filter’s lifetime.

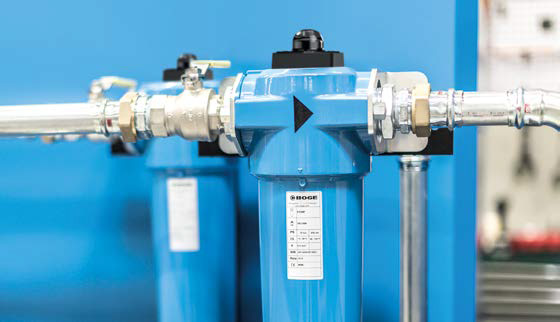

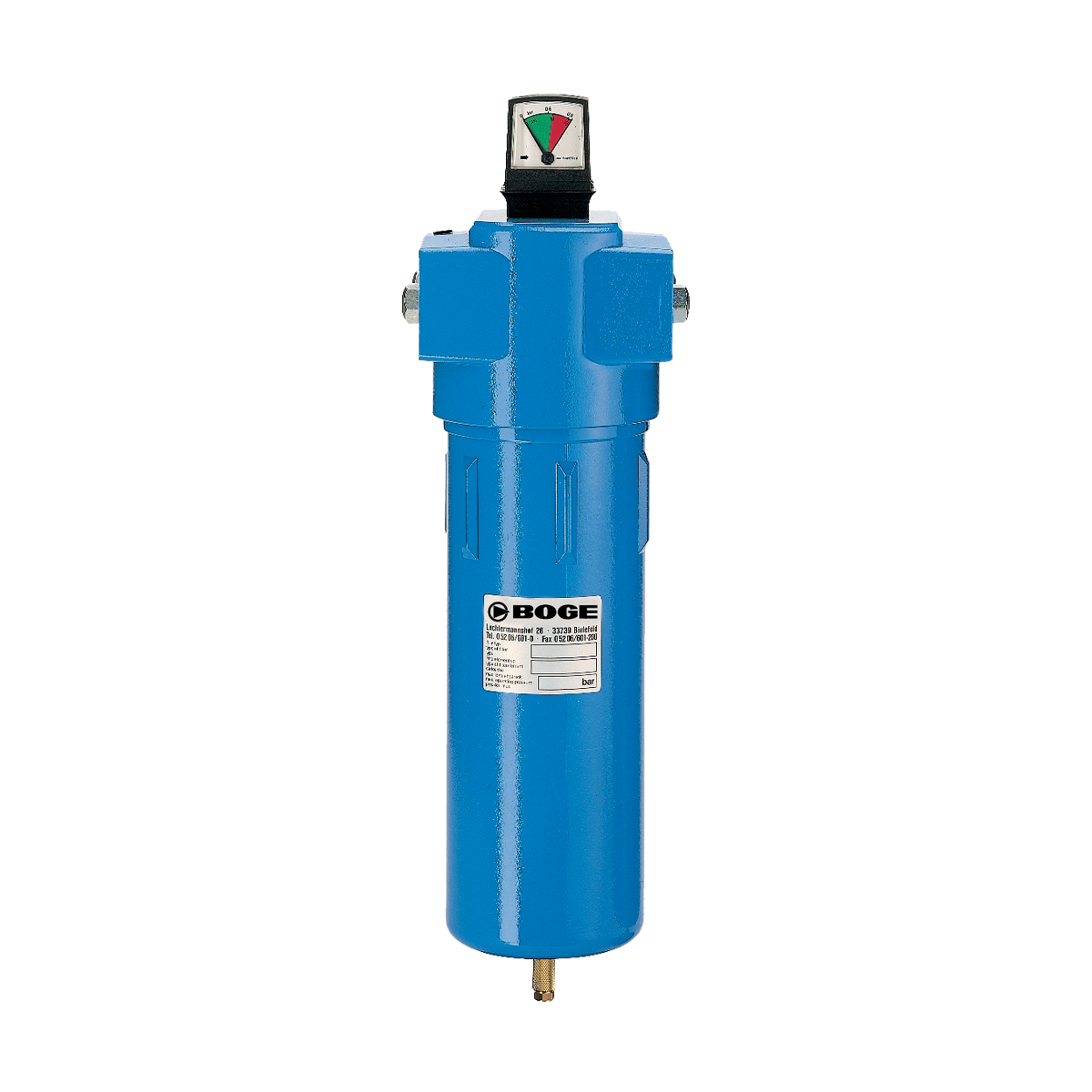

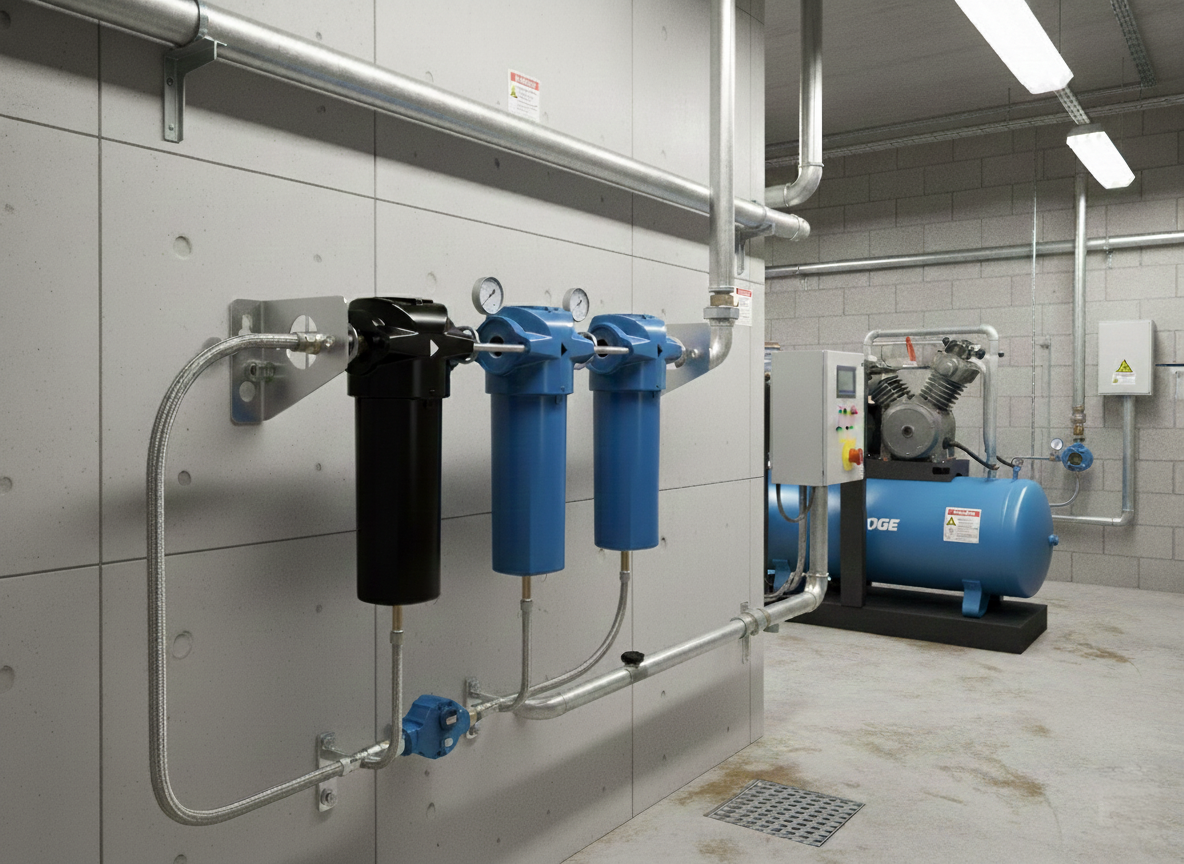

Industrial air filters provide high-efficiency removal of particulates, oil aerosols and fine moisture from compressed air, protecting equipment and extending service life. With multiple filtration grades, they ensure clean, stable air quality for sensitive applications while reducing downtime and operating costs.
| الموديل MODEL |
معدل التدفق 2.9 Flow rate 2.9 |
التيار Current (A) |
الأمبير mA |
الوزن Weight |
الارتفاع (مم) HEIGHT |
العرض (مم) WIDTH |
العمق (مم) DEPTH |
|---|---|---|---|---|---|---|---|
| F12-2 P / F25-2A | 0.6 | 36 | 8A | 0.6 | 180 | 76 | 65 |
| F12-2 P / F32-2A | 1.2 | 72 | 16A | 1.2 | 240 | 89 | 30 |
| F36-2 P / F50-2A | 3.6 | 216 | 16A | 2.3 | 277 | 130 | 115 |
| F56-2 P / F65-2A | 5.6 | 336 | 16A | 2.7 | 337 | 120 | 115 |
| F85-2 P / F90-2A | 8.6 | 516 | 16A | 4.7 | 440 | 164 | 157 |
| F130-2 P / F160-2A | 13.2 | 792 | 16A | 7.4 | 552 | 164 | 157 |
| F190-2 P / F200-2A | 19.4 | 1164 | 16A | 10.2 | 622 | 164 | 157 |
| F260-2 P / F320-2A | 25.8 | 1548 | 32A | 10.4 | 654 | 192 | 183 |
| F380-2 P / F380-2A | 37.2 | 2232 | 32A | 15.4 | 844 | 192 | 183 |
| الموديل MODEL |
معدل التدفق 2 Flow rate 2 |
اتصال Connection |
رقم عنصر الفلتر Filter element Number |
وزن Weight KG |
الأبعاد بالملم Dimensions in mm |
||||
|---|---|---|---|---|---|---|---|---|---|
| M3/MIN | CFM | A | B | C | D | ||||

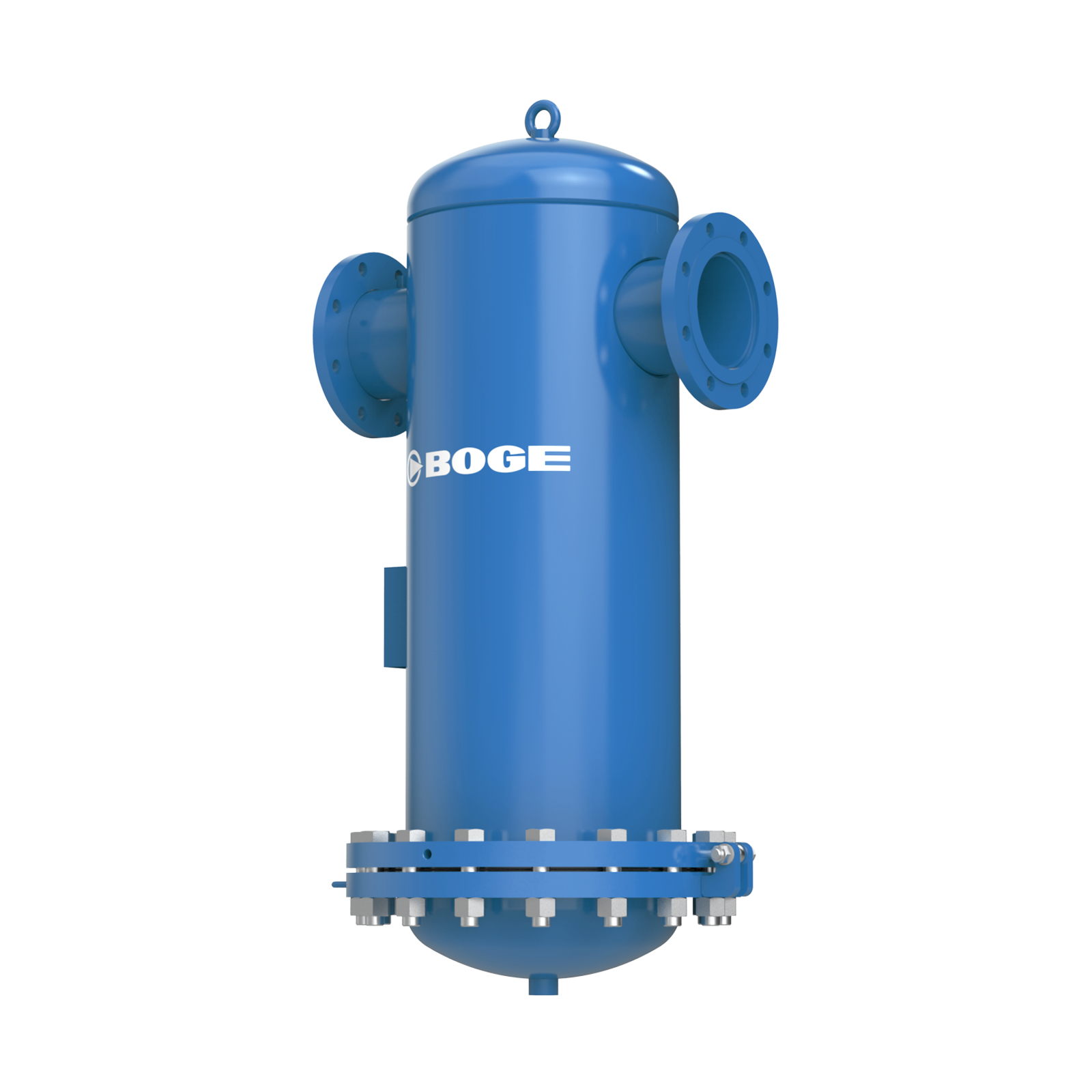

| F 375 FP / F 375 FM / F 375 FA | 2232 | 1313 | DN 80 | 1 | 72 | 440 | 1222 | 221 | 523 |
| F 745 FP / F 745 FM / F 745 FA | 4464 | 2627 | DN 100 | 2 | 99 | 500 | 1235 | 258 | 523 |
| F 1115 FP / F 1115 FM / F 1115 FA | 6696 | 3941 | DN 150 | 3 | 150 | 600 | 1429 | 308 | 523 |
| F 1490 FP / F 1490 FM / F 1490 FA | 8928 | 5255 | DN 150 | 4 | 189 | 650 | 1505 | 346 | 523 |
| F 2230 FP / F 2230 FM / F 2230 FA | 13392 | 7882 | DN 200 | 6 | 242 | 750 | 1572 | 386 | 523 |
| F 3720 FP / F 3720 FM / F 3720 FA | 22320 | 13137 | DN 250 | 10 | 472 | 1000 | 1733 | 482 | 523 |
| F 5210 FP / F 5210 FM / F 5210 FA | 31248 | 18390 | DN 300 | 14 | 583 | 1050 | 1836 | 513 | 523 |
