Product Overview
HIMOINSA’s HT Range offers high autonomy and low consumption, ideal for telecommunication stations. Designed for both continuous and backup power, these generator sets ensure reliability and cost-effectiveness.
– High autonomy and low consumption
– Extended service intervals
– Large capacity fuel tanks
– Remote management capabilities
The HT Range is powered by Yanmar engines, known for their low consumption levels, reducing operating costs significantly while ensuring reliable performance for telecommunication projects.
Gas generators offer extended service intervals up to 8,600 hours, while diesel versions can reach 1,000 hours with a special kit, minimizing maintenance and downtime.
Diesel generators feature integrated large fuel tanks, allowing up to 14 days of uninterrupted operation, significantly reducing site visits and operational costs.

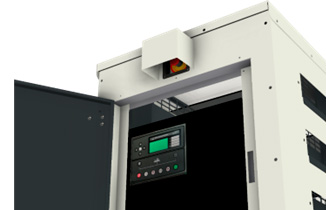

HIMOINSA’s electronic control enables remote management, allowing full monitoring and control of your fleet, eliminating the need for on-site visits.

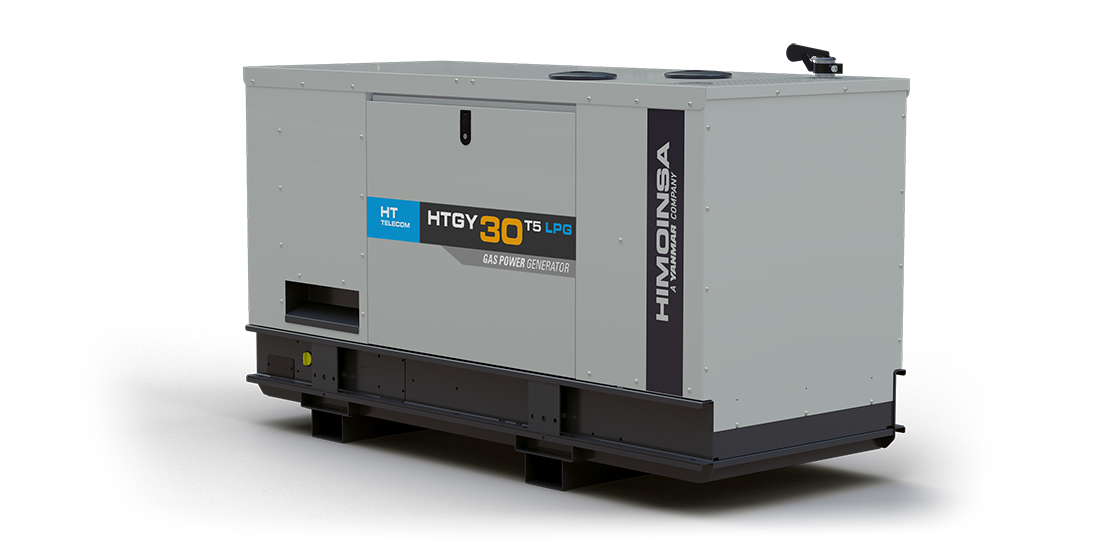

The HTGY 30 model reduces CO2 emissions by up to 15,790 kg/year, with significant reductions in NOx, SO2, and harmful particles, promoting sustainability.
The HT Range from HIMOINSA provides high-reliability generator sets for base telecommunications stations
(BTS), equipped with advanced features such as remote monitoring, large fuel tanks and low emissions,
available in diesel or gas configurations to support either continuous operation or emergency standby in telecom environments.
8,6 – 45 KW
| الموديل MODEL |
الطاقة (كيلو فولت أمبير) Power (kVA) |
الطاقة الطوارئ (كيلو فولت أمبير) POWER ESP (kVA) |
القدرة (كيلو واط) POWER (kW) |
القدرة الطوارئ (كيلو واط) POWER ESP (kW) |
|---|---|---|---|---|
| HTY-9 T6 | 10 | 10.8 | 8 | 8.6 |
| HTY-14 T6 | 15.6 | 16.8 | 12.4 | 13.5 |
| HTY-20 T6 | 21 | 23 | 17 | 18.4 |
| HTY-25 T6 | 27 | 29 | 21 | 25 |
| HTY-35 T6 | 41 | 45 | 32 | 36 |
| HTY-45 T6 | 51 | 56 | 41 | 45 |
8,5 – 40 KW
| الموديل MODEL |
الطاقة (كيلو فولت أمبير) Power (kVA) |
الطاقة الطوارئ (كيلو فولت أمبير) POWER ESP (kVA) |
القدرة (كيلو واط) POWER (kW) |
القدرة الطوارئ (كيلو واط) POWER ESP (kW) |
|---|---|---|---|---|
| HTY-9 M6 | 7.8 | 8.5 | 7.8 | 8.5 |
| HTY-14 M6 | 12.1 | 13.3 | 12.1 | 13.3 |
| HTY-20 M6 | 16.5 | 18.1 | 16.5 | 18.1 |
| HTY-25 M6 | 20 | 22 | 20 | 22 |
| HTY-35 M6 | 31 | 35 | 31 | 35 |
| HTY-45 M6 | 37 | 40 | 37 | 40 |
