Product Overview
Efficient On-Site Oxygen Generation
Generate oxygen independently and save on costs while ensuring high purity for your applications. Enjoy long-term savings and independence from liquid gas suppliers.
– High purity with AutoPure Technology
– Durable zirconium oxide sensor
– Efficient PSA technology
– Cost-effective redundancy options
This technology maintains a consistently high oxygen purity, ideal for sensitive applications like pharmaceuticals. It uses a purging valve to release lower-quality gas until the desired purity is achieved.

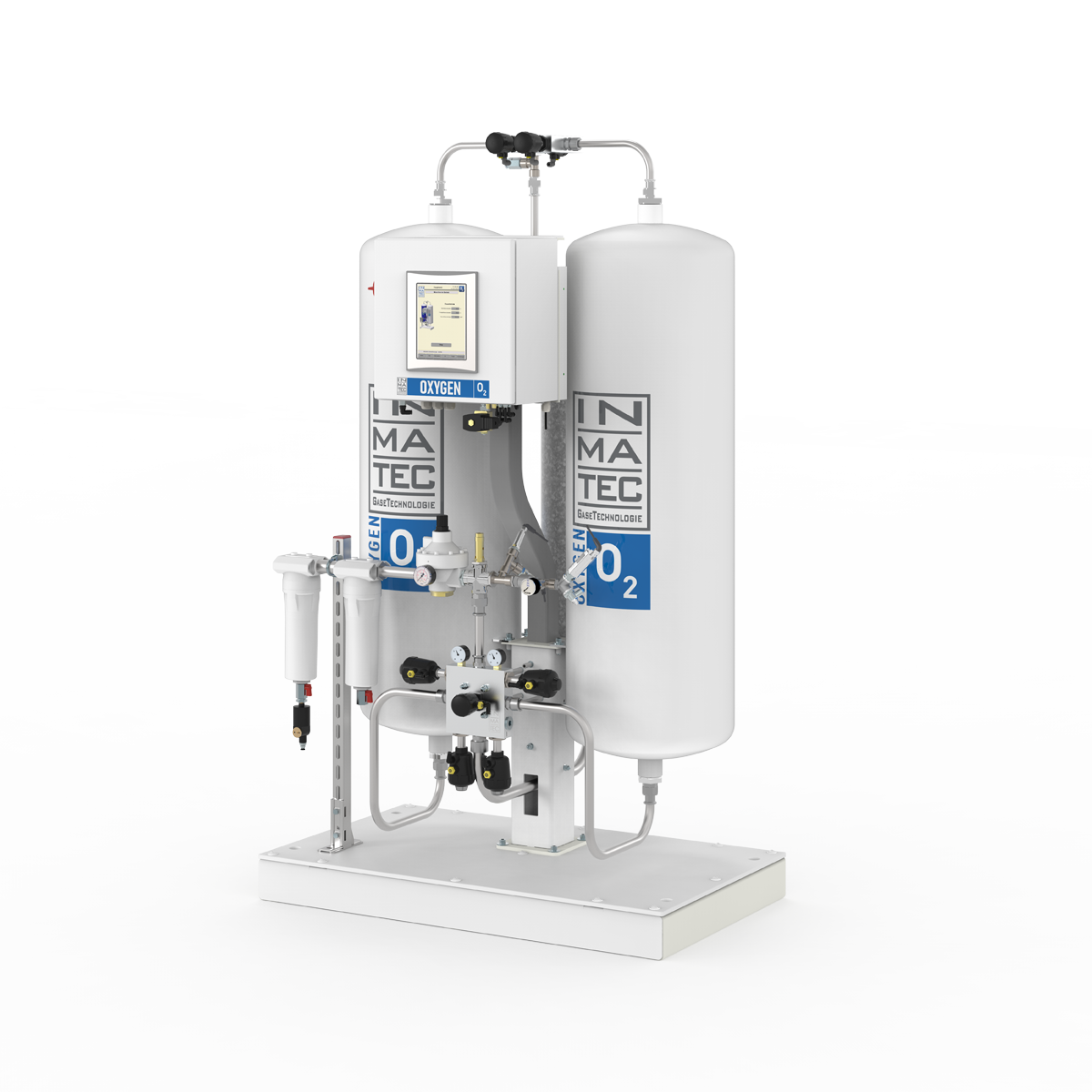

The sensor provides continuous and reliable monitoring of oxygen purity, with temperature resistance and quick response times ensuring operational safety and product quality.
Utilizes the adsorption principle to generate oxygen, ensuring a continuous flow by alternating compressed air through two receivers filled with zeolite molecular sieves.
Allows for maintenance without downtime by enabling manual switching to redundant pipework, covering most fault scenarios and ensuring continuous operation.

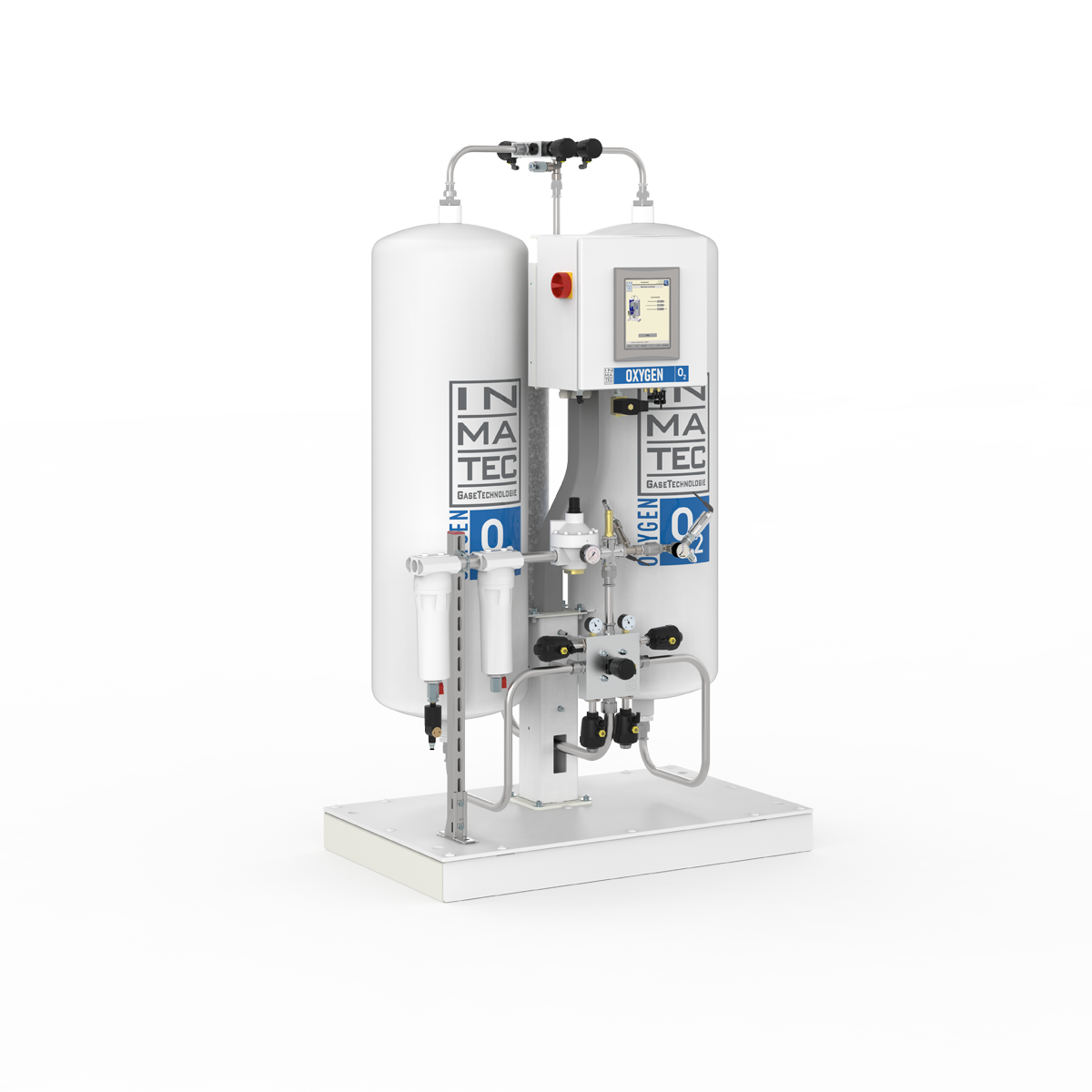

The control system offers a visual representation of the process with numerous interfaces for easy integration and transparent monitoring, enhancing user experience and operational efficiency.

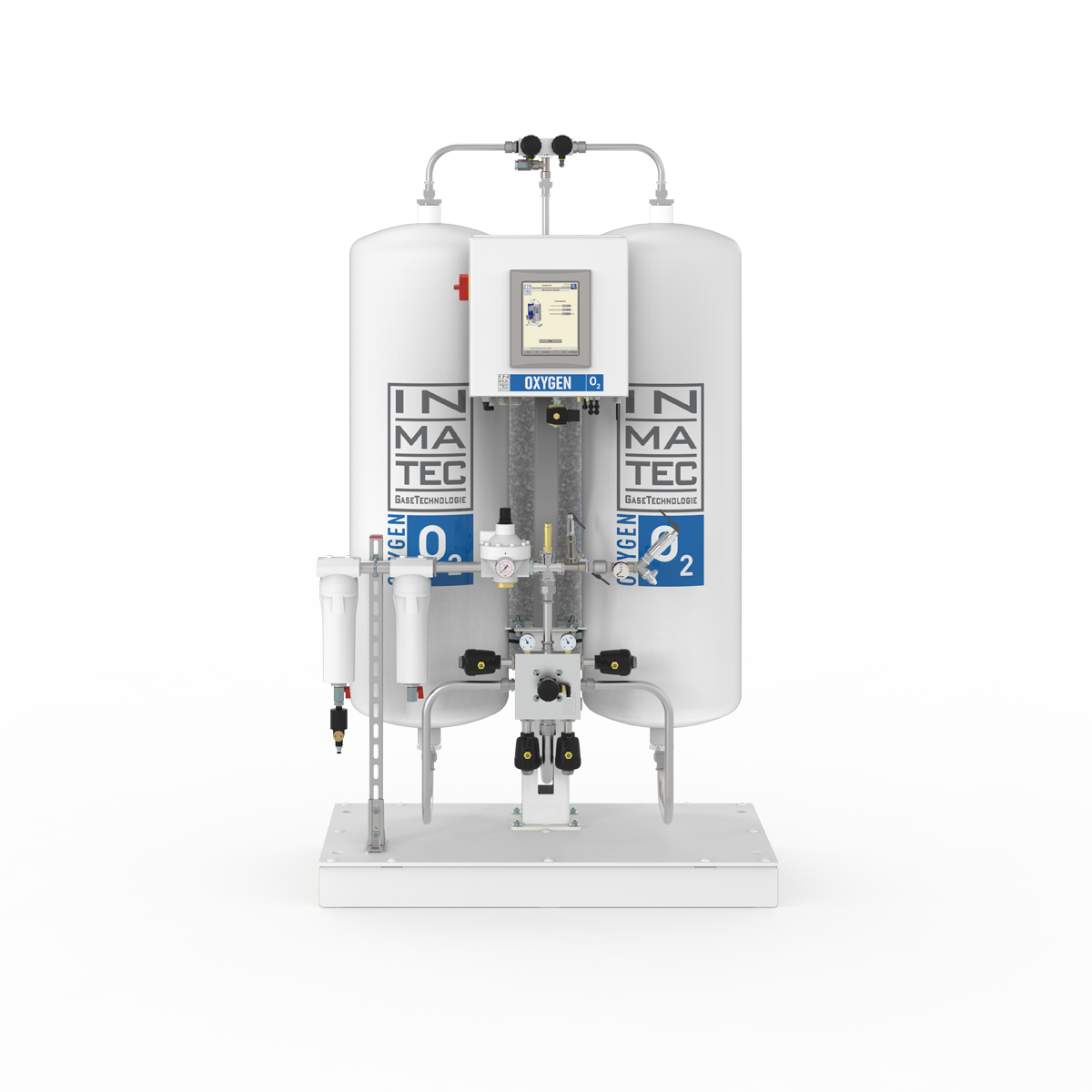

BOGE PO oxygen generators provide efficient, independent on-site oxygen production using advanced PSA technology, separating nitrogen through highquality ZMS for stable purity and reliable operation. Featuring zirconium oxide purity sensors, precision filtration and constant pressure and flow control, they deliver high-quality oxygen suitable for sensitive industrial applications with low operating costs.
| الموديل MODEL |
الأبعاد Dimensions (L × W × H) mm |
ضغط التصميم Design Pressure |
ضغط التشغيل Operating Pressure |
الوزن الصافي Net Weight |
مستوى الضوضاء Noise Level |
مزود الطاقة Power Supply |
استهلاك الطاقة Power Consumption |
درجة الحماية Protection Class |
|---|---|---|---|---|---|---|---|---|
| PO 20 | 750 × 810 × 1,800 | 11 bar (g) | 7 bar (g) | 160 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 40 | 750 × 810 × 1,650 | 11 bar (g) | 7 bar (g) | 290 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 60 | 750 × 810 × 1,735 | 11 bar (g) | 7 bar (g) | 320 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 90 | 830 × 1,100 × 1,810 | 11 bar (g) | 7 bar (g) | 490 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 150 | 830 × 1,100 × 1,900 | 11 bar (g) | 7 bar (g) | 550 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 220 | 835 × 1,100 × 2,000 | 11 bar (g) | 7 bar (g) | 880 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 270 | 845 × 1,600 × 2,160 | 11 bar (g) | 7 bar (g) | 930 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 350 | 840 × 1,600 × 2,165 | 11 bar (g) | 7 bar (g) | 1,030 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 500 | 840 × 1,600 × 2,350 | 11 bar (g) | 7 bar (g) | 1,390 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 750 | 1,260 × 2,110 × 2,420 | 11 bar (g) | 7 bar (g) | 2,160 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 1000 | 1,260 × 2,110 × 2,775 | 11 bar (g) | 7 bar (g) | 2,800 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 1500 | 1,340 × 2,200 × 2,895 | 11 bar (g) | 7 bar (g) | 3,800 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
| PO 2000 | 1,760 × 2,250 × 3,005 | 11 bar (g) | 7 bar (g) | 4,550 kg | 55 – 85 dB (A) | 110 V – 230 V 50 Hz – 60 Hz | 150 W | IP 54 |
