Product Overview
Efficient Oil-Free Air Compression

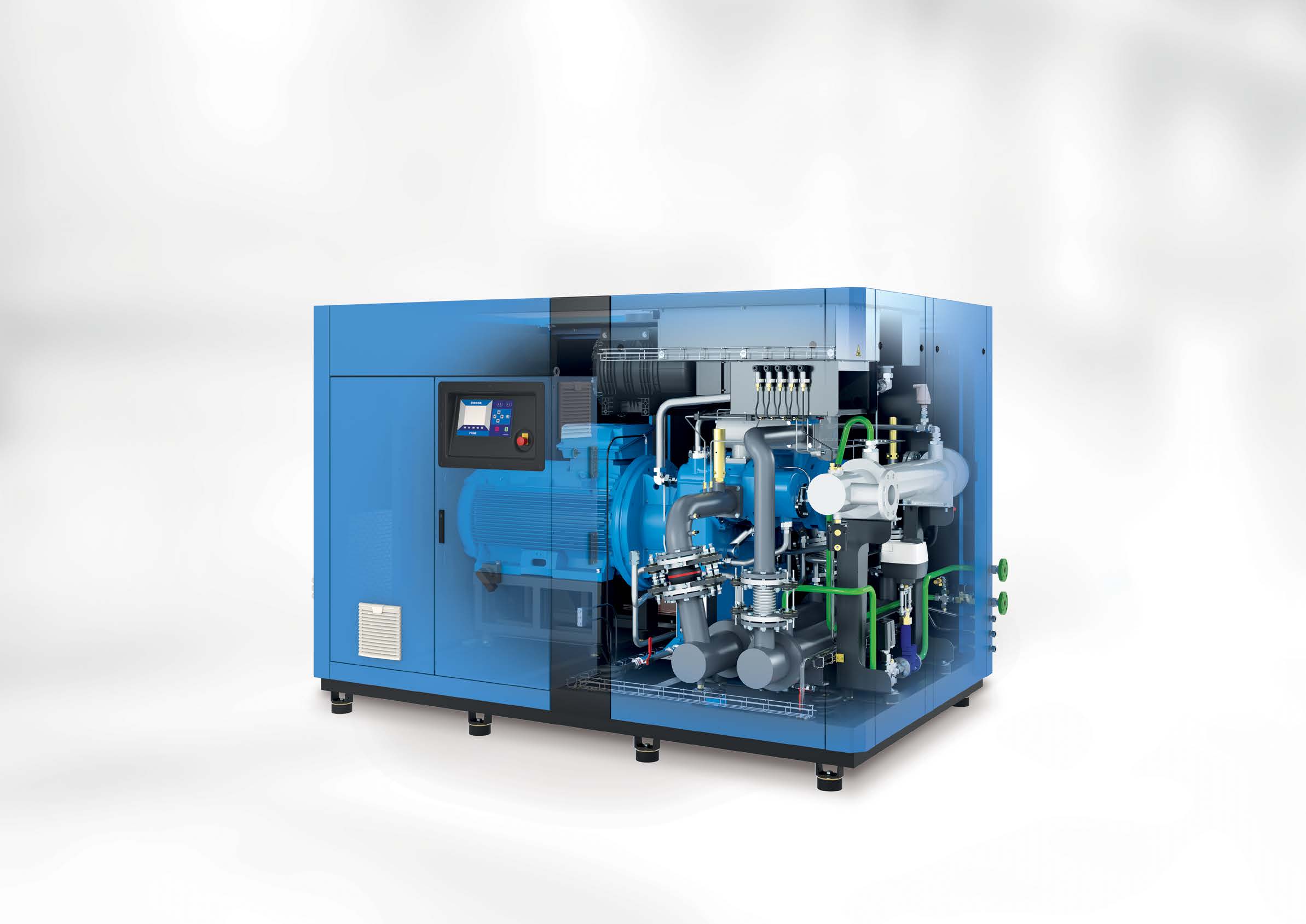

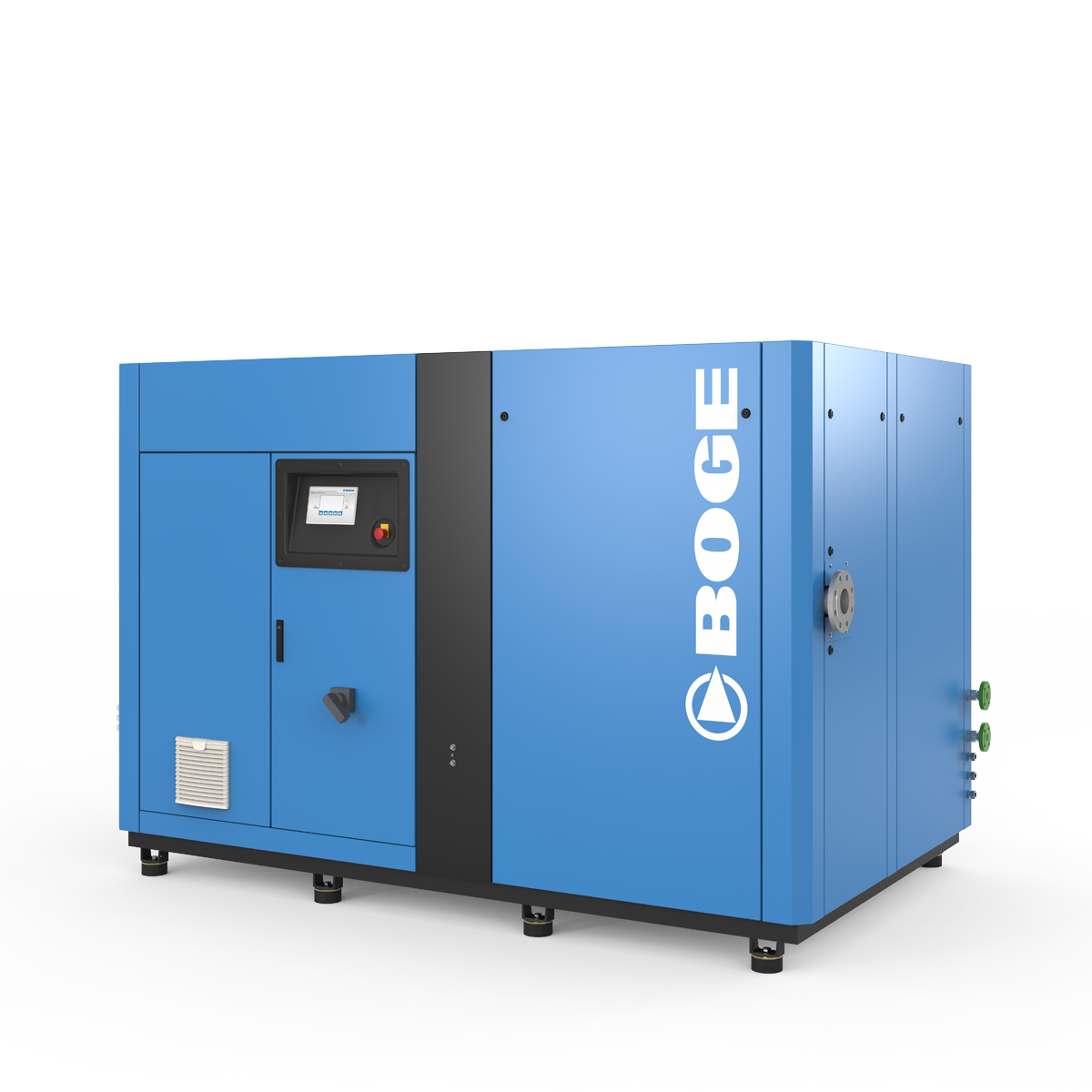

The BOGE SO-3 series offers top-tier performance with innovative engineering for oil-free compressed air. Designed for efficiency, it minimizes costs and environmental impact.
– High free air delivery
– Low maintenance design
– Energy-efficient cooling system
– Advanced sound insulation
The intake filter is strategically placed at the coolest point, ensuring high free air delivery and low specific power. This design choice enhances the overall efficiency of the machine.
Utilizing high-quality sound insulation materials, the SO-3 series achieves maximum sound absorption, resulting in quieter operation and a more pleasant working environment.

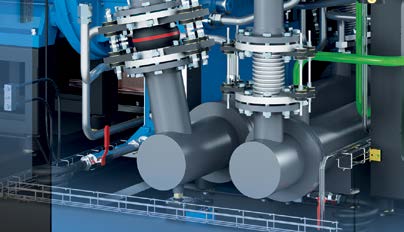

The cooling system uses large stainless steel coolers and consistent water flow, reducing contamination risk and ensuring low air outlet temperatures, contributing to energy savings.
Up to 94% of the energy from the compression process can be repurposed for heating systems or industrial processes, significantly cutting energy costs.

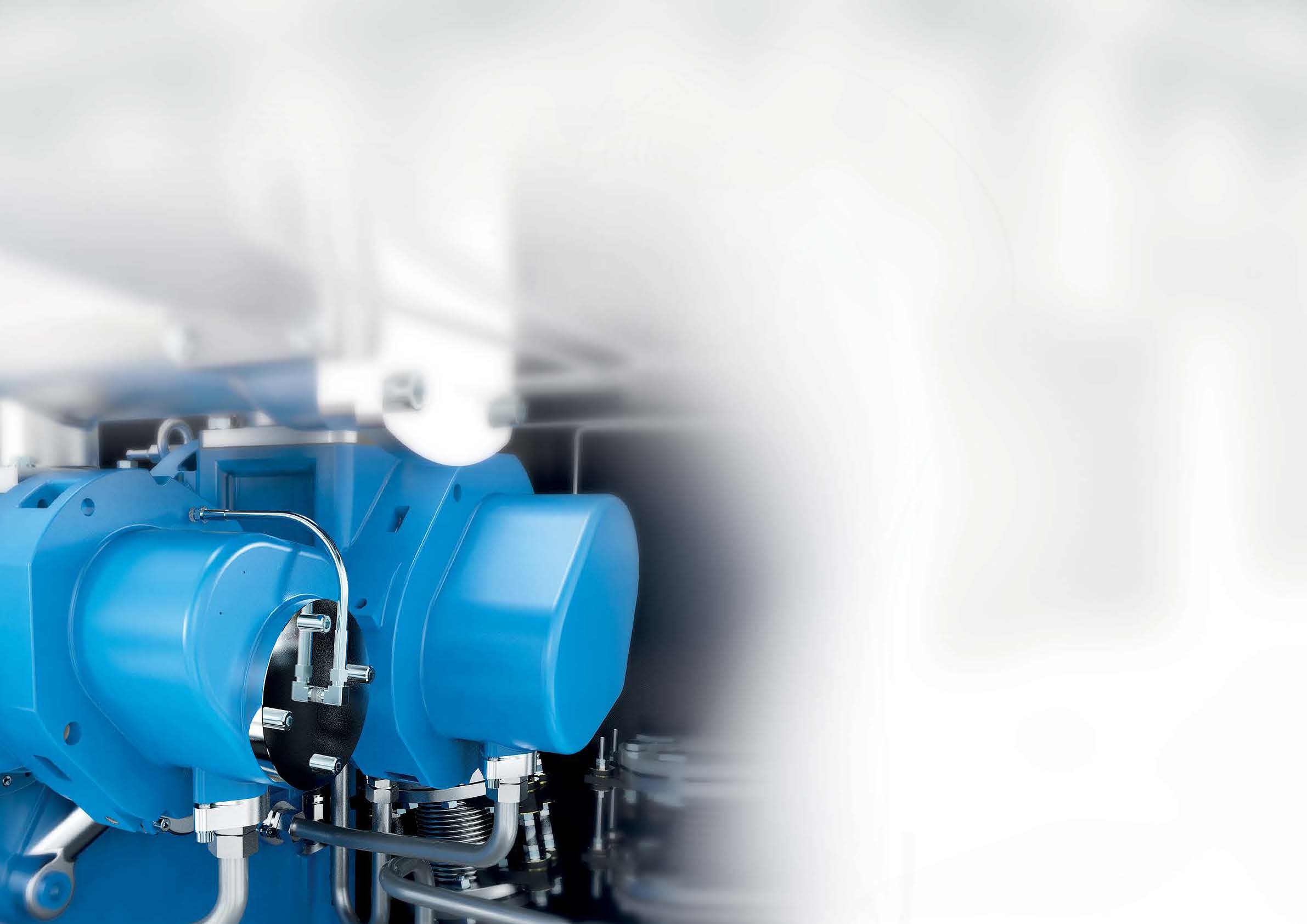

By isolating components from vibrations, the SO-3 series minimizes wear and extends service life, ensuring reliable and long-lasting performance.
| الموديل MODEL |
أقصى ضغط Max Pressure (bar) |
حجم التسليم الفعال* Effective Delivery Volume* m3/min |
قدرة المحرك الرئيسية Rated output main drive kW |
قدرة المروحة Fan motor kW |
الأبعاد Dimensions (W×D×H) m |
الوزن مع العزل الصوتي Weight with sound insulation kg |
الوزن مع العزل الصوتي الفائق Weight with super sound insulation kg |
|---|---|---|---|---|---|---|---|
| SO 110-3 | 7.5 | – | 19.8 | 110 | 0.75 | 3086×1820×2010 | 3800 |
| SO 110-3 | 8 | – | 17.6 | 110 | 0.75 | 3086×1820×2010 | 3800 |
| SO 110-3 | 10 | – | 15.5 | 110 | 0.75 | 3086×1820×2010 | 3800 |
| SO 132-3 | 7.5 | – | 24.6 | 132 | 0.75 | 3086×1820×2010 | 3950 |
| SO 132-3 | 8 | – | 21.3 | 132 | 0.75 | 3086×1820×2010 | 3950 |
| SO 132-3 | 10 | – | 19.7 | 132 | 0.75 | 3086×1820×2010 | 3950 |
| SO 160-3 | 7.5 | – | 29.1 | 160 | 0.75 | 3086×1820×2010 | 4030 |
| SO 160-3 | 8 | – | 26.3 | 160 | 0.75 | 3086×1820×2010 | 4030 |
| SO 160-3 | 10 | – | 24.5 | 160 | 0.75 | 3086×1820×2010 | 4030 |
| SO 110-3 F | 7.5 | 9.33 | 20.34 | 110 | 0.75 | 3086×1820×2010 | 4120 |
| SO 110-3 F | 8 | 9.23 | 19.61 | 110 | 0.75 | 3086×1820×2010 | 4120 |
| SO 110-3 F | 10 | 8.06 | 17 | 110 | 0.75 | 3086×1820×2010 | 4120 |
| SO 132-3 F | 7.5 | 10.72 | 23.84 | 132 | 0.75 | 3086×1820×2010 | 4270 |
| SO 132-3 F | 8 | 9.23 | 21.71 | 132 | 0.75 | 3086×1820×2010 | 4270 |
| SO 132-3 F | 10 | 8.06 | 19.27 | 132 | 0.75 | 3086×1820×2010 | 4270 |
| SO 160-3 F | 7.5 | 12.83 | 29.02 | 160 | 0.75 | 3086×1820×2010 | 4350 |
| SO 160-3 F | 8 | 11.5 | 26.4 | 160 | 0.75 | 3086×1820×2010 | 4350 |
| SO 160-3 F | 10 | 10.58 | 24.47 | 160 | 0.75 | 3086×1820×2010 | 4350 |
